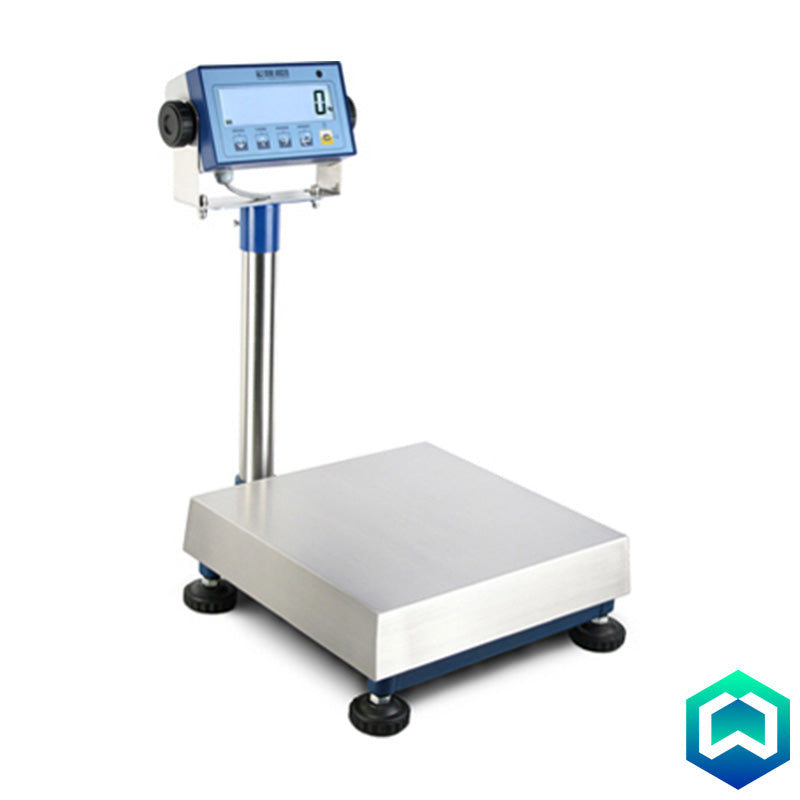

"WALL-E" Series Bench And Floor Scales

WALL-E Bench or Floor Scales Technical Features

• Weight indicator with ABS case, 25mm back-lit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad.
• Functioning with an aluminium load cell, 3000d approved with IP65 protection degree.
• Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
• Stainless steel loading surface, size: see the table.
• Fitted with fixing bracket with adjustable inclination and support column, height:
  - 350 mm in the "T" models;
  - 500 mm in the "Q" models;
  - 700 mm in the "X" and "E" models.
• Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
• Power supply: 4 AA batteries or 230Vac power supplier.

SELECTABLE FUNCTIONS

• x 10 high resolution visualization
• Net/Gross or lb/kg conversion
• Weights totalisation
• Formulation
• +/- Check
• Percentage weigh
• Alibi, for approved weight transmission (optional)
• Counting

I/O SECTION

• RS232/RS485 port for connection to PC, PLC or repeater.
• RS232 port configurable for connection to printer.
• IR input for managing the remote control.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

• CE-M approval (OIML R-76 / EN 45501).

SELECTABLE FUNCTION MODES

• The user can select the operating modes directly using the dedicated key*:
  - High resolution display x 10
  - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
  - Net/Gross
  - Lb to Kg converter
  - Free conversion factor (for meter and litre counters etc.)
  - Weight totalizer
  - Formulizer
  - +/- controller with quick target and threshold input
  - Percentage weighing
  - Piece counter
  - Hold

The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board.

• Optional functions:
  - PEAK, detection of weight peaks (code DFWPK)
  - Newton to Kg converter (code DFWPK)
• Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.
