Crosby Straightpoint Handheld Plus Wireless or Wired Display Unit

By Straightpoint

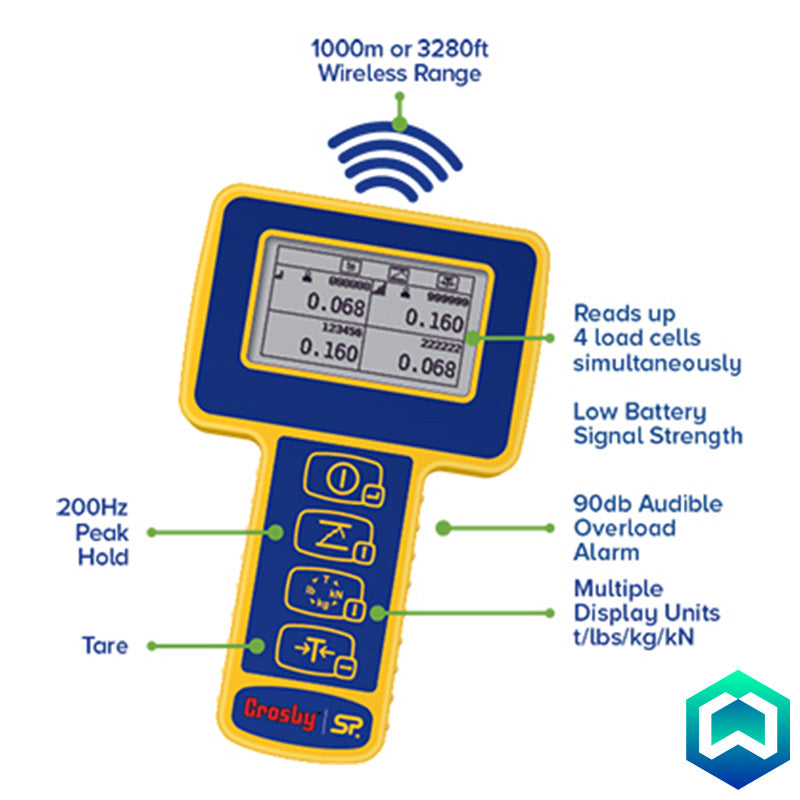

The Crosby SP Handheld Plus is a robust and feature-rich digital handheld display designed for comprehensive load monitoring across all Straightpoint load cell products. Its ergonomically designed body houses a powerful PCB that delivers industry-leading functionality, making it an essential tool for various lifting and weighing applications.

Model
Accessories
£633.00
Product Information

Features:

  • Universal Compatibility: Suitable for all Straightpoint wired and wireless load cell products.
  • User-Selectable Units: Easily switch between tonnes, lbs, kg, and kN.
  • Programmable Audible Overload Alarm (HHP & SW-HHP): Provides immediate notification of overload conditions.
  • 100hz Peak Hold Function: Captures and displays the maximum load applied.
  • Pre-Set Tare: Allows for zeroing out the weight of rigging or attachments.
  • User-Resettable Overload Counter (HHP & SW-HHP): Tracks overload events for enhanced safety and quality control.
  • Wired Connectivity (HHP): Connects to all Straightpoint cabled load cells and other mV/V output load cells.
  • Wireless Connectivity (SW-HHP): Connects to Straightpoint wireless load cells with an industry-leading range of up to 1000m (3280ft) – 700m (2300ft) for ATEX.
  • Rugged and Ergonomic Design: Built for durability and comfortable use in industrial environments.
  • Supplied Standard With: AA Batteries, Operator Manual
  • Available in ATEX Version: Can be supplied in an ATEX certified version suitable for use in hazardous areas classified as zones 0,1 & 2.
Specification

Battery Type: 2 x AA

Battery Life:

  • HHP (Wired): 100 hours continuous
  • SW-HHP (Wireless): 40 hours continuous

Display Type: 240x128 multi-line dot matrix with backlight

Audible Alarm: Yes

Operating Temp: -10 to +50 °C / 14 to 122 °F

Protection: IP65 / NEMA 4X

Excitation: 3.3V (HHP only)

Max Sensitivity: 3mV/V (HHP only) / N/A (SW-HHP)

Range:

  • HHP (Wired): N/A
  • SW-HHP (Wireless): 1000m or 3280ft

Connectivity:

  • HHP (Wired): 6-way female binder 723 socket
  • SW-HHP (Wireless): Wireless 2.4 GHz

Loadcells Supported:

  • HHP (Wired): 1
  • SW-HHP (Wireless): 4

Dimensions (for SW-HHP / Wireless):

  • A: 118.2 or 4.65"
  • B: 186 or 7.32"
  • C: 57 or 2.24"
  • D: 35 or 1.38"
Downloads

Please click here for the Crosby Straightpoint Handheld Plus Wireless or Wired Display Unit datasheet
