Ohaus Defender 6000 I-D61XWE Stainless Steel Washdown Bench Scales

Features:

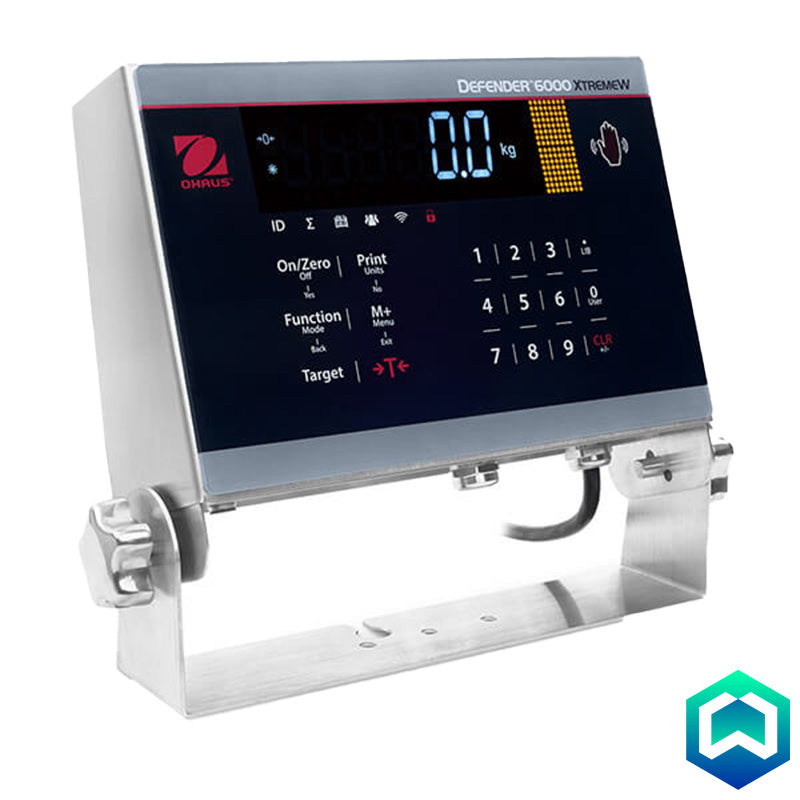

• Display: 6-digit, 7-segment white LED, 20 mm high digits
• Power: 100-240 VAC / 50/60 Hz universal power supply, hardwired or external power bank.
• Communication: Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (sold separately as accessories); GLP/GMP data output with real-time clock
• Design: 150% overload capacity protection, 3-colour check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare, adjustable rubber feet
• NSF Certified: Meets stringent food safety standards for hygienic operation.

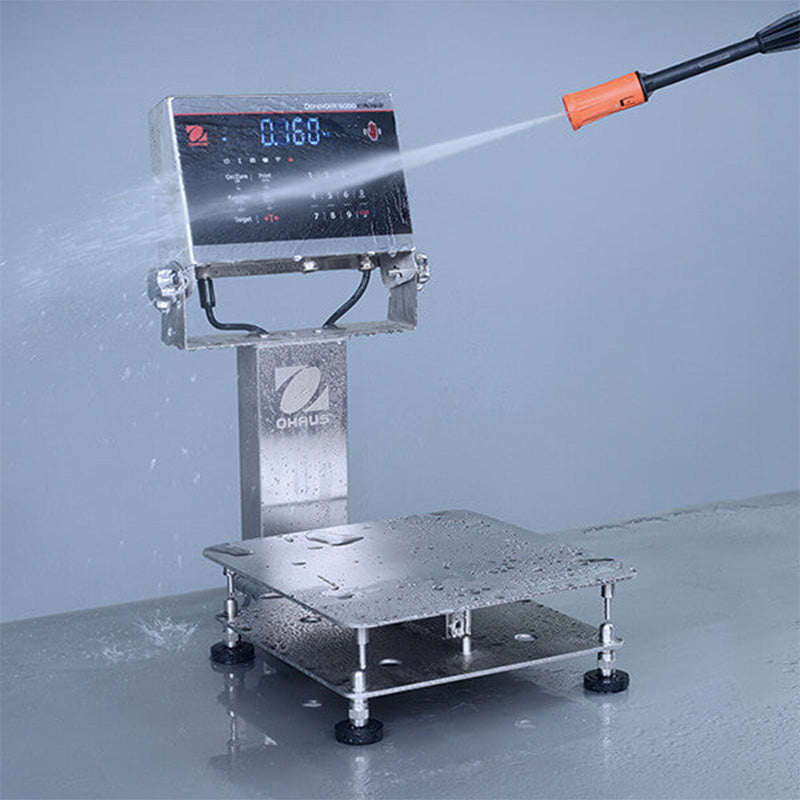

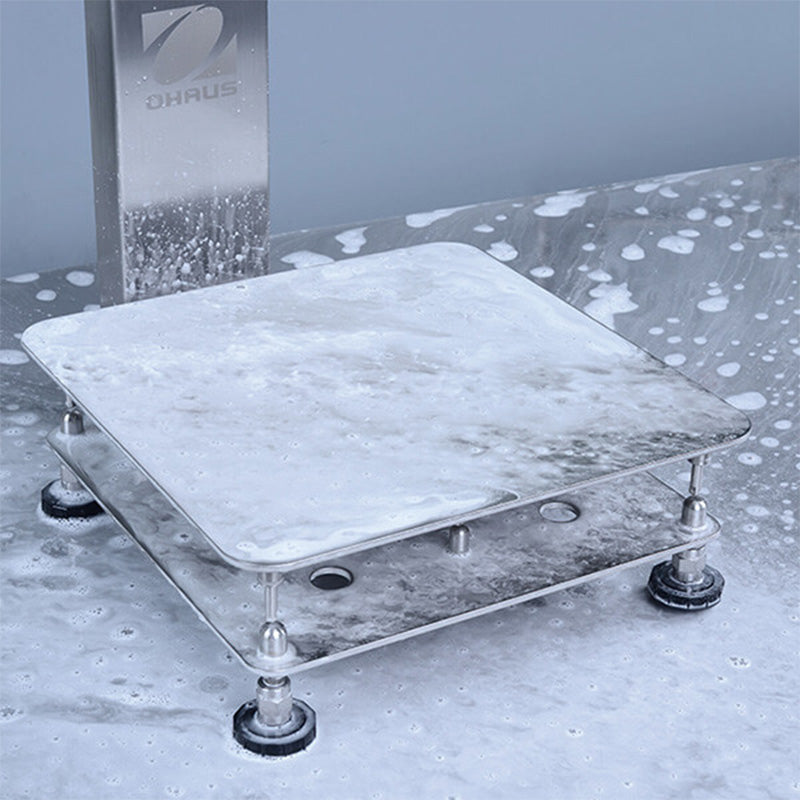

• Unique Features: IP68 immersion/IP69K washdown protection, 316 stainless steel construction, hermetically-sealed load cell, versatile software modes for food, chemical processing, and packaging.


Application Modes:

• Weighing: Determine the weight of items in the selected unit of measure.
• Parts Counting: Count items of uniform weight. Advanced auto-optimization software recalculates the average piece weight as the overall weight increases.
• Check weighing/ Check counting: Compare the weight of an item against target limits. Compare the count of a package against target limits. Bar matrix or 3-color check light display give clear and bright indication of weight.
• Percent Weighing: Display the weight of an item as a percentage of a pre-established reference weight.
• Dynamic Weighing and Display Hold: Take an average of weights for an item over a period of time to account for vibration or other interference. The Display Hold feature manually or automatically holds the last stable weight of an item on the display.

Available only in the i-D61XWE models:

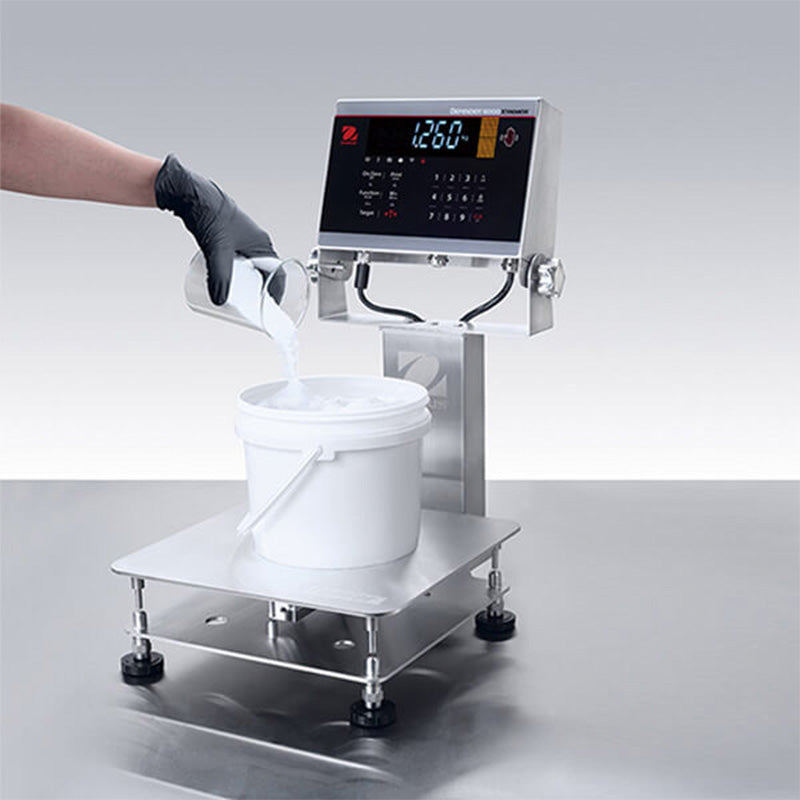

Filling: Fill a container to a target weight. 3-colour bar matrix displays filling status. Connect with Discrete I/O option kit for an auto-filling system.
Library and User Management: Up to 300 library items (stores part number, tare weights, APWs, under/over limits, set points or reference weight) can be shared within different weighing modes. Up to 100 user IDs can be stored for secure user access and traceability.

i-D61XWE models offer multiple connectivity options, including built-in RS232 and USB host, 2nd RS232/RS485/USB Device, Analog Output, Wi-Fi/Bluetooth, Ethernet and
Discrete I/O with relays. Hands-free, touchless sensor reduces contamination risk.

Compliance:

Metrology: EN45501 (Scale: T11889; Indicator: TC11888; Load Cell: OIML R60/2000-DE1-06.02 / D09-06.20; OIML R60/2000-NL1-12.50 / TC7648)
Product Safety: CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
Electromagnetic Compatibility: IEC/EN 61326-1 Class B, basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
Food Safety: ANSI/NSF 169, NSF/ANSI/3-A 14159-1
Ingress Protection: IEC 60529 – IP68, ISO 20653 – IP69K
Compliance Marks: CE
Other: WEEE, RoHS
