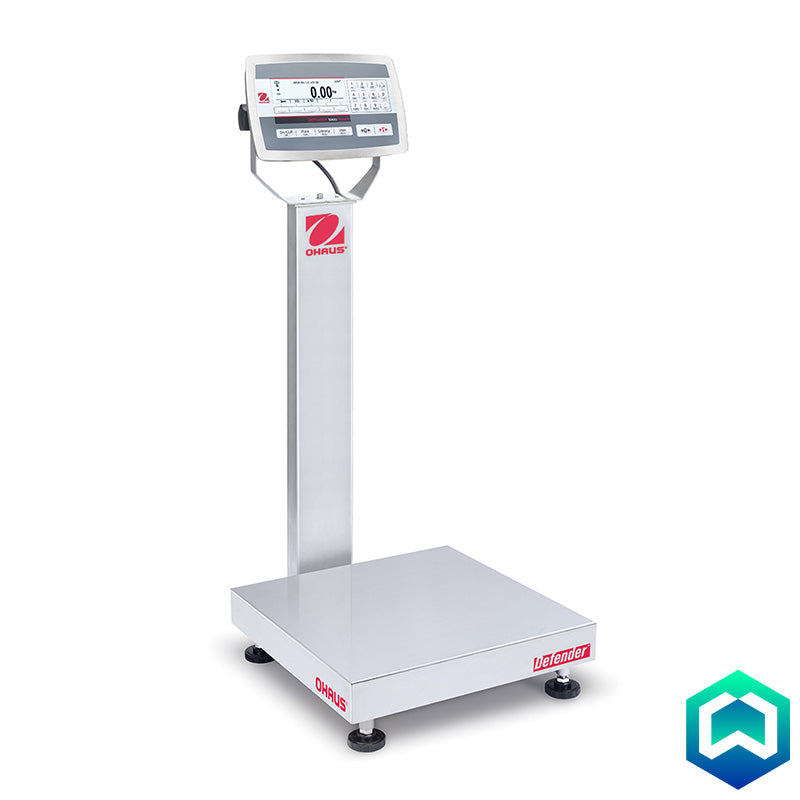

Ohaus Defender 5000 Column Mount Stainless Steel Display

By Ohaus

The Ohaus Defender 5000 is a high-performance industrial bench scale designed to meet the demanding requirements of various manufacturing and industrial applications. With its robust construction, advanced features, and multiple connectivity options, it offers a reliable and efficient weighing solution.

Product Information

Features:

  • High-Resolution Weighing: Offers dual-range resolution up to 3,000e and 150% overload capacity protection, ensuring accurate measurements even for delicate items.
  • Rugged Construction: Built to withstand harsh industrial conditions with a stainless steel platform and IP68 indicator, powder-coated steel frame and column, and aluminium load cell.
  • Extensive Connectivity: Provides multiple communication ports including RS232, Micro SD slot, Ethernet, WiFi/Bluetooth, and optional RS232/RS485/USB device for seamless data transfer and integration.
  • GLP/GMP Compliance: Ensures data integrity and traceability with real-time clock and GLP/GMP output capabilities.
  • User-Friendly Interface: Features a large column mounted backlit display with alpha-numeric keypad, function keys, and on-screen prompts for easy operation.
  • Versatile Applications: Supports a wide range of weighing modes, including percent weighing, parts counting, checkweighing, checkcounting, and dynamic weighing.
  • Ample Storage: Offers a 50,000-item library and 1,000 user profiles for efficient data management.
  • Customisable Settings: Allows for selectable display languages, filters, stability indicators, overload/underload indicators, and display controls.
  • Print Templates: A simple template is predefined for quick printing, as well as five templates you can customize so you can print the exact information necessary for your application
  • Unique Features: Checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare, non-slip adjustable rubber feet, a Wheel Kit option is also available for scales up to 300 kg.

Application Modes:

  • Weighing: Determine the weight of items in the selected unit of measure.
  • Parts Counting: Count samples of uniform weight. Advanced auto-optimization software recalculates the average piece of weight as the overall weight increases.
  • Checkweighing/Counting: Compare the weight/count of a sample against target limits. Connect with Discrete I/O and Light Tower Kit for external check lights.
  • Percent Weighing: Measure the weight of a sample displayed as a percentage of a pre-established reference weight.
  • Dynamic Weighing and Display Hold: Weigh an unstable load. Scale takes an average of weights over a period of time. The Display Hold feature manually and automatically holds the last stable weight on the display.

Compliance:

  • Metrology: OIML R76 (Indicators: Certificate R76-2006-A-NL1-18.13, Load Cells: Certificates R60/2000-NL1-12-41, R60/2000-NL1-12-42, R60/2000-NL1-12-43, R60/2000-NL1-14.24)
  • Product Safety: IEC/EN 61010-1;CAN/CSA C22.2 61010-1; UL61010-1
  • Electromagnetic Compatibility: IEC/EN 61326-1 Class B, basic environments; FCC Part 15 Class B; Canada ICES-003 Class B
  • Compliance Marks: CE; CSA; RCM
Specification

Display: Dot matrix LCD with white LED backlight, 256 x 80 pixels

Construction: IP68 stainless steel indicator, stainless steel removable weighing platform, powder-coated steel base and column, aluminum loadcell silicon sealed against moisture.

Platform Dimensions:

  • 305mm x 305mm
  • 400mm x 400mm
  • 500mm x 500mm
  • 610mm x 610mm
  • 600mm x 800mm

Power Requirement: 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (Sold separately)

Downloads

Please click here for the Ohaus Defender 5000 Bench Scale Data Sheet.


£780.00
