Ohaus Defender 3000 Bench Scales‎‏‏‎ - Front Mounted Display ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎‏‏‎ ‎‎‏‏‎ ‎‏‏‎ ‎

£340.00

Trade Approved:
Platform Size:
Capacity and Readability:

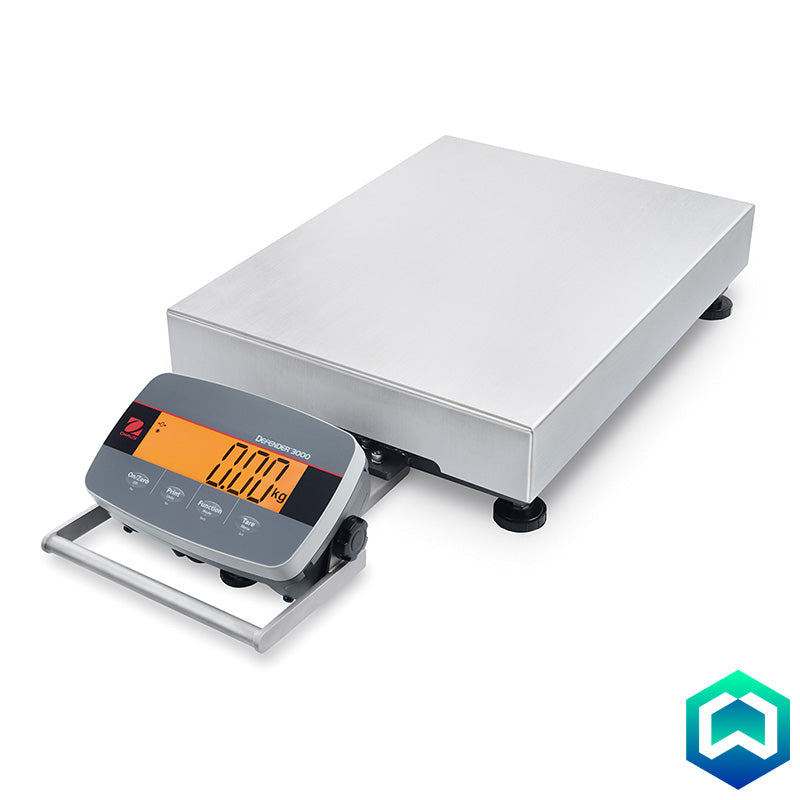

The new Ohaus Defender 3000 Bench Scales with Front Mounted Display

Clear Indications

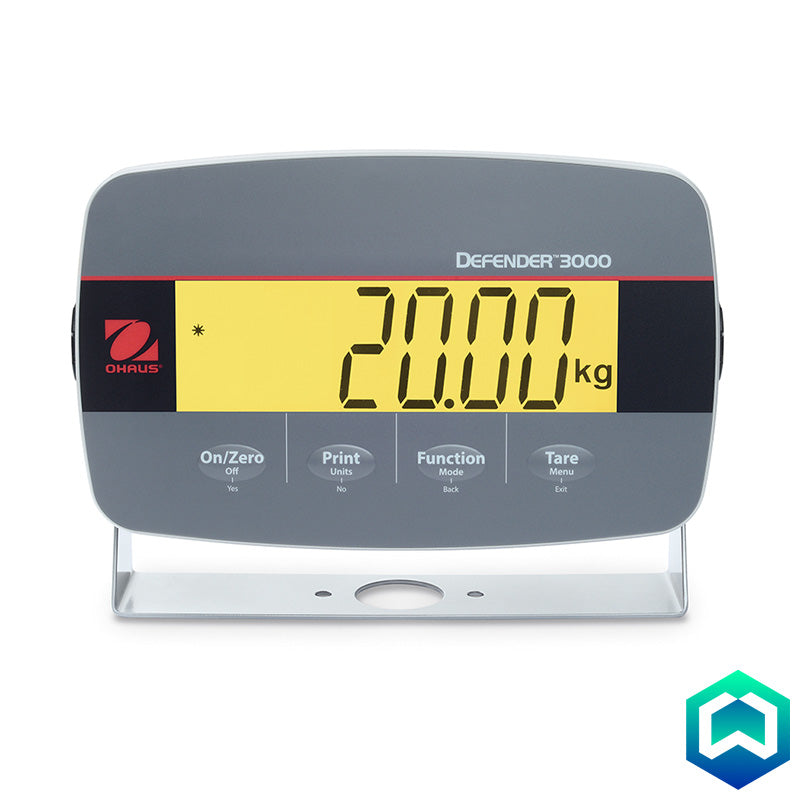

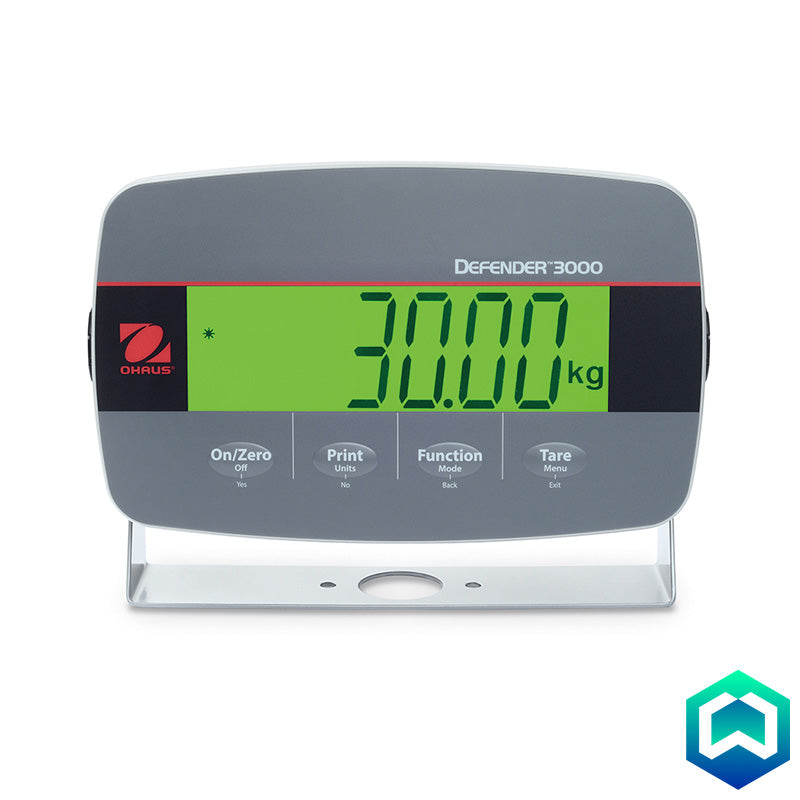

Large, multicolour backlit LCD displays enhance the new Ohaus Defender 3000 indicators and are bigger than ever for unmistakable results even from a distance.
The bright 45mm (1.8 inch) digit displays are almost twice as large as before and now feature four selectable backlight colours –amber, green, red and yellow. The Defender indicators can be mounted to a wall with the included bracket.

Not only are the displays bigger and brighter than ever, but the improved electronics are twice as fast, showing results in one second. When used with the new Check weighing mode, the Defender 3000 will alert you when you are within your target weight range in intuitive yellow, green, or red display colour changes. The Defender 3000 supports regular positive check weighing into a package, negative check weighing out of a bin or tote, and also zero check weighing + or – against a sample weight. Not only will the user see the result, but it will be clear even from across the production floor.

ABS Housing
The i-DT33P indicator is housed in a tough, ABS housing with a powder-coated steel bracket making it durable and ideal for basic industrial applications.
It can be powered by C-cell batteries for over 360 hours of use or with an optional internal rechargeable battery pack for up to 100 hours. AC power is also standard with a dedicated line cord – no wall adapters.

Your Job, Your Way
The Defender 3000 series now brings added versatility as well, with combinations of different bases, indicators and mounting options available depending on your customers’ application needs.
With bases ranging from 15kg (30lbs) in 305 x 355mm (12 x 14 inches) up to 600kg (1,200lbs) in 600 x 800mm (19.7 x 25.6 inches), our bases are OIML (NTEP & Measurement Canada)
certified. Designed to meet basic industrial needs, the Defender 3000 is made to perform everyday, ready for their next job.

Clear Communication
The new Defender 3000 series offers bi-directional RS232 as standard, either as an easy-access port on the i-DT33P or as a terminal block in the i-DT33XW. We now offer Ethernet or USB device as a second internal communication option for applications where both printing and data connection to a system are required. All communication ports can use either a simple or customizable print template using our ScaleMate software. Further, the Defender 3000 now supports OHAUS or MT continuous output, MT SICS and selectable ALT commands for Print, Zero and Tare operations -- all for added data integration.

Smarter Than Ever
The Defender 3000 has been updated with simple check weighing using the multi-colour display showing yellow (under), green (OK) or red (over target). Targets can be easily set using the indicator’s four keys in any of the indicators’ weighing units – kg, g, lb, oz, lb:oz or metric tonnes. The new Ohaus Defender 3000 also includes totalization mode which tracks the results of a series
of weighments. After tracking each weight, when prompted it can display basic statistics on a number of weighments, max., min., average, difference and total. Results can also be printed or output to a data connection using a customizable template. Other improvements include a quick key press to show Tare and APW values, selectable power and screen saving settings, configurable key lockouts to minimize operator errors, calibration test, power-on zero control, and selectable auto-tare. Our popular EasyConnect system is now available in the Defender 3000 indicators – mix-and-match even with our Defender series bench scale bases and floor scale platforms for greater flexibility.

The New Ohaus Defender 3000 Industrial Bench or Floor Scales with Front Mounted Display

Application
Weighing, Check weighing, Counting, Totalization.

Display
7 Segment LCD with multicolour backlight

Operation
Power cord (included), 6C (LR14) Batteries (not included) or Rechargeable Battery

Communication
Standard RS232 and optional USB Device or Ethernet

Construction
ABS plastic indicator, 304-stainless steel platform, powder-coated steel tubular frame, aluminium load cell, non-slip adjustable rubber feet

Design Features
150% overload protection

Standard Versions

Model Platform Sizes Capacity
i-D33P15B1R5 305mm x 355mm 15kg x 2g
i-D33P30B1R5 305mm x 355mm 30kg x 5g
i-D33P60B1R5 305mm x 355mm 60kg x 10g
i-D33P60B1L5 420mm x 550mm 60kg x 10g
i-D33P150B1L5 420mm x 550mm 150kg x 20g
i-D33P150B1X5 650mm x 500mm 150kg x 20g
i-D33P300B1X5 650mm x 500mm 300kg x 50g

Accessories Available for the New Ohaus Defender 3000 Standard

Column Assembly, 330mm, SST, i-DT33 30696595
Column Assembly, 680mm, SST, i-DT33 30696596
Column Assembly, 330mm, CS, i-DT33 30696597
Column Assembly, 680mm, CS, i-DT33 30696598
Column Assembly, 980mm, CS, i-DT33 30696599
USB Device Kit i-D33 30699120
Dust Cover i-DT33 (5) 30699121
Rechargeable battery kit i-DT33P 30699122
Wheel kit, Defender Series 30372146
Wheel kit SST, Defender Series 30616409
Cable RS232 i-DT33P 80500525
Cable RS232 i-DT33XW 80500552
Ethernet Kit 30429666

Please click here for the Ohaus Defender 3000 datasheet .....
