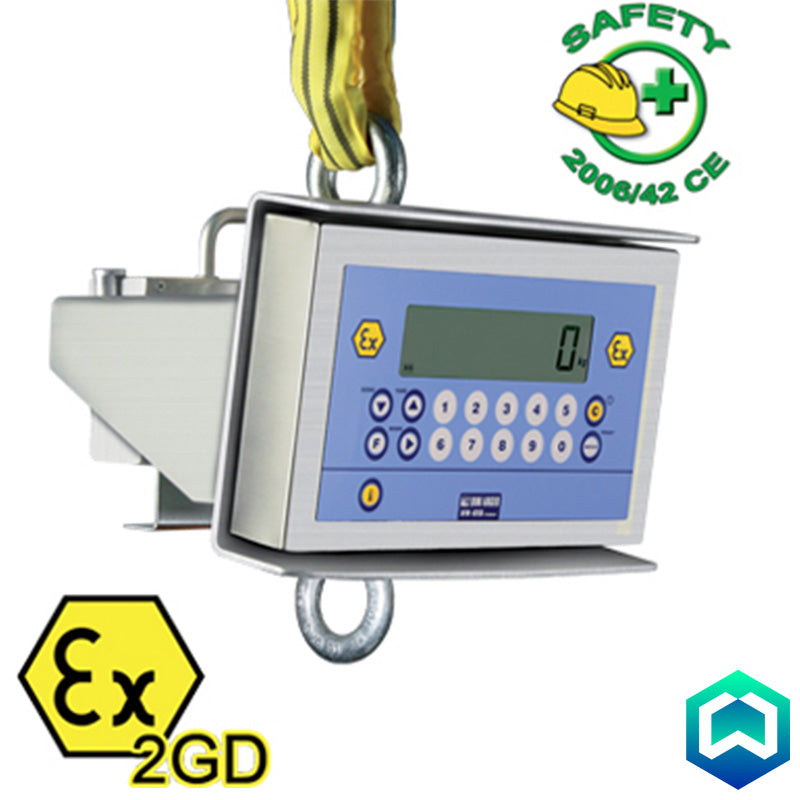

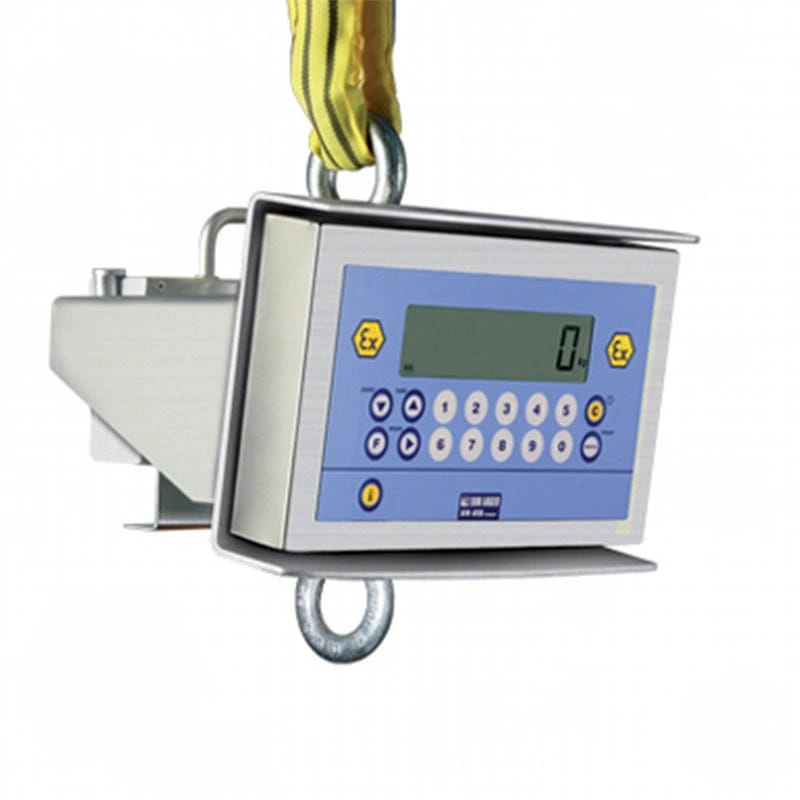

MCWX2GD ATEX Crane Scales for Zones 1 and 21, 2 and 22

£4,086.00 £5,334.00

Model

MCWX2GD ATEX Crane Scales for Zones 1 and 21, 2 and 22 from Dini Argeo. Capacities up to 6000kg, trade approved available along with a wide rane of accessories. Please contact us for more information.

Main Features

  • Single security system, for the lifting and the weighing of the load.
  • In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
  • Indicator with 17-key numeric-functional waterproof keyboard.
  • LCD display with 6 25-mm high contrast digits and icons for showing the active functions.
  • Precision: +/- 0.1% F.S.
  • Built extremely sturdy in IP65 stainless steel.
  • Fitted with upper and lower shackle GR3 (GR6 for the 6T version).
  • Digital set-up and calibration programmable directly from keyboard using a sample weight.
  • Operating temperature: -10 /+40 ºC.
  • Adjustable digital filter, anti vibration and oscillation.
  • Programmable auto switch-off power for energy saving.
  • Hermetically sealed extractable rechargeable battery, with 160-hour operating time; rechargeable in safe area.
  • Equipped with 230Vac 50 Hz battery charger to be used in safe area.

Keyboard Functions

  • Zeroing.
  • Automatic Tare.
  • Presettable Tare.
  • Tare database (up to 10).
  • ID1 and ID2 10-digit Codes.
  • Selectable function command.
  • On/off switching.

Selectable Functions

  • Simple display and/or with sensitivity HR x 10.
  • Net/Gross.
  • lb/kg conversion.
  • Weighs accumulation (with up to 10 storage values).
  • Formula weighing.
  • Counting with function of entering the known A.P.W.
  • Hold.

Options and Accessories

  • Additional rechargeable battery pack, for use the crane scale 24/7.
  • Swivelling bottom hook.
  • Connection ring.
  • ACCREDIA calibration certificate according to OIML/ASTM standards.

Please click here for the MCWX2GD datasheet .....

For the Crane Scale Catalogue please click here
