Ohaus Explorer™ EXP Precision Balance

By Ohaus
Trade Approved:
Capacity and Readability:
£2,965.00
Product Information

Explorer™ Precision Balance (EXP) – Engineered for Accuracy, Designed for Demanding Applications

The Explorer Precision balance series delivers exceptional accuracy and intelligent automation for pharmaceutical, chemical, quality control, and research laboratories. With readability from 1mg to 0.1g and capacities up to 12.2kg, the EXP Precision range combines advanced features with regulatory compliance capabilities to meet the demands of modern laboratory workflows.

Two Distinct Series for Different Requirements

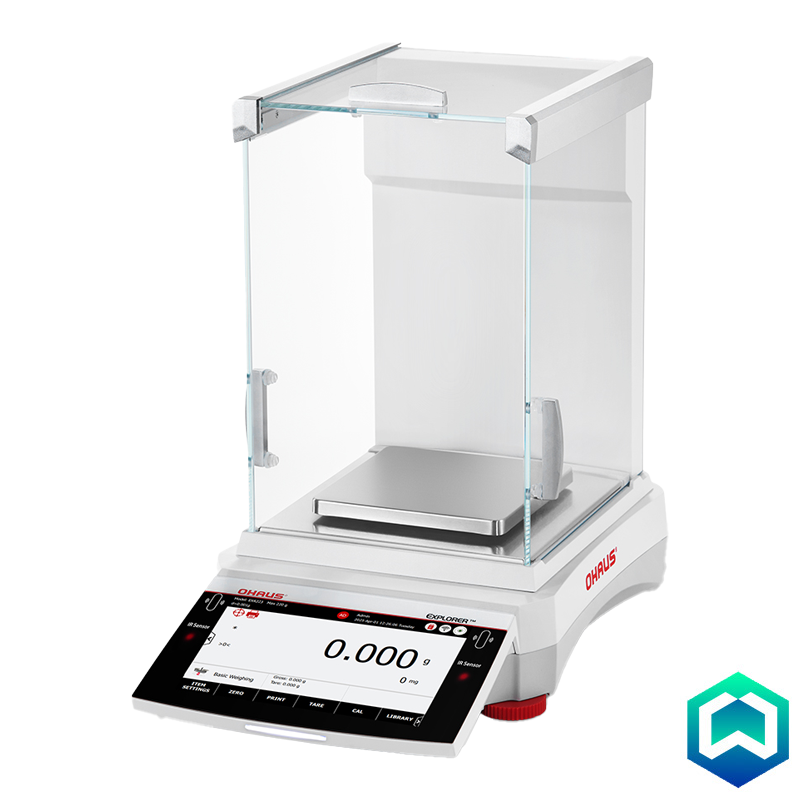

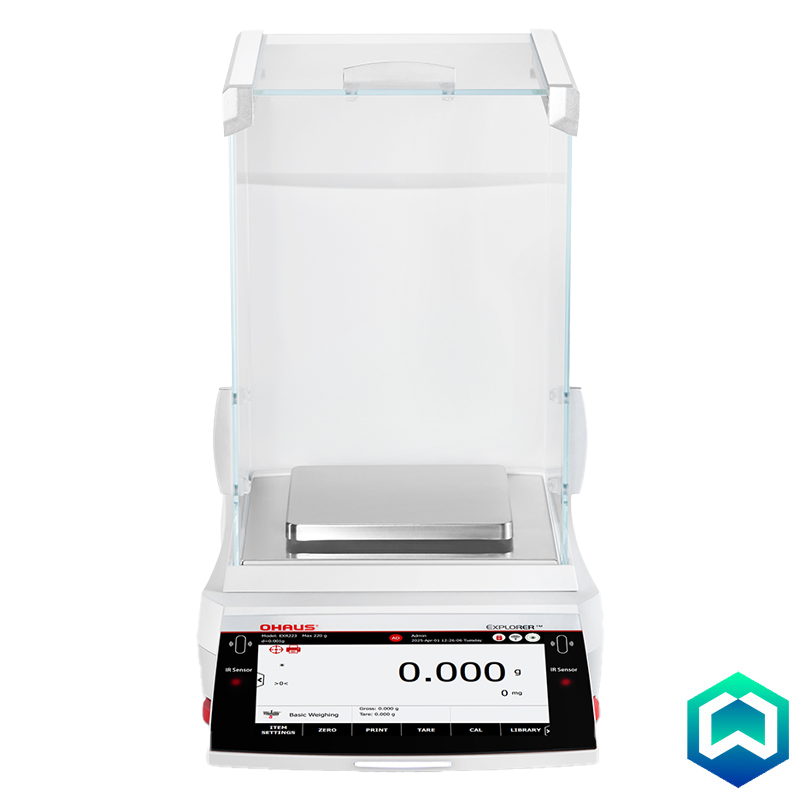

Precision Series (1mg models): Features motorised leveling, enhanced automatic doors with anti-pinch safety protection, anti-static glass draftshield, built-in ionizer, sample spotlight, and two touchless sensors. AISI 316 stainless steel weighing pan (130mm × 130mm). Ideal for applications requiring sub-milligram accuracy with intelligent automation.

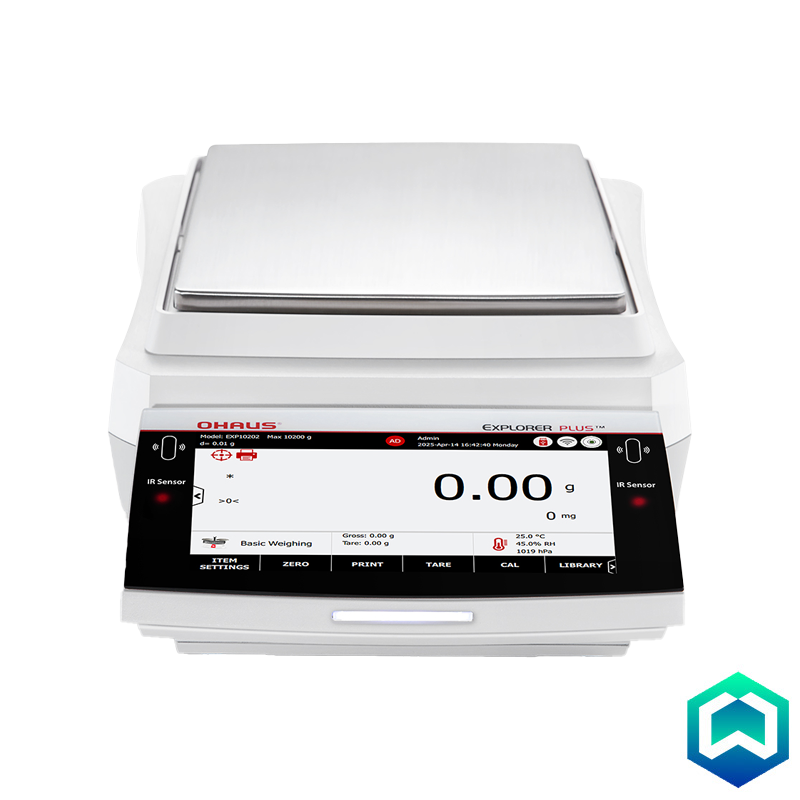

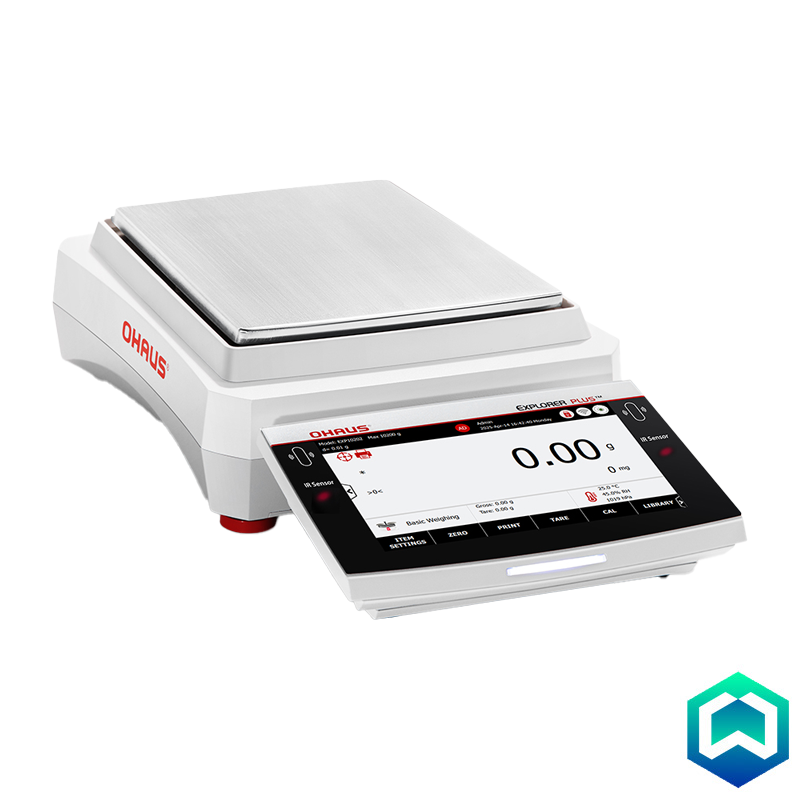

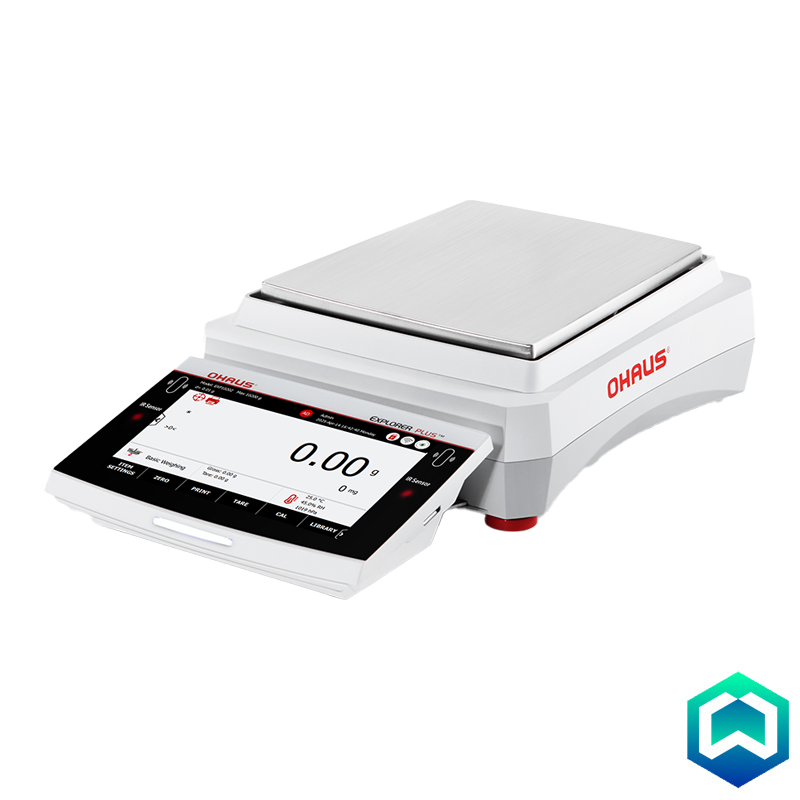

High Capacity Series (0.01g and 0.1g models): IP54-rated base construction with AISI 304 stainless steel weighing pan (201mm × 178mm), integral weigh-below hook for density determination, three ambient sensors, two touchless sensors, and terminal status light. Optional rechargeable Li-ion battery (14.4V, 2600 mAh) provides cordless operation. Engineered for larger samples and rugged environments.

Intelligent Automation

Seamless setup with motorized leveling (1mg models) eliminates manual adjustment and ensures measurement accuracy. Enhanced automatic doors with anti-pinch safety protection respond to touchless sensors for hands-free operation, preventing sample contamination. Built-in ionizer (1mg models) neutralises static charges that compromise precision weighing.

Premium User Interface

A 7-inch TFT colour touchscreen (16.7M colours) with glass overlay and detachable terminal provides intuitive control and flexible positioning. Chemical-resistant construction protects the display in demanding laboratory environments, whilst customisable status lights offer at-a-glance confirmation of balance state.

Comprehensive Application Suite

Fifteen built-in application modes support diverse laboratory requirements: basic weighing, parts counting, check counting, percent weighing, check weighing, dynamic weighing, totalization, formulation, differential weighing, density determination, peak hold, pipette adjustment (precision models only), statistical quality control (SQC), fill weight variation, and flow rate control. Application sample libraries accommodate up to 3,000 entries for rapid method recall.

Regulatory Compliance and Data Integrity

Meet pharmaceutical and quality system requirements with a 4-level user management system, password protection, and internal system log capacity of 100,000 entries. Time synchronization via NTP (Network Time Protocol) confirms data traceability to satisfy 21 CFR Part 11, EU GMP Annex 11, and ISO 17025 documentation standards. EC Type Approved models available for legal-for-trade applications.

Advanced Connectivity

Straightforward integration to Laboratory Information Management Systems (LIMS) via multiple communication ports: 2× USB Host (Type A), USB Device (Type B), USB Device (Type C), Ethernet (RJ45), and RS232. Support for HID (Human Interface Device) connection enables driverless data transfer to computers without software installation. Optional Wi-Fi and Bluetooth dongles provide wireless connectivity.

Robust Construction

Modular design with metal base and housing ensures long-term stability and serviceability. Power supply: 100–240 VAC, 50–60 Hz (12 VDC 1.5A output) for worldwide compatibility.

Model Range

Precision Series (1mg readability, 130mm × 130mm pan):

  • EXP223/AD: 220g capacity, auto-doors, ionizer, 200g OIML F1 calibration weight
  • EXP423/AD: 420g capacity, auto-doors, ionizer, 400g OIML F1 calibration weight
  • EXP623/AD: 620g capacity, auto-doors, ionizer, 500g OIML F1 calibration weight
  • EXP1203/AD: 1200g capacity, auto-doors, ionizer, 1000g OIML F1 calibration weight
  • EXP223M/AD to EXP1203M/AD: EC Type Approved models (e=0.01g verification)

High Capacity Series (201mm × 178mm pan):

  • 0.01g readability: 2.2kg, 4.2kg, 6.2kg, 8.2kg, and 12.2kg capacities
  • 0.1g readability: 6.2kg, 8.2kg, and 10.2kg capacities
  • M-series models: EC Type Approved versions with 0.1g verification scale interval

Consult technical documentation for complete specifications, minimum sample weight (USP), installation requirements, and accessory compatibility.
Specification

Application

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalisation, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment (except for Explorer High Capacity), SQC, Fill Weight Variation, Flow Rate Control

Display

7-inch TFT 16,7M Color Touch Screen with Glass Overlay; Detachable Terminal

Operation

Precision: AC Adapter Input: 100-240 VAC 0,5A 50-60 Hz; AC Adapter Output: 12 VDC 1,5A

High Capacit: AC Input: 100-240 VAC 0,5A 50-60 Hz; Rechargeable battery: Li-ion, ICR18650, 14,4V, 2600 mAh (optional)

Communication

USB Host (Type A) × 2, USB Device (Type B) × 1, USB Device (Type C) × 1 Ethernet (RJ45) × 1, RS232 × 1; Optional Wi-Fi, Bluetooth Dongle

Construction

Precision: Modular Design, Metal Base and Housing, SST 316 weighing pan, Motorized Leveling, 2 touchless sensors and Status lights. Automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Built-in ionizer and Sample spotlight (1 mg models).

High Capacity: Modular design, IP54 rated base, Metal base and housing, SST 304 weighing pan, Integral weigh below hook, 3 ambient sensors, 2 touchless sensors, Terminal status light

Design Features

Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100 000 entries, 3 000 application sample libraries
Downloads

Please click here for the Ohaus Explorer™ Precision balance datasheet.
