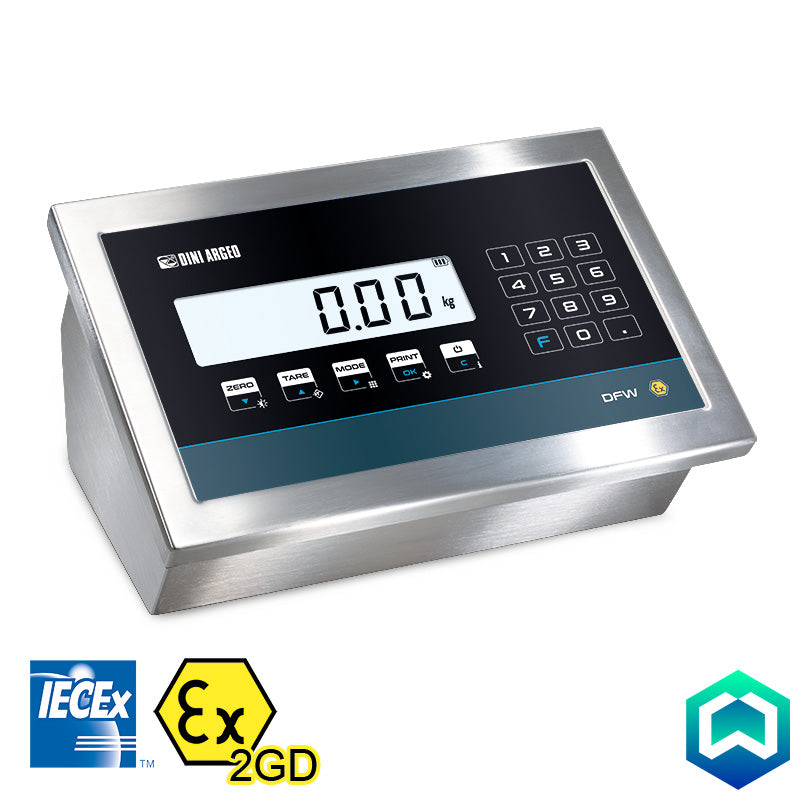

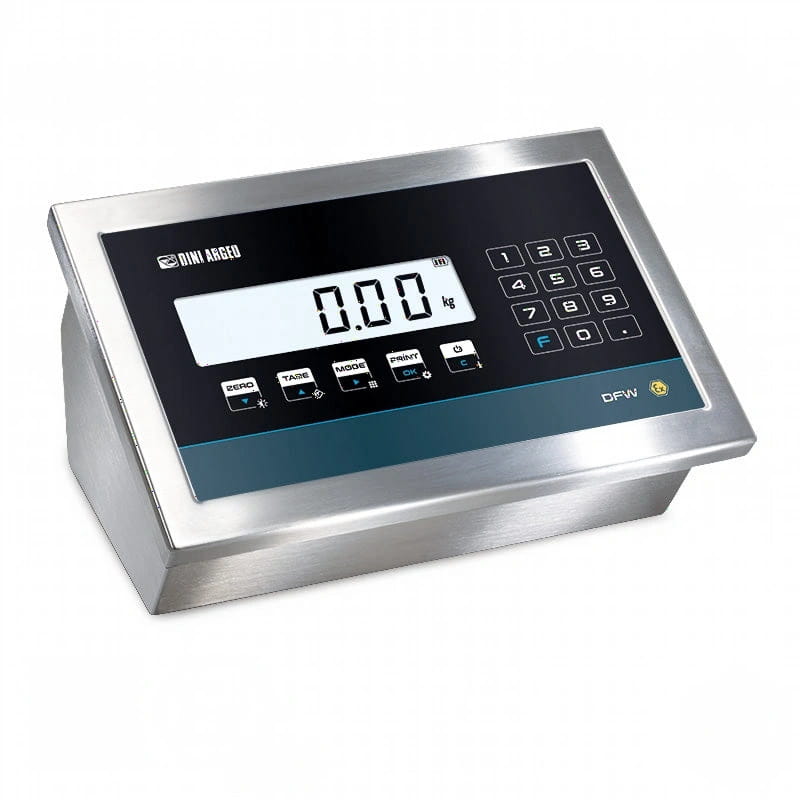

DFWIECEX weight indicator IECEx and ATEX certified - Zones 1/21 and 2/22

£1,444.00 £1,603.00

New Features

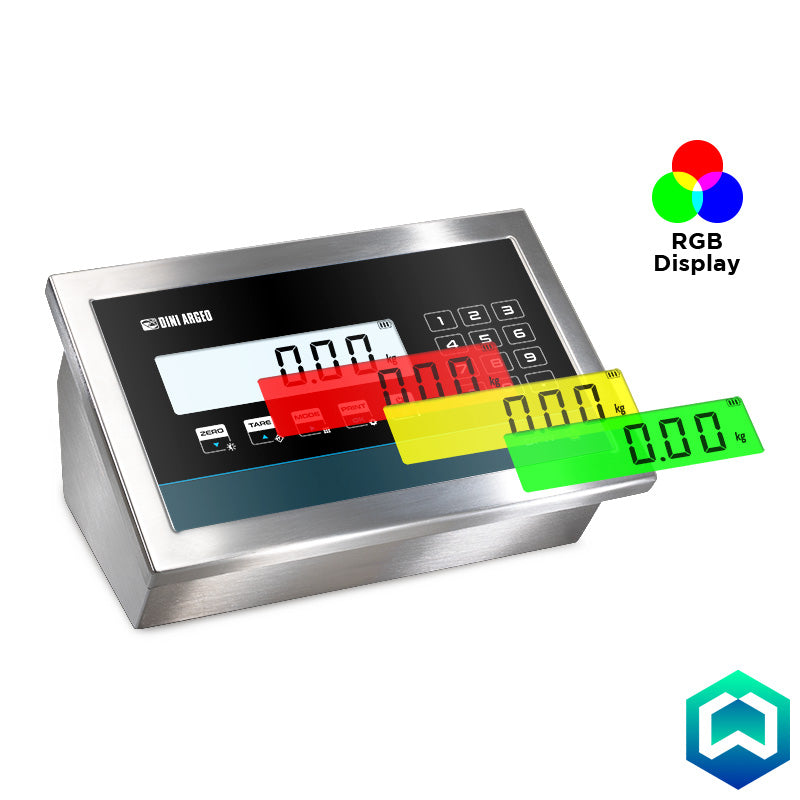

  • LCD display with RGB backlight
  • State-of-the-art, high-speed X-Core CPU ideal for handling fast and accurate weighing, filling or dosing processes
  • Comprehensive range of industrial interfaces, at your choice:
    - Intrinsically safe digital I\O
    - Intrinsically safe analog output
    - Up to 3 intrinsically safe bi-directional RS485 serial ports
    - Bluetooth

Technical Features

  • Protection:
    - for Gas: Ex ib IIC T4 Gb
    - for dust: Ex tb IIIC T135°C Db
    - ATEX: II2(2)G(1)G
    - ATEX: II2(2)D(1)D
    - Ta 0°C / +50°C
  • High contrast RGB backlit display, with 6 digits of 25 mm. Brightness adjustable from keyboard.
  • 17-key waterproof keyboard
  • AISI304 stainless steel casing, with IP65 and IP68 certified protections.
  • Minimum measurement range (internal use): 0.01 µV/d
  • 4 load cell inputs, with selectable operating mode:
    - Single scale (use of only one input)
    - 4-channel digital junction box (use of multiple load cell inputs)
  • Metrological approval: 10,000e or multi range 3x3000e @ 0.3µV/e.
  • Connection up to 8 load cells of 350Ohm.

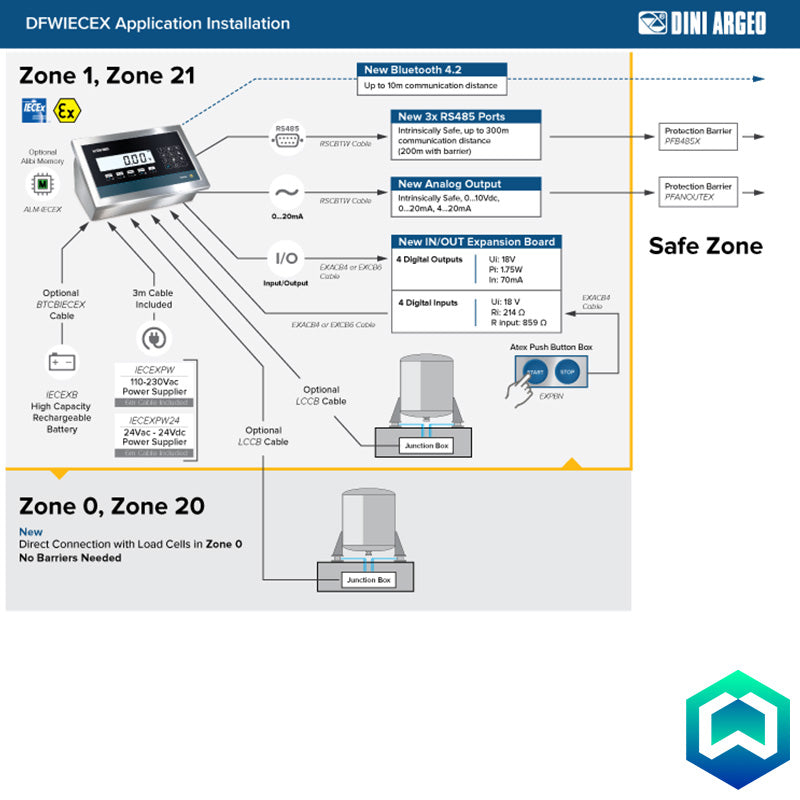

  • Possibility of direct connection to load receptor installed in Zone 0 and 20.
  • 1 Intrinsically safe RS485 serial port as standard, for two-way communication with PLCs, PCs or devices in explosive zones.
  • Power supply of your choice (see options table):
    - Through Dini Argeo power supply, 110-230 Vac or 24 Vac - 24 Vdc
    - Through Dini Argeo external battery, in stainless steel, with autonomy of about 40 h (Connection/disconnection directly in explosive zone and charging in safe area)NOTE: Autonomy may be reduced depending on load reception system, connected communication accessories, and backlight configuration.
  • Dimensions: 280x143x185 mm.
  • Available cable glands: 2 x PG9 as standard, 1 PG supplied (not mounted) and setup for a further 2 optional PG9s.

Main Certifications

  • EU Type Examination Certificate (EN 45501:2015)
  • OIML R76
  • EN/IEC 60079-0
  • EN/IEC 60079-11
  • EN/IEC 60079-5
  • EN/IEC 60079-31
  • Certification according to ATEX directive 2014/34/EU and in compliance with IECEx certification scheme, group II category 2GD according to EN/IEC 60079-0, EN/IEC 60079-11, EN/IEC 60079-5, EN/IEC 60079-31.

Communication Interface Options

  • Optional Digital Inputs and Outputs:
  • Intrinsically safe 4-input, 4-output digital card with the following specifications:
    Inputs
    - Ui: 18 V
    - Ri: 214 Ω
    - R input: 859 Ω
    Electronic relay outputs
    - Ui: 18 V
    - Pi: 1,75 W
    In: 70 mA
  • Intrinsically safe power supply terminal, for piloting devices in ATEX zone or push-button panel. Output voltage 6V, max current 300mA.NOTE: by using the available power supply terminal, it is possible to manage the push button panel code EXPHBN in a direct way, even in a safe area, without protection barriers.

Optional Analog Output:

  • Intrinsically safe analog output, programmable at 0...10Vdc, 0...20mA or 4...20mA.NOTE: It is possible to transmit the signal directly to the safe area using the intrinsically safe protective barrier, code PFANOUTEX for analog output in 0...20mA (or 4...20mA) configuration.

RS485 Serial Output

  • 2 Optional intrinsically safe RS485 serial ports for communication with repeaters and other devices.NOTE: it is possible to transmit data directly to the safe area using the protective barrier code PFB485EX

Please click here for the Dini Argeo DFWIECEX datasheet .....
