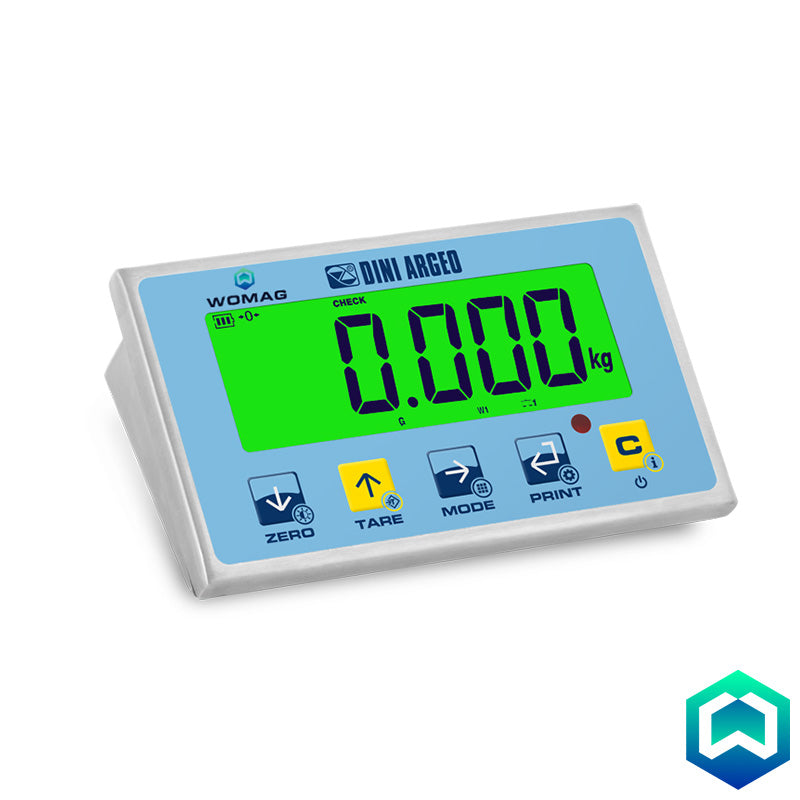

Dini Argeo DFWLID Stainless Steel Weight Indicator With Large Digit Colour Changing LCD Display

The Dini Argeo DFWILD high-performing IP68 stainless steel weight indicator is easy to program and use. Its large, 40mm color backlit display ensures clear weight readings, while its range of functions and interfaces suit various industrial and commercial applications like floor and mobile weighing. A built-in rechargeable battery and CE-M approval (OIML R-76/EN 45501) add to its practicality and reliability.

Product Information

Features:

  • Durable and Hygienic Construction: Housed in an easy-to-clean, IP68 rated stainless steel case, this indicator is resistant to harsh and corrosive conditions, making it ideal for food processing, chemical, and other industrial applications. Its compact dimensions (243x145x78.4mm) allow for table, column, or wall mounting.
  • Intuitive Operation: A 5-key functional waterproof keypad and a backlit 40mm LCD display with 6 high-contrast digits and function icons ensure clear visibility and easy operation, even in challenging environments. The backlight color and brightness are customizable via the setup menu.
  • High-Performance Measurement: Equipped with a 24-bit, 4-channel A/D converter (up to 200 conversions/sec), this indicator offers precise and fast measurements. It supports up to 8 signal linearization points and can connect up to 8 load cells (350 Ohm) or 16 load cells (700 Ohm).
  • High Resolution and Accuracy: Offers up to 10,000 divisions or multi-range 3 x 3000 divisions @ 0.3 µV/d in CE-M approved versions for legal-for-trade applications. It boasts up to 1,000,000 displayable divisions with an internal resolution of up to 3,000,000 points, ensuring exceptional accuracy.
  • Flexible Calibration and Setup: Digital calibration and setup can be performed directly from the keypad or via PC using DINITOOLS software, providing convenient and versatile configuration options.

Certifications:

  • EC Type Approval (EN45501)
  • OIML R76

Functions:

  • Zeroing
  • Automatic tare
  • Pre-settable tare
  • Printing in 1, 2 or 3 copies
  • Data transmission to PC.

Operating Modes:

  • High Resolution Weighing x 10
  • Net/Gross or lb/kg conversion
  • Accumulation
  • Formula weighing

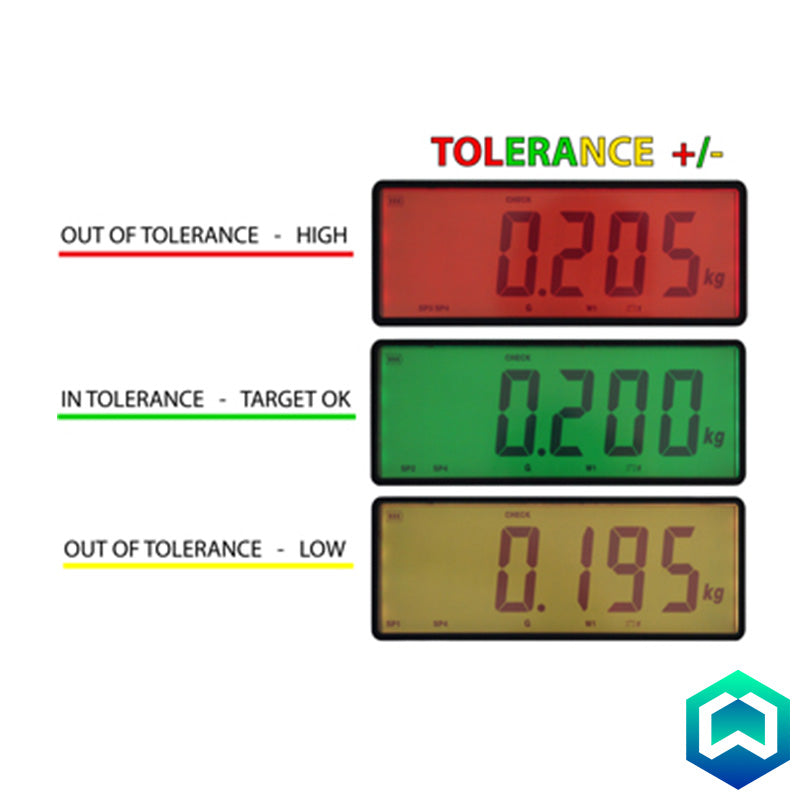

  • +/- Check weighing
  • Percentage weighing
  • Approved transmission of the weight to PC/PLC (with Alibi memory ALMEM option)
  • Counting
  • In/Out Truck weighing
  • Hold and Peak.

Available versions:

  • DFWLID Weight indicator with battery and external power supply. 40mm LCD
    display with colour backlit and 5 waterproof keys.
  • DFWLIP Weight indicator with internal power supply. 40mm LCD display with
    colour backlit and 5 waterproof keys.

Specification

Dimension: 243x145x78,4mm

Display: Backlit 40mm LCD display with 6 high contrast digits.

Material: IP68 stainless steel case

Power Requirements: Power supply through built-in rechargeable battery, with 40h operating time, and fitted with external battery charger.

I/O SECTION

  • RS232/C bidirectional port on RJ connector for quick connection (or optional RS485) on screw terminal, configurable for PC, PLC, or additional remote display.
  • RS232/C bidirectional port configurable for connection to printer or labeller.
Downloads

Please click here for the DFWLID Stainless Steel Indicator Datasheet

Model

£403.00
