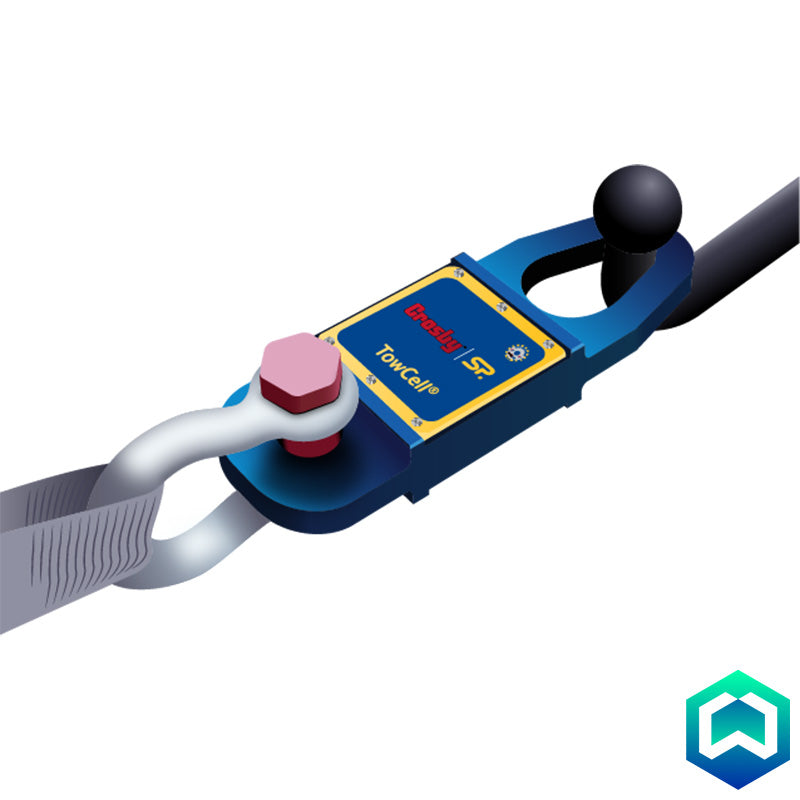

Crosby Straightpoint Towcell Towbar Tension Load Cell
Crosby Straightpoint Towcell Towbar Tension Load Cell - Labelled

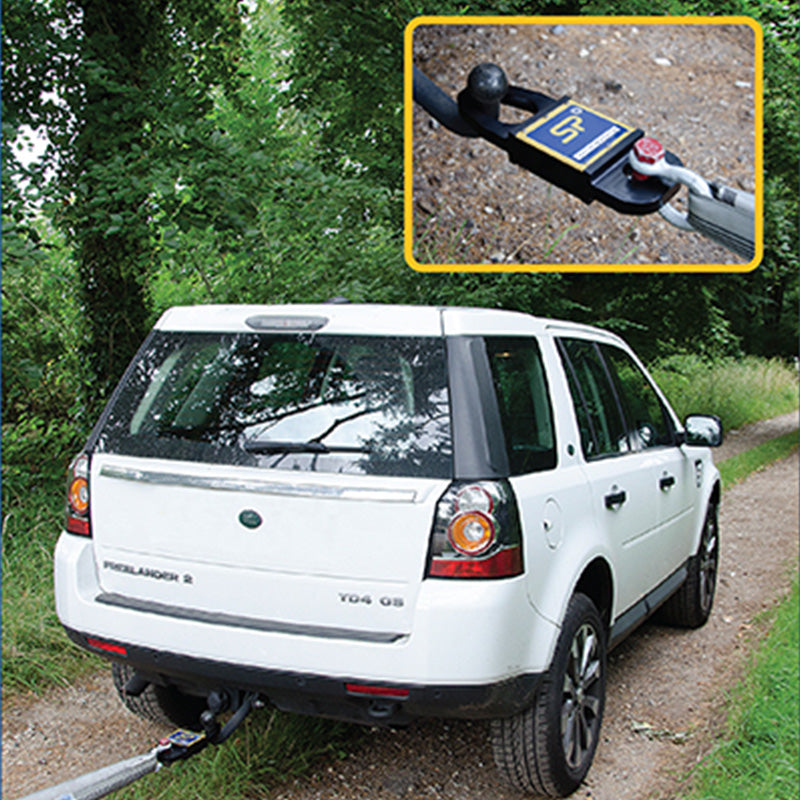

Crosby Straightpoint Towcell Towbar Tension Load Cell - In Use

Crosby Straightpoint Towcell Towbar Tension Load Cell

By Straightpoint

Engineered for the demanding environments of emergency services, salvage, and 4x4 industries, the Crosby Straightpoint Towcell® is a robust and reliable 25kN wireless tension load cell designed to enhance safety and prevent costly overloads. This innovative device provides real-time monitoring of tensile towing forces during critical recovery, clearance, and salvage efforts.

£1,894.00
Product Information

Features:

  • 25kN Capacity: Specifically engineered for the tensile forces encountered in recovery and salvage.
  • Wireless Monitoring: Real-time load data displayed via Bluetooth SW-HHP App for iOS and Android.
  • Enhanced Safety: Prevents dangerous overloads by providing accurate tension monitoring.
  • Universal Compatibility: Installs easily on standard 52mm or 2” ball or pin tow bars.
  • Rugged and Lightweight: Aircraft-grade aluminium construction with an unrivalled strength-to-weight ratio.
  • Waterproof Protection: IP67/NEMA6 rated internal sealed enclosure for reliable operation in harsh environments.
  • Long Battery Life: 500 hours of operation from easily sourced AA alkaline batteries.
  • Durable Antenna: Unbreakable internal antenna for reliable wireless communication.
  • Compact Design: Easy to transport and store.
Specification

Capacity: 25 kN

Resolution: 0.01 kN

Weight: 1.4 kg (3 lbs)

Safety Factor: 5:1

Battery: 4 x AA alkaline batteries

Battery Life: 500 hours (continuous)

Operating Temp: -10°C to +50°C (14°F to 122°F)

Accuracy: ±0.1% FSR

Range: 100 meters (328 feet)

Data Rate: 50 Hz

Protection: IP67 / NEMA6
Downloads

Please click here for the Crosby Straightpoint Towcell Towbar Tension Load Cell datasheet
