By Straightpoint

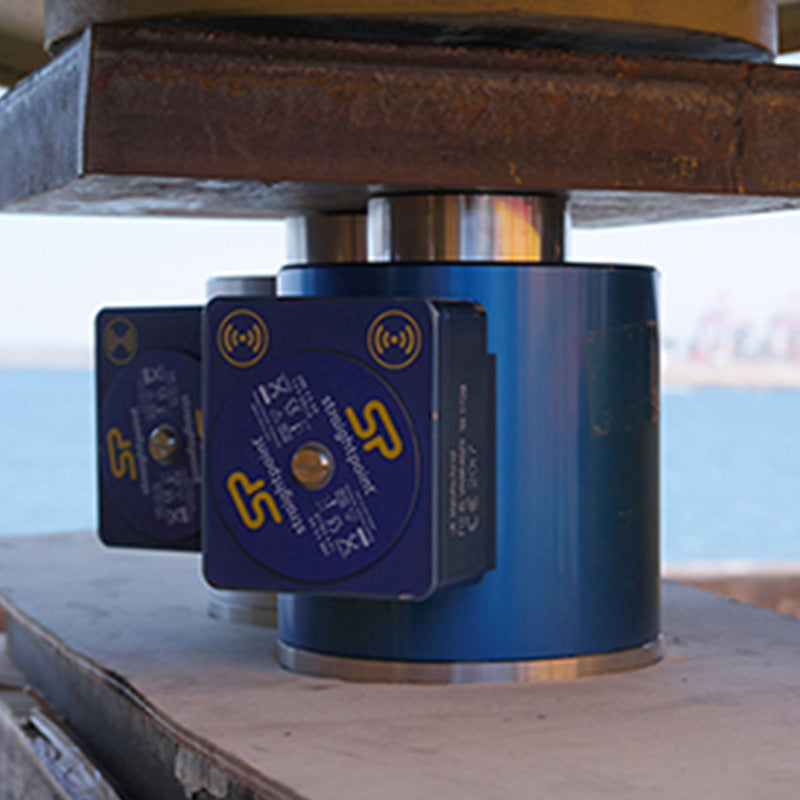

Revolutionise your large-scale weighing projects with the Crosby Straightpoint LoadSafe Wireless Compression Load Cell. Eliminating the constraints of traditional cabled systems, the WNI enables faster, safer, and more efficient operations across a wide range of industries, including heavy lift, energy, defence, rigging, shipping, and general transportation.

Connectivity
Model
£1,947.00
Product Information

Features:

  • Wireless Freedom: Eliminates cables for faster setup, increased safety, and reduced maintenance.
  • Dual Wireless Options: Proprietary long-range 2.4 GHz (1000m/3280ft) and Bluetooth (100m/328ft) connectivity.
  • Versatile Connectivity: Compatible with PC software (via USB dongle), iOS/Android HHP app, and SW-HHP wireless handheld display.
  • Centre of Gravity Calculation: When used with INSIGHT software, enables C of G weighing and reporting compliant with ISO19901.
  • High Accuracy: Achieves an accuracy of 0.1% Full Scale (FS).

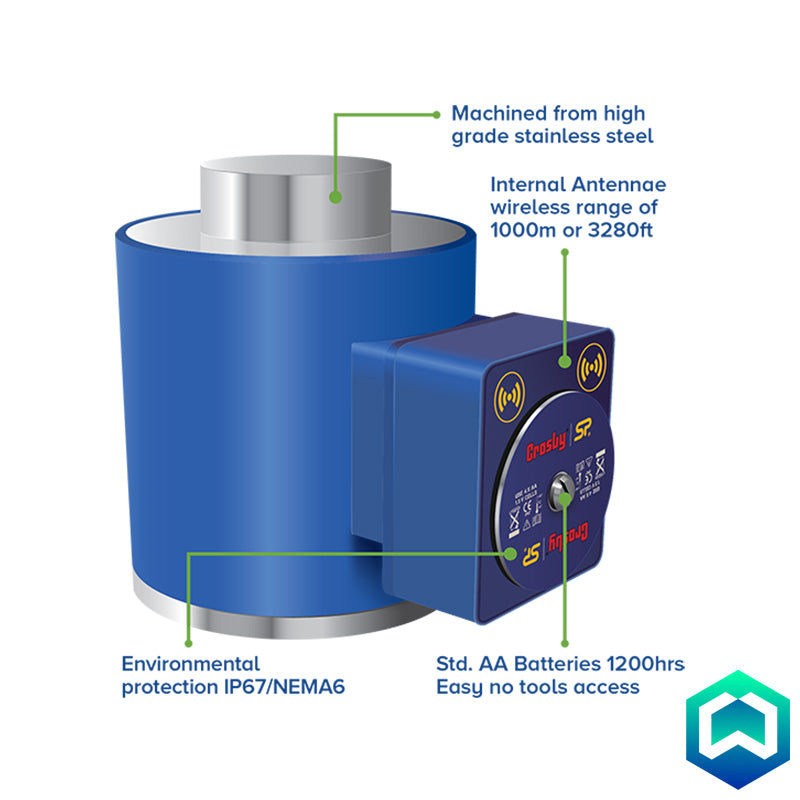

  • Robust Construction: Machined from high-grade 17-4PH stainless steel for superior strength and corrosion resistance.
  • Environmental Protection: Sealed to IP67/NEMA 6 for reliable operation in harsh environments.
  • Wide Capacity Range: Stocked capacities available up to 500 tonnes.
  • Long Battery Life: Offers an impressive battery life of 1200 hours.
  • Compact Design: Easy to handle and position.
  • Remote On-Off: Convenient remote power control.
  • Hazardous Area Option: ATEX & IECEx versions available for zones 0, 1 & 2.
Specification

Material of construction: 17-4PH H900 stainless steel. Aluminium jacket 6000 series

Finish: Stainless steel – polished. Jacket blue anodised to BS EN 12373-1:2001 Class 10.

Capacity:

  • WNI5TC - 5te
  • WNI10TC - 10te
  • WNI25TC - 25te
  • WNI50TC - 50te
  • WNI100TC - 100te
  • WNI150TC - 150te
  • WNI300TC - 300te
  • WNI500TC - 500te
  • WNI1000TC - 1000te (Available on request)

Resolution: 0.001 te (2 lb) to 0.5 te (1000 lb) - See individual part numbers for specific resolution.

Units: tonne / lbs

Weight: 6.2 kg (13.64 lb) for lower capacities, increasing to 172 kg (379 lb) for the highest capacity - See individual part numbers for specific weight.

Safety Factor: 3:1

Battery Type (Loadcell): 4 x AA Alkaline

Battery Life (Loadcell): 1200 hours continuous

Operating Temp: -10 to +50 °C (14 to 122˚F)

Accuracy: ±0.1% full scale

Frequency: 2.4GHz

Range: 1000 metres (3280 feet) / 100m (328ft if Bluetooth)

Data Rate: 3Hz (Configurable to 200 Hz)

Protection: IP67 / NEMA 6

Dimensions (ØA, B, ØD, E, F, G, H, I): Varies by part number. See individual part number specifications.
Downloads

Please click here for the Crosby Straightpoint LoadSafe Wireless Compression Load Cell datasheet
