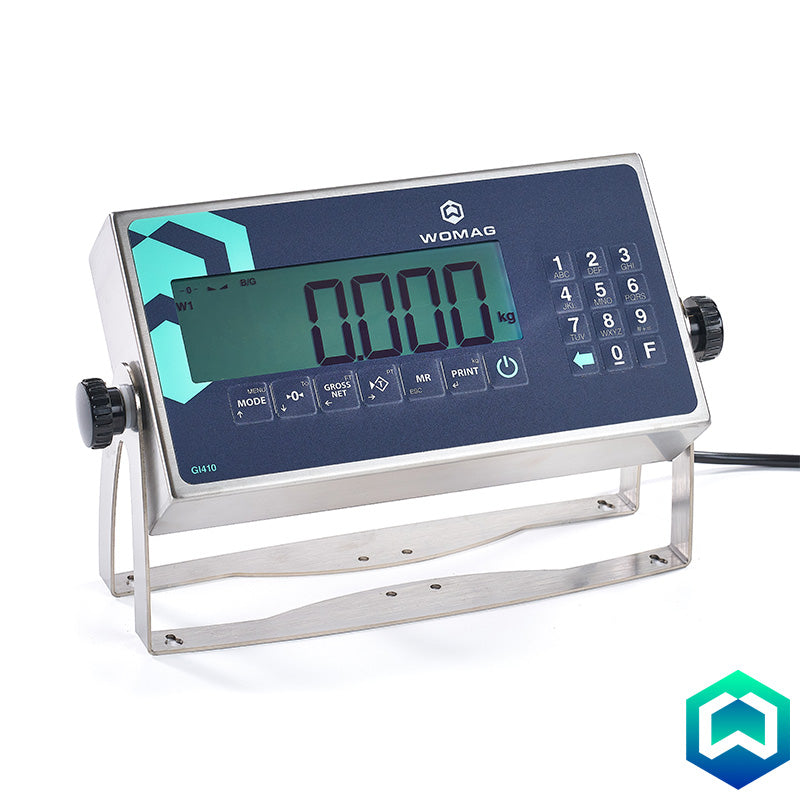

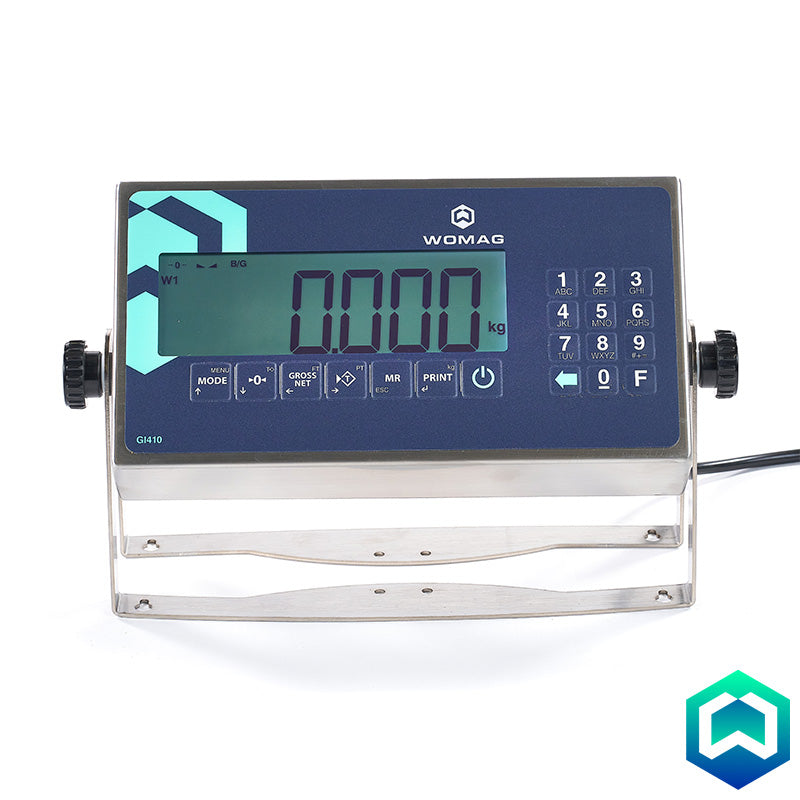

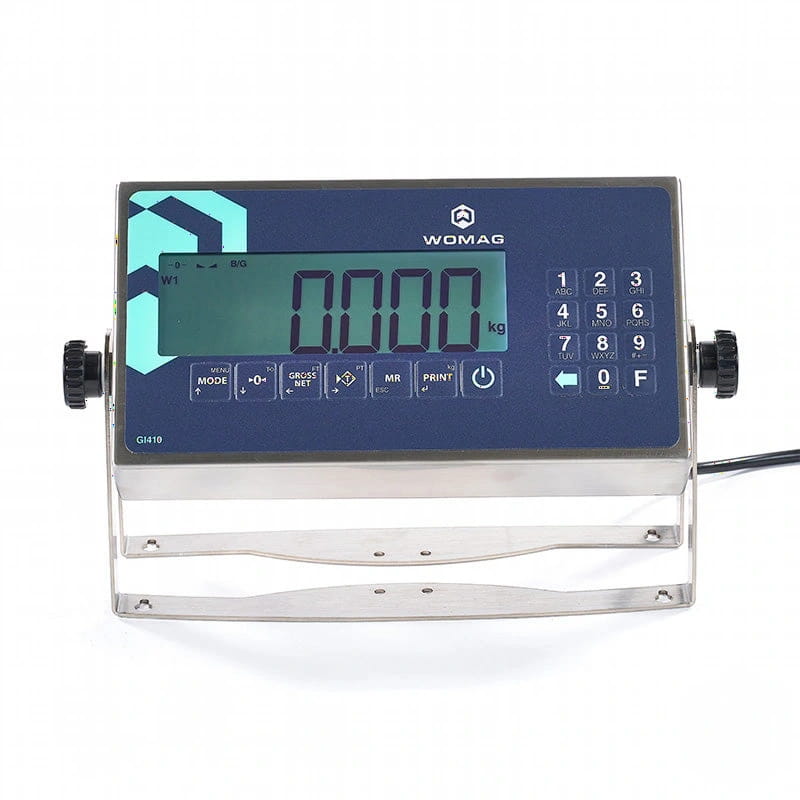

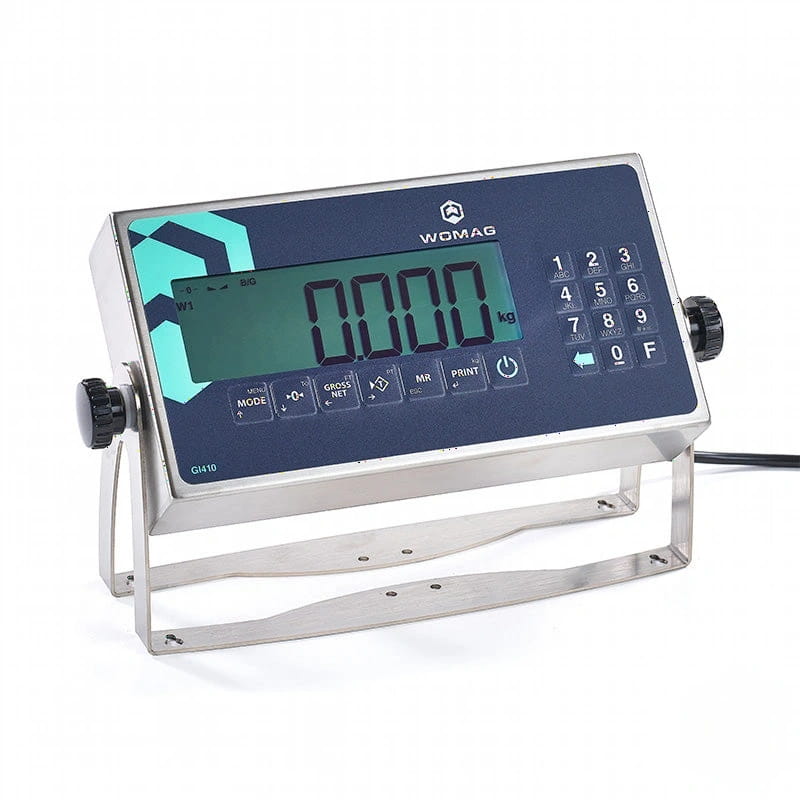

Womag GI410i LCD Stainless Steel Indicator

By WOMAG

The Womag GI410i LCD Stainless Steel indicator offers precise measurements with Class IIII accuracy (up to 6000 divisions) and supports load cells from 29 Ω to 1100 Ω. It features a multilingual menu (Spanish, French, Portuguese, Italian, English), compatibility with 30+ protocols, and customisable printing with 8 ticket formats.

Product Information

Features:

  • Built for Endurance: Encased in a durable, shock-proof stainless steel housing with uniform finishes, the GI410i is designed for long-term durability, resisting temperature fluctuations and wear.
  • IP65 Protection: IP65 full water jet protection, ensuring consistent performance in any environment.
  • Flexible Installation: The reversible stainless steel bracket allows for seamless mounting on columns, walls, or tabletops, optimising your workspace.
  • Crystal-Clear Display: The easy-to-read LCD display ensures accurate and efficient weight readings at a glance.
  • Simple and Intuitive Operation: User-friendly interface with built in keyboard and clearly labelled keys for straightforward operation and minimal training requirements.
  • Advanced Weighing Functions:
    • Automated Tare and Checkweighing: Streamline pallet and container weighing with automatic tare and precise checkweighing capabilities.
    • Multi-Zone Checkweighing: Manage up to four weight zones with customisable limits for efficient quality control.
    • Pallet Management: Effortlessly track pallet weights with cumulative logging and automatic tare recording.
    • Precise Dispensing: Monitor weight removal with the "Take Out" function, ensuring accurate dispensing within defined limits.
    • Dual Product Checkweighing: Simplify operations with dual "OK" zones for simultaneous product verification.
    • Totalisation & Piece Counting: Accurately calculate total weights and count items with ease.
Specification

Material: Stainless Steel

Display: High-contrast LCD with colour configuration in Checkweigher mode.

Keyboard: Integrated numeric keypad

IP Rating: IP65

Temperature range: -10ºC a +40ºC

Minimum entrance tension: 0,3 µV

Support: Tilting wall (optional)

Selectable Units: kg

Clock and calendar: Bult-in

Tickets: Configurable (from the associated software)

Communications: 2 RS232 outputs

Feeding: 110-230 VAC or internal lithium-ion battery (optional)

Protocols: Compatible with RFID and EAN protocols

Watchdog: Automatic restart in case of crash

Downloads

Please click here for the Womag GI410i LCD Stainless Steel Indicator datasheet


£355.00
