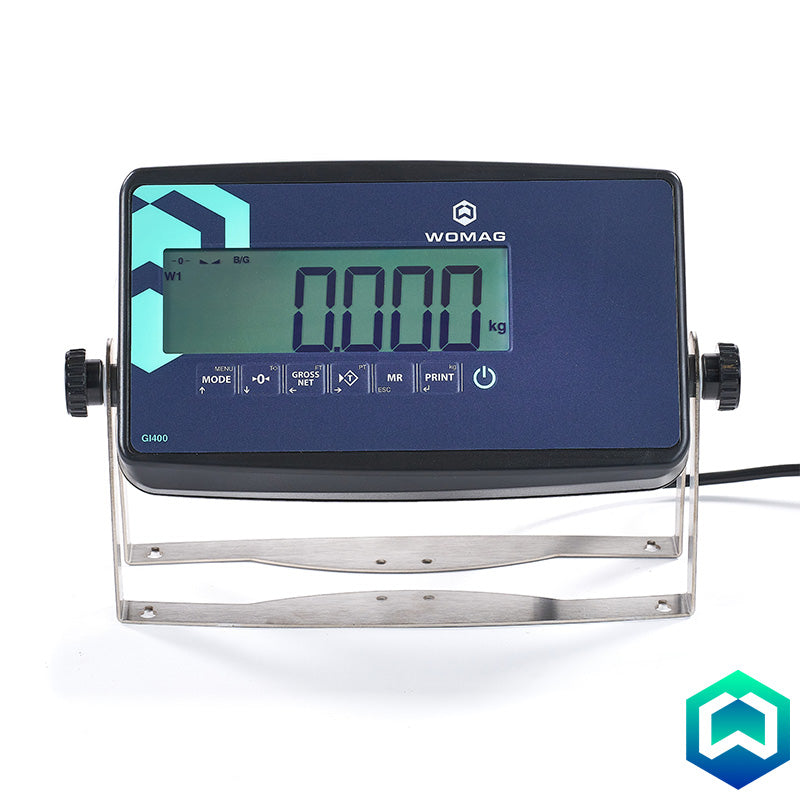

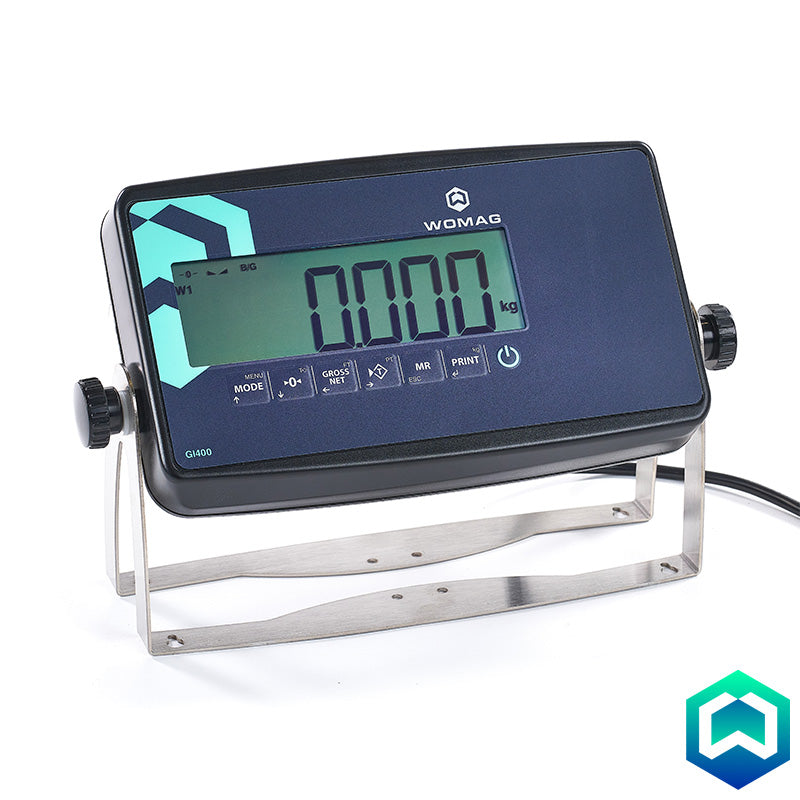

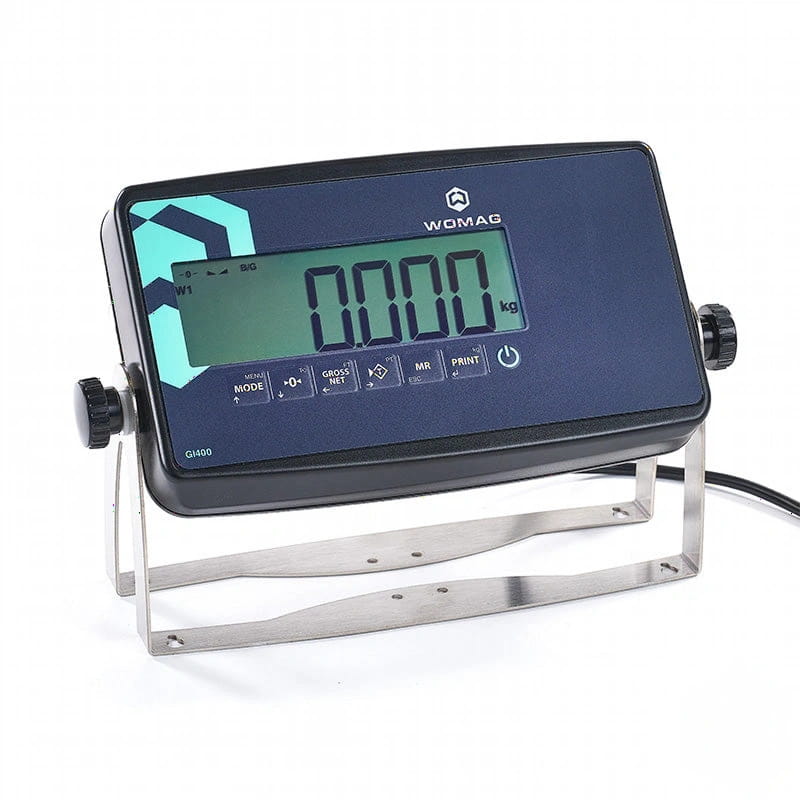

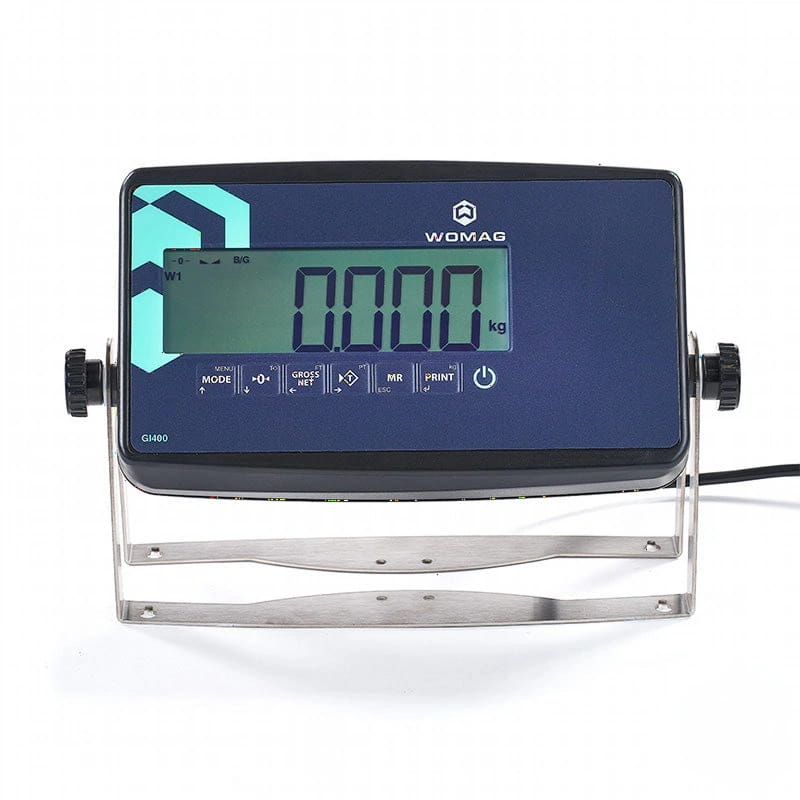

Womag GI400 LCD ABS IP54 Indicator

By WOMAG

The Womag GI400 LCD ABS indicator offers precise measurements with Class III and Class IIII accuracy (up to 6000 divisions) and supports load cells from 29 Ω to 1100 Ω. It features a multilingual menu (Spanish, French, Portuguese, Italian, English), compatibility with 30+ protocols, and customisable printing with 8 ticket formats.

Product Information

Features:

  • Built for Endurance: Encased in a high-resistance, shock-proof ABS housing with uniform finishes, the GI400 is designed for long-term durability, resisting temperature fluctuations and wear.
  • Dust Protection:  IP54 dust and splash protection ensuring consistent performance in any environment.
  • Flexible Installation: The reversible stainless steel bracket allows for seamless mounting on columns, walls, or tabletops, optimising your workspace.
  • Crystal-Clear Display: The easy-to-read LCD display ensures accurate and efficient weight readings at a glance.
  • Advanced Weighing Functions:
    • Automated Tare and Checkweighing: Streamline pallet and container weighing with automatic tare and precise checkweighing capabilities.
    • Multi-Zone Checkweighing: Manage up to four weight zones with customisable limits for efficient quality control.
    • Pallet Management: Effortlessly track pallet weights with cumulative logging and automatic tare recording.
    • Precise Dispensing: Monitor weight removal with the "Take Out" function, ensuring accurate dispensing within defined limits.
    • Dual Product Checkweighing: Simplify operations with dual "OK" zones for simultaneous product verification.
    • Totalisation & Piece Counting: Accurately calculate total weights and count items with ease.
Specification

Material: ABS

Display: High-contrast LCD with Checkweigher mode colour setting

IP Rating: IP54

Temperature range: -10ºC a +40ºC

Minimum entrance tension: 0,3 µV

Support: Tilting wall

Selectable Units: kg

Clock and calendar: Bult-in

Tickets: With configurable weighing code

Communications: 2 RS232 outputs

Feeding: 110-230 VAC, 50/60 Hz
12V DC (optional IP54 indicators)

Downloads

Please click here for the Womag GI400 LCD ABS Indicator datasheet


£260.00
