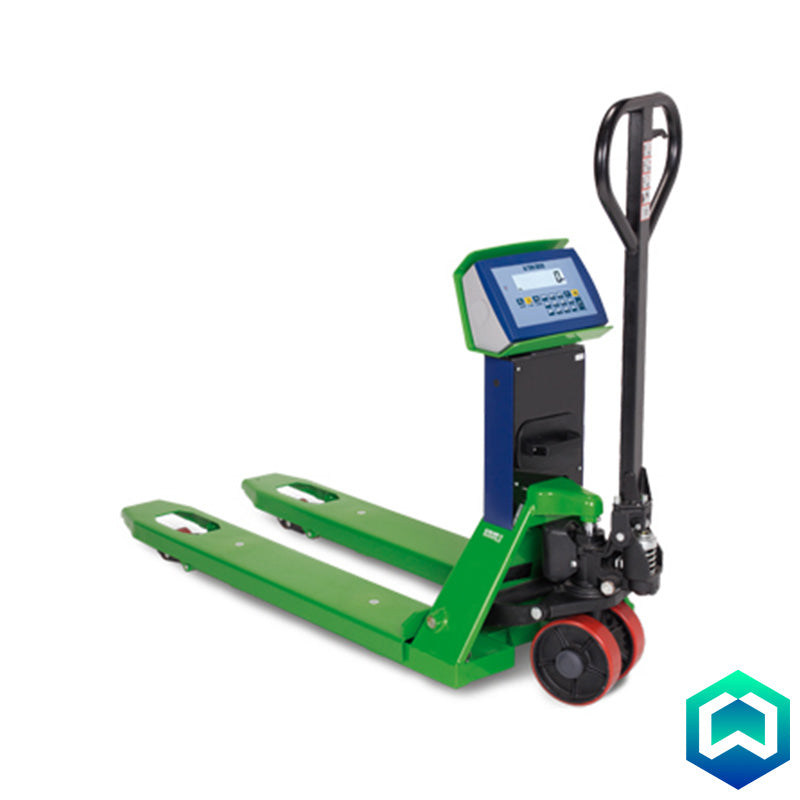

Dini Argeo TPWP Pallet Truck Scale - Front

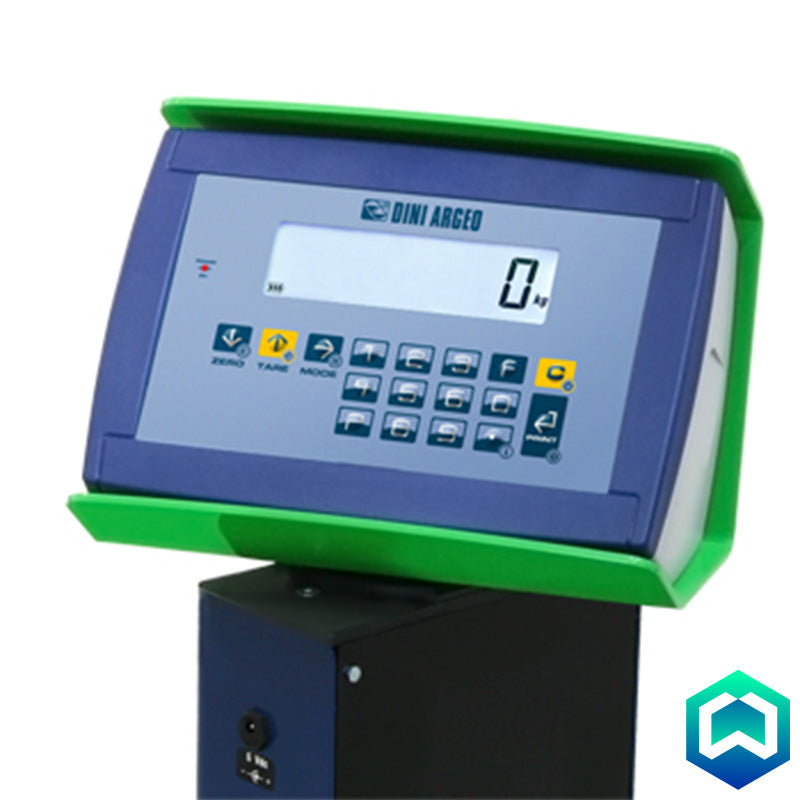

Dini Argeo TPWP Pallet Truck Scale - Indicator

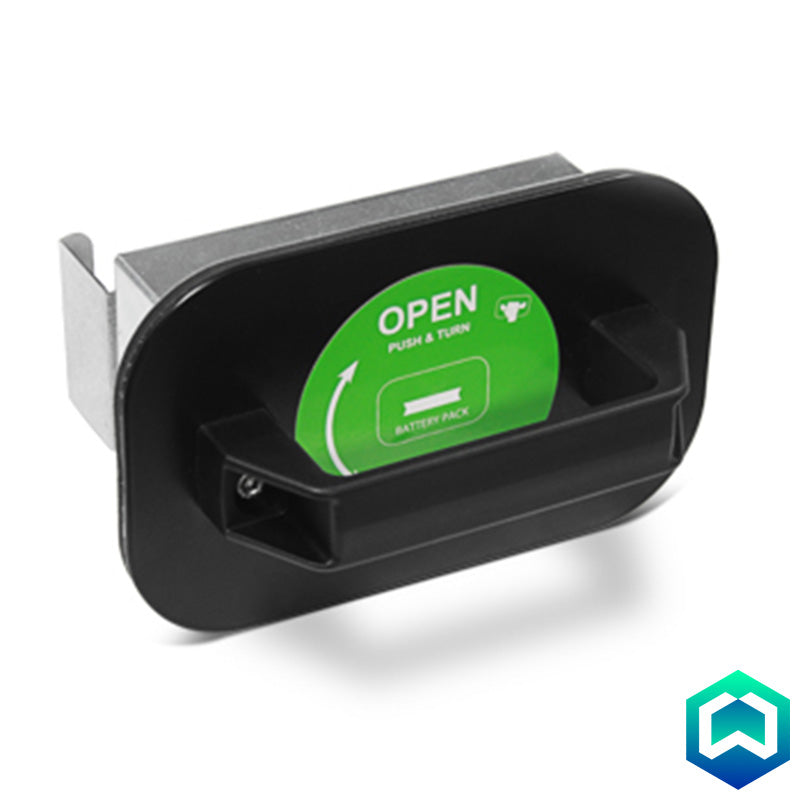

Dini Argeo TPWP Pallet Truck Scale - Battery

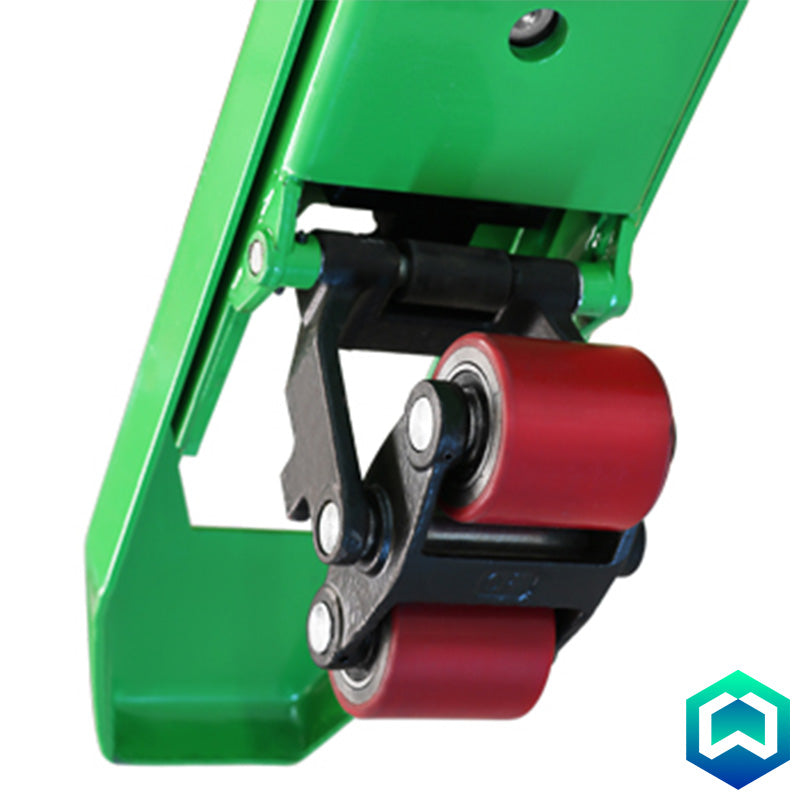

Dini Argeo TPWP Pallet Truck Scale - Wheels

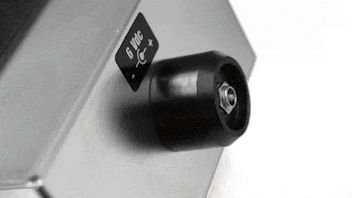

th INSTAPLUG innovative quick coupling wireless system.

Dini Argeo TPWP "Professional" Pallet Truck Scales

By Dini Argeo

The Dini Argeo TPWP "Professional" Pallet Truck Scales. Engineered to deliver unparalleled accuracy and durability. With a maximum lifting capacity of 2500 kg and an impressive accuracy of +/- 0.05%, this scale is ideal for a wide range of demanding applications in manufacturing, warehousing, and logistics.

Model
£1,762.20
Product Information

Features:

  • Maximum lifting capacity: 2500 kg.
  • Accuracy: +/- 0.05% of the maximum capacity.
  • Fork dimensions 1150 x 550 x 85 mm.
  • Weighs about 125 kg.
  • Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
  • Standard fitted with +/-160° swivelling column head.
  • Steering wheels and double loading rollers with a polyurethane coating.
  • 4 stainless steel IP68 load cells.
  • Indicator with easy to clean ABS waterproof IP65 case enclosure built to withstand humid and dusty environments; large LCD display with 25 mm high contrast digits, which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.
  • Calibration and Set-Up configurable from keyboard or from PC with DINITOOLS.
  • Power supply through built-in extractable rechargeable battery.
  • 60-hour approximate operating time or three months with the typical non continuous use, thanks to its auto switch-off function.
  • Programmable auto power saving function.
  • Low Battery Warning.
  • Equipped with 230Vac 50 Hz battery charger.
  • Bi-directional RS232/C port configurable for connection to printer.
  • Bi-directional RS232/C serial output for radio modem, PC or portable terminal.
  • IR input for managing the remote control.

Main Functions

  • The user can select the operating modes directly using the dedicated key*:
    - High resolution display x 10
    - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
    - Net/Gross
    - Lb to Kg converter
    - Free conversion factor (for meter and litre counters etc.)
    - Weight totalizer
    - Formulizer
    - +/- controller with quick target and threshold input
    - Percentage weighing
    - Percentage batching with programmable target
    - Piece counter
    - Hold
    - Alibi memory (optional)

Options Available upon Request

  • Special steering wheels.
  • 680 mm fork width.
  • Special fork length from 850 to 1500 mm.
  • Special capacity e/o divisions.
  • High resolution.
Specification

Display: Backlit 25mm LCD display

Construction: Structure in extra-thick steel, oven-fire painted.

Power Requirement: Rechargeable extractable battery with quick connection "Instaplug" technology,
Downloads

Please click here for the Dini Argeo TPWN Pallet Truck Scales Datasheet

For the Pallet Truck Scales Catalogue please click here
