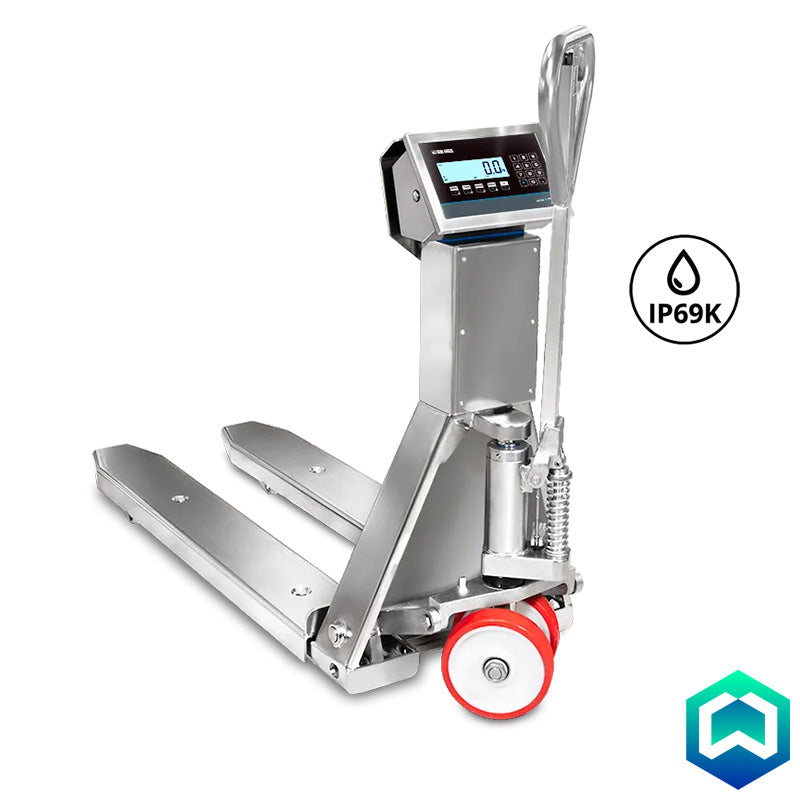

Dini Argeo TPWI IP69K Hygienx Stainless Steel Pallet Truck Scales

Weighing Features

• Maximum lifting capacity: 2.000 kg (higher capacities available on request, up to 3000 kg; request feasibility study depending on the environment and mode of use)
• Resolution:
  > internal use: 0,2 / 0,5 kg
  > approved: 0,5 / 1 kg
• Accuracy (weighing of goods on Euro pallets with a distributed load):
  > internal use: +/- 0,5 kg
  > approved: according to CE certification (Directive 2014/31/EU)
• Calibration and Set-Up parameters configurable from keyboard or PC.

Why Choose the Dini Argeo TPWI HygienX

• Resistant to washing with high-pressure hot water jets.
• Built as standard with 4 IP69K-certified, stainless steel Dini Argeo load cells for high weighing performance.
• Built-in rechargeable battery with long battery life of up to 100 hours.

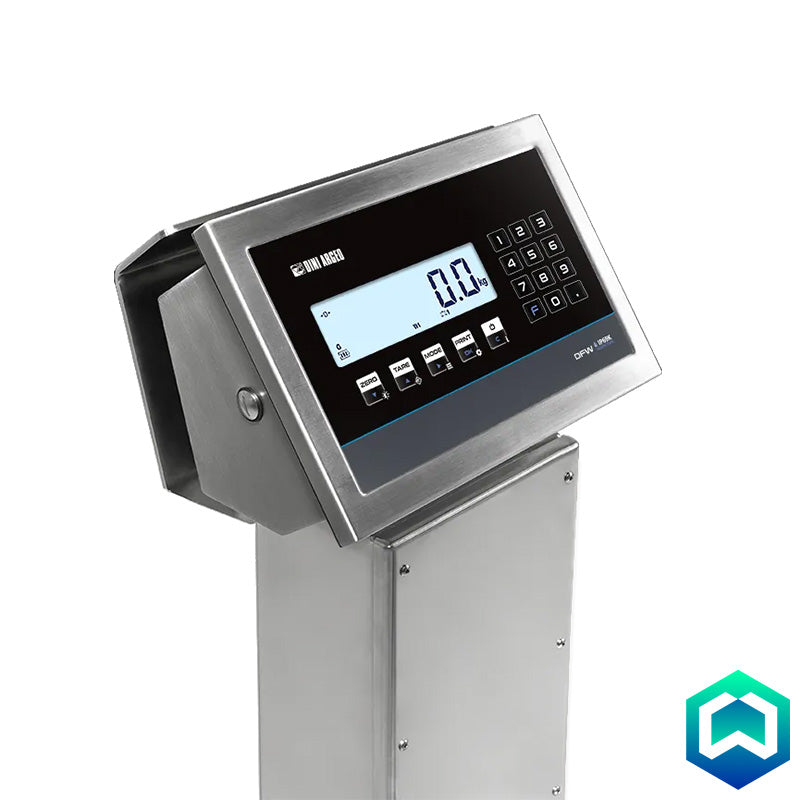

• Weight indicator with IP69K stainless steel waterproof housing as standard; easy to clean and resistant in harsh and corrosive environments.
• The large, high-contrast 25mm LCD display for viewing also in low light conditions.
• Each pallet truck is tested and supplied with its own certificate to guarantee the declared precision.

Technical Features

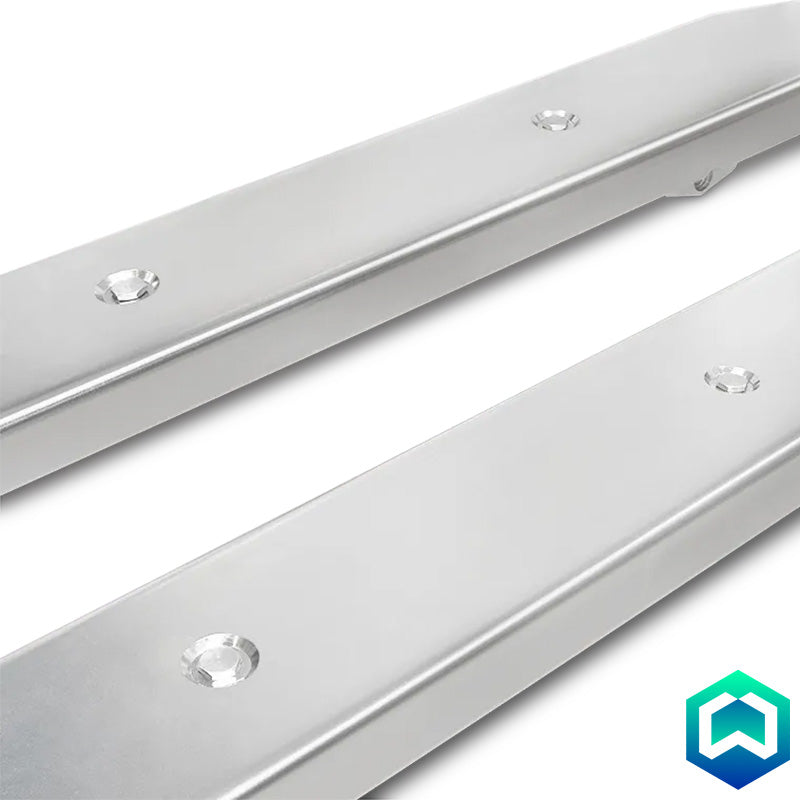

• Lowered profile forks, only 85 mm.
• Fork dimensions 1180 x 550 x 85 mm.
• Removable fork covers for inspection and cleaning of the area inside the forks.
• Lifting height 200 mm.
• Weight approx. 135 kg.
• IP68 watertight column.
• 100% AISI 304 stainless steel pallet truck.
• Nylon steering wheels and double loading rollers with polyurethane coating.
• 200 mm diameter steering wheels.
• Lift pump made of AISI 304 stainless steel.
• Waterproof membrane keypad with 17 numeric/functional keys.
• 230Vac 50Hz battery charger with EU, UK, US, AU plug as standard.
• Battery charging socket with double protection against water and humidity.
• Configurable RS232/C bidirectional port for connection to printer.
• Configurable RS232/C bidirectional port for PC, radio module, WIFI or handheld terminal
• Working temperature: -10° / +40°

The Easiest One top Recalibrate and Repair

• The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
• Spare and wear parts always available and ready for delivery.
• Service centres throughout Europe and the world.

Main Functions

• Operating modes selectable directly by the user via a dedicated key*:
  - High resolution display x 10.
  - Precision weighing with temporary recalibration using a sample weight (for internal factory use)
  - Net/gross
  - lb/kg conversion
  - Free conversion factor (for litre-metering systems, etc.)
  - Weight totalisation
  - Formulation
  - +/- control with quick target and threshold entry
  - Percentage weighing
  - Percentage dosage with programmable target
  - Piece counting
  - Hold
  - Alibi memory (optional)
• Access to user menu via a dedicated key*, for weighing filter, date and time, setpoint and user-accessible tare.*These menu quick access keys can be inhibited by configuring a dedicated password.

Other Versions Available

• Approved load capacity 600 / 1.500 kg, resolution 0,2 / 0,5 kg
• Approved load capacity 1.500 kg, resolution 0,5 kg
• Approved load capacity 1.500 / 2.500 kg, resolution 0,5 / 1 kg
• Load capacity 2.500 kg

Options Available Upon Request

• Special fork dimensions
• Special capacities/resolutions
• AISI 316L stainless steel structure
• Parking brake.
