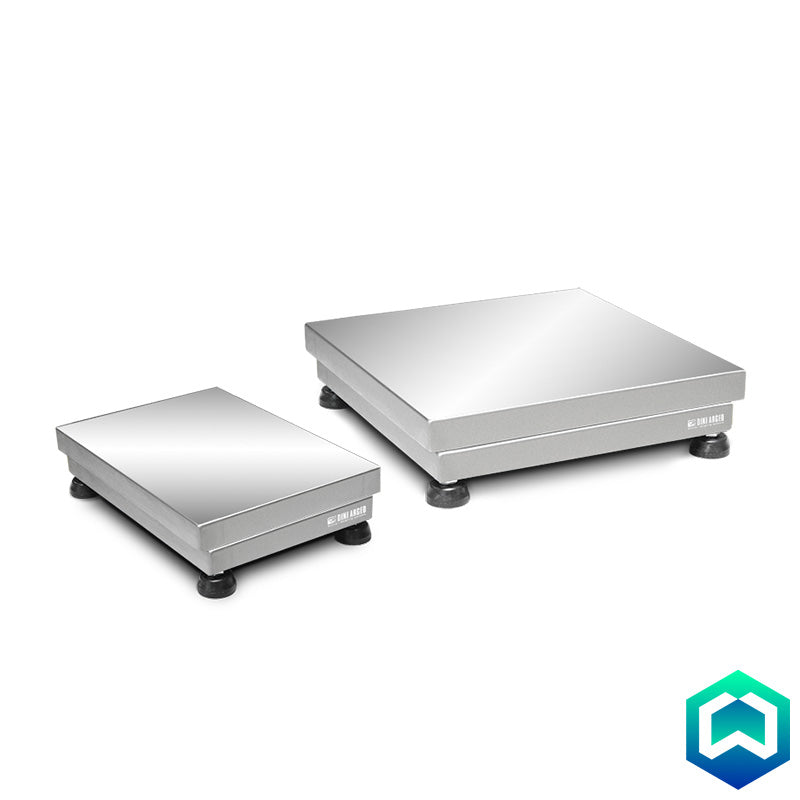

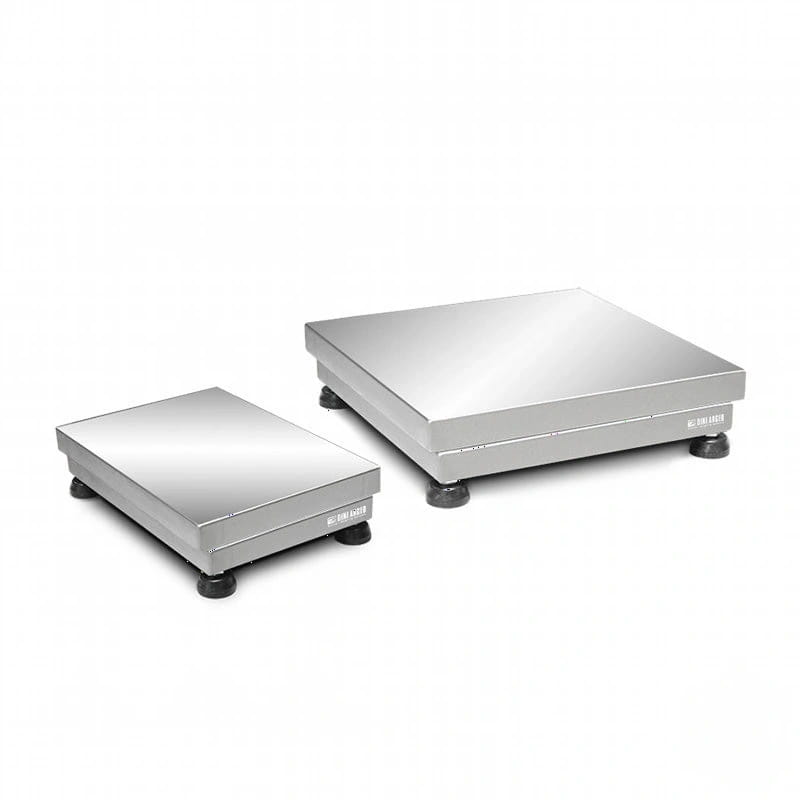

Dini Argeo TE Series Stainless Steel Intrinsically Safe ATEX Scale Base

The Dini Argeo TE Series ATEX Stainless Steel Scale Base is a premium weighing solution that combines high precision, exceptional durability, and comprehensive ATEX compliance, making it an ideal choice for challenging industrial applications, especially those demanding superior hygiene and robust performance in hazardous atmospheres.

Model

£693.00
Product Information

Features:

  • ATEX Certified Stainless Steel Load Cell: Operates with an approved "single point" STAINLESS STEEL load cell that conforms to OIML R60 standards. This load cell provides superior IP67 protection against dust and water splashes, making it highly suitable for hazardous areas where cleanliness and washdown are critical.
  • Complete AISI 304 Stainless Steel Construction: The entire structure, including tubulars, mechanics, small components, and the loading surface, is crafted from AISI 304 satin finish stainless steel. This ensures exceptional corrosion resistance, hygiene, and durability, particularly in food, chemical, or pharmaceutical industries.
  • Adjustable Stainless Steel Feet: Fitted with adjustable stainless steel feet with a plastic resting surface and a built-in level, allowing for precise and stable placement on various surfaces and ensuring optimal weighing accuracy.
  • Flexible Power Supply: Supports an input voltage of up to 15 Vdc, providing stable and efficient power.
  • Extended Shielded Connection Cable: Includes a 3m shielded connection cable with connectors for secure and reliable signal transmission to a compatible indicator, minimizing electrical interference over longer distances.

Options for ATEX Version (Available at Time of Order):

  • CCATEX: Provides the ATEX certificate for each individual load cell, ensuring component-level compliance and traceability.
  • DCATEXMECH: Offers an ATEX declaration for the PLATFORM itself. This option is specifically for platforms ordered without an indicator; otherwise, the overall system's ATEX certification will depend on the chosen weight indicator's available certifications.

Optional Enhancements (Available at Time of Order):

  • Special Sizes and Capacities: Custom sizes and higher capacities can be specified to meet unique application requirements.
  • AISI 316 Stainless Steel Structure: Upgrade the entire structure to AISI 316 stainless steel for even higher resistance to specific corrosive agents and extreme environments.
  • Fully-Welded IP68/IP69K Stainless Steel Load Cell: Opt for a fully-welded stainless steel load cell with IP68/IP69K protection. This option is specifically designed for use in consistently wet environments or those requiring frequent high-pressure, high-temperature washdowns, offering the highest level of ingress protection.
Specification

Material: Stainless Steel

IP Rating: IP67

Dimensions:

  • 230mm x 330mm
  • 330mm x 330mm
  • 400mm x 400mm
  • 400mm x 500mm
  • 500mm x 500mm
  • 500mm x 600mm
  • 600mm x 600mm
  • 700mm x 700mm
Downloads

Please click here for the Dini Argeo TE Series ATEX Scale Base datasheet
