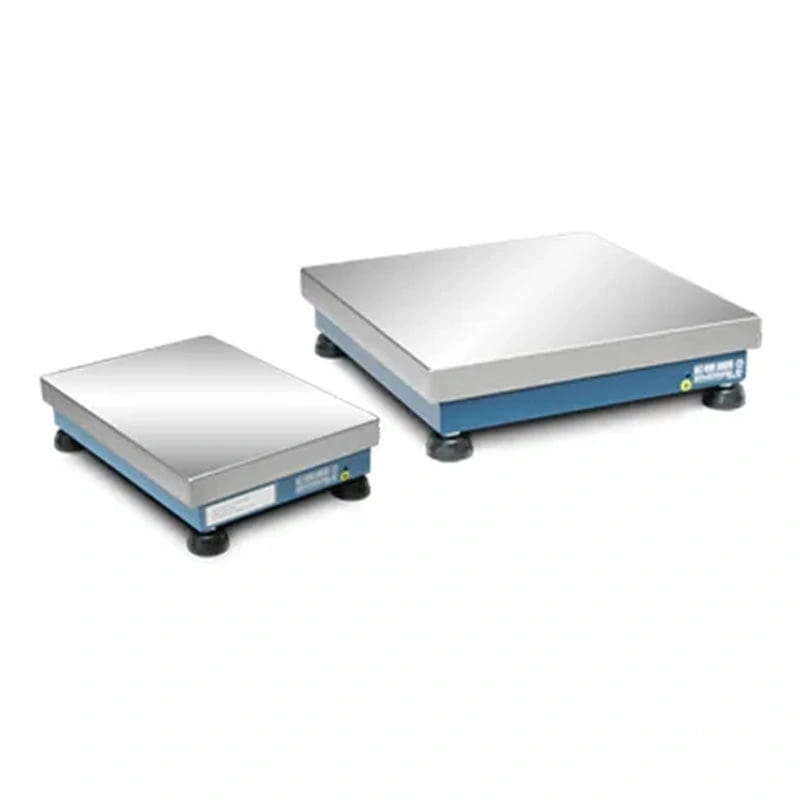

T Series Intrinsically Safe ATEX Scale Base


ATEX T Series scale base supplied with CCATEX certification for single load cell platform.

Main Features

  • T series ATEX scale base with an approved intrinsically safe aluminium single point load cell according to OIML R60 standards with protection against dust and water splashes according to IP65 standards (350 Ohm input resistance).
  • Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
  • Fitted with AISI 304 satin finish stainless steel loading surface.
  • Up to 15 Vdc power supply.
  • Shielded 3m connection cable with connectors for connection to the indicator.

Options for ATEX Version

  • CCATEX: ATEX certificate for each load cell
  • DCATEX2GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 2GD DINI ARGEO INDICATOR
  • DCATEX3GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 3GD DINI ARGEO INDICATOR


  • Belt and roller units to be applied on the loading Surface.
  • Special sizes and capacities.
  • IP68/IP69K protection.
