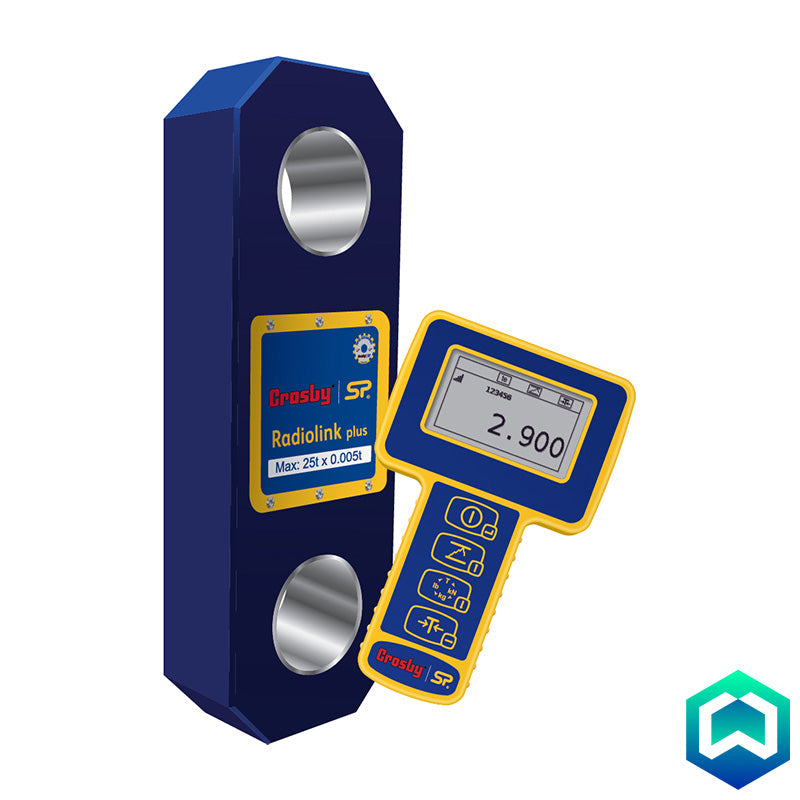

Crosby Straightpoint Radiolink Plus Wireless Dynamometer Tension Load Cell

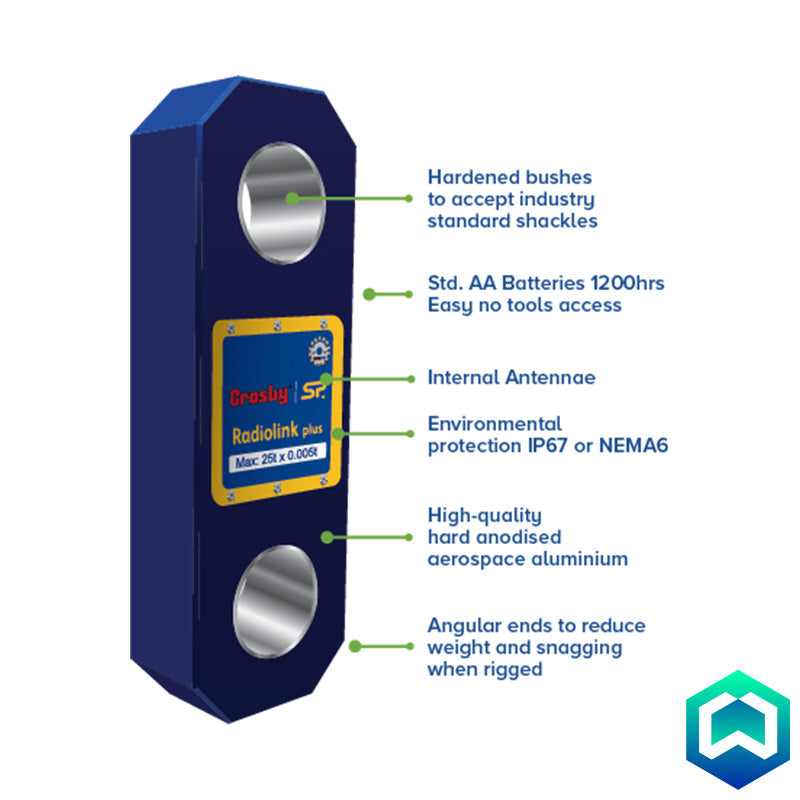

Crosby Straightpoint Radiolink Plus Wireless Dynamometer Tension Load Cell - Features

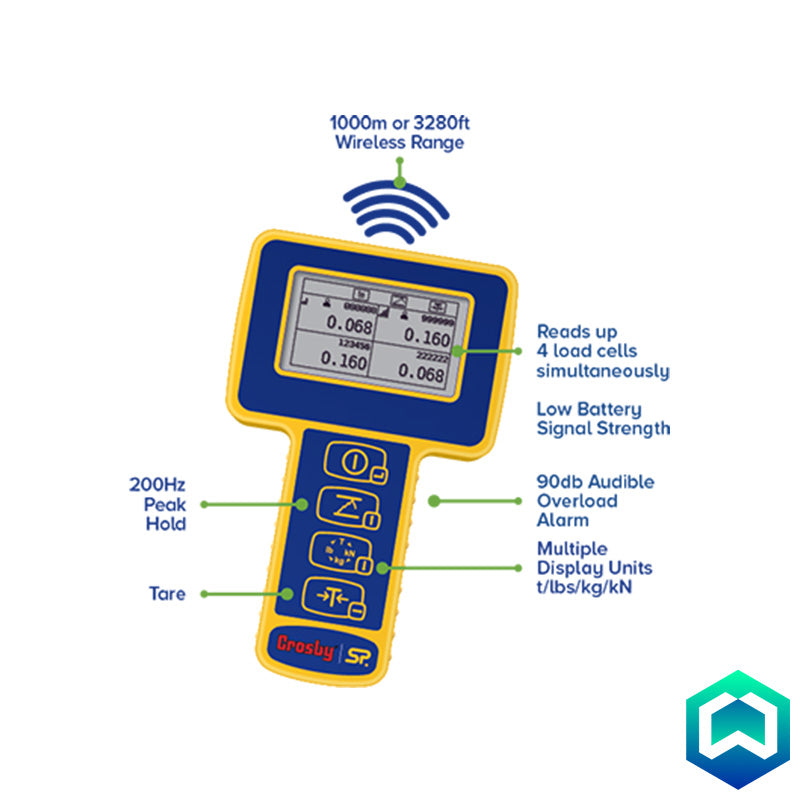

Crosby Straightpoint Radiolink Plus Wireless Dynamometer Tension Load Cell- Handheld Features

Crosby Straightpoint Radiolink Plus Wireless Dynamometer Tension Load Cell

By Straightpoint

The Crosby Straightpoint Radiolink Plus (RLP) is a premier wireless dynamometer tension load cell, renowned for its accuracy, versatility, and robust design. Built upon decades of development, the RLP is engineered to excel in the harshest environments, making it ideal for a wide array of heavy lift, load monitoring, and dynamic force measurement applications.

Model
£2,823.00
Product Information
  • Wireless Connectivity:
    • RF (Radio Frequency) Version: Features a proprietary 2.4 GHz wireless system with an industry-leading range of 1000m (3280ft). Connects seamlessly to SP’s SW-HHP handheld display or various software options.
    • Bluetooth Output Version: Allows connection to any smartphone (iOS or Android) running the free HHP app at ranges up to 100m (328ft).
  • Rugged Construction:
    • Crafted from high-quality aerospace-grade aluminium.
    • Boasts an unrivalled strength-to-weight ratio due to advanced internal design.
    • Environmentally sealed to IP67/NEMA6 via a separate internal enclosure, protecting electronics even with the battery cover plate removed.
    • Features a durable internal antennae.
  • Performance & Precision:
    • Offers an update rate of 3Hz, configurable up to an industry-leading 200Hz for dynamic force measurement.
    • Includes SP's unique strain gauging method that compensates for wire rope torque when the load cell is under load, enhancing accuracy.
    • 100 Hz Peak Hold function for capturing maximum force during dynamic events.
    • Push-button Tare for easy zeroing.
  • Safety & Monitoring:
    • Features a 90db Audible Overload Alarm and an Overload Counter to track instances of overloading.
    • Supports Remote On-Off control from a handheld display or software.
    • Provides an unrivalled battery life of 1200 hours.
  • System Integration & Accessories:
    • Compatible with Straightpoint INSIGHT high-speed wireless data logging software for simultaneous control, display, and real-time data logging of up to 126 wireless load cells.
    • Supports a full array of wireless accessories, including wireless scoreboards, overload alarms, and base stations with analogue (4-20mA), 2 relay, or RS485 ASCII outputs.
  • Certifications:
    • ATEX Zones 0, 1 & 2 available for hazardous environments.
    • DNV-GL Type Approval.
    • Complies with ASME B30.26 standards.

Applications:

  • Water Bag Load Testing
  • Overhead Weighing
  • Load Cell Rental or Hire
  • Bollard Pull Testing
  • Tug Testing
  • Break Bulk Applications
  • Heavy Lift Projects
  • Offshore Cranes
  • Research & Development Projects
  • Spreader Beam Load Monitoring
  • Measurement of Vehicle Towing Loads
  • Ship-to-Ship Transfers (STS)
  • Single Point Mooring

Warranty & Assurance:

  • 2-year warranty
  • Design validated by F.E.A. (Finite Element Analysis)

Supplied Standard With:

  • Straightpoint SW-HHP Handheld Display
  • 6 x AA Batteries
  • Calibration & Proof Test Certificate
  • Multi-Lingual User Manual
  • Carry / Transit Case
  • RFID Tagged
Specification

Part Numbers: RLP1T, RLP2T5, RLP6T5, RLP12T, RLP25T, RLP35T, RLP55T, RLP75T, RLP100T, RLP150T, RLP200T, RLP250T, RLP300TC

Capacity: 1,000 kg (2,200 lb) to 300 te (660,000 lb) - Varies by part number.

Resolution: 0.5 kg (1 lb) to 0.1 te (200 lb) - Varies by part number.

Units: kg, te, lb

Weight: 1.5 kg (3.3 lb) to 118 kg (260 lb) - Varies by part number.

Safety Factor: 12.17:1 to 4:1 (5:1 for most models) - Varies by part number.

Protection: IP67 NEMA6

Battery Type: Handheld - 2×AA / Loadcell 4×AA

Battery Life: Handheld - 40 hrs / Loadcell 1,200 hrs continuous (500 hrs if Bluetooth)

Display Type: 240x128 multi-line dot matrix with backlight

Operating Temp: −10 to +50 ∘C (14 to 122 ∘F)

Accuracy: ±0.1% full scale

Frequency: 2.4GHz

Range (Max): 1,000 metres (3,280 feet) (100 m / 328 ft if Bluetooth)

Data Rate: 3Hz - up to 200Hz can be ordered for dynamic load monitoring applications

Dimensions (A, B, C, D, ØE, F, G): Varies significantly by part number. Refer to specific model details for exact dimensions.

Crosby Shackle Compatibility: G2130, G2140

Loading Pin Ø: 19mm (3/4”) to 152mm (6”) - Varies by part number.
