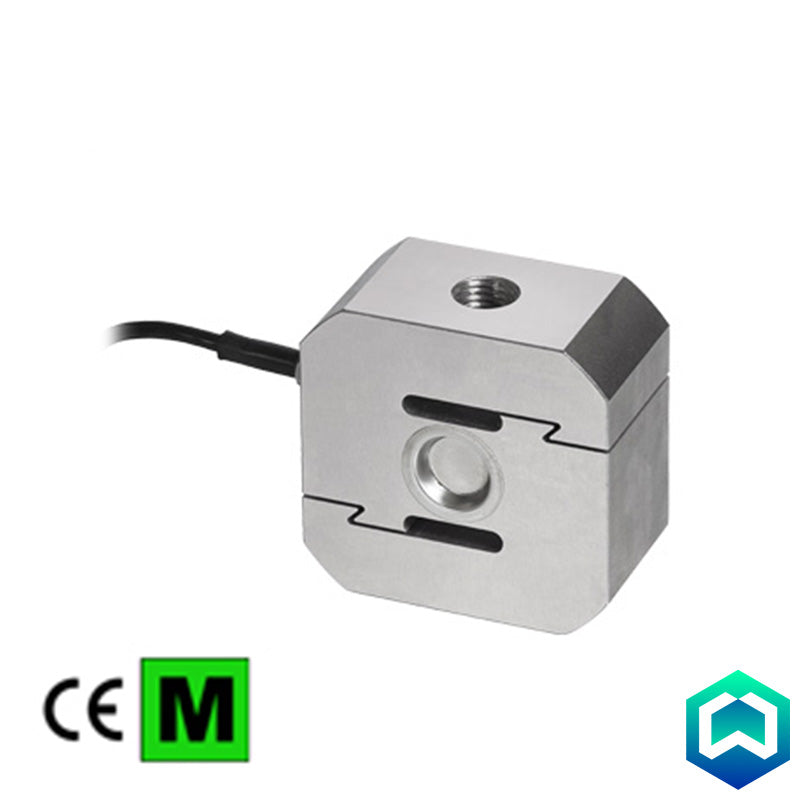

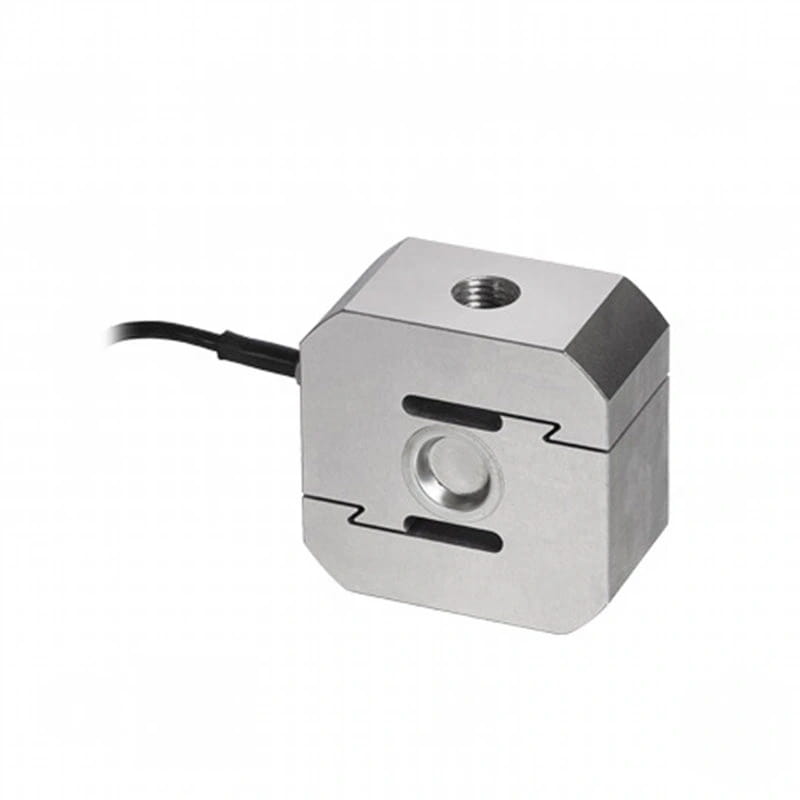

STFC Series Tension Load Cells

MAIN FEATURES

• C3 PRECISION CLASS
• NICKEL-PLATED STEEL CONSTRUCTION
• IP67 PROTECTION LEVEL
• MAX. CAPACITIES FROM 2000 TO 10000 kg
• SHIELDED CONNECTION CABLE
• TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

• Minimum load cell verification interval: Vmin = EMax / 10.000
• Maximum number of verification intervals: nLC = 3000
• Combined error: 0,02% of Full Scale Output (F.S.)
• Full Scale Output: 2mV/V +/- 0,1%
• Temperature effect on zero: 0,0013% /°C
• Temperature effect on full scale output: 0,0014% /°C
• Compensated Temperature Range: –10°C/+40°C
• Operating Temperature Range: -20°C/+60°C
• Creep error after 4 hours: 0,03% F.S.
• Maximum tolerated excitation voltage: 10 VDC
• Input Resistance: 1100 Ohm
• Output Resistance: 1000 Ohm
• Zero balance: +/-1% F.S.
• Insulation Resistance: >5000 MOhm
• Safe Overload: 150% F.S.
• Ultimate Overload: 300% F.S.
• 4-wire shielded cable, 5m long, 5mm diameter

ATEX VERSION

• The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
  ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
  ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
  The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
• IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
