Stainless Steel Washdown Ohaus Defender 3000 - Front Mounted Display

£596.00 £745.00
By Ohaus

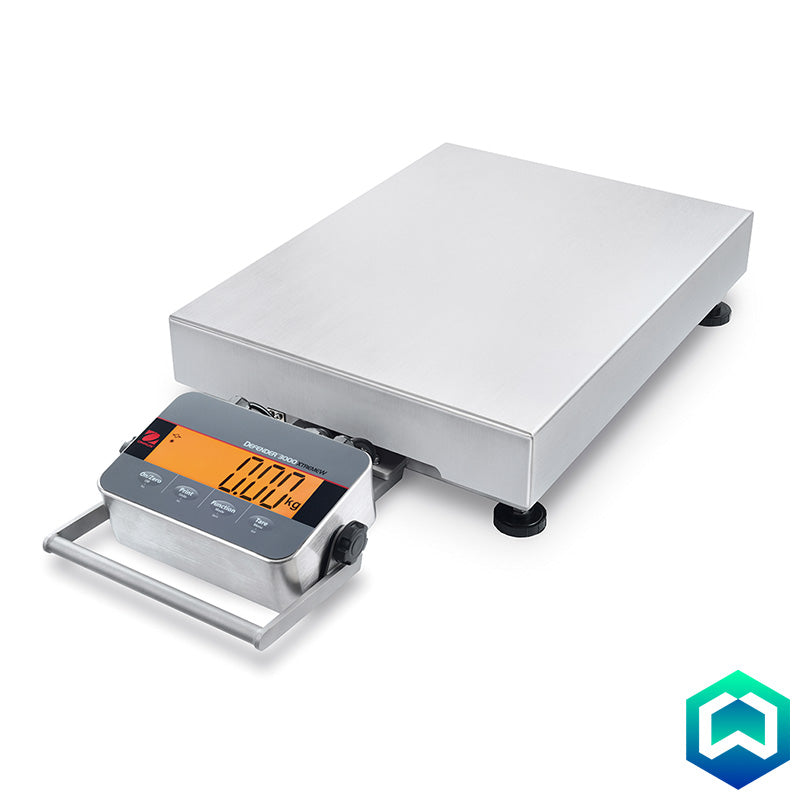

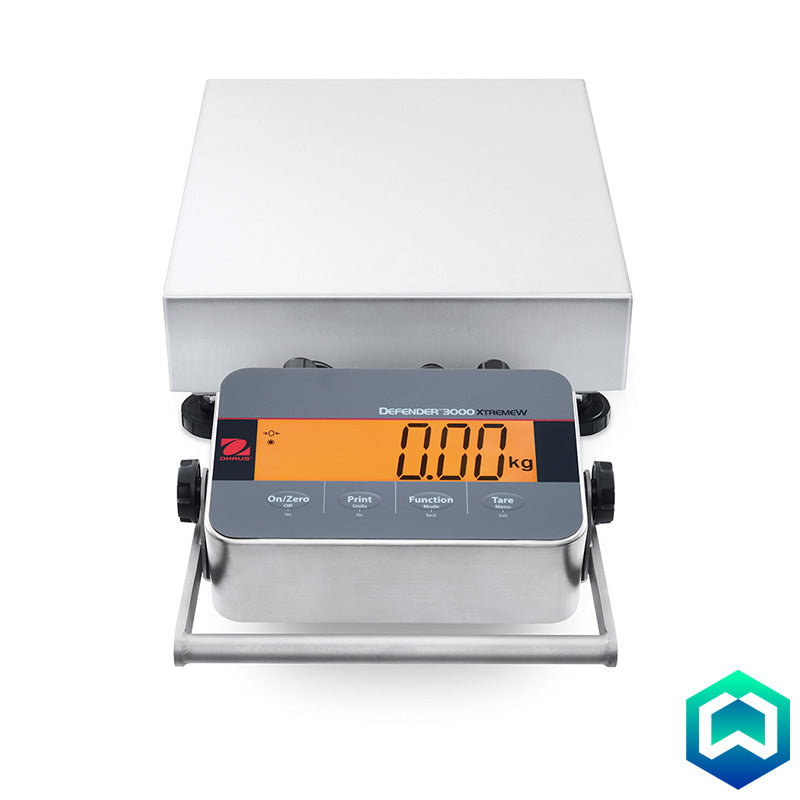

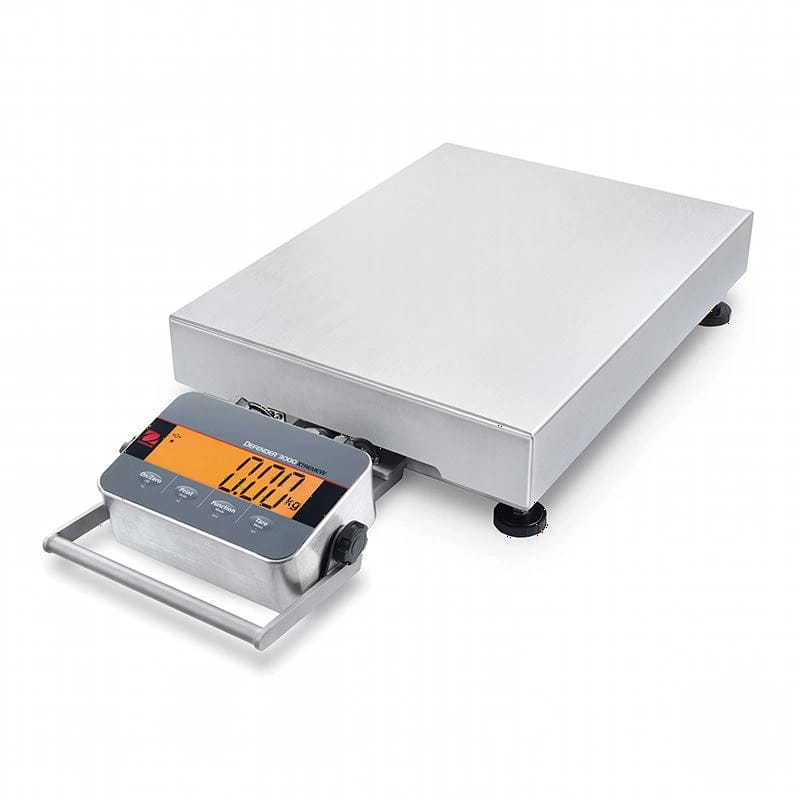

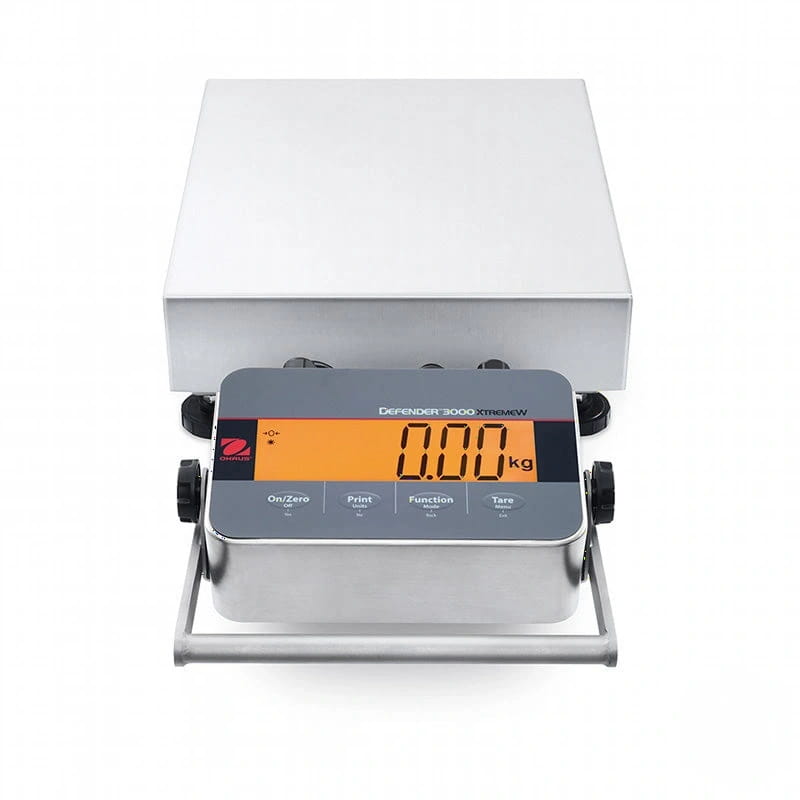

The New Stainless Steel Washdown Ohaus Defender 3000 Bench Scales with Front Mounted Display

Clear Indications

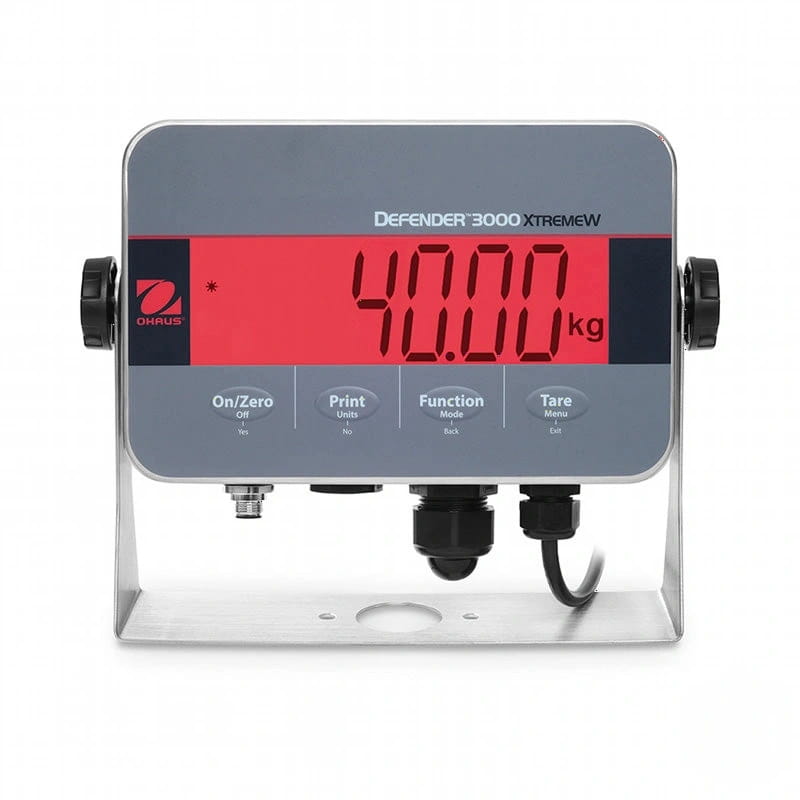

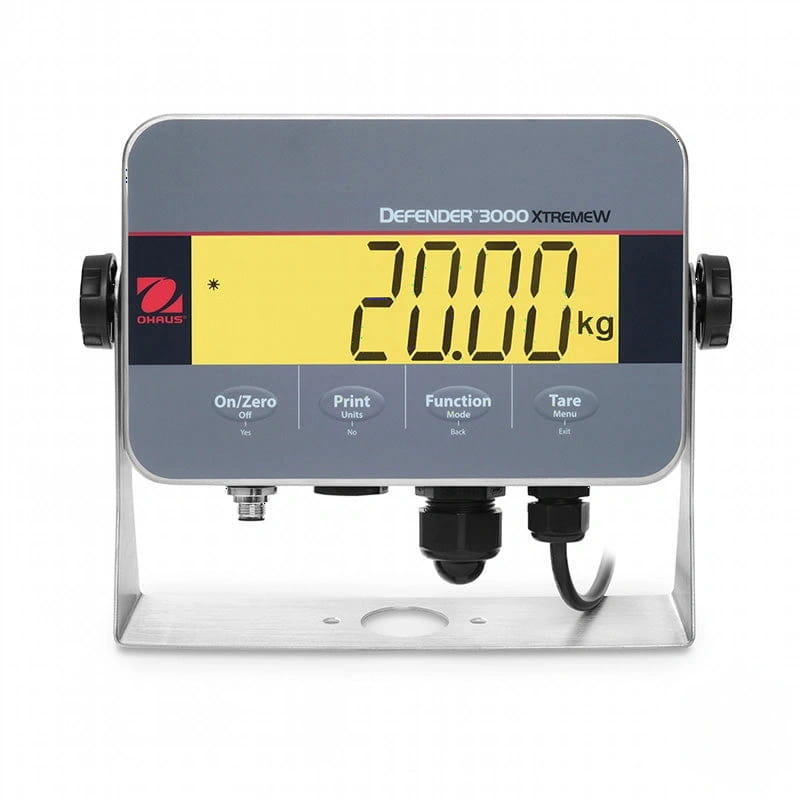

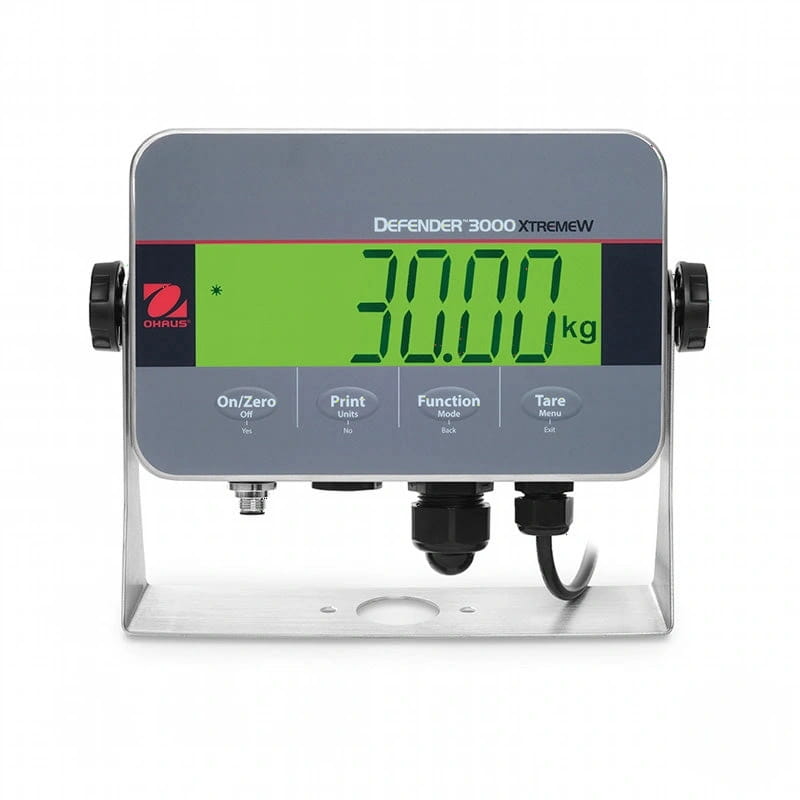

Large, multicolour backlit LCD displays enhance the new Ohaus Defender 3000 front mounted indicators and are bigger than ever for unmistakable results even from a distance. The bright 45mm (1.8 inch) digit displays are almost twice as large as before and now feature four selectable backlight colours –amber, green, red and yellow. The Defender indicators can be mounted to a wall with the included bracket.

Not only are the displays bigger and brighter than ever, but the improved electronics are twice as fast, showing results in one second. When used with the new Check weighing mode, the Defender 3000 will alert you when you are within your target weight range in intuitive yellow, green, or red display colour changes. The Defender 3000 supports regular positive check weighing into a package, negative check weighing out of a bin or tote, and also zero check weighing + or – against a sample weight. Not only will the user see the result, but it will be clear even from across the production floor.

Stainless Steel Housing

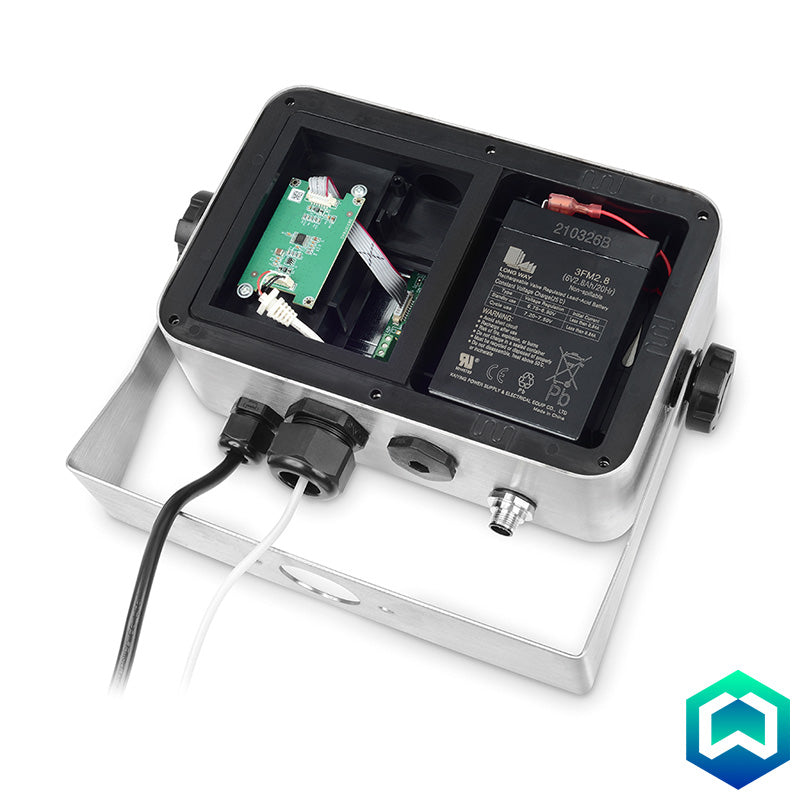

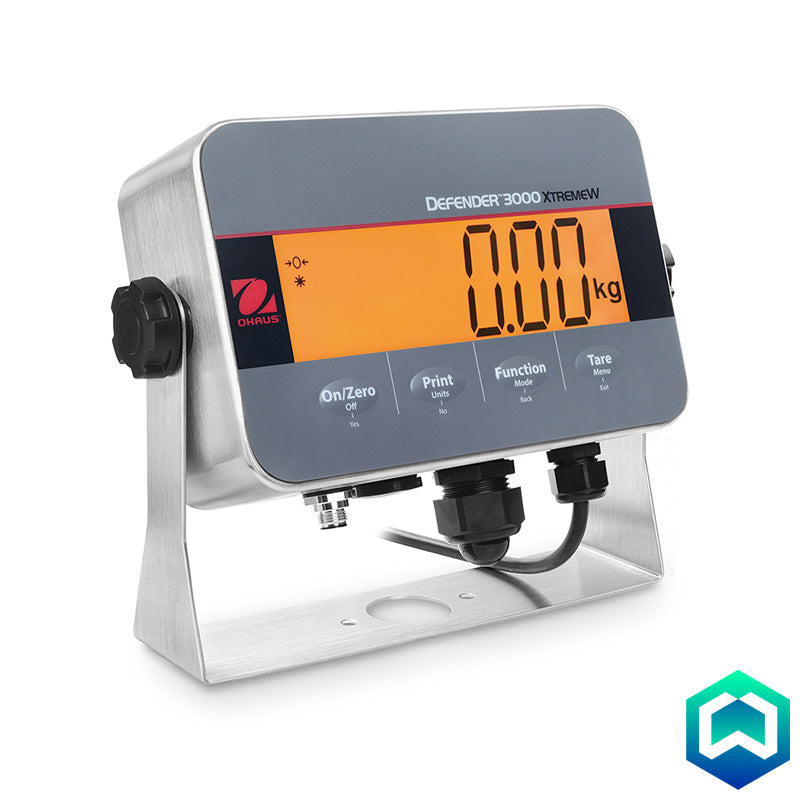

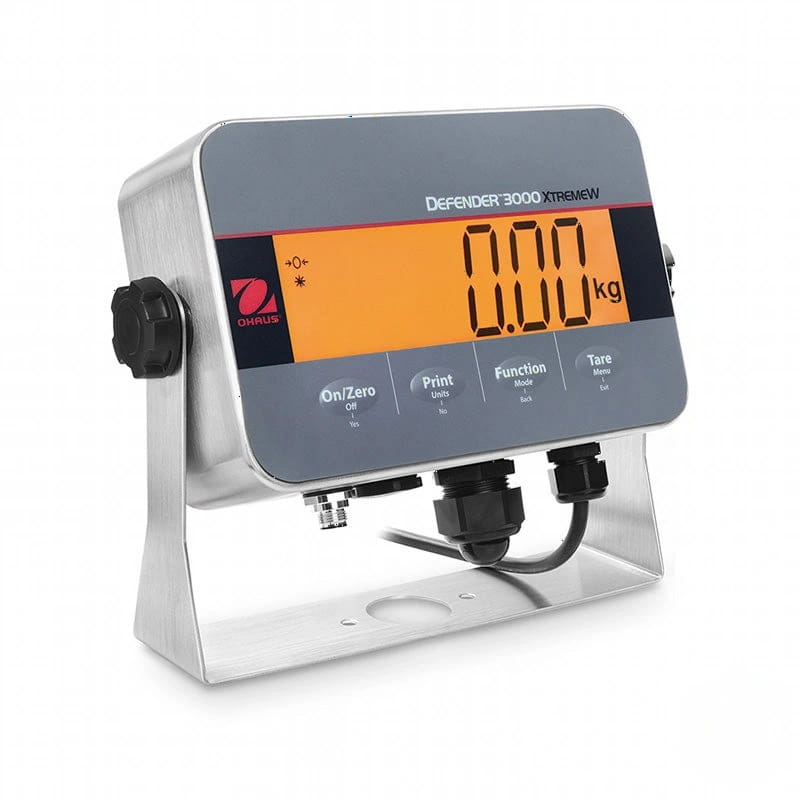

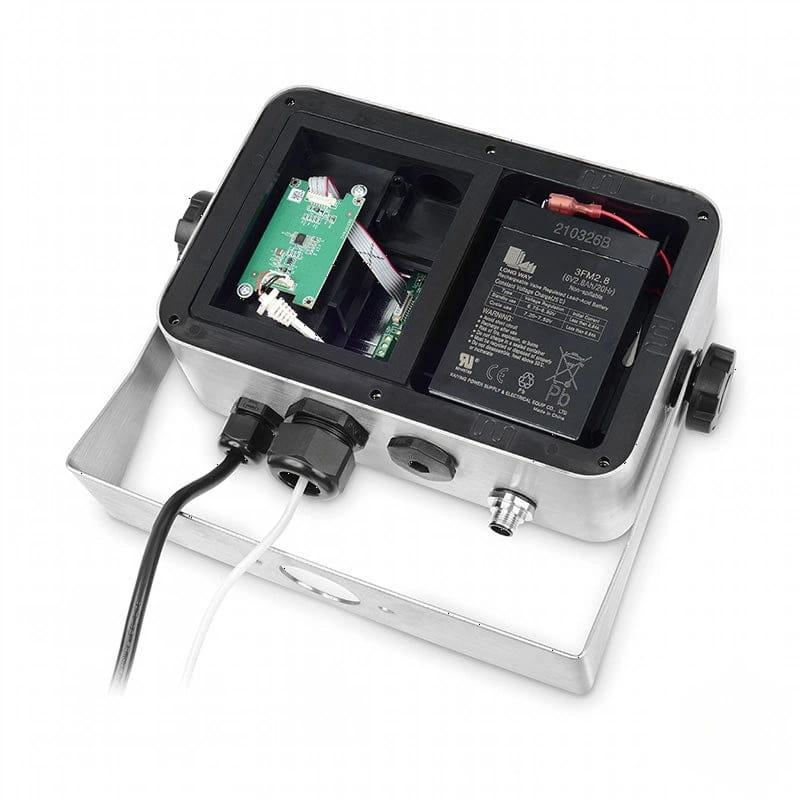

The i-DT33XW indicator has all the same software and features of the i-DT33P but in a 304-stainless steel IP66 housing to protect against moisture in basic industrial applications. This indicator comes with a stainless steel bracket and the internal rechargeable battery as standard, and can also be AC powered using the included hardwired power cord.

Your Job, Your Way
The Defender 3000 series now brings added versatility as well, with combinations of different bases, indicators and mounting options available depending on your customers’ application needs.
With bases ranging from 15kg (30lbs) in 305 x 355mm (12 x 14 inches) up to 600kg (1,200lbs) in 600 x 800mm (19.7 x 25.6 inches), our bases are OIML (NTEP & Measurement Canada)
certified. Designed to meet basic industrial needs, the Defender 3000 is made to perform everyday, ready for their next job.

Clear Communication
The new Defender 3000 series offers bi-directional RS232 as standard, either as an easy-access port on the i-DT33P or as a terminal block in the i-DT33XW. We now offer Ethernet or USB device as a second internal communication option for applications where both printing and data connection to a system are required. All communication ports can use either a simple or customizable print template using our ScaleMate software. Further, the Defender 3000 now supports OHAUS or MT continuous output, MT SICS and selectable ALT commands for Print, Zero and Tare operations -- all for added data integration.

Smarter Than Ever

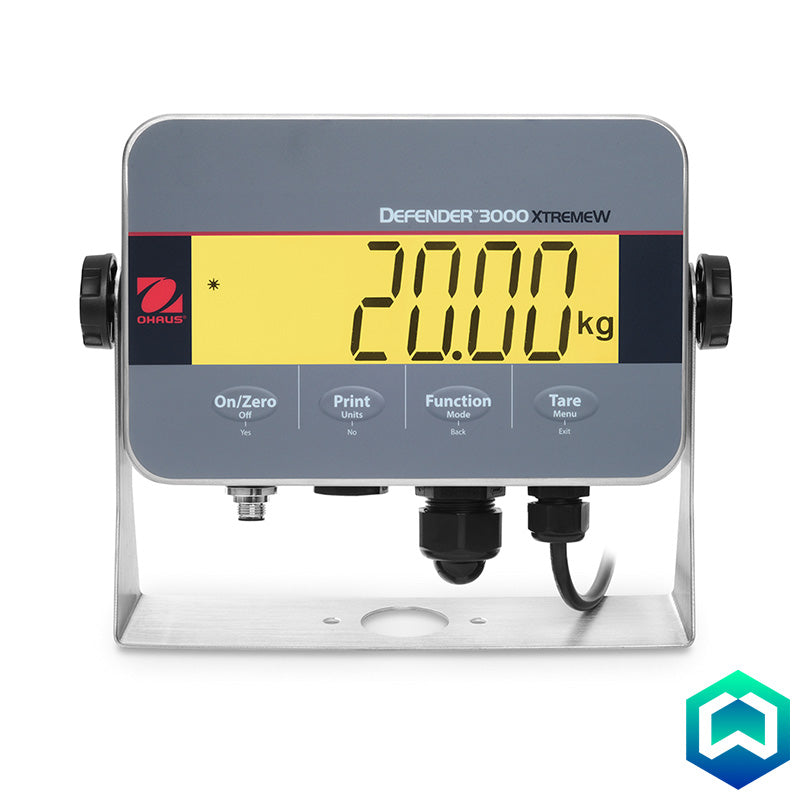

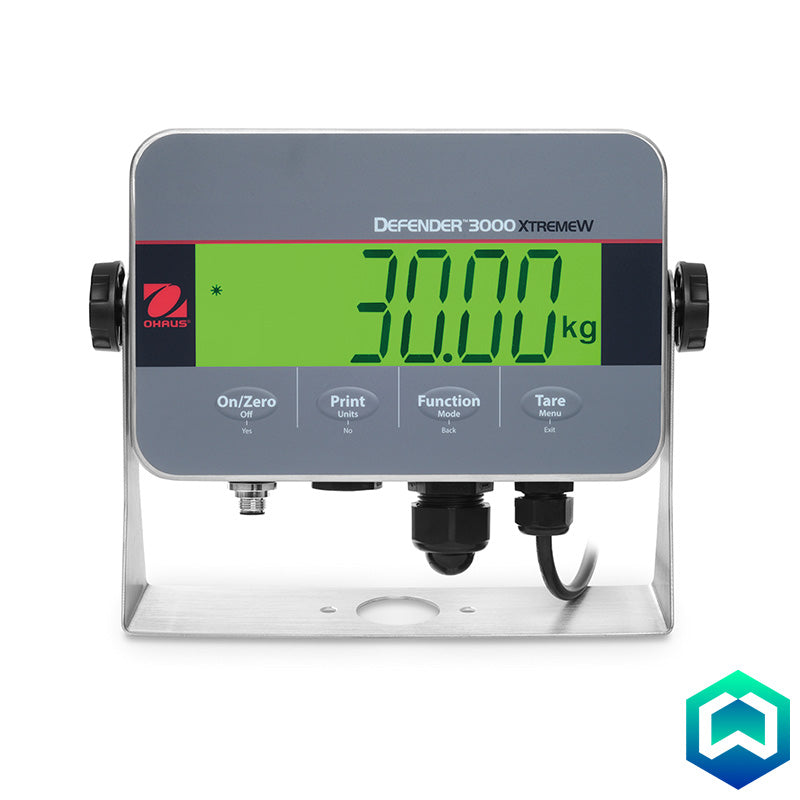

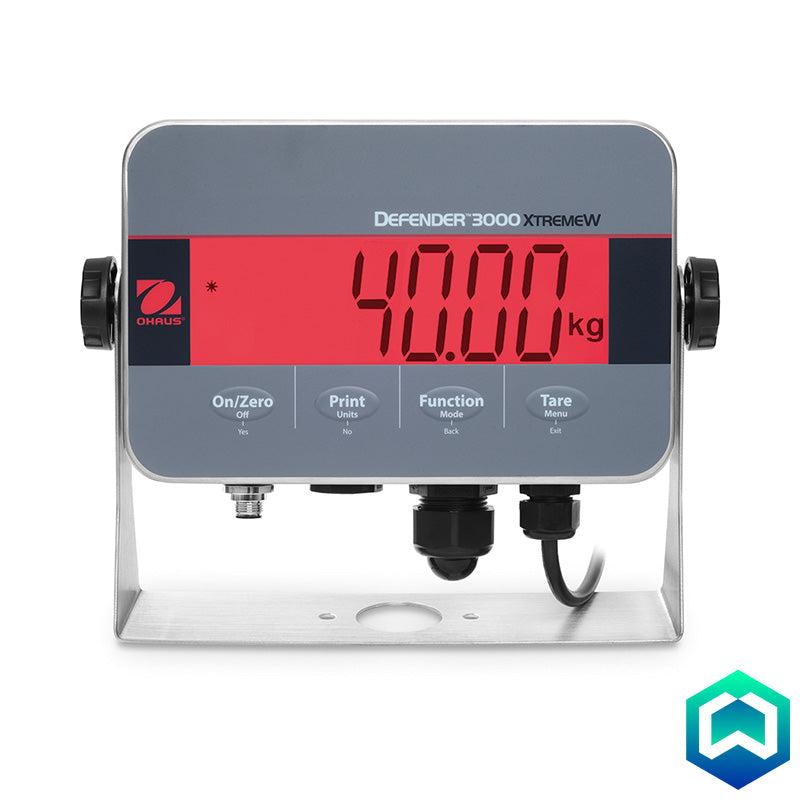

The Defender 3000 has been updated with simple check weighing using the multi-colour display showing yellow (under), green (OK) or red (over target). Targets can be easily set using the indicator’s four keys in any of the indicators’ weighing units – kg, g, lb, oz, lb:oz or metric tonnes. The new Ohaus Defender 3000 also includes totalization mode which tracks the results of a series
of weighments. After tracking each weight, when prompted it can display basic statistics on a number of weighments, max., min., average, difference and total. Results can also be printed or output to a data connection using a customizable template. Other improvements include a quick key press to show Tare and APW values, selectable power and screen saving settings, configurable key lockouts to minimize operator errors, calibration test, power-on zero control, and selectable auto-tare. Our popular EasyConnect system is now available in the Defender 3000 indicators – mix-and-match even with our Defender series bench scale bases and floor scale platforms for greater flexibility.

The New Ohaus Defender 3000 Industrial Bench or Floor Scales

https://www.youtube.com/watch?v=MWAJ5g68HQM

Application
Weighing, Check weighing, Counting, Totalization.

Display
7 Segment LCD with multicolour backlight

Operation
Power cord (included) or Rechargeable Battery (included)

Communication
Standard RS232 and optional USB Device or Ethernet

Construction
304-stainless steel indicator, 304-stainless steel platform, 304-stainless steel steel tubular frame, stainless steel load cell, non-slip adjustable rubber feet

Design Features
150% overload protection

Standard Versions

Model Platform Sizes Capacity
i-D33XW15C1R5 305mm x 355mm 15kg x 2g
i-D33XW30C1R5 305mm x 355mm 30kg x 5g
i-D33XW60C1R5 305mm x 355mm 60kg x 10g
i-D33WX60C1L5 420mm x 550mm 60kg x 10g
i-D33XW150C1L5 420mm x 550mm 150kg x 20g
i-D33XW150C1X5 650mm x 500mm 150kg x 20g
i-D33XW300C1X5 650mm x 500mm 300kg x 50g

Trade Approved Versions

Model Platform Sizes Capacity
i-D33XW15C1R5-M 305mm x 355mm 15kg x 5g
i-D33XW30C1R5-M 305mm x 355mm 30kg x 10g
i-D33XW60C1R5-M 305mm x 355mm 60kg x 20g
i-D33WX60C1L5-M 420mm x 550mm 60kg x 20g
i-D33XW150C1L5-M 420mm x 550mm 150kg x 50g
i-D33XW150C1X5-M 650mm x 500mm 150kg x 50g
i-D33XW300C1X5-M 650mm x 500mm 300kg x 100g

Accessories Available for the new Stainless Steel Ohaus Defender 3000

Column Assembly, 330mm, SST, i-DT33 30696595
Column Assembly, 680mm, SST, i-DT33 30696596
Column Assembly, 330mm, CS, i-DT33 30696597
Column Assembly, 680mm, CS, i-DT33 30696598
Column Assembly, 980mm, CS, i-DT33 30696599
USB Device Kit i-D33 30699120
Dust Cover i-DT33 (5) 30699121
Rechargeable battery kit i-DT33P 30699122
Wheel kit, Defender Series 30372146
Wheel kit SST, Defender Series 30616409
Cable RS232 i-DT33P 80500525
Cable RS232 i-DT33XW 80500552
Ethernet Kit 30429666

Please click here for the Ohaus Defender 3000 stainless steel washdown datasheet .....
