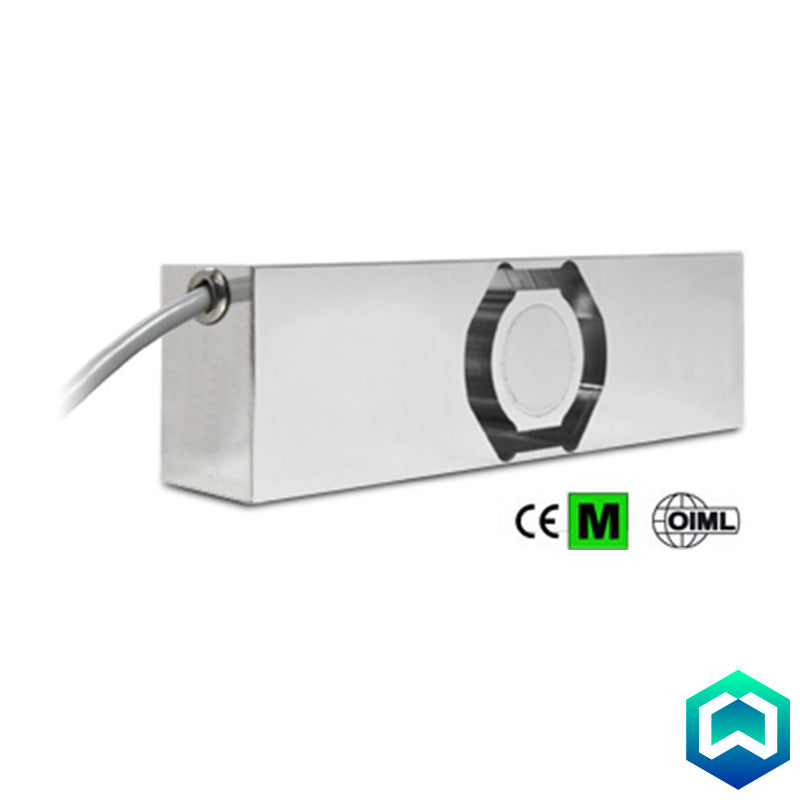

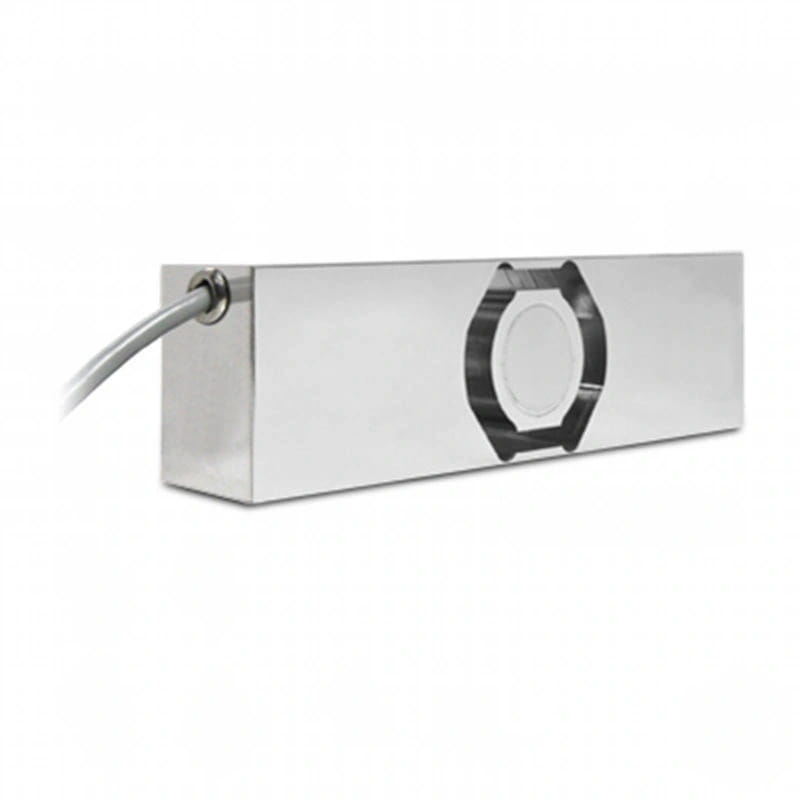

Dini Argeo SPSY Stainless Steel Single Point Load Cell

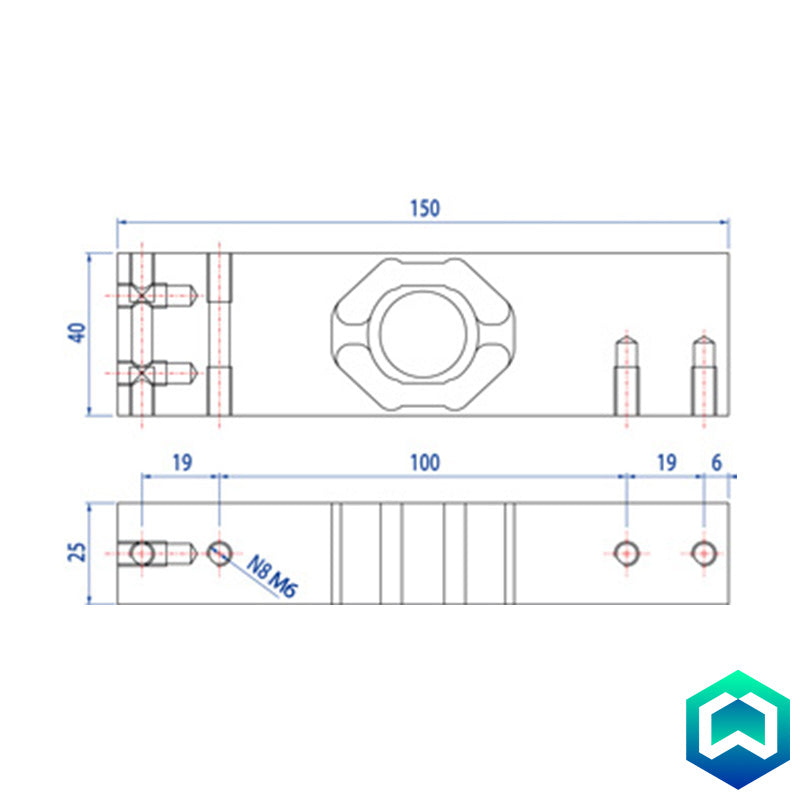

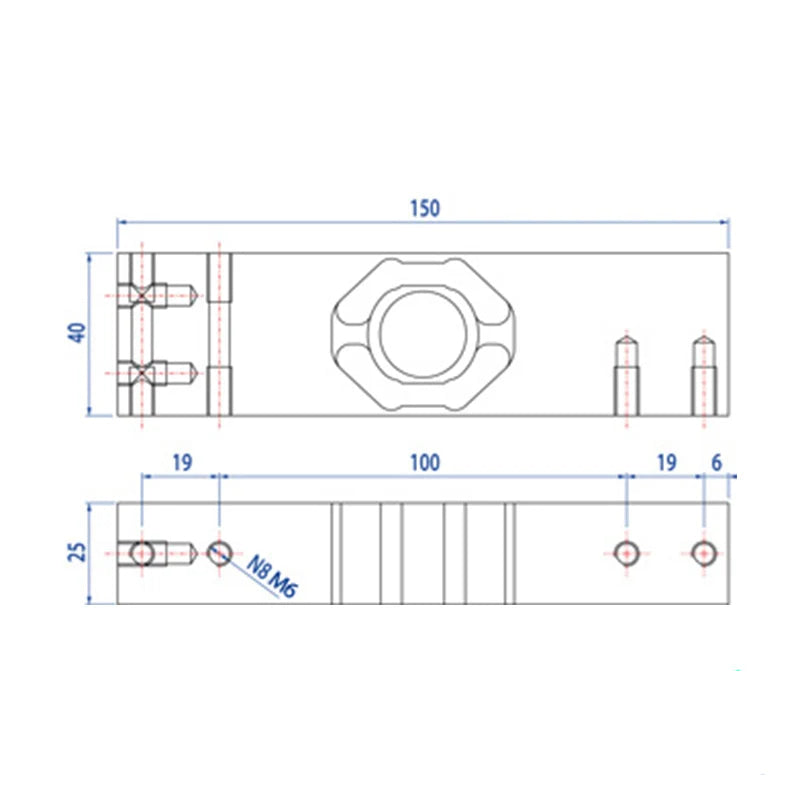

Dini Argeo SPSY Stainless Steel Single Point Load Cell - Diagram

Dini Argeo SPSY Series Single Point Load Cell

By Dini Argeo

The Dini Argeo SPSY series single point load cell is constructed from high-grade 17-4 PH stainless steel, offering exceptional durability and corrosion resistance. Designed for accurate weighing of off-center loads, it is ideal for building CE-M approved single load cell scales with maximum platform dimensions of up to 500 x 400 mm. Its robust construction and high ingress protection make it suitable for demanding industrial environments.

Model
£498.00
Product Information

Features:

  • OIML R60 C3 Precision Class: Ensures accurate and reliable weighing performance for various industrial and commercial applications.
  • Off Center Load Compensated: Delivers precise readings even when the load is not placed directly in the center of the platform.
  • Made in 17-4 PH Stainless Steel: Provides superior durability, corrosion resistance, and suitability for demanding environments.
  • IP68/IP69K Protection: Offers the highest level of protection against dust and water ingress, including high-pressure, high-temperature washdown, ensuring reliable operation in harsh conditions.
  • Optimized Capacity Range: Available in capacities of 10 kg, 20 kg, 50 kg, and 100 kg, suitable for a range of medium-capacity weighing tasks on appropriately sized platforms.
  • Ideal for Medium-Sized Platforms: Specifically designed for single load cell platforms with dimensions up to 500 x 400 mm.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 3-meter length.
  • Test Certificate Available: Compliance with performance specifications can be verified with a test certificate available upon request.
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC = 3000

Full Scale Output: 2mV/V +/- 10%

Temperature effect on zero:
±0,014% F.S./10K

Temperature effect on full scale output:
±0,0117% F.S./10K (-10°C/+20°C)
±0,0175% F.S./10K (+20°C/+40°C)

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Creep at nominal load in 30 minutes: ± 0,01% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 380 ± 15 Ohm

Output Resistance: 350 ± 10 Ohm

Insulation Resistance: (100V) >2000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

Nominal displacement: < 0.5 mm

6-wire shielded cable, 3m long, 5mm diameter
Downloads

Please click here for the Dini Argeo SPSY Stainless Steel Single Point Load Cell datasheet
