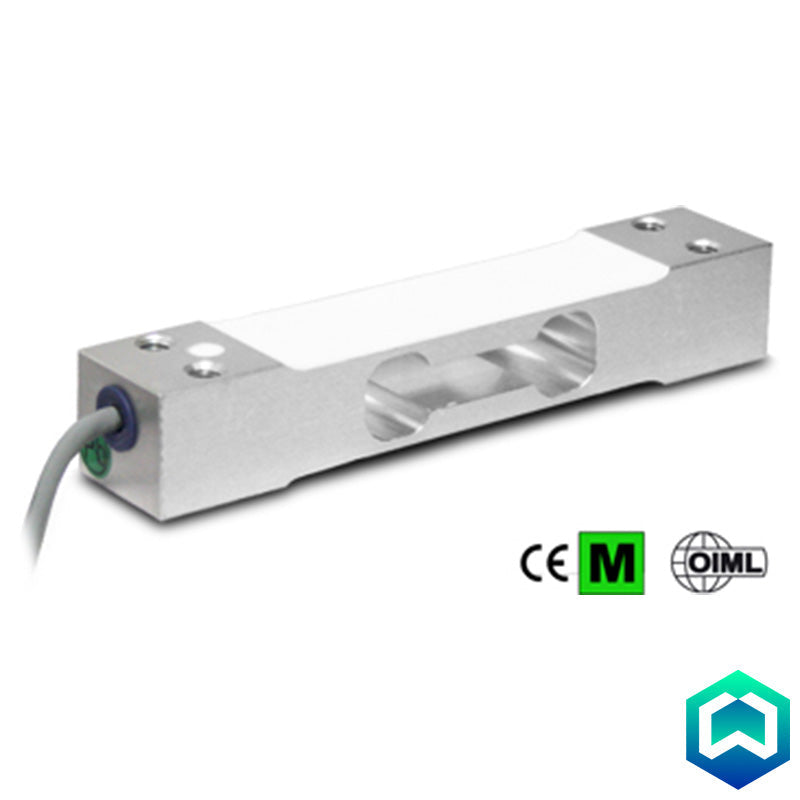

Dini Argeo SPO Single Point Loadcell

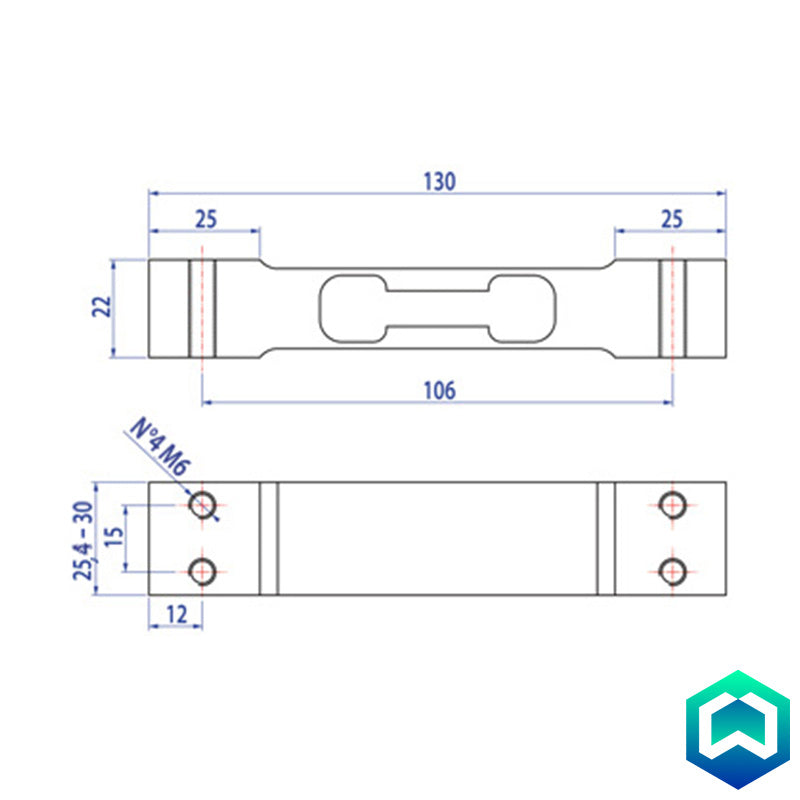

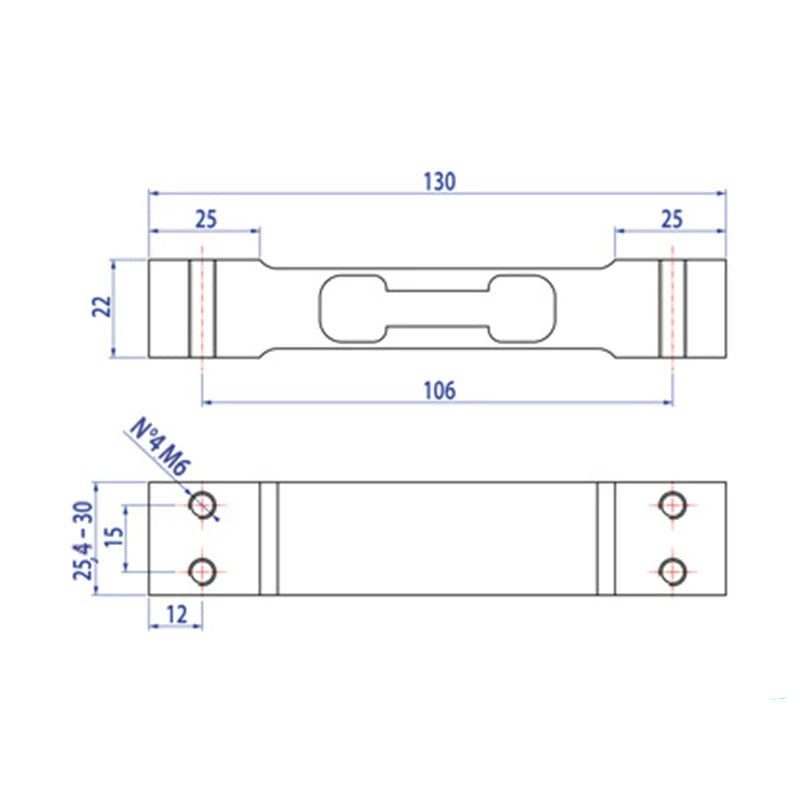

Dini Argeo SPO Single Point Loadcell - Diagram

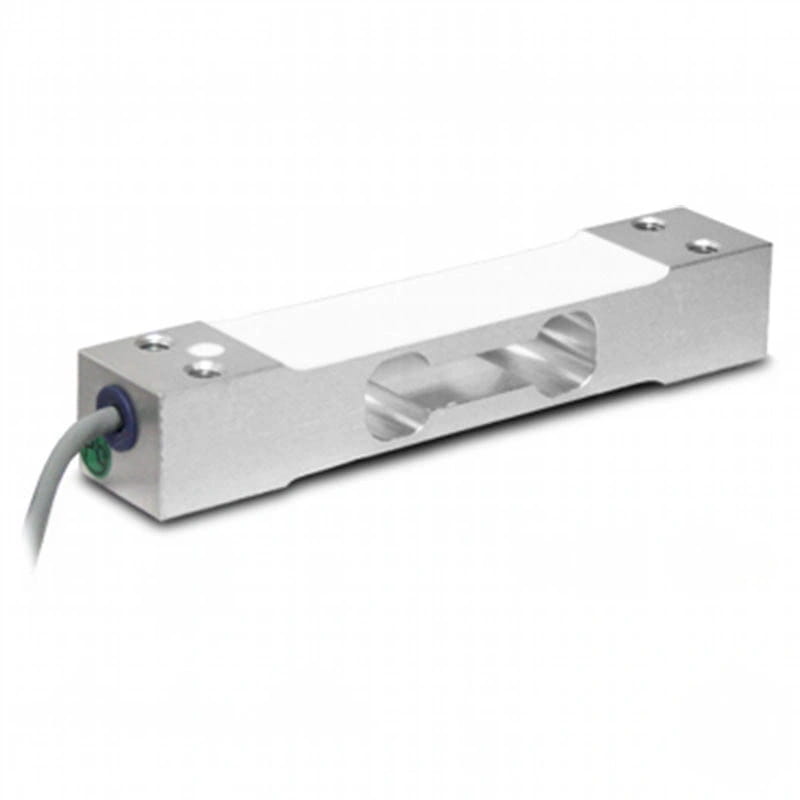

Dini Argeo SPO Single Point Load Cell

By Dini Argeo

The Dini Argeo SPO series single point load cell is designed for accurate and reliable weighing of off-center loads. This makes it ideally suited for building CE-M approved single load cell scales with maximum platform dimensions of up to 300 x 300 mm, simplifying scale construction and reducing costs.

Model
£59.00
Product Information

Features:

  • OIML R60 C3 Precision Class: Ensures high accuracy and reliability for demanding weighing applications.
  • Off Center Load Compensated: Guarantees accurate readings regardless of the load's position on the platform, within specified limits.
  • Aluminium Alloy Construction: Provides a lightweight yet robust and cost-effective sensor solution.
  • IP67 Protection: Offers excellent resistance to dust and water ingress, ensuring reliable performance in various industrial environments.
  • Wide Capacity Range: Available in capacities from 3 kg to 40 kg to suit diverse weighing needs.
  • Ideal for Compact Platforms: Specifically designed for platforms up to 300 x 300 mm when using a single load cell.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission.
  • OIML and Test Certificates Available: Certification can be provided upon request, ensuring compliance with relevant metrology standards.

Alternatively, for ATEX environments, shop the SPO ATEX Single Point Load Cell.
Specification

Minimum load cell verification interval:
Vmin = EMax/8.000-15.000

Maximum number of verification intervals: nLC = 3000

Full Scale Output: 2mV/V +/- 10%

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 300..500 Ohm

Output Resistance: 300..500 Ohm

Insulation Resistance: >2000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

4-wire shielded cable, 40cm long, 3,2mm diameter
