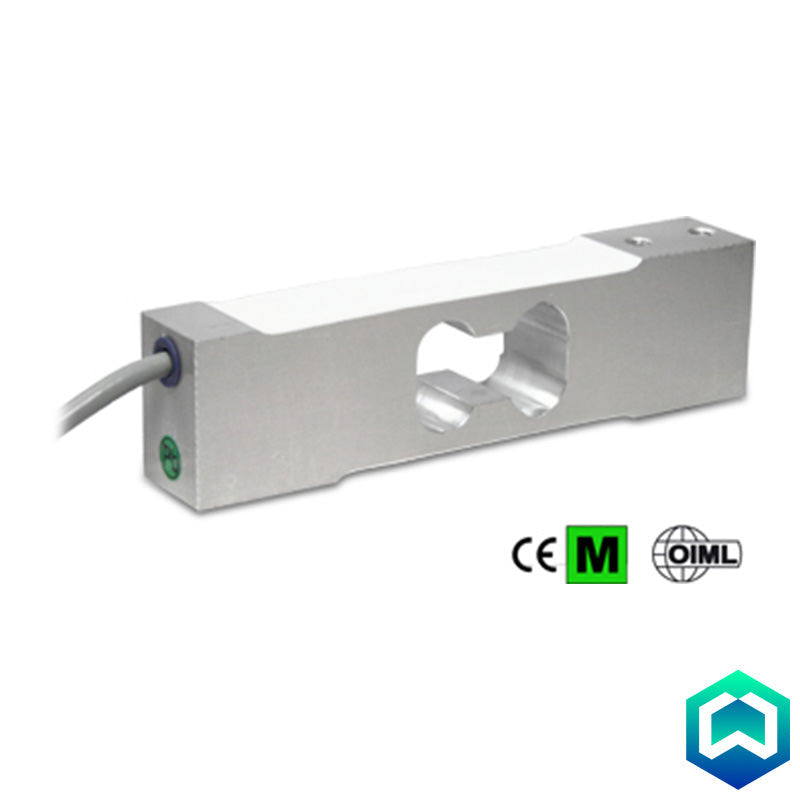

Dini Argeo SPG Single Point Loadcell C6 Class

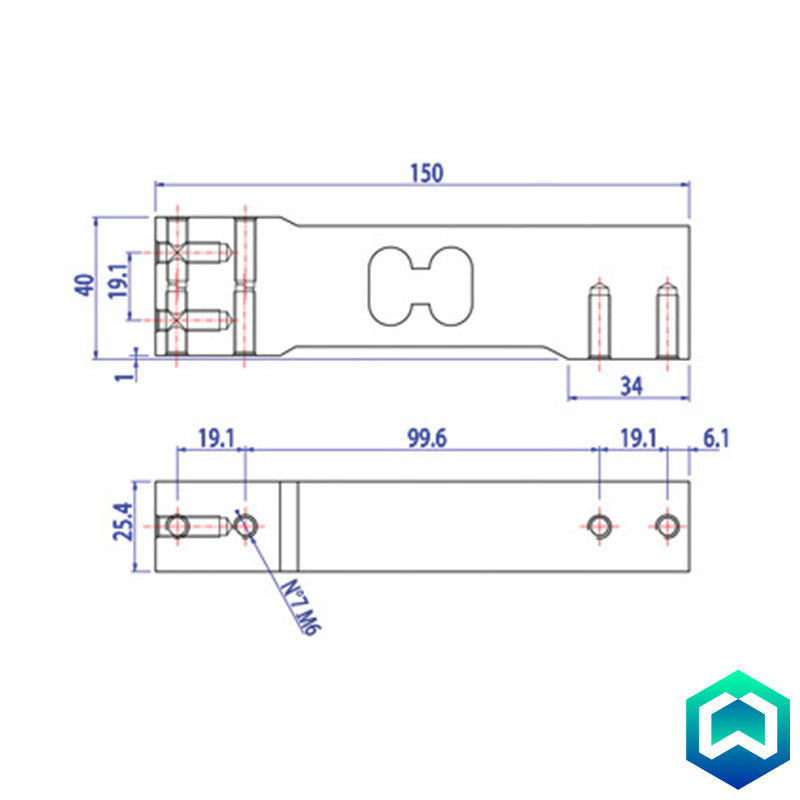

Dini Argeo SPG Single Point Loadcell C6 Class - Diagram

Dini Argeo SPG Series Single Point Load Cells C6 Class

By Dini Argeo

The Dini Argeo SPG series single point load cell, C6 precision class, is designed for highly accurate weighing of off-center loads on single load cell platforms with maximum dimensions of up to 450 x 450 mm. This makes it an excellent choice for constructing high-precision CE-M approved scales with a single, centrally mounted load cell, offering superior accuracy for demanding applications.

Model
£131.00
Product Information

Features:

  • OIML R60 C6 Precision Class: Provides high accuracy (C6) for critical weighing applications demanding precise measurements.
  • Off Center Load Compensated: Ensures highly accurate readings even when the load is positioned away from the center of the platform.
  • Aluminium Alloy Construction: Offers a lightweight yet robust and cost-effective sensor solution.
  • IP67 Protection: Provides excellent resistance to dust and water ingress, ensuring reliable performance in various industrial environments.
  • Optimised Capacity Range: Available in capacities of 7kg, 10kg, 18kg, and 36kg, ideal for medium-capacity, high-precision weighing tasks on appropriately sized platforms.
  • Ideal for Medium-Sized Platforms: Specifically designed for single load cell platforms with dimensions up to 450 x 450 mm.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 3-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

Alternatively, for ATEX environments, shop the SPG ATEX Single Point Load Cell.
Specification

Minimum load cell verification interval:
Vmin = EMax / 14.000-25.000

Maximum number of verification intervals: nLC = 6000

Sensitivity: 2mV/V ± 10%

Temperature effect on zero:
7kg: ±0,0084% F.S./10K
10kg: ±0,0070% F.S./10K
18kg: ±0,0070% F.S./10K

36kg: ±0,0070% F.S./10K


Temperature effect on Full Span:
range -10°C/+20°C: 0,0058% F.S./10K
range +20°C/+40°C: 0,0087% F.S./10K

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Maximum excitation voltage without damage: 15 Vdc

Input Resistance: 300..500 Ohm

Output Resistance: 300..500 Ohm

Zero Balance: 0 ±0,1mV/V (at 100V)

Destructive load: 300% F.S.

6-wire shielded cable, 3m long, 4,7mm diameter
Downloads

Please click here for the Dini Argeo SPG Single Point Load Cell C6 Class datasheet
