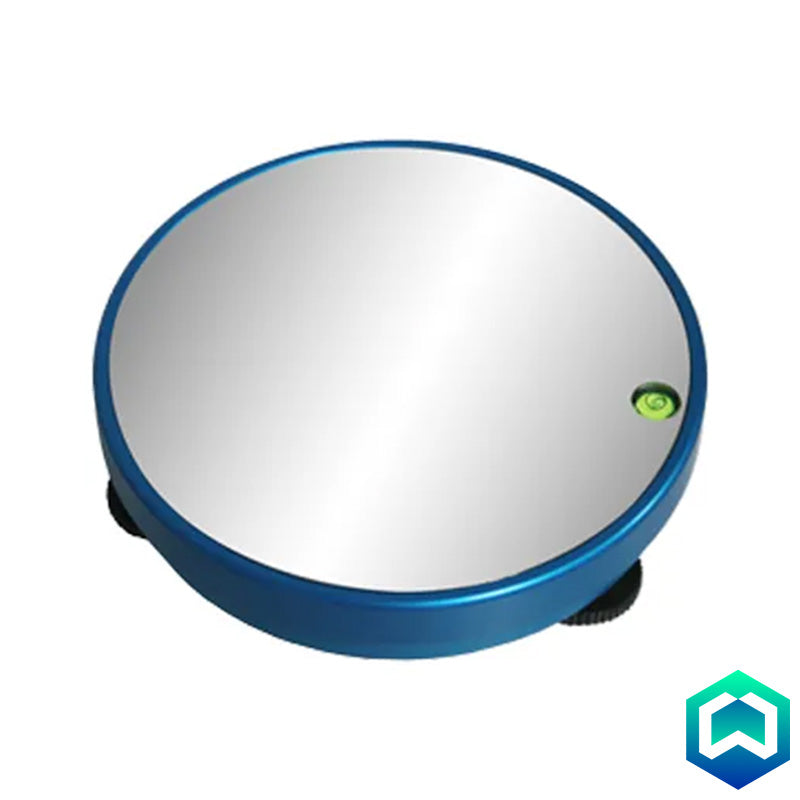

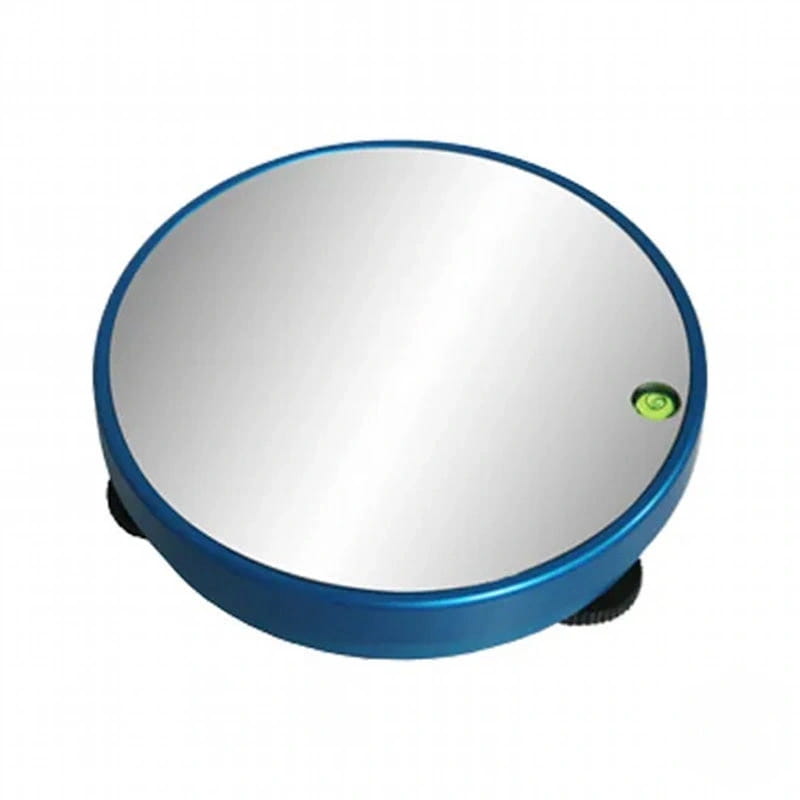

RPLC Intrinsically Safe ATEX Scale Base



ATEX RPLC scale base supplied with CCATEX certification for single load cell platform.

Main Features

  • Functions with an approved aluminium “single point” load cell according to OIML R60 standards with protection against dust and water splashes according to IP65 standards (350 Ohm input resistance).
  • Anodized blue aluminium structure with adjustable resting feet and level.
  • Stainless steel plate.
  • 15 Vdc power supply.
  • Shielded 1,5 m connection cable with connectors for connection to the indicator.

Options Only Available At Time Of Order

  • Connection to the indicator and calibration with CE-M 3000e approval.
  • High resolution models for internal factory use.

Options For ATEX Version

  • CCATEX: ATEX certificate for each load cell.
  • DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.
