PW200XRD Power Supplier for ATEX Zone 1/21

By Dini Argeo

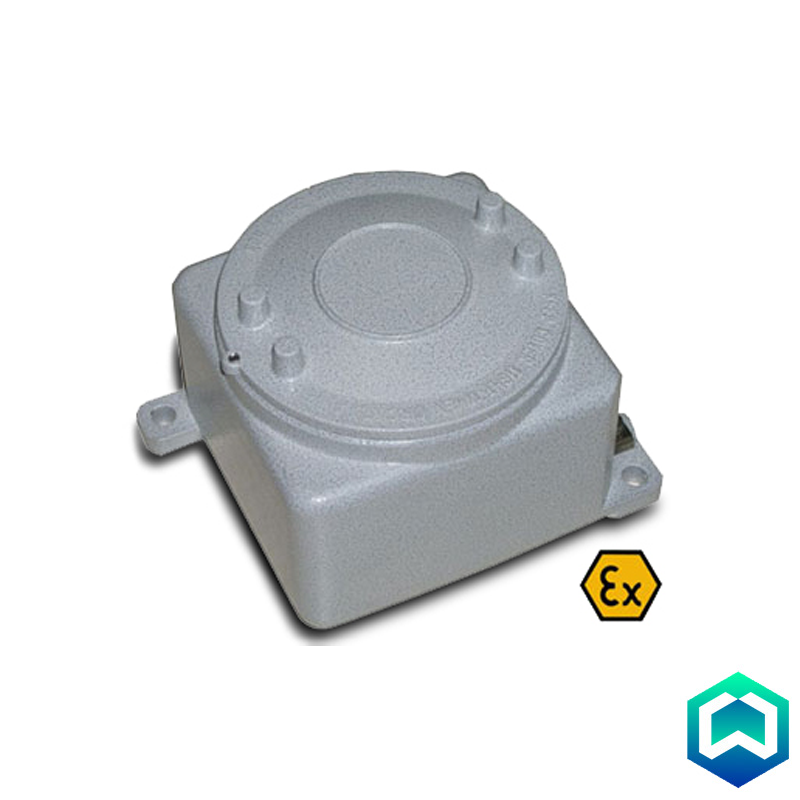

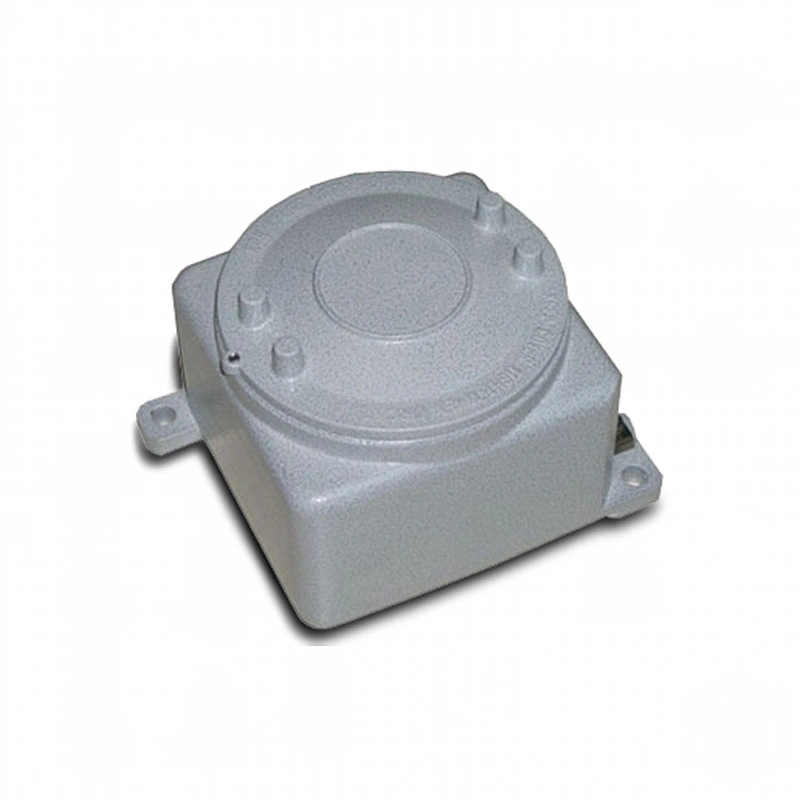

The PW200XRD is an ATEX-certified intrinsic safety power supply that converts standard mains or DC voltages into a safe, low-energy output for powering instruments in Zone 1 and Zone 21 hazardous areas. Available in 230 Vac, 115 Vac, 24 Vac, and 24 Vdc input variants, it is housed in a rugged IP66 aluminium Exd enclosure and supplied with a 3 m connection cable for use with Dini Argeo ATEX weighing indicators.

Model
£520.00
Product Information

PW200XRD Power Supplier for ATEX 1 & 21 Zones

The PW200XRD is a robust intrinsic safety power supply unit designed to convert standard mains or DC voltages from safe areas into a certified intrinsically safe output voltage, enabling the safe powering of electronic devices installed in Zone 1 and Zone 21 hazardous areas. Engineered and certified to the ATEX directive, it is the ideal companion for Dini Argeo ATEX weighing systems.

Key Features

  • Converts 24 Vdc / 24 Vac / 115 Vac / 230 Vac input into a certified intrinsically safe output — select the model to match your supply voltage.
  • Housed in a rugged aluminium alloy Exd enclosure rated II 2GD Ex d IIC / Ex tD A21 IP66, suitable for Zone 1 gas and Zone 21 dust environments.
  • Supplied with a 3 m connection cable for direct integration with DFWATEX2GDxxx indicators.
  • Optional PW200IO module adds 4 intrinsically safe inputs and 4 configurable outputs (intrinsically safe or unprotected) for interfacing with the DFWATEXIO indicator and external devices such as relays in an Exd enclosure.
  • Designed and manufactured in compliance with EN 60079-0, EN 60079-11, and EN 60079-31 standards.

Intrinsically Safe Output (Power Supply)

  • Vmax: 10.5 Vdc  |  Imax: 140 mA
  • Uo: 12.6 Vdc  |  Io: 340 mA
  • Lo: 700 µH  |  Co: 6.8 µF

PW200IO Option — I/O Parameters

Intrinsically Safe Inputs & Outputs (Exi):

  • Ui / Uo: 40 Vdc  |  Ii / Io: 30 mA  |  Li / Lo: 0 µH  |  Ci / Co: 0 µF
  • Combined max. current for all 4 inputs and 4 outputs: 40 mA (single output max. 20 mA)

Unprotected Outputs:

  • Umax: 48 Vac or 60 Vdc  |  Imax: 150 mA
Specification

Enclosure & Protection

  • Material: Aluminium alloy Exd enclosure
  • Protection mode: II 2GD Ex d IIC / Ex tD A21 IP66
  • Weight: 8 kg

Input Voltage Options

  • PW200XRD230: 230 Vac
  • PW200XRD115: 115 Vac
  • PW200XRD24A: 24 Vac
  • PW200XRD24D: 24 Vdc

Intrinsically Safe Output

  • Vmax: 10.5 Vdc
  • Imax: 140 mA
  • Uo: 12.6 Vdc
  • Io: 340 mA
  • Lo: 700 µH
  • Co: 6.8 µF

PW200IO Option — Exi Inputs & Outputs

  • Channels: 4 × Exi inputs, 4 × Exi or unprotected outputs
  • Ui / Uo: 40 Vdc
  • Ii / Io: 30 mA
  • Li / Lo: 0 µH | Ci / Co: 0 µF
  • Combined max. current (4 inputs + 4 outputs): 40 mA
  • Single output max.: 20 mA

PW200IO Option — Unprotected Outputs

  • Umax: 48 Vac or 60 Vdc
  • Imax: 150 mA

Standards & Compliance

  • EN 60079-0 (General requirements)
  • EN 60079-11 (Intrinsic safety 'i')
  • EN 60079-31 (Dust ignition protection 't')
  • ATEX Directive compliant

Accessories Included

  • 3 m connection cable (PW200XRDxxx to DFWATEX2GDxxx)
Downloads

For full technical details, please download the PW200XRD Datasheet.
