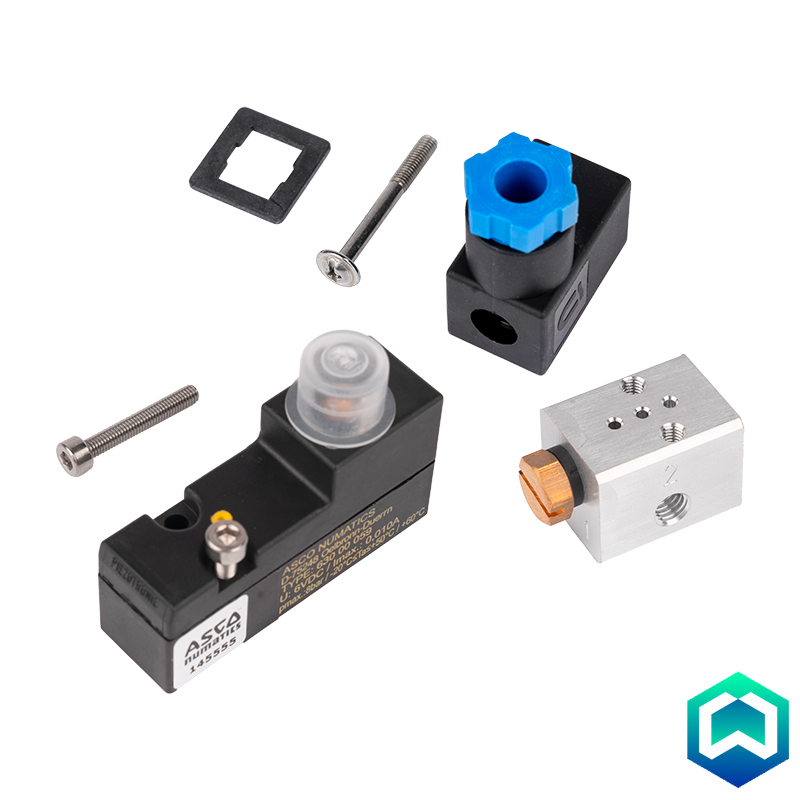

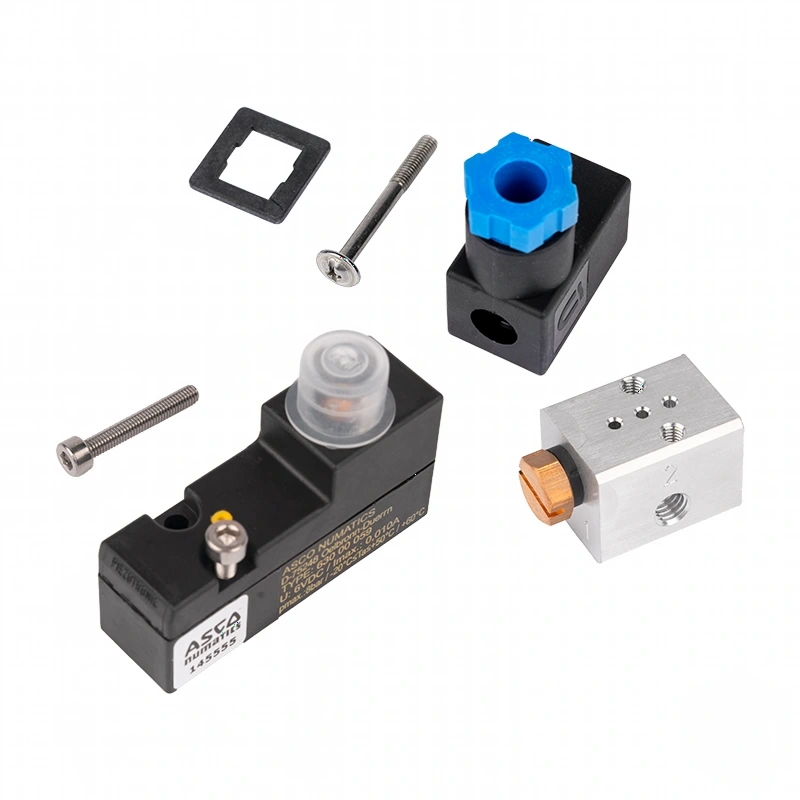

A set of industrial hydraulic components, including a black ASMA solenoid valve with a clear cap, a black and blue connector, a silver metal block, and mounting hardware, arranged on a white background. 3/2-way, Piezo-pilot, superposed, normally closed (NC) poppet valve. Compatible with DFWIECEX digital outputs. Conforms to ATEX directive and IECEx certification scheme. Degree of protection: Gas: II 1G Ex ia IIC T6 or T4 Ga and Dust: II 1D Ex ia IIIC T135°C.

PPVIECEX 3/2-way, Piezo-pilot, superposed, normally closed (NC) poppet valve

By Dini Argeo

The PPVIECEX is an ATEX and IECEx certified 3/2-way, normally closed piezo-pilot poppet valve with superposed actuation, for Zone 1 gas and Zone 21 dust hazardous areas. Directly compatible with Dini Argeo DFWIECEX digital outputs, it carries intrinsic safety (Ex ia) certification for gas (II 1G Ex ia IIC T6 or T4 Ga) and dust (II 1D Ex ia IIIC T135 °C), covering the most stringent IIC gas and IIIC dust groups.

£1,250.00
Product Information

PPVIECEX — ATEX & IECEx Certified 3/2-Way Piezo-Pilot Poppet Valve for Gas & Dust Hazardous Areas

The PPVIECEX is an intrinsically safe, 3/2-way piezo-pilot operated poppet valve with superposed actuation, designed for use in both gas (Zone 1) and dust (Zone 21) hazardous environments. Normally closed (NC) in its default state, it is directly compatible with the digital outputs of Dini Argeo DFWIECEX ATEX weighing indicators, enabling precise pneumatic control from an intrinsically safe weighing system without additional safety interfaces. Carrying both ATEX and IECEx certification, the PPVIECEX is suited to international hazardous area installations.

Key Features

  • 3/2-way, normally closed (NC) poppet valve — safe-state closed for reliable process control in hazardous areas.
  • Piezo-pilot actuation with superposed design for smooth, reliable switching.
  • Directly compatible with DFWIECEX digital outputs — no additional safety barriers required.
  • Dual certified: ATEX and IECEx — suitable for international hazardous area projects.
  • Gas protection: II 1G Ex ia IIC T6 or T4 Ga (Zone 1, EPL Ga, IIC gas group).
  • Dust protection: II 1D Ex ia IIIC T135 °C (Zone 21, IIIC dust group).
  • Intrinsic safety (Ex ia) protection mode — suitable for the most demanding Zone 1 and Zone 21 applications.
  • Conforms to the ATEX Directive and IECEx certification scheme.

ATEX & IECEx Certification

Gas:

  • Marking: II 1G Ex ia IIC T6 or T4 Ga
  • Protection method: Intrinsic safety Ex ia
  • Gas group: IIC (hydrogen-rated — most stringent classification)
  • Equipment category: 1G (Zone 1 gas)
  • Temperature class: T6 or T4
  • EPL: Ga (highest equipment protection level for gas)

Dust:

  • Marking: II 1D Ex ia IIIC T135 °C
  • Protection method: Intrinsic safety Ex ia
  • Dust group: IIIC (conductive dust — most stringent dust classification)
  • Equipment category: 1D (Zone 21 dust)
  • Surface temperature: T135 °C
Specification

Valve Type & Operation

  • Type: 3/2-way poppet valve
  • Actuation: Piezo-pilot, superposed
  • Default state: Normally closed (NC)
  • Compatibility: Dini Argeo DFWIECEX digital outputs

ATEX & IECEx Certification — Gas

  • Full marking: II 1G Ex ia IIC T6 or T4 Ga
  • Protection method: Intrinsic safety Ex ia
  • Gas group: IIC (hydrogen-rated)
  • Equipment category: 1G (Zone 1 gas)
  • Temperature class: T6 or T4
  • EPL: Ga (highest protection level for gas)

ATEX & IECEx Certification — Dust

  • Full marking: II 1D Ex ia IIIC T135 °C
  • Protection method: Intrinsic safety Ex ia
  • Dust group: IIIC (conductive dust)
  • Equipment category: 1D (Zone 21 dust)
  • Surface temperature: T135 °C

Standards & Compliance

  • ATEX Directive compliant
  • IECEx certified
