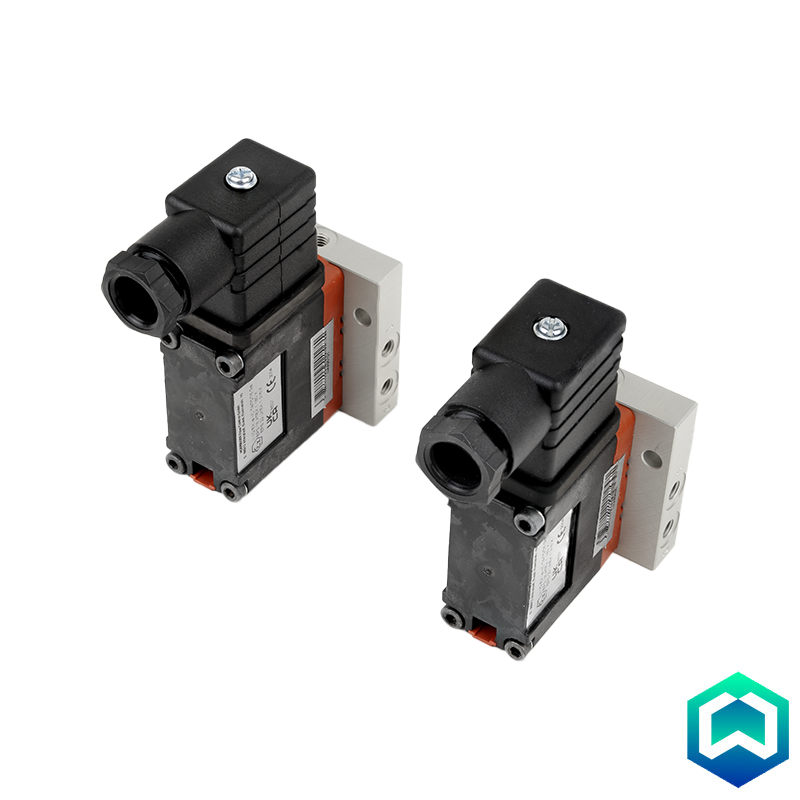

Two industrial solenoid valves with black bodies, white terminal blocks, and orange accent pieces, shown on a white background with a small blue and green logo in the bottom right corner.

PPVEX 3/2-way, Piezo-pilot, overlapping, normally closed (NC) poppet valve

By Dini Argeo

The PPVEX is an ATEX-certified 3/2-way, normally closed piezo-pilot poppet valve for Zone 1 gas hazardous areas. It is directly compatible with the digital outputs of Dini Argeo DFWIECEX ATEX weighing indicators and carries intrinsic safety (Ex ia) certification to II 1G Ex ia IIC T4/T5/T6 Ga, covering IIC gas group and EPL Ga — the highest equipment protection level for gas environments.

£785.00
Product Information

PPVEX — ATEX-Certified 3/2-Way Piezo-Pilot Poppet Valve for Hazardous Areas

The PPVEX is an intrinsically safe, 3/2-way piezo-pilot operated poppet valve designed for use in ATEX Zone 1 gas hazardous environments. Normally closed (NC) in its default state, it is specifically engineered for compatibility with the digital outputs of Dini Argeo DFWIECEX ATEX weighing indicators, enabling precise pneumatic control directly from an intrinsically safe weighing system without the need for additional safety interfaces.

Key Features

  • 3/2-way, normally closed (NC) poppet valve — safe-state closed for reliable process control in hazardous areas.
  • Piezo-pilot actuation with overlapping design for smooth, reliable switching.
  • Directly compatible with DFWIECEX digital outputs — no additional safety barriers required.
  • ATEX certified for Zone 1 gas environments: II 1G Ex ia IIC T4/T5/T6 Ga.
  • Intrinsic safety (Ex ia) protection mode — suitable for the most demanding Zone 1 gas applications.
  • Temperature class options: T4, T5, or T6 to suit process requirements.
  • Conforms to the ATEX Directive.

ATEX Certification

  • Marking: II 1G Ex ia IIC T4/T5/T6 Ga
  • Protection method: Intrinsic safety Ex ia
  • Gas group: IIC (hydrogen-rated — the most stringent gas classification)
  • Equipment category: 1G (Zone 1 gas)
  • Temperature class: T4, T5, or T6
  • EPL: Ga (highest equipment protection level for gas)
Specification

Valve Type & Operation

  • Type: 3/2-way poppet valve
  • Actuation: Piezo-pilot, overlapping
  • Default state: Normally closed (NC)
  • Compatibility: Dini Argeo DFWIECEX digital outputs

ATEX Certification

  • Full marking: II 1G Ex ia IIC T4/T5/T6 Ga
  • Protection method: Intrinsic safety Ex ia
  • Gas group: IIC (hydrogen-rated)
  • Equipment category: 1G (Zone 1 gas)
  • Temperature class: T4 / T5 / T6
  • EPL: Ga (highest protection level for gas)
  • Conforms to the ATEX Directive
