Ohaus PJX Carat Series Jewellery Balance‏‏‎

£724.00 £905.00

Trade Approved:
Internal Calibration:
Capacity and Readability:

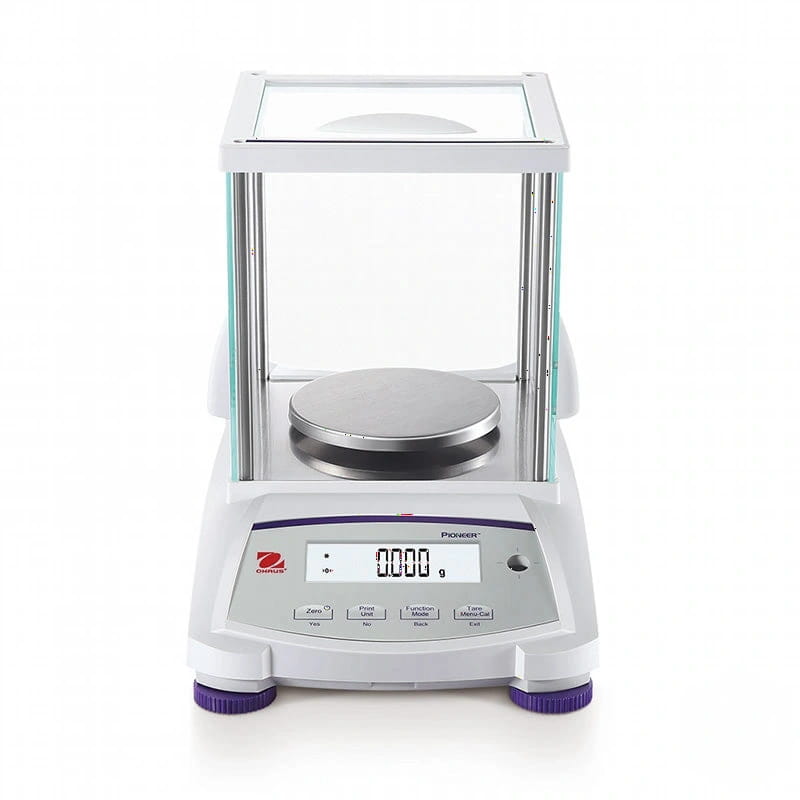

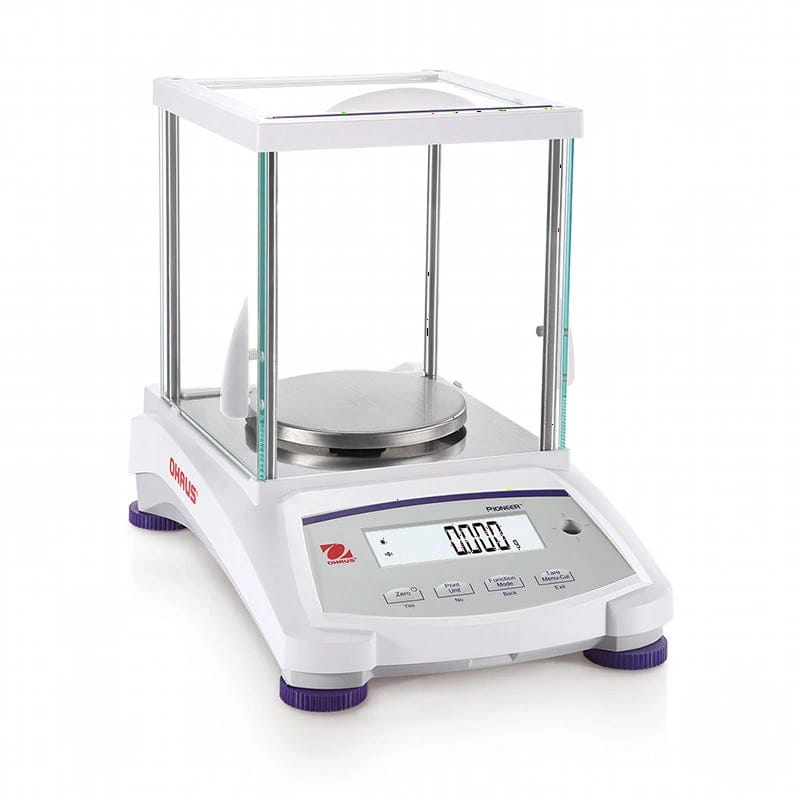

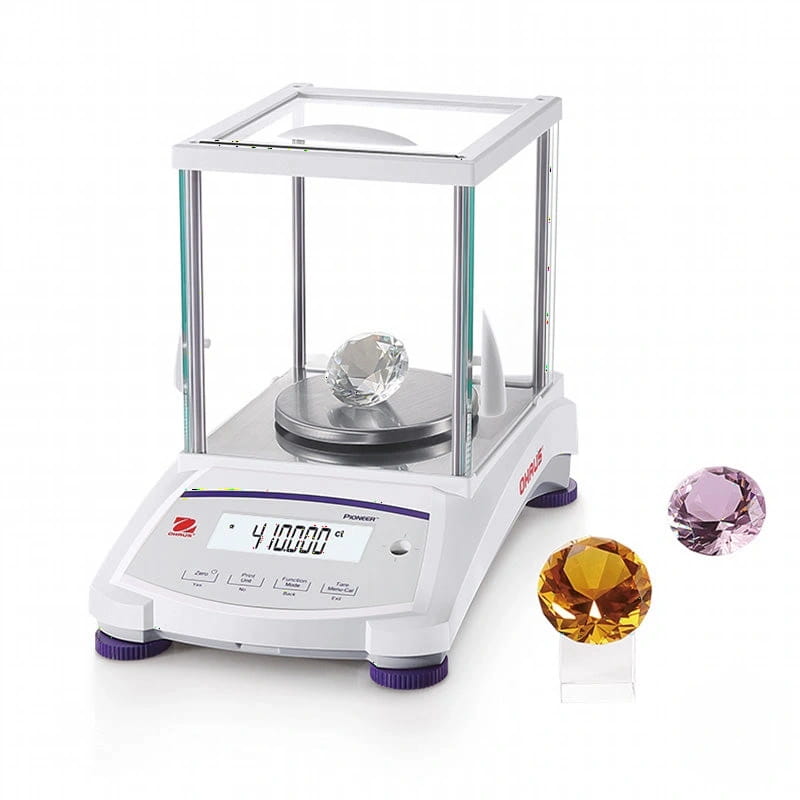

Modern Compact Jewellery Balances for Accurate Weighing of Precious Metals and Stones

  • The Ohaus PJX Carat balance features a bright back-lit LCD which displays results clearly. An auxiliary display can also be connected to allow both customer and trader to view weighing results simultaneously.
  • The PJX Carat Series comes in a modern compact design, which is designed with saving space in mind. Additionally, keeping the draft shield lowered will help to get more stable weighing results.
  • Select PJX models come with a built-in internal adjustment system, which calibrates the balance automatically, ensuring weighing accuracy at all times.

Applications
Basic Weighing, Parts Counting, Percent Weighing, Density Determination

Display
Back-lit Liquid Crystal Display (LCD)

Operation
AC adaptor (included)

Communication

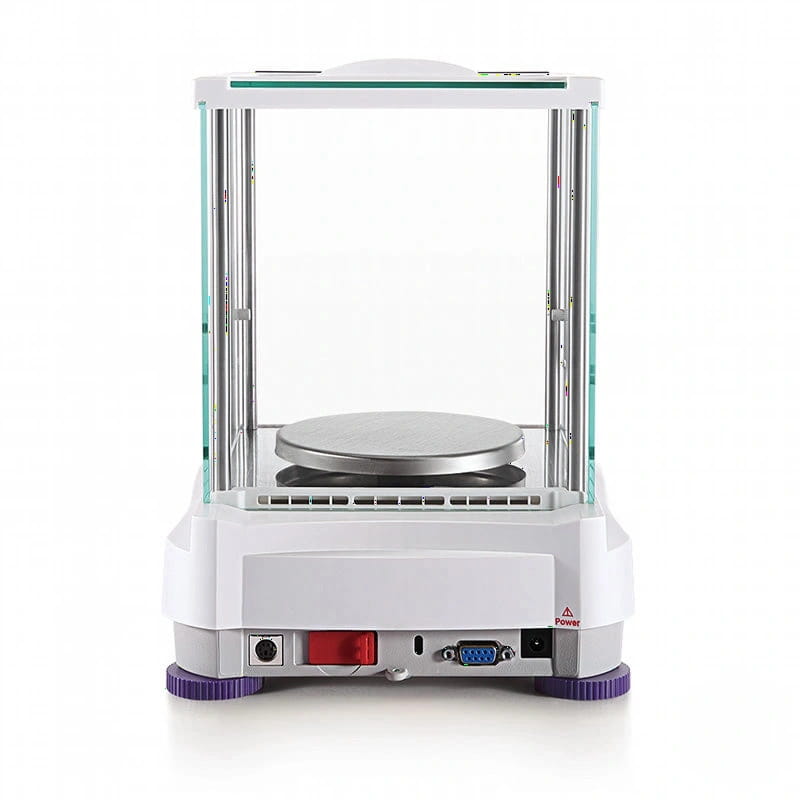

RS232 interface and Mini-Din port (for connecting auxiliary display)

Construction
Metal base, plastic top housing, removable stainless steel pan, removable glass draft shield or side doors, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user-definable project and user IDs, software overload/under-load indicator, stability indicator.

Other Standard Features and Equipment
Metal base, plastic top housing, removable stainless steel pan, removable glass draft-shield or side doors, integrated weigh-below-hook, security bracket, calibration lock and in-use cover, user-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user definable project and user IDs, software overload/under-load indicator, stability indicator.

Compliance

  • Metrology (PR...M…models only): OIML R76; EN 45501
  • Product Safety: IEC/EN 61010-1; CAN/CSA C22.2 61010-1; UL 61010-1
  • Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic Environments; FCC Part 15 Class A; Canada ICES-003 Class A
  • Compliance Marks: CE; CSA

Accessories
Auxiliary Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30472063
Density Kit for Solids. . . . . . . . . . . . . . . . . . . . . . . . . . . 80253384
Sinker Glass for Density Determination . . . . . . . . . . . . .83034024
ION-100A – Ionizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30095929
Printer SF40A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30064202
SF40A Ink Ribbon Cassette. . . . . . . . . . . . . . . . . . . . . . 12120798
USB Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . .83021085
SF40A Paper Roll, 57.5 mm (2 Rolls). . . . . . . . . . . . . . . 12120799
Security Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80850043
In-use Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30372546
Dust Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30093334
RS232 Cable (9-pin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .00410024
Interface Cable, USB (Type A to B). . . . . . . . . . . . . . . . . 83021085

Please click here for the Ohaus PJX Carat Series datasheet .....
