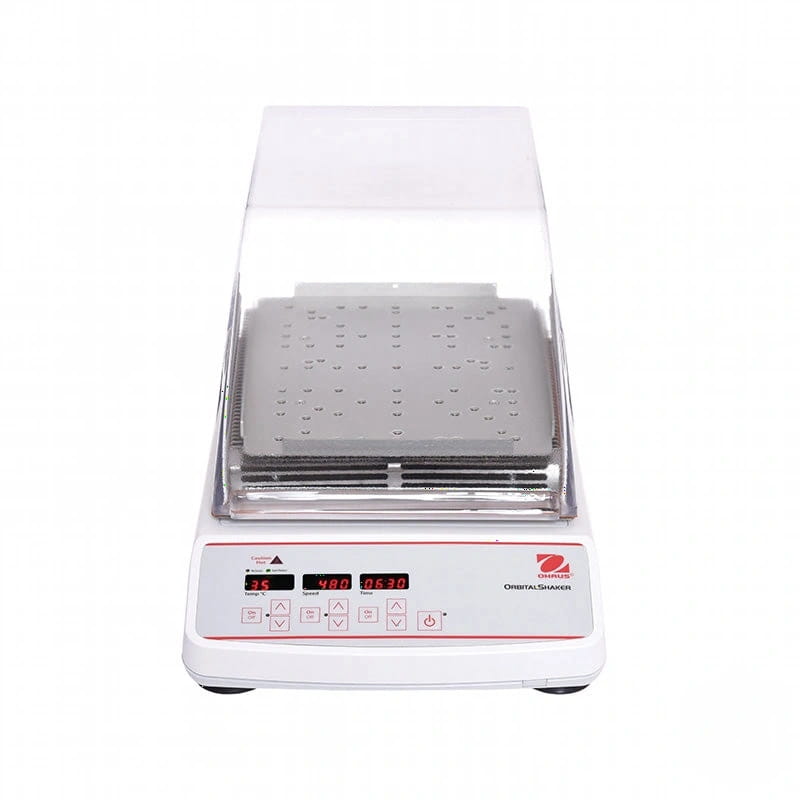

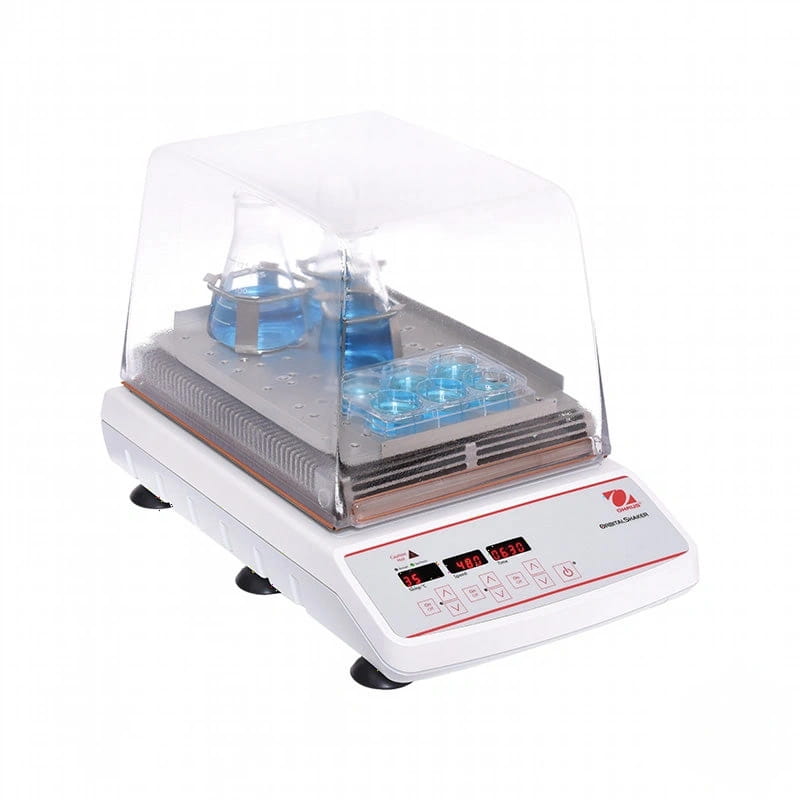

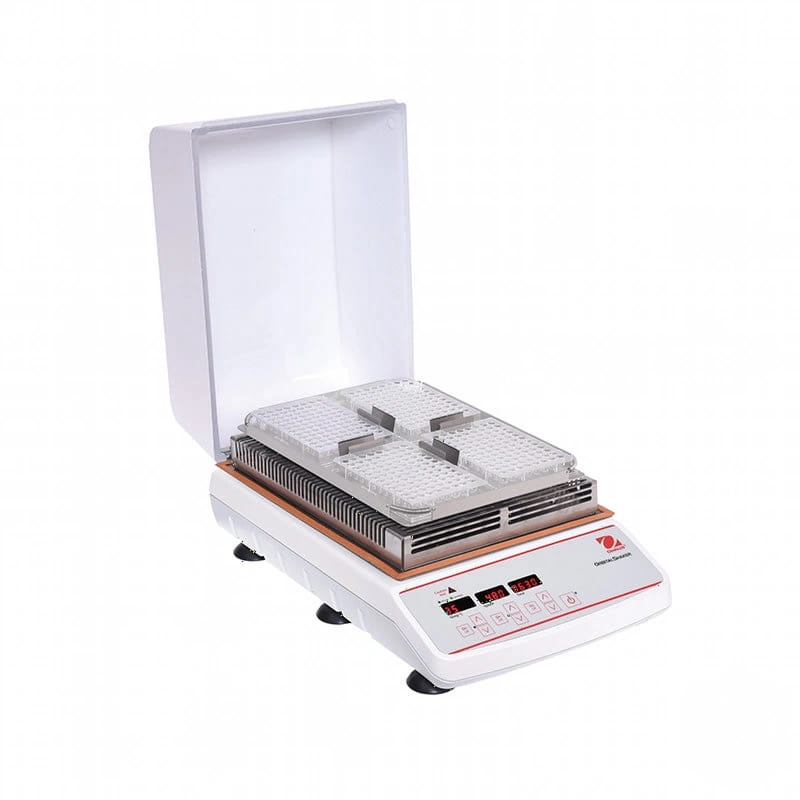

Ohaus Incubating Light Duty Orbital Shakers

OHAUS Incubating Light Duty Orbital Shakers are designed to incubate samples from 10° below ambient to 65°C depending on the model. The Incubating Mini Shaker has an 8 lb (3.6 kg) capacity while the Incubating Microplate Shaker can hold up to four standard or deep well plates. Incubating-Cooling Mini Shaker is designed to hold two microplates or two optional modular tube blocks. All models feature LED displays with touch-pad controls.

Applications
Immunoassays, Hybridizations, Cell Cultures, Bacterial & Yeast Cultures and Suspensions, ELISA Assays, PCR, Enzyme Reactions

Display
Easy-to-read, independent LED displays for temperature, speed and time allow the operator to view all settings simultaneously

Operation
Detachable 3-wire cord and plug (included)

Communication
N/A

Construction
Cast aluminum housing with polycarbonate lid, brushless DC motor, spill-resistant design, overload protection, caution hot indicator.

Design Features
The variable speed microprocessor control provides consistent, uniform shaking action. The microprocessor will display the last setpoint and will restart if power is interrupted.

Triple eccentric drive with permanently lubricated ball bearings and maintenance-free brushless DC motor provides reliable service and continuous duty operation.

Units slowly increase speed to desired set-point to avoid splashing. Digital models feature overload protection. Audible & visual signals activate when the system detects obstruction or tray overload.

The OHAUS Thermal Shakers and Cooling Thermal Shakers are designed for applications that require consistent and precise results. With heating, cooling and shaking capabilities. These shakers use interchangeable blocks to accommodate a wide variety of tubes and microplates. The easy-to-use, 4.3", color, LCD touch screen allows the user to save and visibly track progress through the live status bar for five user defined programs, each with five individual steps. The unit’s enhanced electronics and dual temperature sensors provide accurate,
dependable temperature settings across the operating range.

Operating Features:

Microprocessor Control: The variable speed microprocessor control provides consistent uniform shaking action. Microprocessor will display last set-point and will restart if power is interrupted.

PID Temperature Controller: Maintains precise temperature control from ambient +5°C to 65°C. Easy-to-use controls allow users to adjust temperature in 1°C increments.

Triple Eccentric Drive: Permanently lubricated ball bearings and maintenance free, brushless DC motor provide reliable service and continuous duty operation.

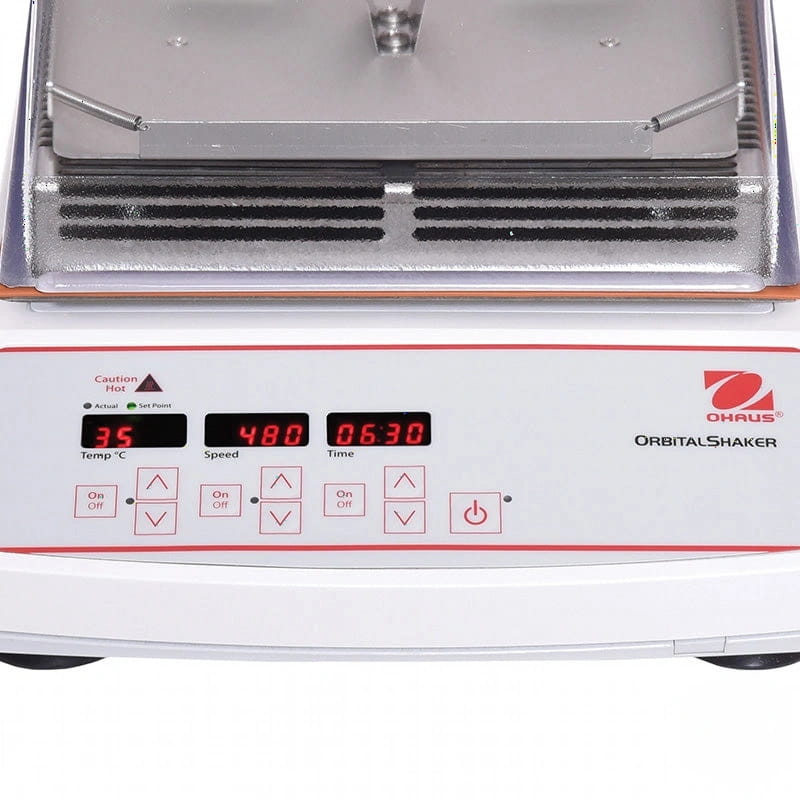

LED Display: Touch pad controls with easy-to-read, independent LED displays for temperature, speed and time allow operator to view all settings at once. Provides repeatable and accurate results every time and is easily visible across lab benches. Timer will display elapsed time or, when programmed to user defined limit, will shut off unit when time reaches zero. Display will show last used settings, even after power has been turned off.

Temperature Calibration Mode: Allows user to calibrate unit to an external temperature device.

Safety Features: Overload Protection: Audible and visual signals will activate when system
detects an obstruction or overload of the tray.

Speed Ramping Feature: Slowly increases speed to desired set-point to avoid
splashing.

Audible Alarm: In timed mode, alarm will sound when the time reaches zero.

Caution Hot Indicator: Symbol illuminates when the temperature of the air in the
chamber reaches 40°C and remains lit until temperature cools down.

Spill-Resistant Design: Channels fluids away from internal components.

Polycarbonate Lid: Permits viewing of samples without disturbing internal
temperature.

Operating Conditions: Unit can be run in conditions from 5 to 40°C, maximum 80% relative humidity,
non-condensing.

Applications: Cell cultures, bacterial suspensions, and hybridizations.

Model ISLD04HDG Specifications:

• Motion - Orbital, 3 mm
• Capacity - 3.6 kg
• Temperature Range - Ambient +5°C – 65°C

Model ISLDMPHDG Specifications:

• Motion - Orbital, 3 mm
• Capacity - 4 Microplates or 2 Micro-tube Racks
• Temperature Range - Ambient +5°C – 65°C

Models ISLDMPHDGL Specifications:

• Motion - Orbital, 3 mm
• Capacity - 4 Microplates or 2 Micro-tube Racks
• Temperature Range - Ambient +5°C – 65°C

Please click here for the Ohaus Incubating Light Duty Orbital Shakers data sheet .....
