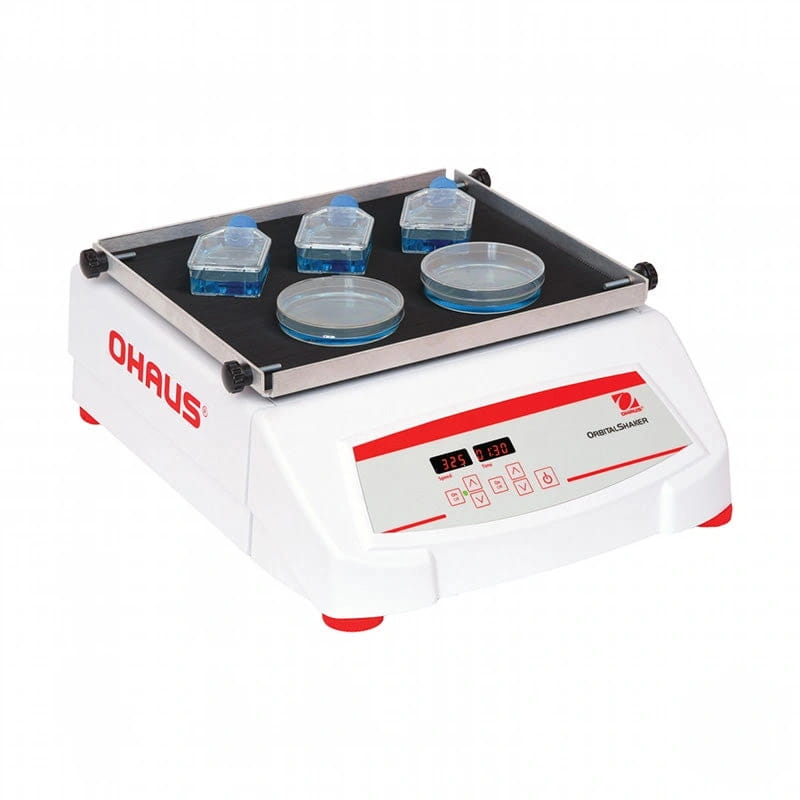

Ohaus - Heavy Duty Orbital Shaker - Digital

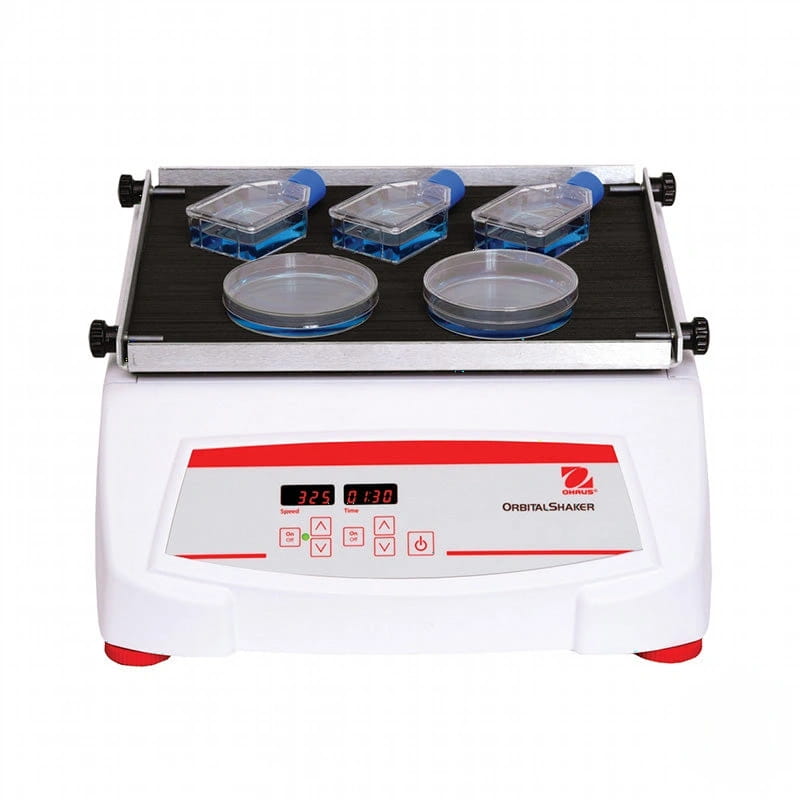

Ohaus - Heavy Duty Orbital Shaker - Digital Front

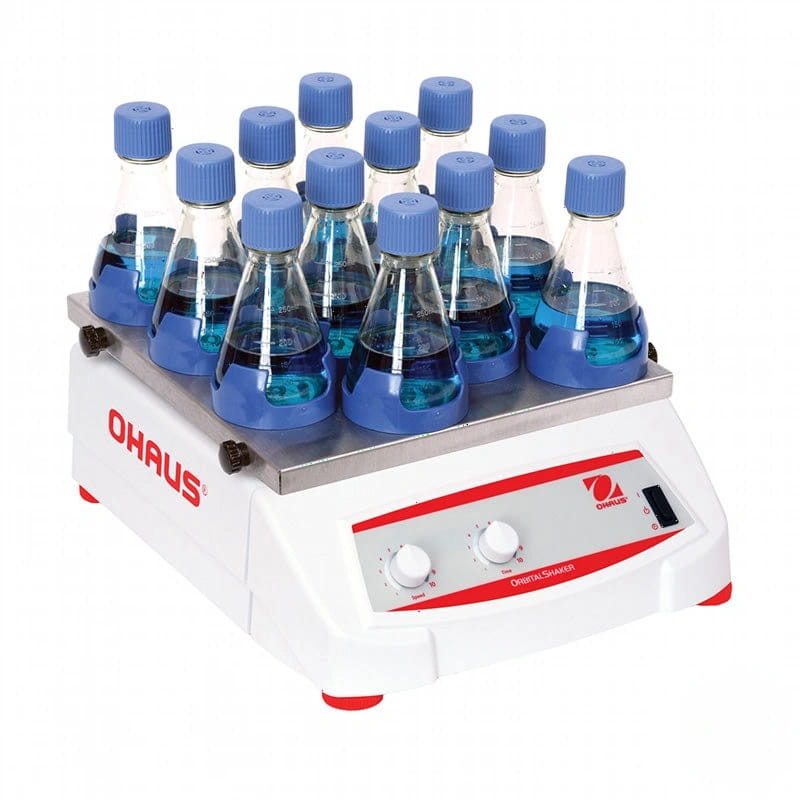

Ohaus - Heavy Duty Orbital Shaker - Analog Bottles

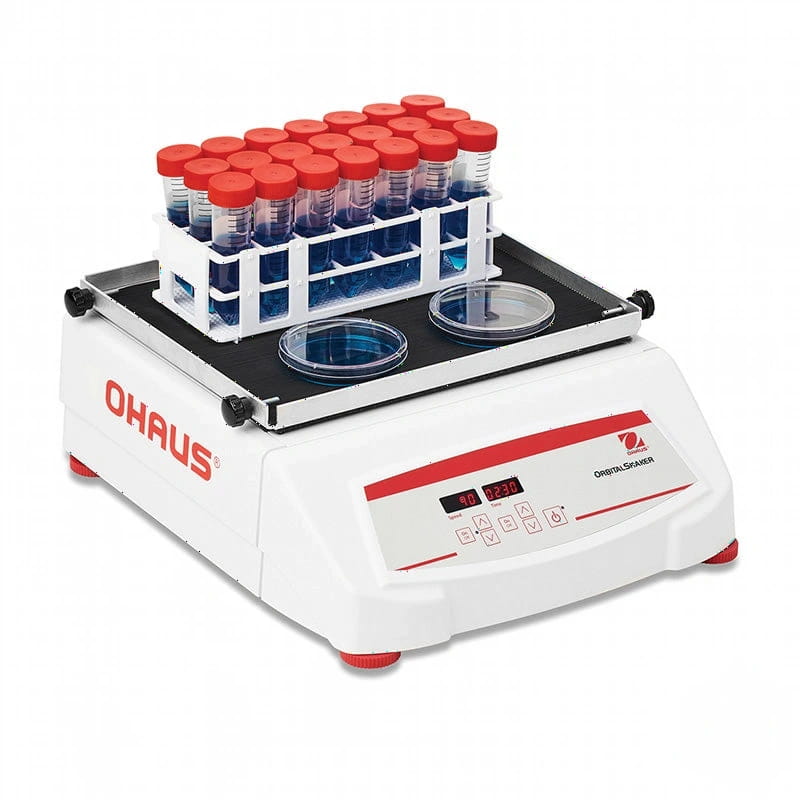

Ohaus - Heavy Duty Orbital Shaker - Digital Samples

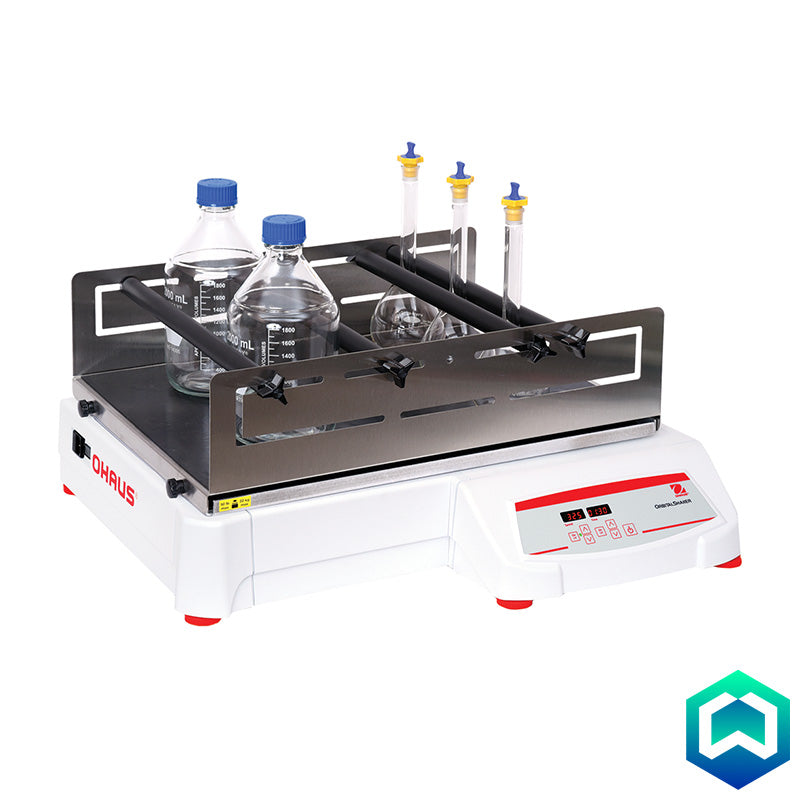

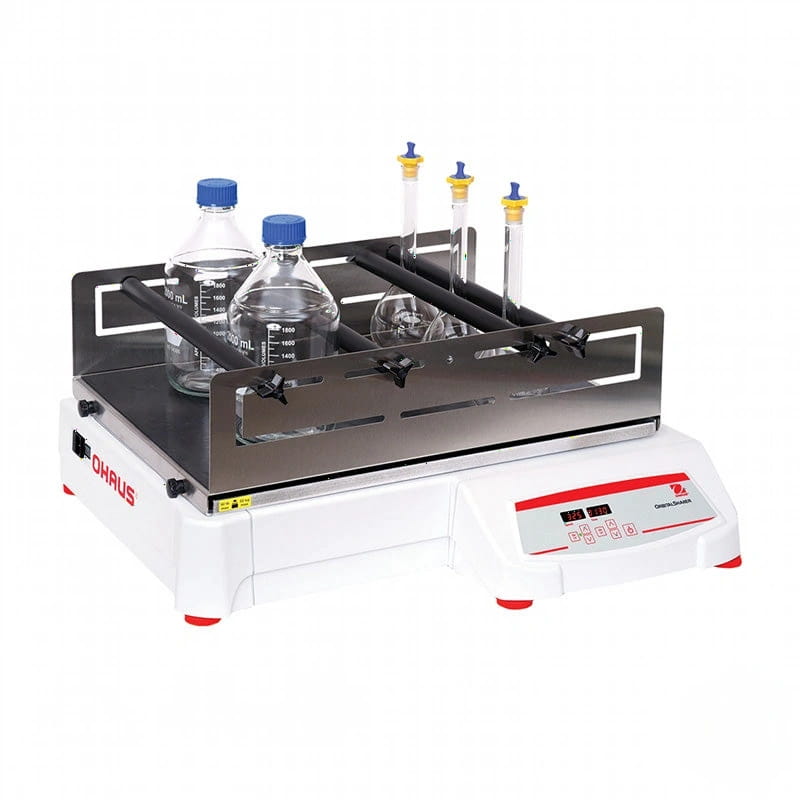

Ohaus - Heavy Duty Orbital Shaker - Digital Large Tray

Ohaus Heavy Duty Orbital Shakers

By Ohaus

The Ohaus Heavy Duty Shakers are designed to deliver reliable performance across a variety of applications. Their powerful motors and consistent orbital shaking action ensure optimal results. Digital models offer precise speed control for applications requiring repeatable accuracy, while non-digital models provide an economical alternative. With eight models and load capacities ranging from 16 to 68 kg, you can maximise throughput and efficiency in your laboratory.

Product Information

Features:

  • Microprocessor control: Provides precise speed regulation and consistent shaking, even when ramping up to the set speed.
  • Last set-point memory: Automatically restarts with the same settings after a power interruption.
  • Built-in tray and non-slip rubber mat: Ensure secure sample handling.
  • RS232 interface (digital models): Enables data logging and remote control.
  • Accu-Drive shaking system (digital models): Delivers exceptional speed control, accuracy, and durability.
  • Touch-pad controls and independent LED indicators: Allow easy viewing and adjustment of settings.
  • Timer function: Can be set to automatically turn off after a specified time.
  • Speed ramping: Prevents sample splashing during startup.
  • Load sensor: Detects unbalanced conditions and automatically reduces speed to protect samples.

Applications

  • Cell Cultures
  • Solubility Studies
  • Extractions
  • Bacteria & Yeast Cultures and Suspensions
  • Staining/Destaining
  • Immunoassays
  • Protein Studies
  • Blotting Techniques

Compliance:

  • Product Safety: EN 61010-1, EN 61010-2-051
  • Electromagnetic Compatibility: EN 61326-1 Class A, Industrial Environments
  • Compliance Marks: CE; RCM; UKCA; TÜV SÜD
Specification

Display: Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)

Construction: Cold rolled steel (CRS)

Operation: Detachable 3-wire cord and plug (included)

Model SHHD1619AL Specifications:

  • Control - Analogue
  • Motion - Orbital, 19 mm
  • Capacity - 16 kg

Model SHHD1619DG Specifications:

  • Control - Digital
  • Motion - Orbital, 19 mm
  • Capacity - 16 kg

Model SHHD2325AL Specifications:

  • Control - Analogue
  • Motion - Orbital, 25 mm
  • Capacity - 22.7 kg

Model SHHD2325DG Specifications:

  • Control - Digital
  • Motion - Orbital, 25 mm
  • Capacity - 22.7 kg

Model SHHD4525DG Specifications:

  • Control - Digital
  • Motion - Orbital, 25 mm
  • Capacity - 45.4 kg

Model SHHD4550DG Specifications:

  • Control - Digital
  • Motion - Orbital, 51 mm
  • Capacity - 45.4 kg

Model SHHD6825DG Specifications:

  • Control - Digital
  • Motion - Orbital, 25 mm
  • Capacity - 68 kg

Model SHHD6850DG Specifications:

  • Control - Digital
  • Motion - Orbital, 51 mm
  • Capacity - 68 kg
Downloads

Please click here for the Ohaus Heavy Duty Orbital Shakers Data Sheet.
