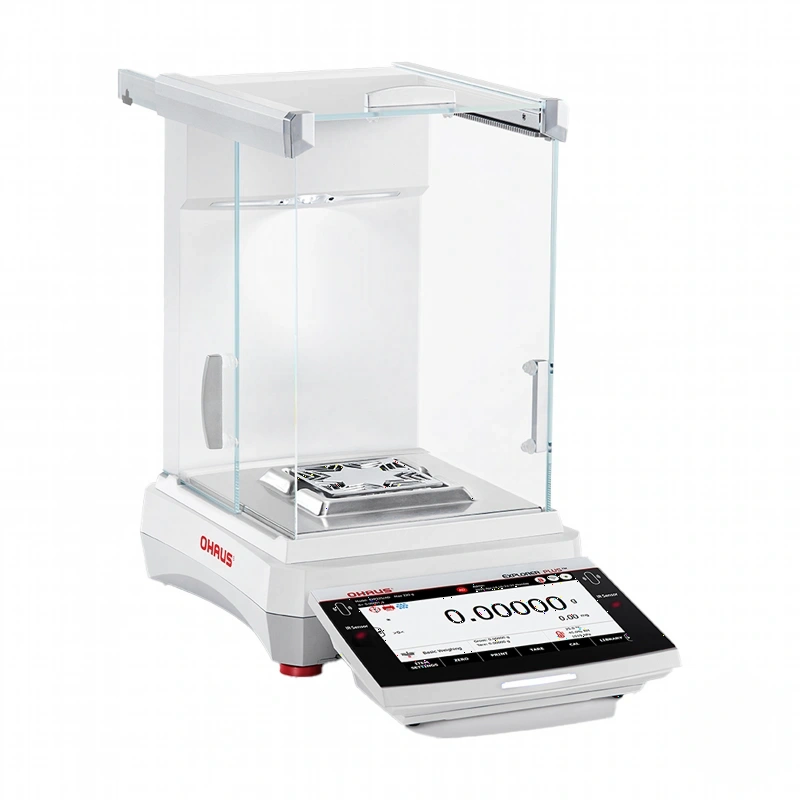

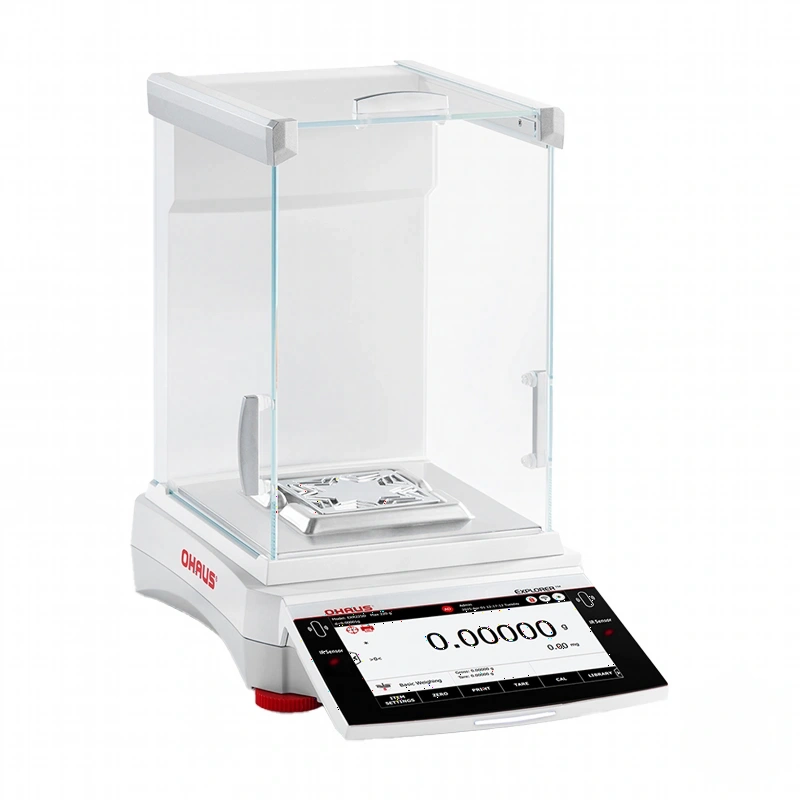

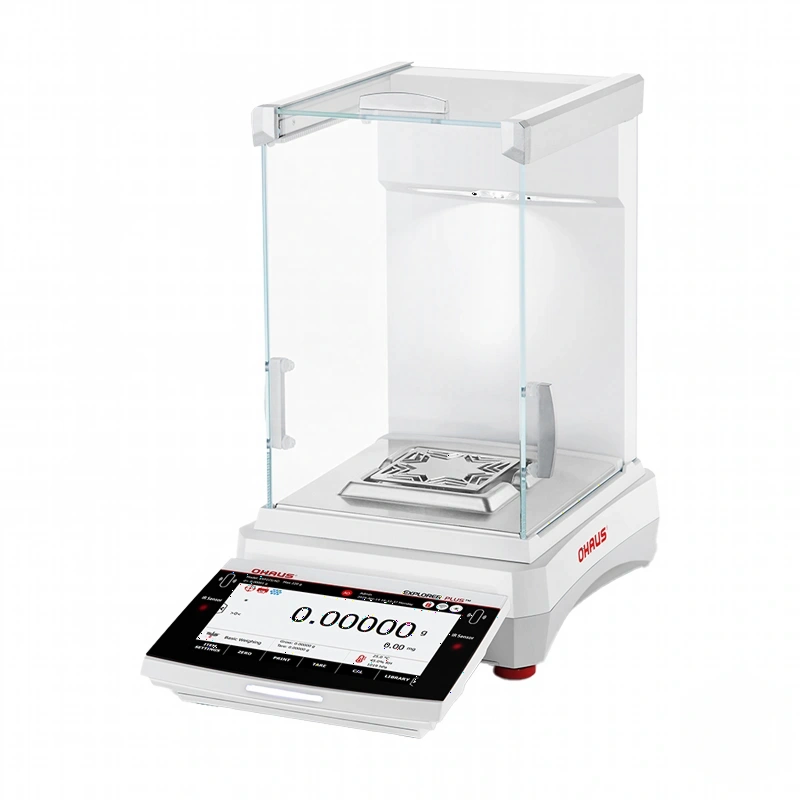

Ohaus Explorer™ EXP Semi-Micro Balance‏‏‎

By Ohaus

The OHAUS Explorer Semi-Micro Balance EXP is a high precision laboratory balance designed for applications where accuracy and data integrity are critical. With readability down to 0.01 mg and capacities up to 220 g, it delivers reliable results for pharmaceutical, chemical, and research environments.

Automated features including motorised levelling, touchless draftshield doors, and an integrated ioniser simplify operation while minimising contamination and static interference. A large colour touchscreen and intuitive interface support a wide range of weighing applications, while advanced connectivity enables seamless integration with laboratory data systems.

Built with durable, chemical resistant materials and compliant with major regulatory standards, the Explorer EXP is ideal for demanding analytical and quality control workflows.

Trade Approved:
Capacity and Readability:
£5,920.00
Product Information

Explorer™ Semi-Micro Balance (EXP) – Engineered for Accuracy, Designed for Demanding Applications

The Explorer semi-micro balance combines exceptional precision with intelligent automation to deliver reliable, traceable results in pharmaceutical, chemical, and research laboratory environments. With readability to 0.01mg and capacities up to 220g, the EXP series offers the accuracy and compliance features required for critical weighing applications.

Intelligent Automation for Effortless Operation

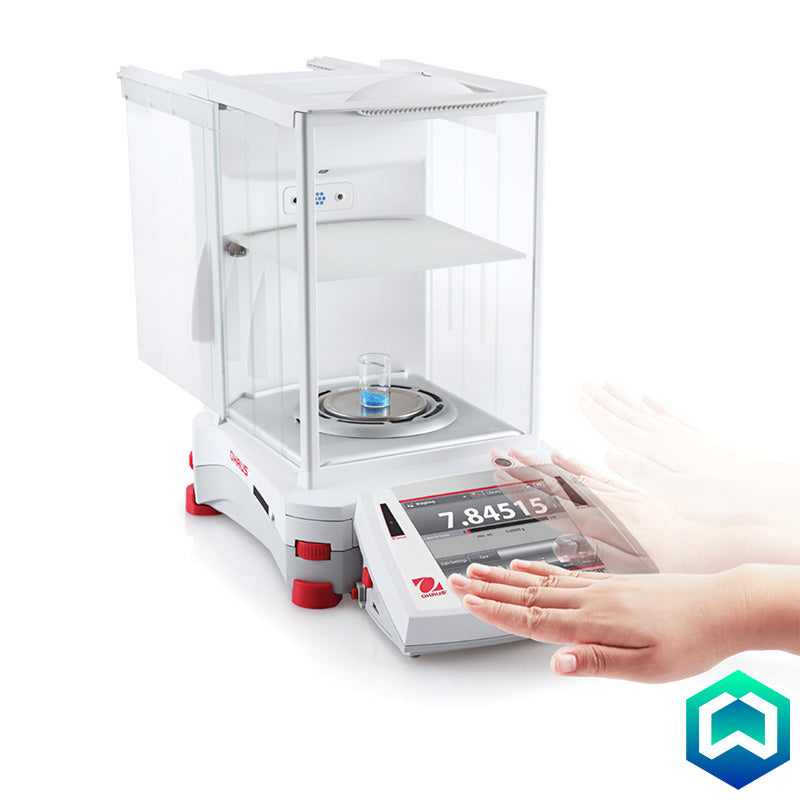

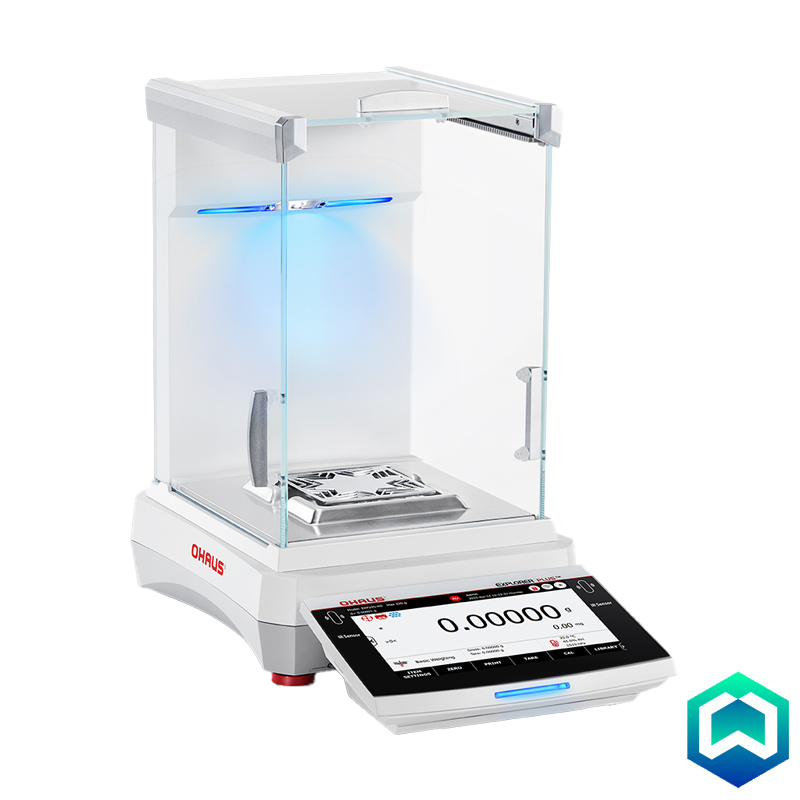

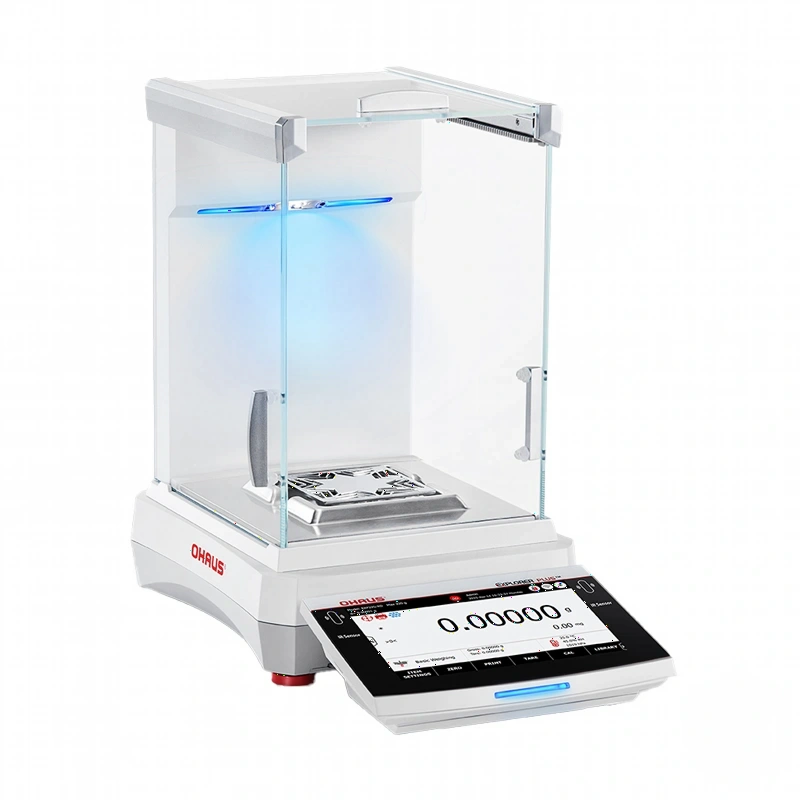

Seamless setup begins with motorised leveling that eliminates manual adjustment. Enhanced automatic doors with anti-pinch safety protection respond to two touchless sensors, allowing hands-free operation to prevent sample contamination. The built-in ionizer neutralises static charges that can compromise micro-weighing accuracy, whilst the anti-static glass draftshield and sample spotlight ensure optimal working conditions.

Premium User Interface

A 7-inch TFT colour touchscreen with glass overlay and detachable terminal provides intuitive control of all weighing functions. Two customisable status lights offer at-a-glance confirmation of balance state, whilst the chemical-resistant construction protects the display in demanding laboratory environments.

Comprehensive Application Suite

The Explorer supports 15 weighing modes to match your workflow requirements: basic weighing, parts counting, check counting, percent weighing, check weighing, dynamic weighing, totalisation, formulation, differential weighing, density determination, peak hold, pipette adjustment, statistical quality control (SQC), fill weight variation, and flow rate control. Application sample libraries accommodate up to 3,000 entries for rapid method recall.

Regulatory Compliance and Data Integrity

Meet pharmaceutical and quality system requirements with a 4-level user management system, password protection, and internal system log capacity of 100,000 entries. Time synchronization via NTP (Network Time Protocol) confirms data traceability to satisfy 21 CFR Part 11 and GMP documentation standards. EC Type Approved models available for legal-for-trade applications.

Advanced Connectivity

Straightforward integration to Laboratory Information Management Systems (LIMS) via multiple communication ports: 2× USB Host (Type A), USB Device (Type B), USB Device (Type C), Ethernet (RJ45), and RS232. Support for HID (Human Interface Device) connection enables driverless data transfer to computers without software installation. Optional Wi-Fi and Bluetooth dongles provide wireless connectivity.

Robust Construction

Modular design with metal base and housing ensures long-term stability and serviceability. The zinc alloy aero weighing pan (80mm × 80mm) provides chemical resistance and easy cleaning. Power supply: 100–240 VAC, 50–60 Hz (12 VDC 1.5A output).

Model Range

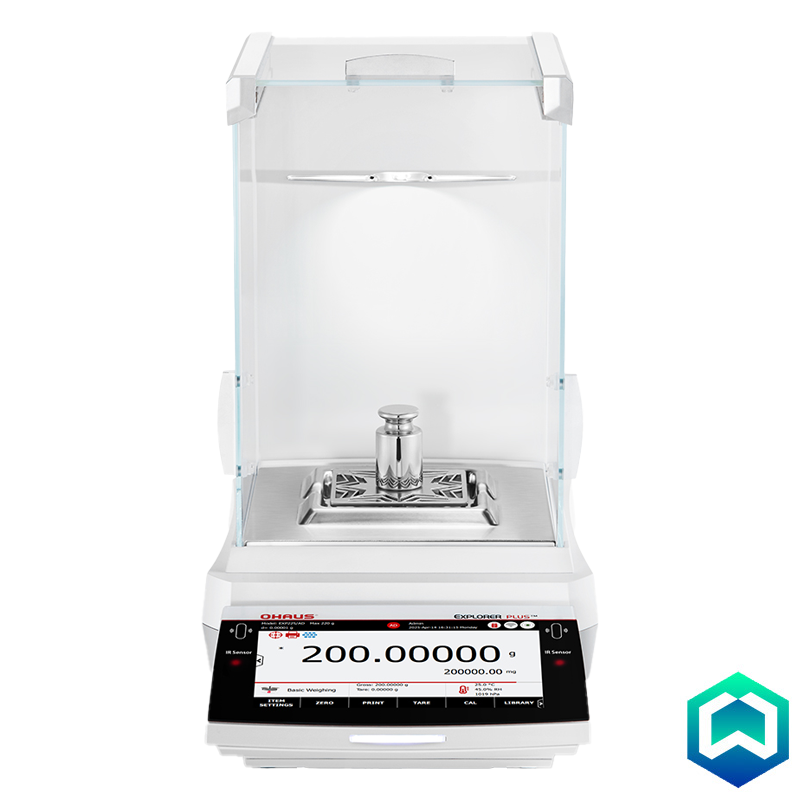

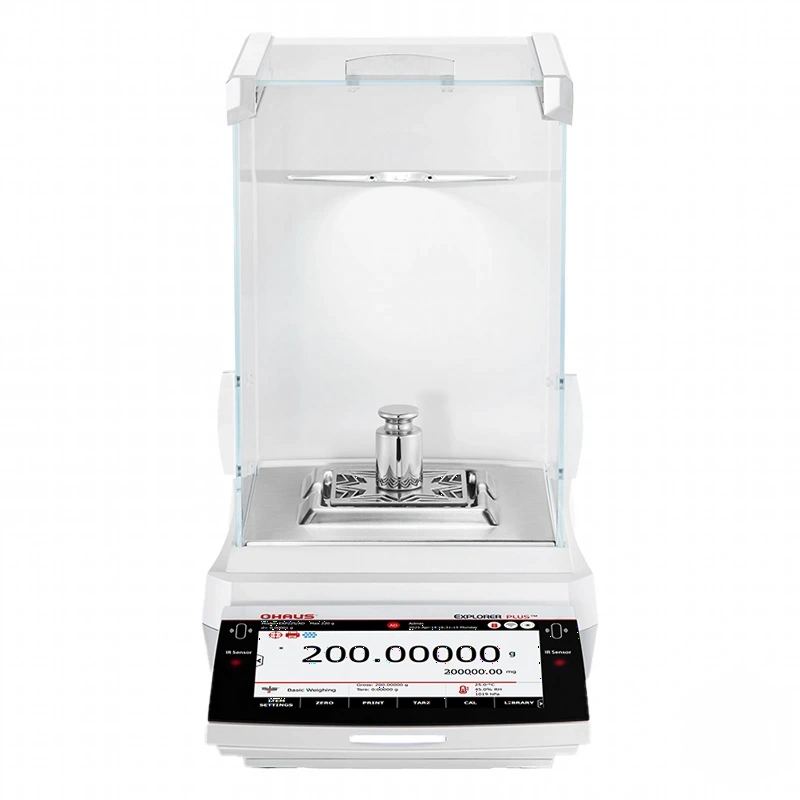

Available in eight configurations with single or dual-range capacity, readability from 0.01mg to 0.1mg, and optional EC Type Approval for legal metrology. All models include automatic doors, and selected models feature built-in ionizers for static control. Calibration weights (OIML E2 class) supplied with each balance.

Model Options:

  • EXP125D/AD: 82g/120g dual range, 0.01mg/0.1mg readability
  • EXP125/AD: 120g capacity, 0.01mg readability
  • EXP225D/AD: 120g/220g dual range, 0.01mg/0.1mg readability
  • EXP225/AD: 220g capacity, 0.01mg readability
  • EXP125DM/AD: 82g/120g dual range, EC Type Approved, ionizer included
  • EXP125M/AD: 120g capacity, EC Type Approved, ionizer included
  • EXP225DM/AD: 120g/220g dual range, EC Type Approved, ionizer included
  • EXP225M/AD: 220g capacity, EC Type Approved, ionizer included

Consult technical documentation for complete specifications, installation requirements, and accessory compatibility.
Specification
Application

Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control

Display

7-inch TFT 16,7M Color Touch Screen with Glass Overlay; Detachable Terminal

Operation

AC Adapter Input: 100-240 VAC 0,5A 50-60 Hz; AC Adapter Output: 12 VDC 1,5A

Communication

USB Host (Type A) × 2, USB Device (Type B) × 1, USB Device (Type C) × 1 Ethernet (RJ45) × 1, RS232 × 1; Optional Wi-Fi, Bluetooth Dongle

Construction

Modular Design, Metal base and housing, Zinc alloy areo weighing pan, Enhanced automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Motorized leveling, Built-in ionizer, 2 touchless sensors, Sample spotlight and status lights

Design Features

Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100 000 entries, 3 000 application sample libraries
Downloads

Please click here for the Ohaus Explorer EXP Semi-Micro Balance datasheet
