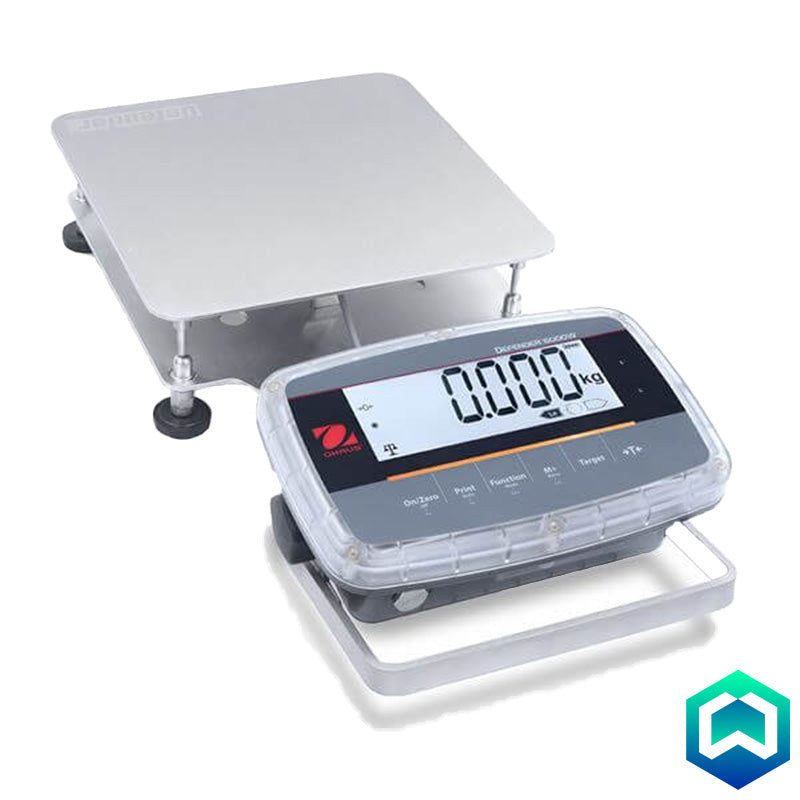

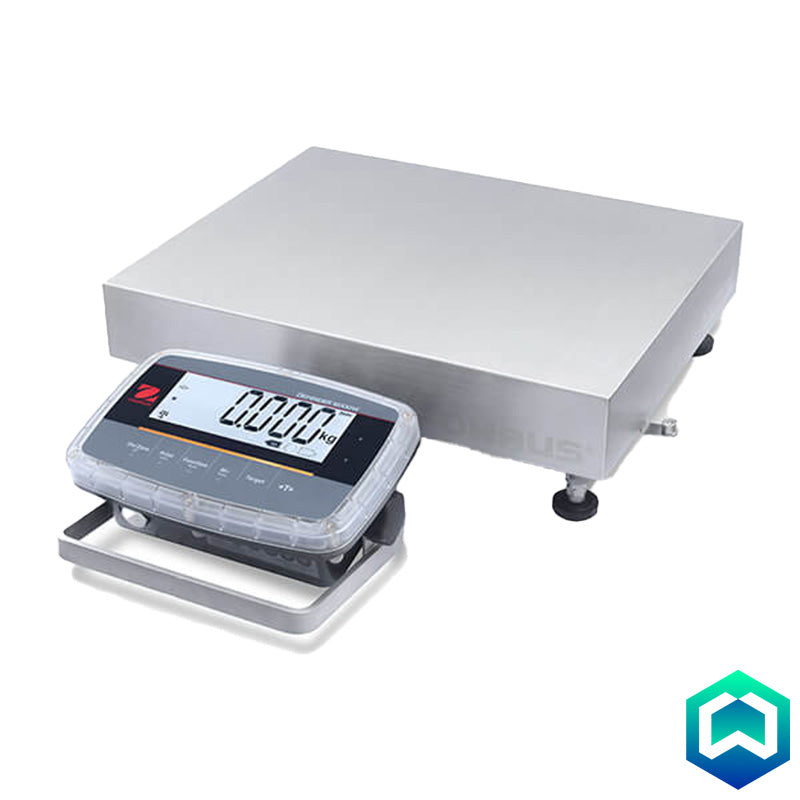

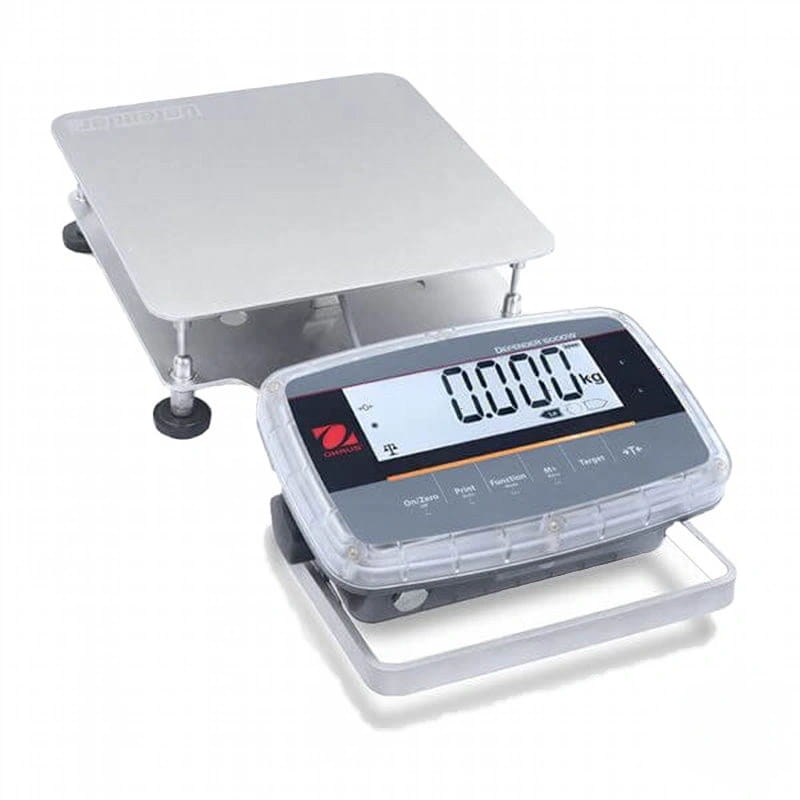

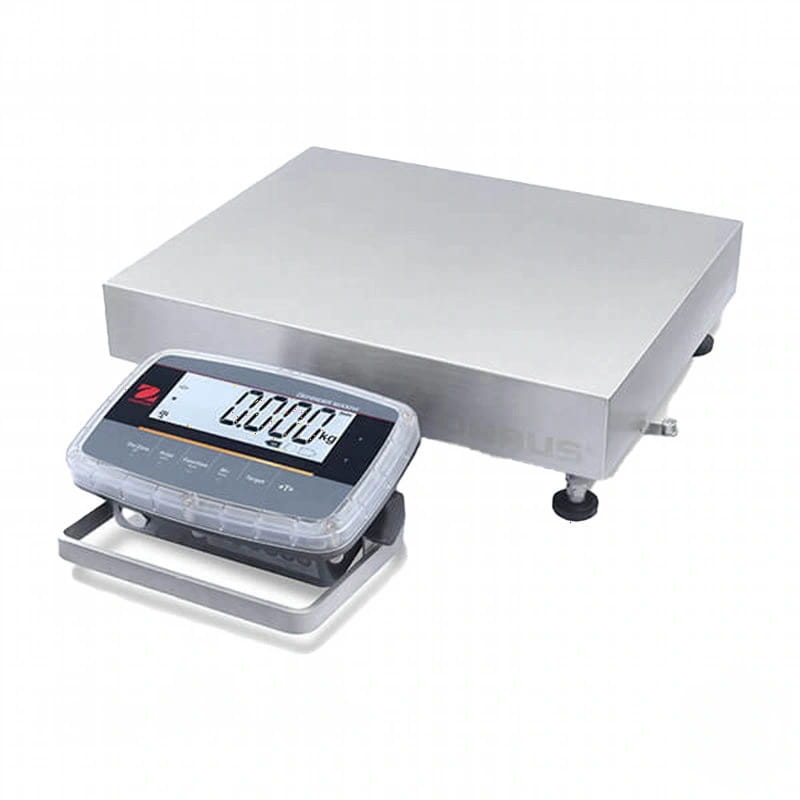

Ohaus Defender 6000 I-D61PW Front Display Washdown Bench Scales

By Ohaus

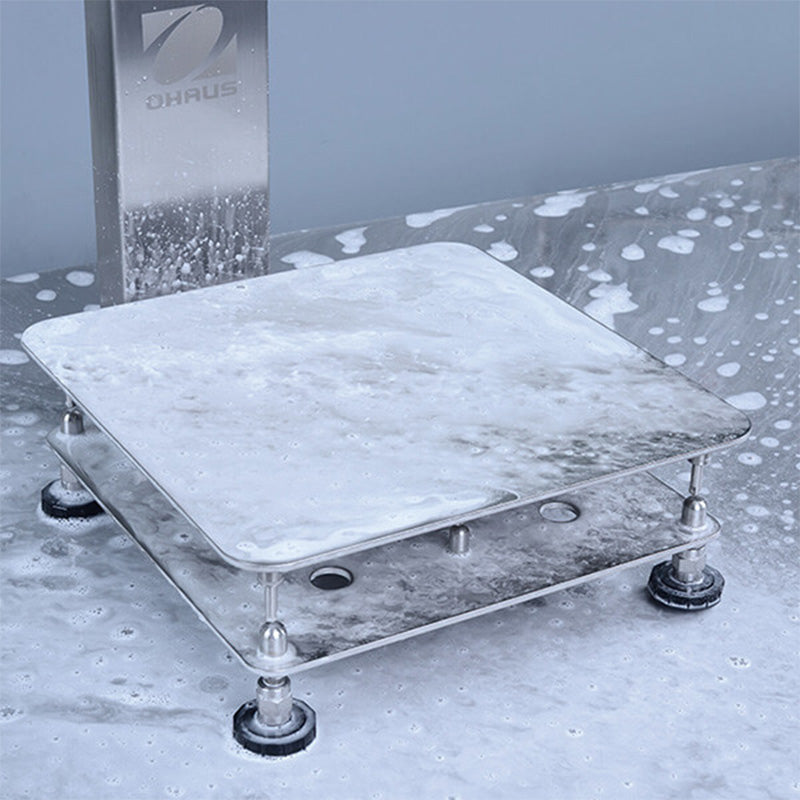

The Ohaus Defender 6000 I-D61PW is a heavy-duty industrial scale designed to withstand the rigors of demanding environments. Its IP68 immersion and IP69K washdown protection ensure it can be easily cleaned and sanitized, making it ideal for food processing, chemical manufacturing, and pharmaceutical applications.

Product Information

Features:

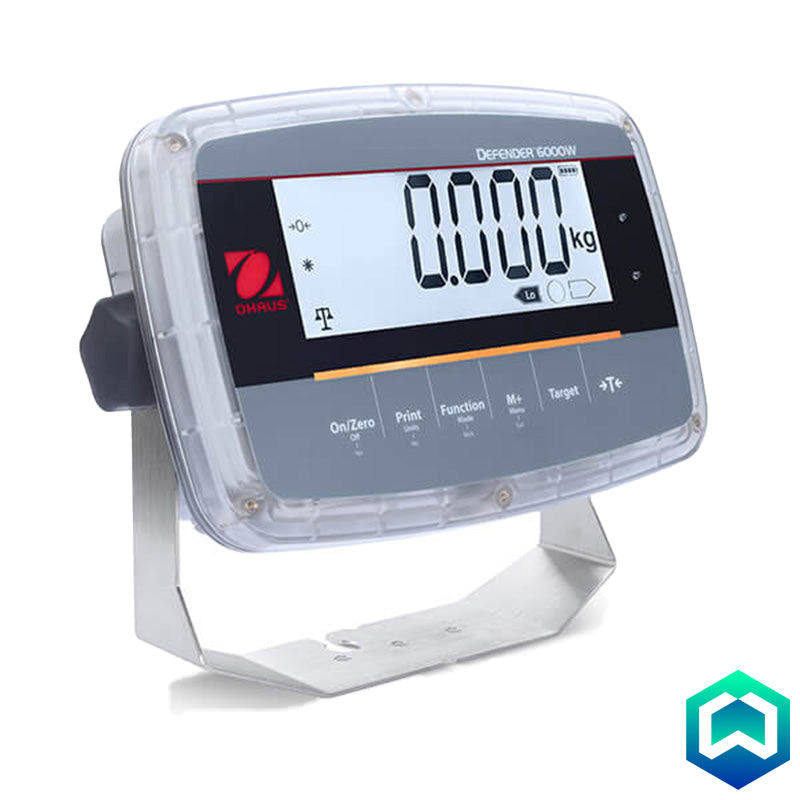

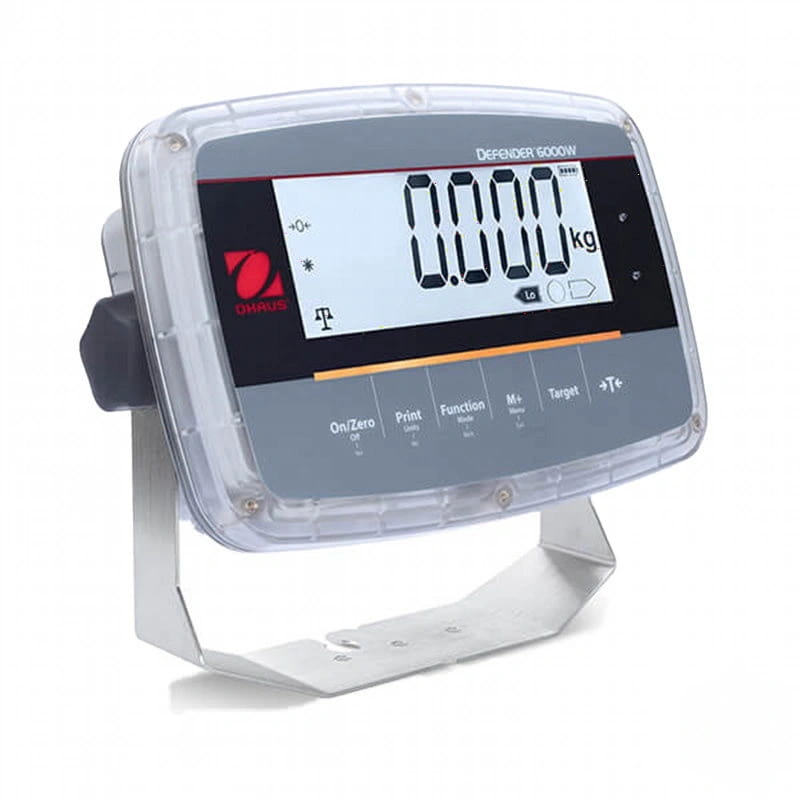

  • Display: 6-digit, 7-segment LCD with white backlight, 45 mm high digits
  • Power: 6 D (LR20) Batteries (Included)
  • Communication: Easy access IR communication kit (optional), GLP/GMP data output with real-time clock
  • Design: 150% overload capacity protection, 3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare, adjustable rubber feet
  • NSF Certified: Meets stringent food safety standards for hygienic operation.

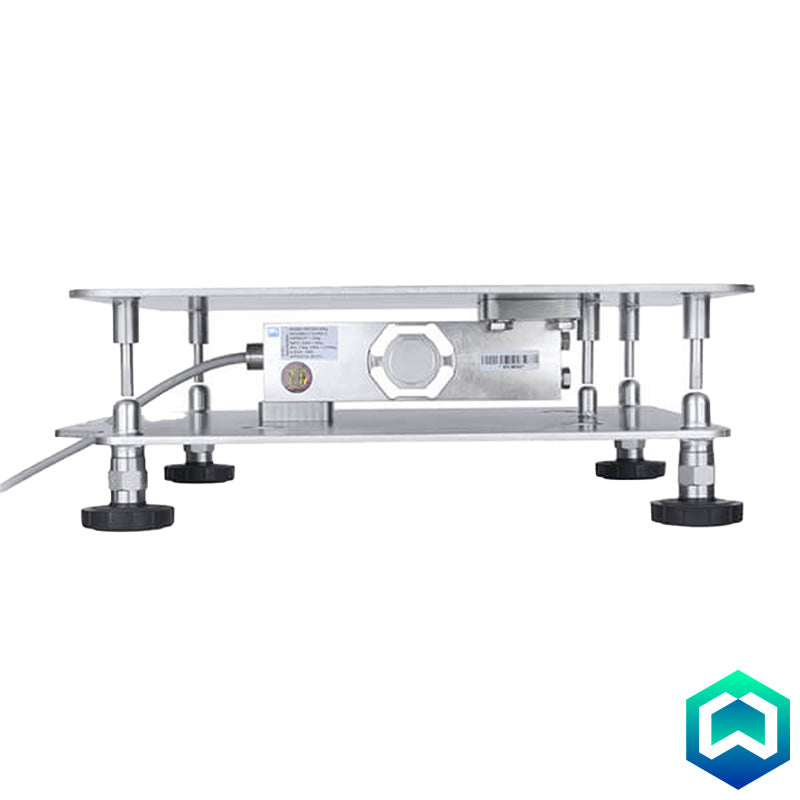

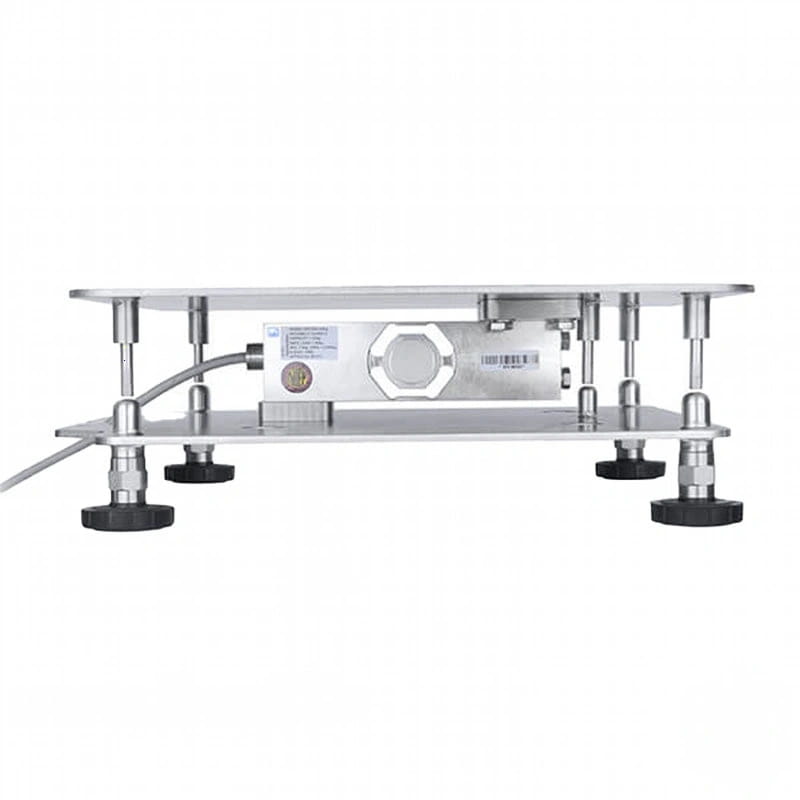

  • Unique Features: IP68 immersion/IP69K washdown protection, 316 stainless steel construction, hermetically-sealed load cell, versatile software modes for food, chemical processing, and packaging, simple connectivity

Application Modes:

  • Weighing: Determine the weight of items in the selected unit of measure.
  • Parts Counting: Count items of uniform weight. Advanced auto-optimization software recalculates the average piece weight as the overall weight increases.
  • Check weighing/ Check counting: Compare the weight of an item against target limits. Compare the count of a package against target limits. Bar matrix or 3-color check light display give clear and bright indication of weight.
  • Percent Weighing: Display the weight of an item as a percentage of a pre-established reference weight.
  • Dynamic Weighing and Display Hold: Take an average of weights for an item over a period of time to account for vibration or other interference. The Display Hold feature manually or automatically holds the last stable weight of an item on the display.

i-D61PW models offer an optional Infrared (IR) communication kit for connectivity without opening the housing. The indicator can store up to 1,000 weighing results
which can be transferred to a PC or system for traceability.

Compliance:

Metrology: EN45501 (Scale: T11889; Indicator: TC11888; Load Cell: OIML R60/2000-DE1-06.02 / D09-06.20; OIML R60/2000-NL1-12.50 / TC7648)
Product Safety: CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
Electromagnetic Compatibility: IEC/EN 61326-1 Class B, basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
Food Safety: ANSI/NSF 169, NSF/ANSI/3-A 14159-1
Ingress Protection: IEC 60529 – IP68, ISO 20653 – IP69K
Compliance Marks: CE
Other: WEEE, RoHS

Accessories Available
LC Extension Cable, 9 meters. . . . . . . . . . . . . . . . . . . . . 30424409
M16 Gland with Ferrite. . . . . . . . . . . . . . . . . . . . . . . . . . . 30379716
Light Tower, 3 Colours, 243mm, IP65  . . . . . . . . . . . . . . 30424021
Column Kit 260 mm 316 SS . . . . . . . . . . . . . . . . . . . . . . . 30572908
Column Kit 670 mm 316 SS. . . . . . . . . . . . . . . . . . . . . . . .30572909
Front Mounting kit 316 SS i-DT61PW. . . . . . . . . . . . . . . . 30626654
Pan 305 x 305 mm 304 SS. . . . . . . . . . . . . . . . . . . . . . . . 30427798
Pan 254 x 254 mm 304 SS. . . . . . . . . . . . . . . . . . . . . . . . 30427799
IR communication kit i-DT61PW. . . . . . . . . . . . . . . . . . . . 30572910
Wheel kit SS Defender Series. . . . . . . . . . . . . . . . . . . . . 30616409

Specification

Platform Dimensions:

  • 250mm x 250mm
  • 300mm x 300mm
  • 500mm x 400mm

Weight:

  • 10kg
  • 11.2kg
  • 20kg /21.2kg

Construction:

  • 316 Stainless steel platform and frame
  • Polycarbonate plastic indicator housing
Downloads

Please click here for the Ohaus Defender 6000 washdown bench scales datasheet

Trade Approved:
Platform Size:
Capacity and Readability:

£1,485.00 £1,980.00
