Minebea Dymond X-Ray Inspection System

Minebea Dymond X-Ray Inspection System

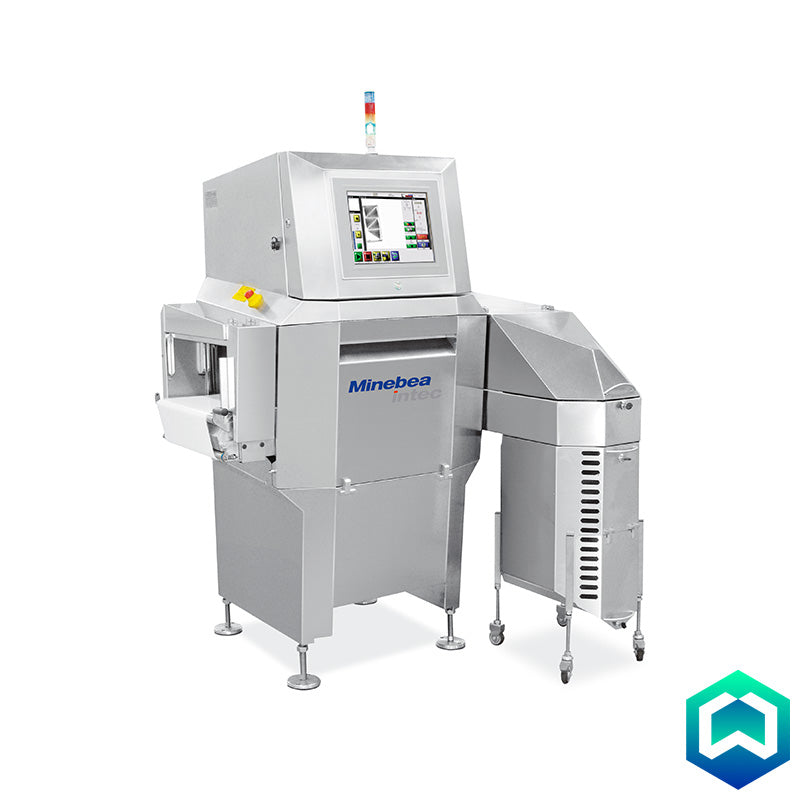

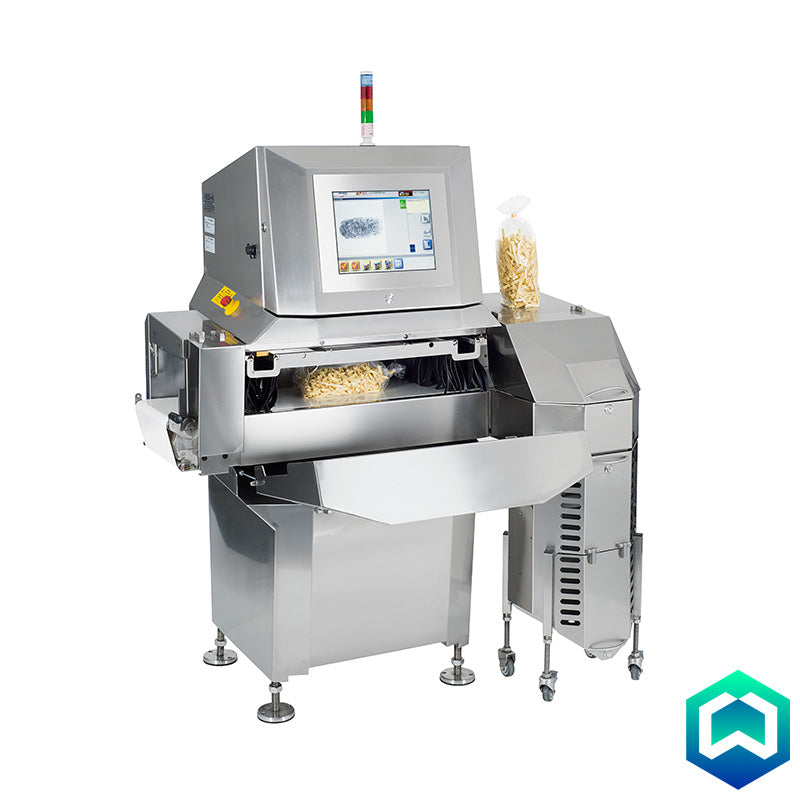

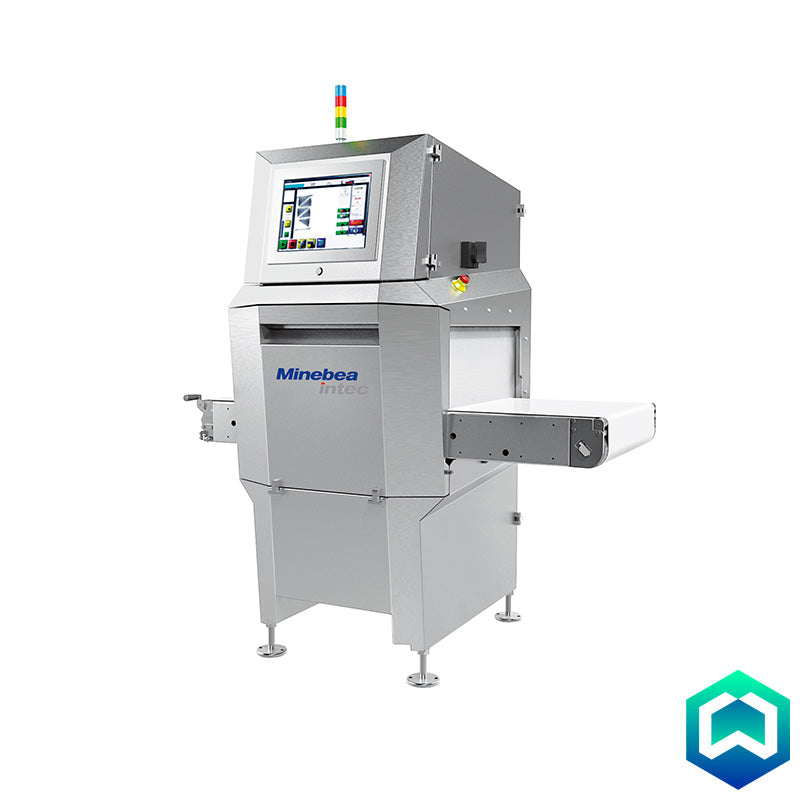

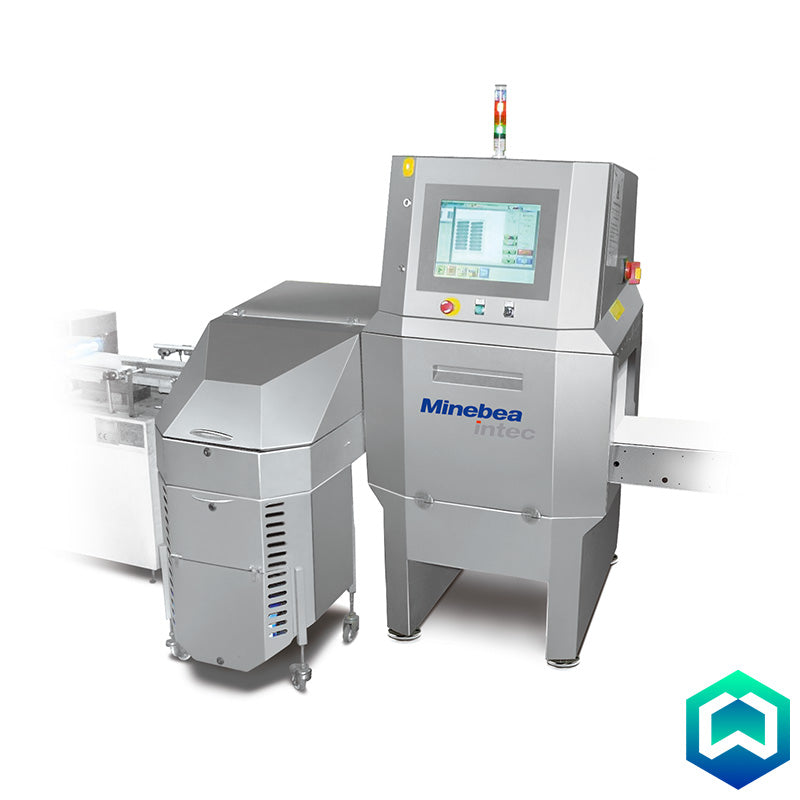

The innovative Minebea Intec Dymond X-ray inspection system provides reliable foreign object detection for a wide array of packaged food products, including desserts, salad mixes, and ready-made meals. Dymond goes beyond basic detection, offering quality attribute checks such as mass, filling levels, completeness, and integrity, ensuring comprehensive product quality control.

Product Details

Superior Detection and Versatility

Dymond guarantees safe inspection of food products packaged in cartons, boxes, sachets, bags, trays, and even metallized single-portion packs. It reliably detects a broad range of foreign objects, including metal, glass, stone, bone, and various plastics, regardless of their shape, size, and position. This system offers exceptional flexibility, accommodating products of all sizes, from large to small, making it a perfect solution for diverse production lines.

Advanced Technology and User-Friendly Operation

Dymond boasts an extremely high level of detection sensitivity while maintaining low energy consumption. The system features easy and intuitive operation through product "teach-in," simplifying setup and minimizing operator errors. With four configurable models and belt widths up to 800 mm, Dymond supports multi-lane applications with up to eight lanes, enhancing throughput and efficiency.

Seamless Network Integration and Adaptability

The X-ray inspection system Dymond can be seamlessly integrated into existing networks via SPC@Enterprise, OPC-UA, ModBus, and Ethernet, facilitating data sharing and remote monitoring. This integration ensures robust connectivity and supports scalable operations.

Certifications

Specifications

Material: Stainless Steel

X-ray power:

  • Dymond40 - 70 kV, 1.2 mA
  • Dymond80 - 70 kV-1.2 mA, 80 kV-2 mA
  • Dymond120 - 80 kV, 2 mA
  • Dymond160 - 90 kV, 3.5 mA

Detection resolution:

  • Dymond40 - 0.4 mm (standard)
  • Dymond80 - 0.8 or 0.4 mm
  • Dymond120 - 0.8 mm (standard)
  • Dymond160 - 0.8 mm (standard)

Belt speed range: 10 to 49 m/min

Approvals: CE, UL/CSA

Safety locks: SIL 3 Category IV PL e,
magnetic

User Interface: 15-inch touchscreen

Operating temperature: +5°C to +40°C

Machine cooling: 500 W air cooling (optional with Nema4X / IP65)

Relative air humidity: 20% to 90%, no condensation

Digital outputs: 4 available

Digital inputs: 7 available

USB port: Yes

Network connection: Ethernet

Compressed air: 5.5 to 6.9 bar

Radiation protection: FDA CFR 21 part 1020.40
(additional regional certifications available from
the manufacturing plant)

International protection class: IP 34 (standard) / IP 65 with Nema4X air cooling / IP69K on request

Electrical supply: 230 V AC ± 10% (standard)

Max product size: See X-ray beam geometry. Possibly lower through protective curtains.

Max. throughput:

  • Dymond40 - 80 m/minute
  • Dymond80 - 40 m/minute or 80 m/minute* depending on detector
  • Dymond120 - 40 m/minute
  • Dymond160 - 40 m/minute

Max. power consumption: 16A

Weight (standard configuration):

  • Dymond40 - 450kg
  • Dymond80 - 500 kg
  • Dymond120 - 600 kg
  • Dymond160 - 680 kg

Height: 800–999 mm
