MCWN Ninja Crane Scales - Capacities up to 9500kg

£513.00

Model

MCWN Ninja crane scales from Dini Argeo, available as standard or trade approved.

Main Features

  • Single security system, for the lifting and the weighing of the load.
  • In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
  • Fitted with the following upper and lower shackle:
    GR3 for MCWNT1
    GR6 for MCWNT3
    GR6 for MCWNT6
    GR9 for MCWNT9.
  • Compact size and minimum distance between upper and lower shackle.

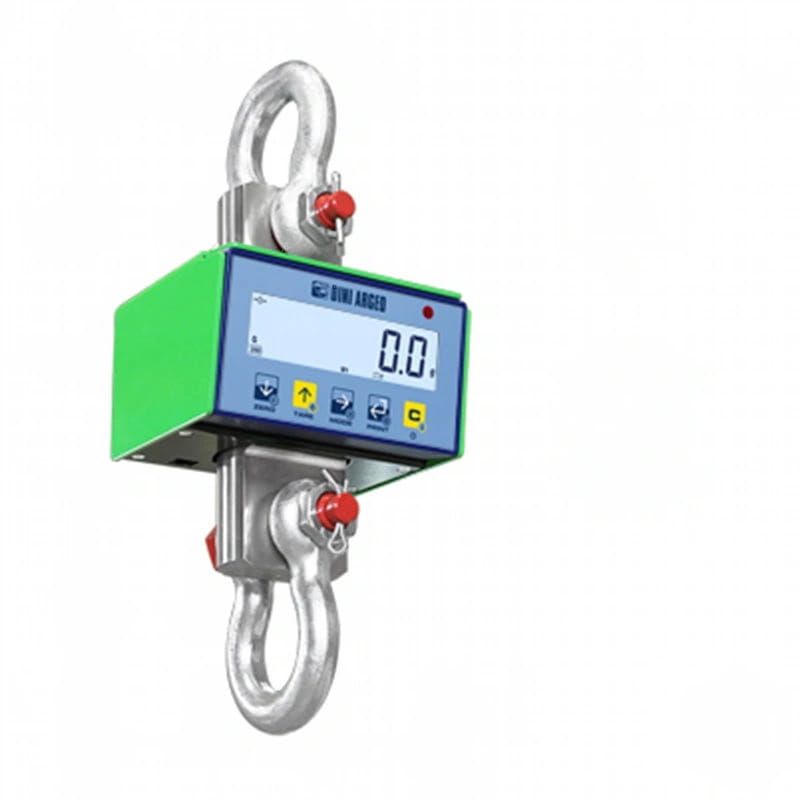

  • 25 mm LCD backlit display, easily visible in any lighting condition.
  • Precision: +/- 0.03% on MAX.
  • 5-key waterproof keypad: Zero, semi automatic or preset Tare, Mode, Print, On/Off.
  • Sturdy case in oven-fire painted steel.
  • Fitted with infrared remote control for up to 8m distance use. The remote control can be configured by the customer as a single automatic tare or as a remote keypad.

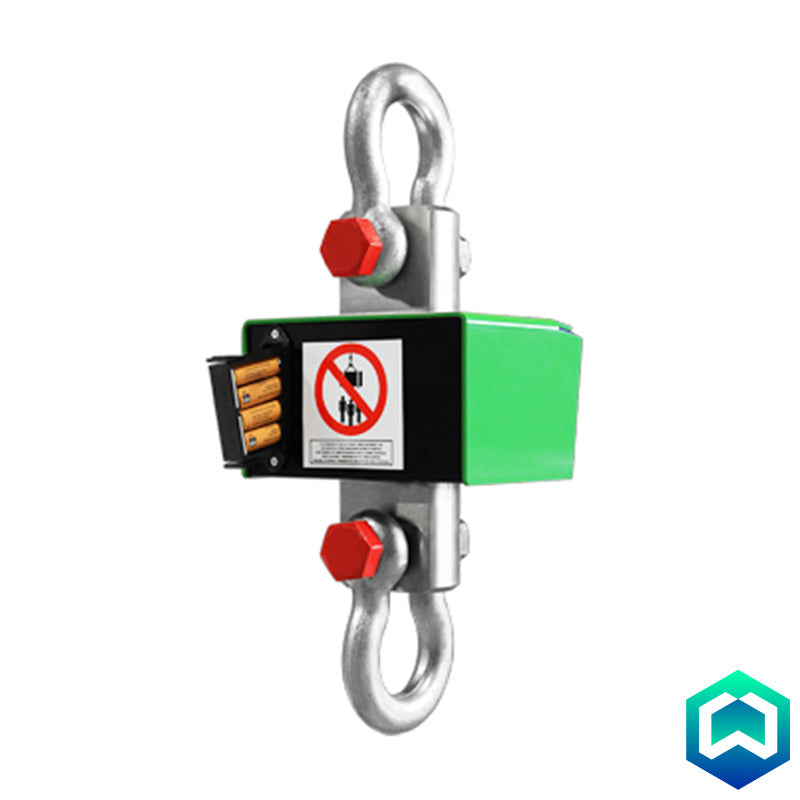

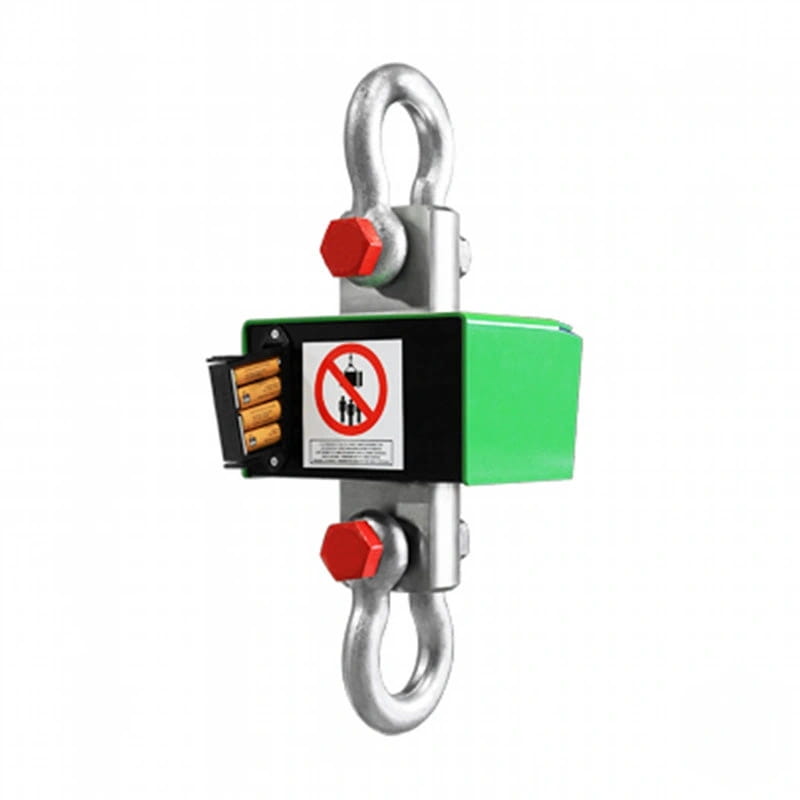

  • Power supply through 4 AA batteries, which may be rechargeable (operating time of about 40 hours).
  • Digital calibration and programmable Set-Up directly from the keypad or from the PC with Dinitools.
  • Programmable digital filter and auto switch-off.
  • Operating temperature: -10 /+40 ºC.
  • RS232 serial port on RJ11 connector for quick programming with Dinitools.

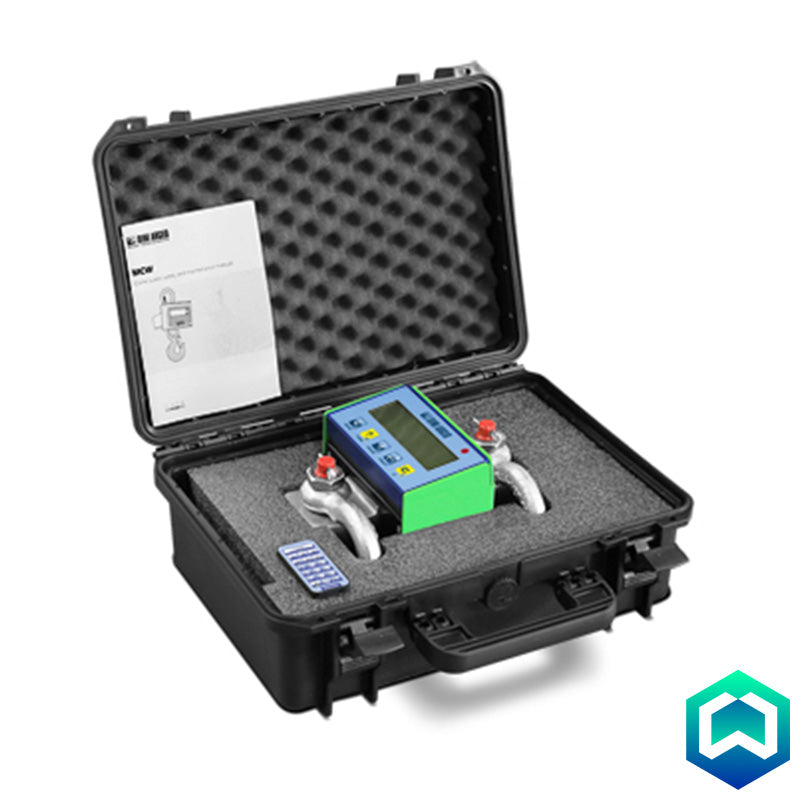

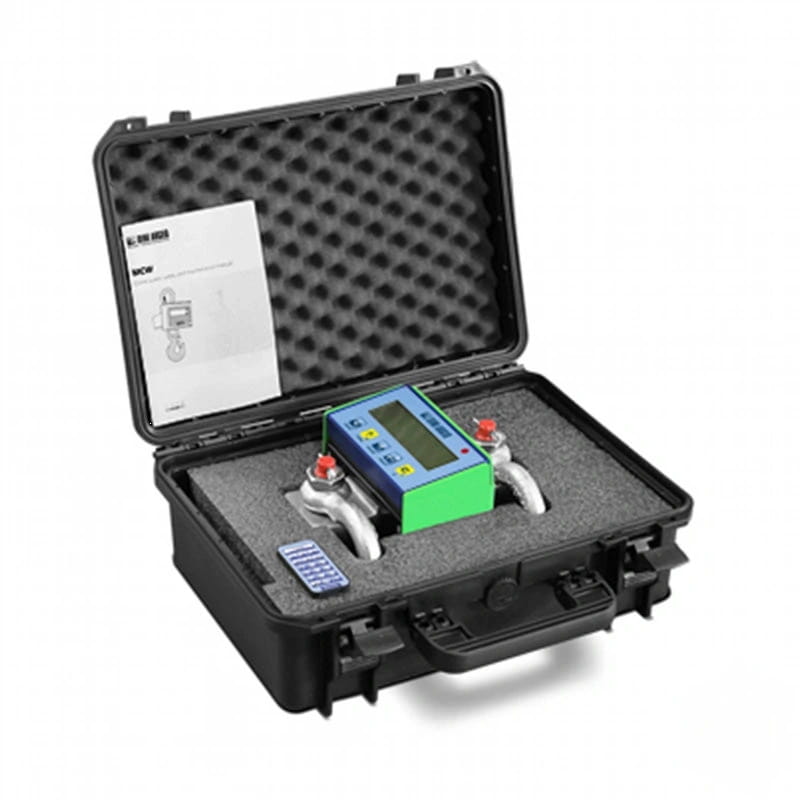

  • Fitted with protective transport case with dimensions (WxLxH) 175x480x390mm.

Main Functions

  • The user can select the operating modes directly using the dedicated key*:
    - High resolution display x 10
    - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
    - Net/Gross
    - Lb to Kg converter
    - Free conversion factor (for meter and litre counters etc.)
    - Weight totalizer
    - Formulizer
    - +/- controller with quick target and threshold input
    - Percentage weighing
    - Percentage batching with programmable target
    - Piece counter
    - Hold
    - Two-speed filling/batching with reset upon starting (with optional DFIO)
    - PEAK, detection of weight peaks
    - Newton to Kg converterThe “alibi memory” and “set-point” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board;
  • Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, set-point and tare weight, which the user can access by entering a programmable access password.

MCWN Ninja Crane Scales - In Use

https://www.youtube.com/watch?v=5tlKPGYK_0o&feature=youtu.be

Options (ONLY AT TIME OF ORDER)

  • 868Mhz radio interface
  • Bluetooth Interface

Please click here for the Dini Argeo MCWN Ninja datasheet.....

For the Crane Scale Catalogue please click here
