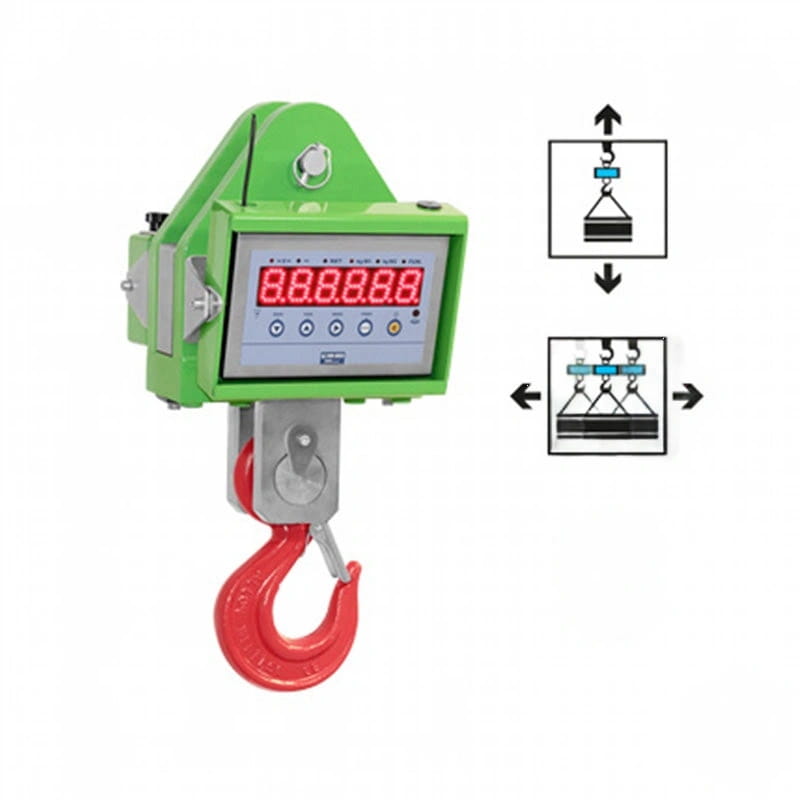

MCWHU Hulk Crane Scales - Capacities up to 25,000kg

£3,350.00 £3,718.00


MCWHU Hulk crane scales from Dini Argeo, available as standard or trade approved for industrial weighing applications.

Main Features

  • Double security system, for permanent installation in the lifting system; recommended for lifting and moving the suspended load.
  • In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
  • 40 mm RED LED display.
  • Waterproof keyboard with 5 keys which are ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.

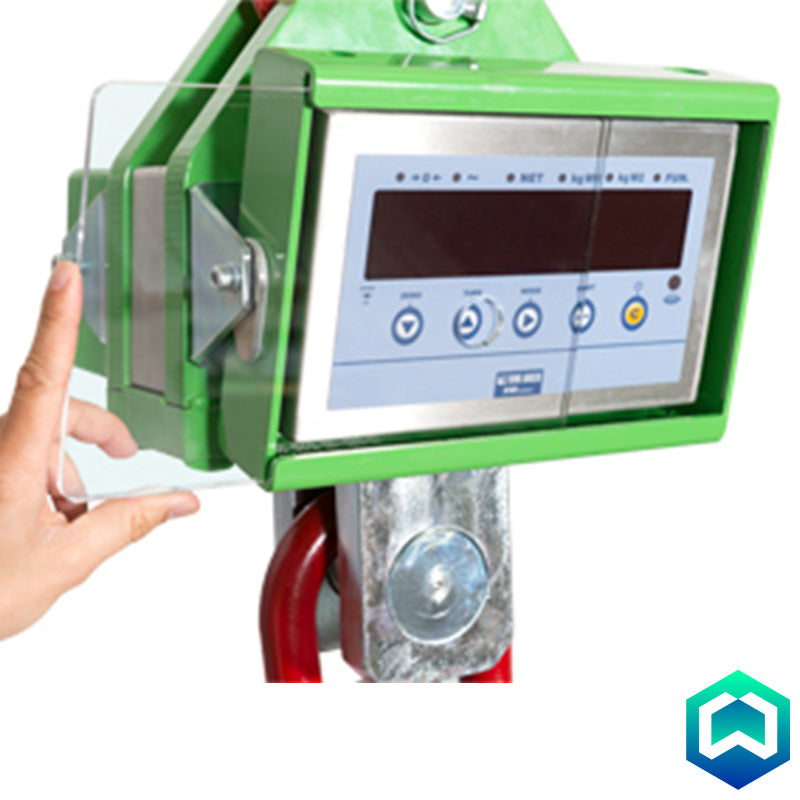

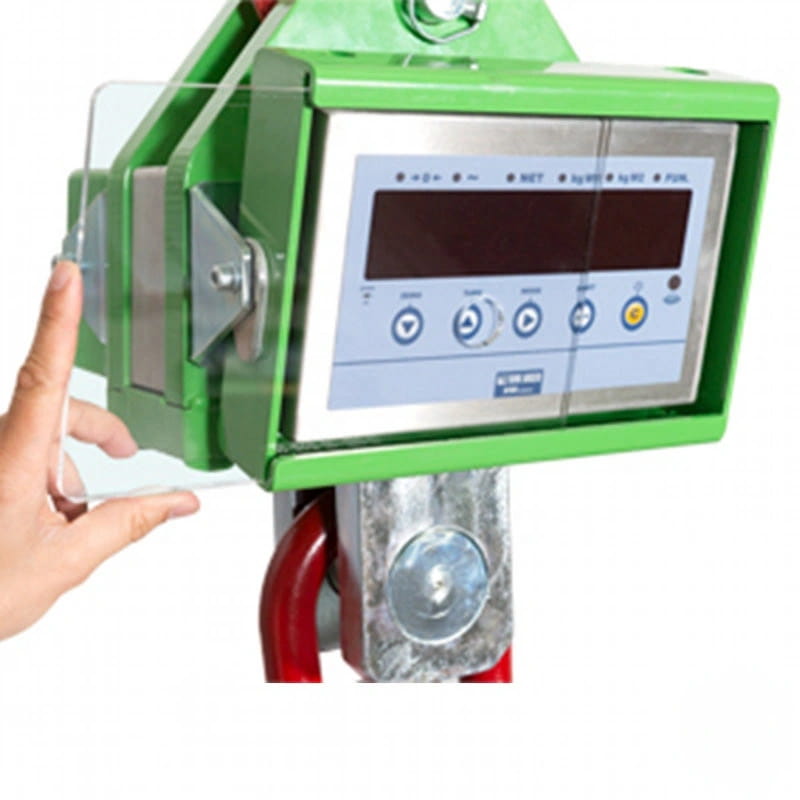

  • Protective screen in plexiglas for display and keyboard.
  • Precision: +/- 0.03% F.S.
  • Built extremely sturdy in oven-fire painted sheet steel, with IP67 protection degree against dust and sprays.
  • Weigh: 86 kg, with packaging 103 kg.
  • Radiofrequency 6-key remote control, 433MHz, for use up to 50 m of distance. Configurable as automatic tare only or as a remote keypad.

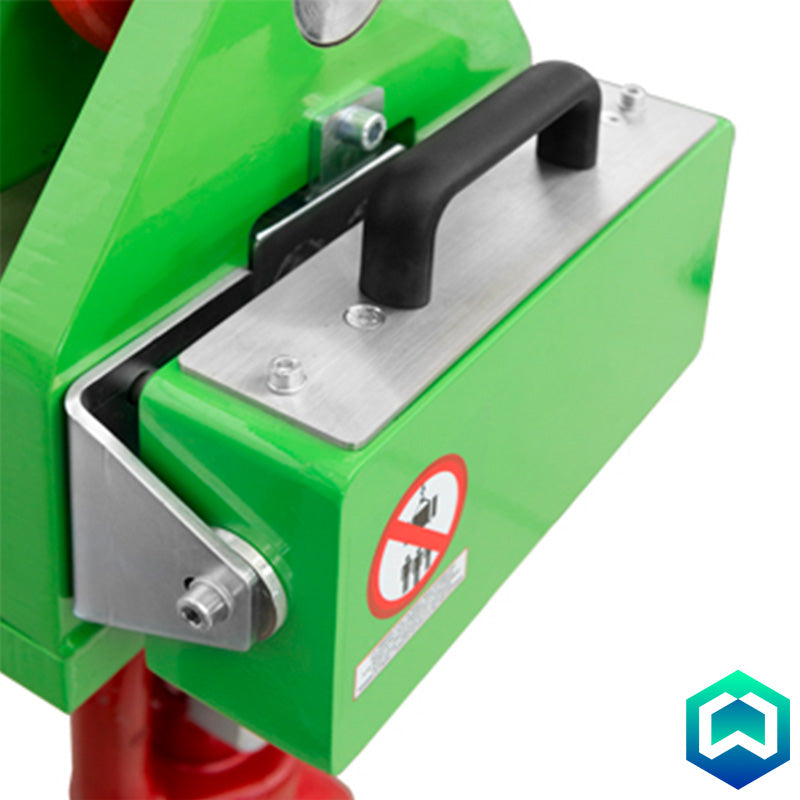

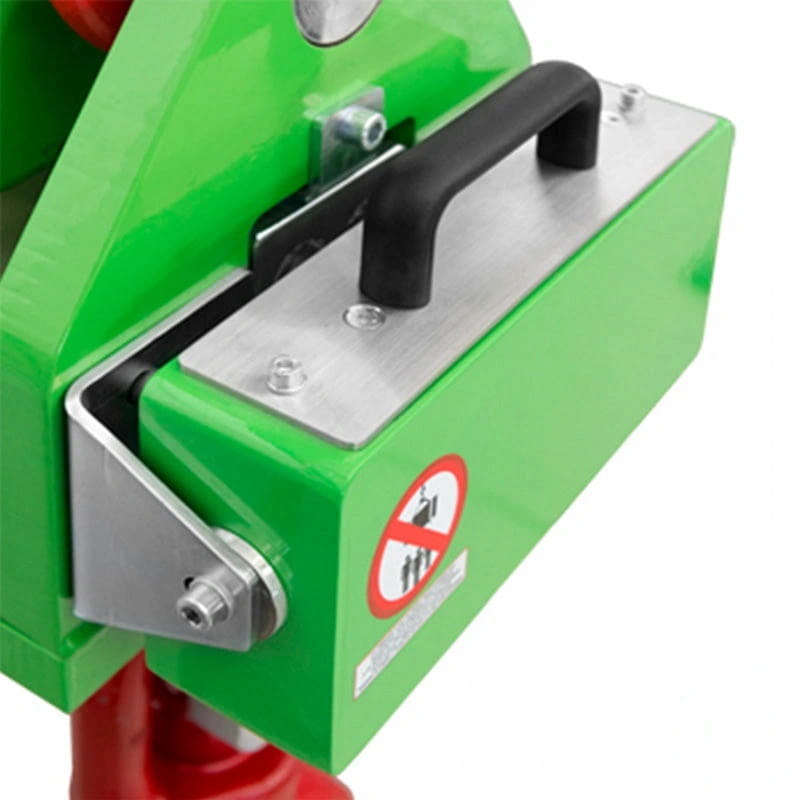

  • Fitted with extractable rechargeable battery pack, with 60-hour operating time, designed to be combined with MCWHBK option for 24/7 continuous use of the crane scale. Standard fitted with battery charger.
  • Digital set-up and calibration programmable directly from keyboard using a sample weight.
  • Operating temperature: -10 /+80ºC, with optional heat shield (-10/+40ºC for the CE-M approved model).
  • Programmable digital filter and auto power saving function.
  • Equipped with 230 Vac 50 Hz battery charger, for charging the battery from the crane scale.

Selectable Functions

  • High Resolution Weighing x 10.
  • Net/Gross or lb/kg conversion.
  • Accumulation.
  • +/- Checkweighing.
  • Percentage weighing.
  • Counting.
  • HOLD (lock of the displayed weight).
  • PEAK (maximum value read).
  • Peer-to-peer.

MCWHU Hulk Crane Scales - In Use

Available Functions from Remote Control

  • Zero;
  • Tare;
  • Enable/disable function;
  • Print;
  • Switch-off.

Options Only Available at Time of Placing Order

  • Radio frequency transmission to remote indicator up to 70 m indoors.
  • WI-FI interface.

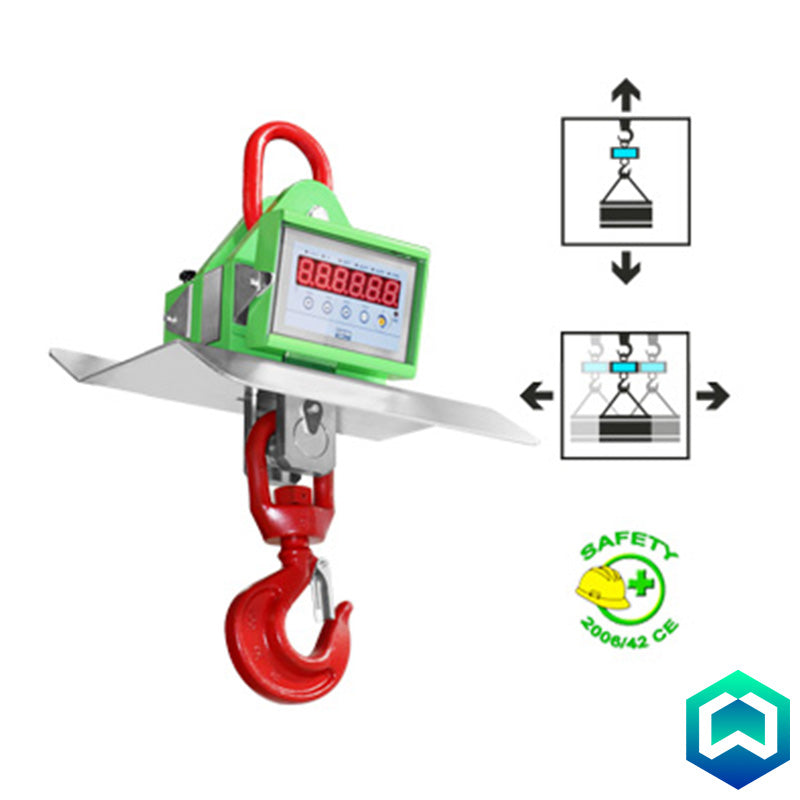

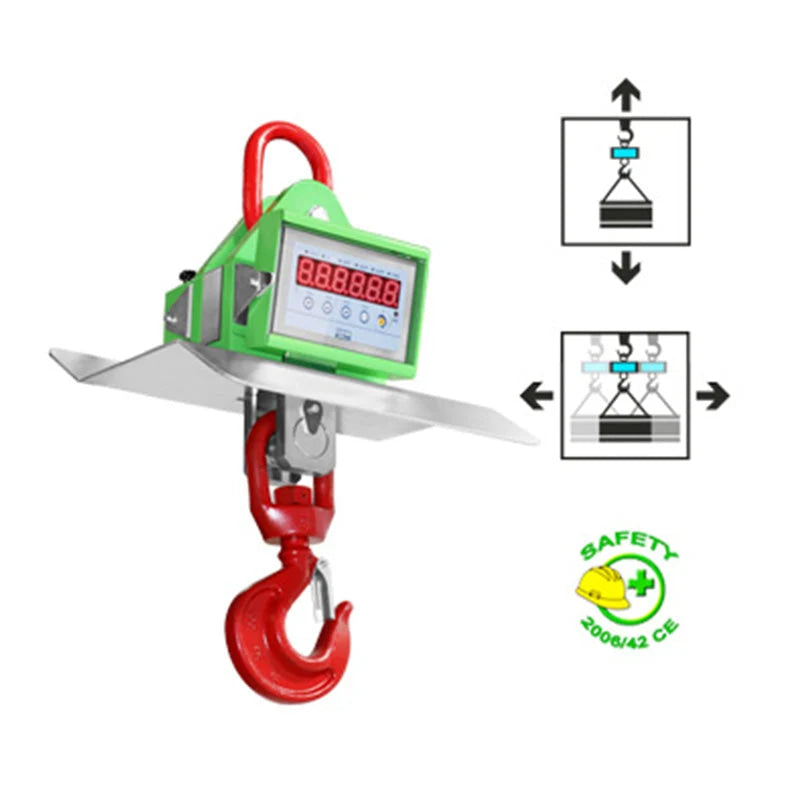

  • Heat shield for protection from infrared rays and high temperatures.
  • Remote weight indicator (see DFW.., 3590.., TRS.., DGT.. series weight indicators) with printer or other accessories connected through radio frequency.
  • Separate 230 Vac 50 Hz recharging station for 24/7 continuous use, made up of additional battery pack and adapter for the external recharge of the battery.
  • Date and Time.
  • ACCREDIA calibration certificate according to OIML/ASTM standards.

Please click here for MCWHU Hulk datasheet.....

For the Crane Scale Catalogue please click here
