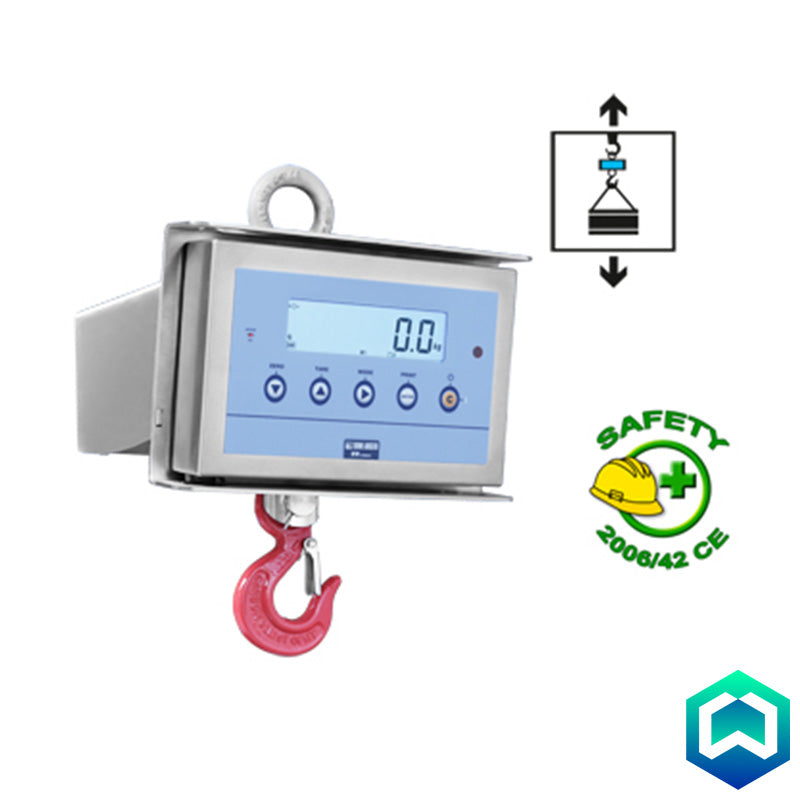

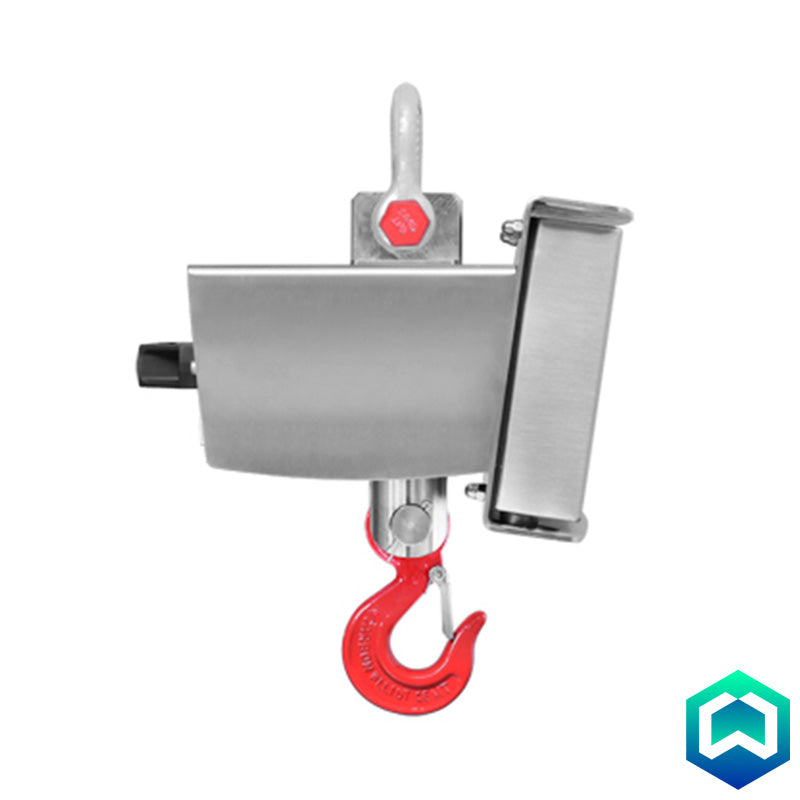

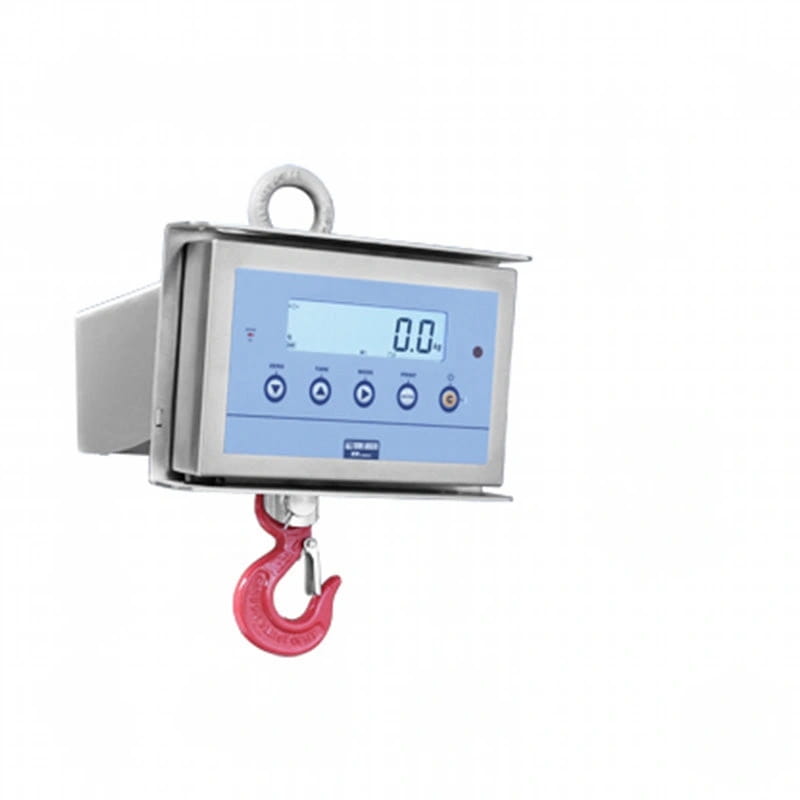

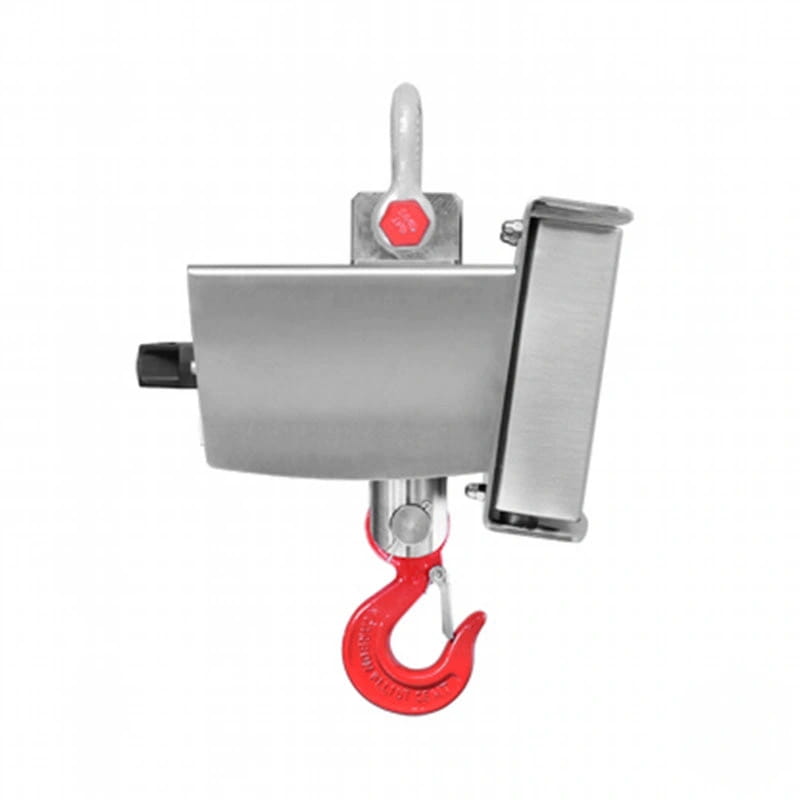

MCW Professional Crane Scale - Capacities up to 1500kg

£1,175.00 £1,304.00

Model

MCW Professional crane scales from Dini Argeo, available as standard or trade approved. Stainless steel construction, IP67 rated for industrial weighing applications. A full range of accessories are available such as wireless scoreboard displays, Wi-Fi interface card, printers. Please contact us for more information.

Main Features

  • Single security system, for the lifting and the weighing of the load.
  • In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
  • Large backlit 25mm LCD display easily visible in all lighting conditions and also with low temperatures.
  • Fitted with standard approved upper galvanized shackle and standard approved bottom hook.
    GR3 and GOC1 for MCWR2 (150/300/600/1500).
  • Reduced distance between the upper shackle and bottom hook.
  • Precision: +/- 0.05% F.S.
  • Waterproof keyboard with 5 keys: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
  • MODE-key configurable as:
    PEAK (maximum value read), HOLD (blocking the weight viewed), Weighs accumulation, lb/kg/N conversion.
    See the user manual for the list of the functions.
  • IP67 stainless steel case.
  • Fitted with remote control for up to a 8 m distance. The remote control may be configured by the customer as automatic tare only, or as a remote keypad.
  • Rechargeable sealed battery with a 40-hour life battery. On request, it is available a second battery for a 24/7 use.
  • Equipped with 230Vac 50 Hz battery charger.
  • Operating temperature: -10 /+40 ºC.
  • Programmable digital filter and auto switch-off.

MCW Professional Crane Scales - In Use

https://youtu.be/5tlKPGYK_0o

Options Only Available at Time of Placing Order

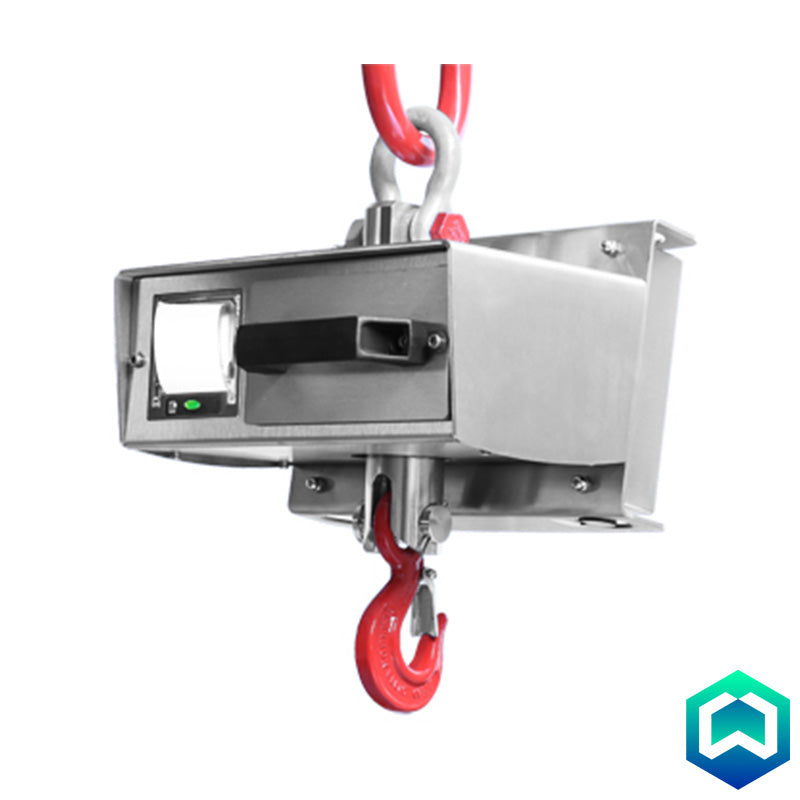

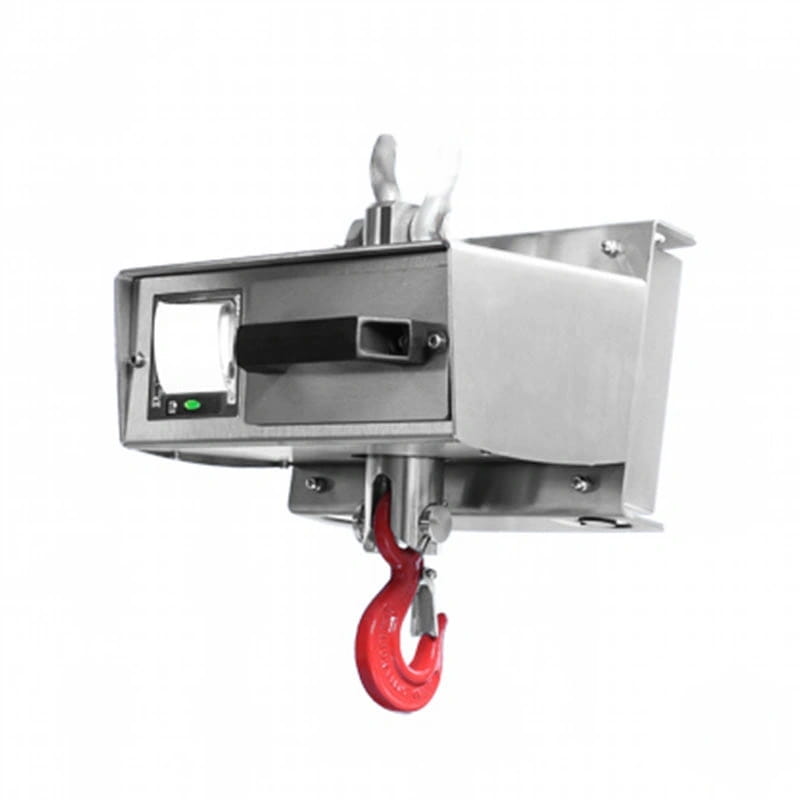

  • Integrated thermal printer TPRPR2.
  • WI-FI interface.
  • RF weight transmission to remote indicator up to over 70m indoors, 150m outdoors, adeguate environmental and installation conditions.
  • 433MHz radiofrequency remote control (compatible with remote indicator).
  • DOT red LED display of 40mm.
  • Second battery for a 24/7 use (code MCWKBK).
  • ACCREDIA calibration certificate according to OIML/ASTM standards.
  • Remote weight indicator (see DFW.., 3590.., TRS.., DGT60.. Series' indicators) with printer connected through radio frequency.

Available Functions From Remote Control

  • Infrared 19-key remote control (standard), operating up to 8m:
    zero; tare / manual tare; enable / disable function; print; switch-off.
  • Radiofrequency 6-key remote control (optional) operating up to 50m:
    zero; tare; enable / disable function; print; switch-off.

Please click here for the MCW Professional datasheet .....

For the Crane Scale Catalogue please click here
