Dini Argeo LTS Double Plate Weighing System For Forklifts

By Dini Argeo

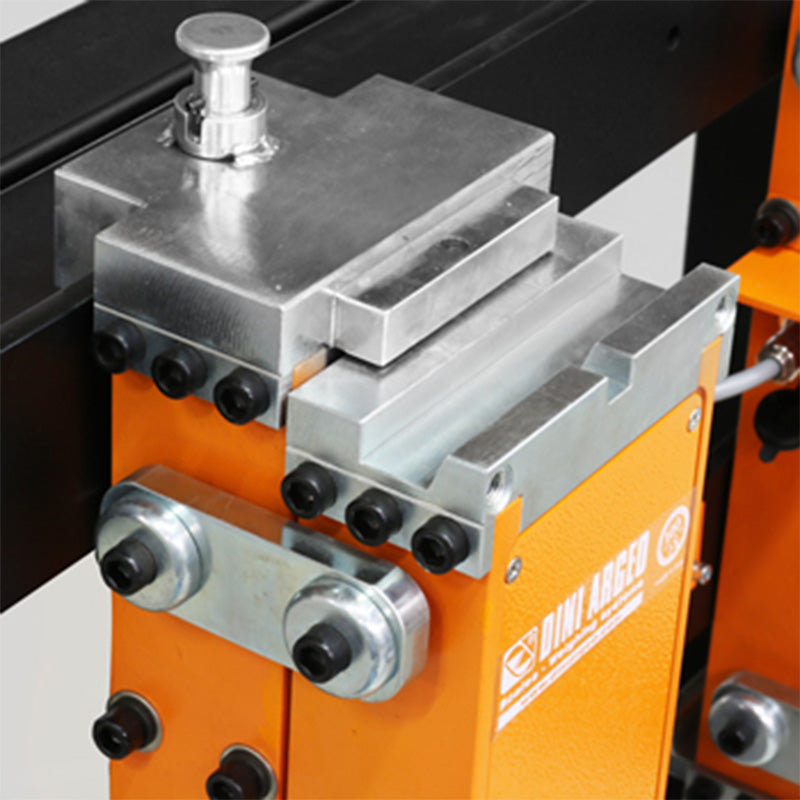

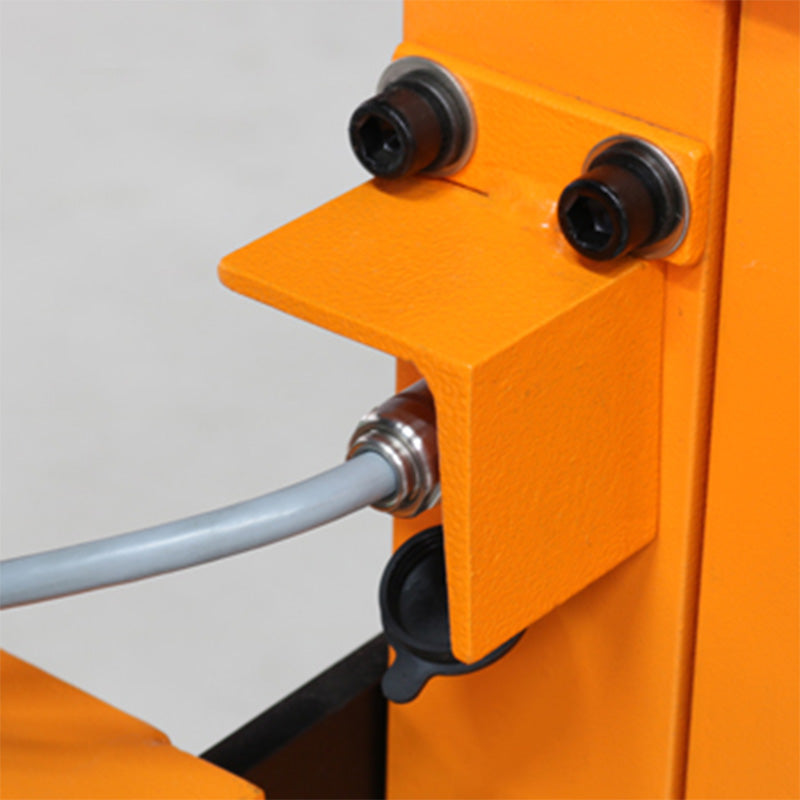

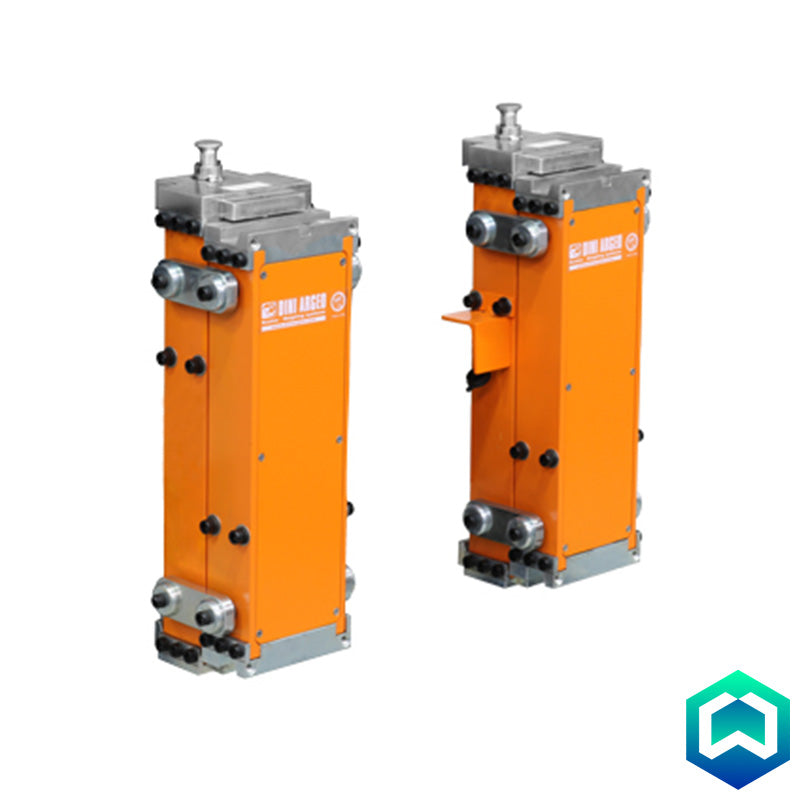

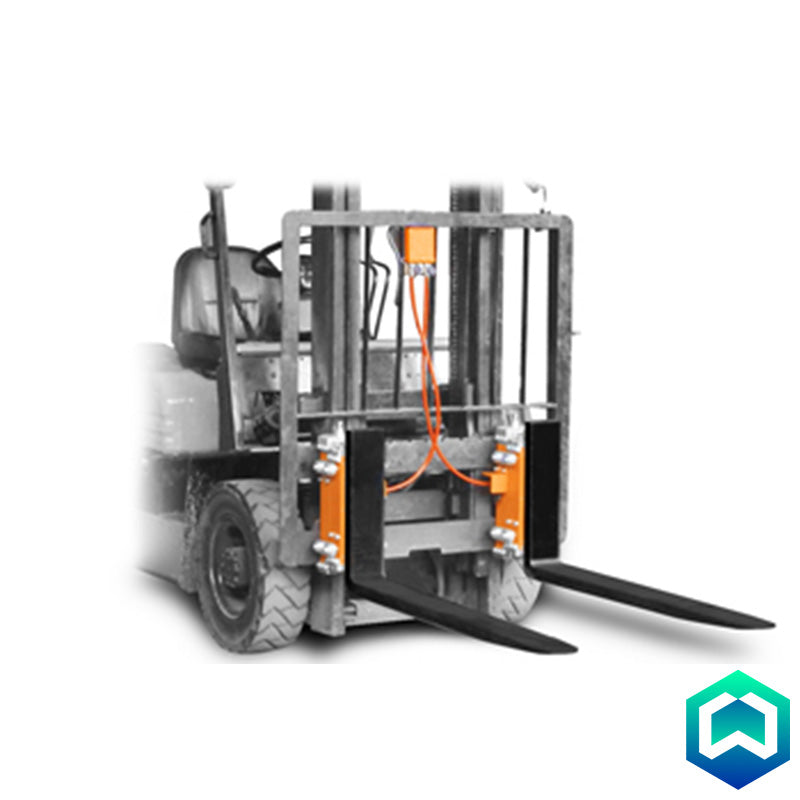

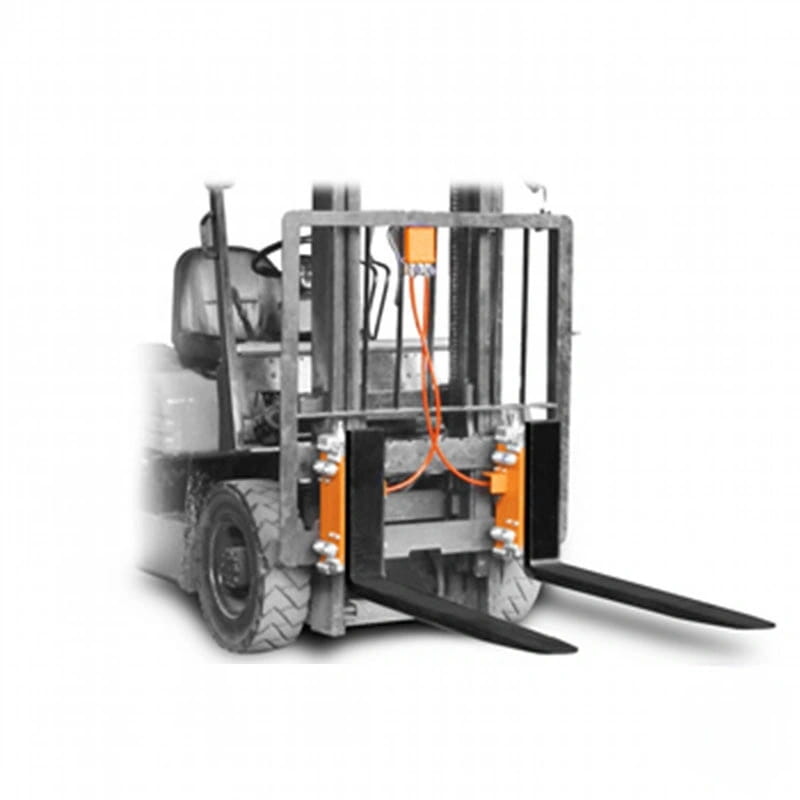

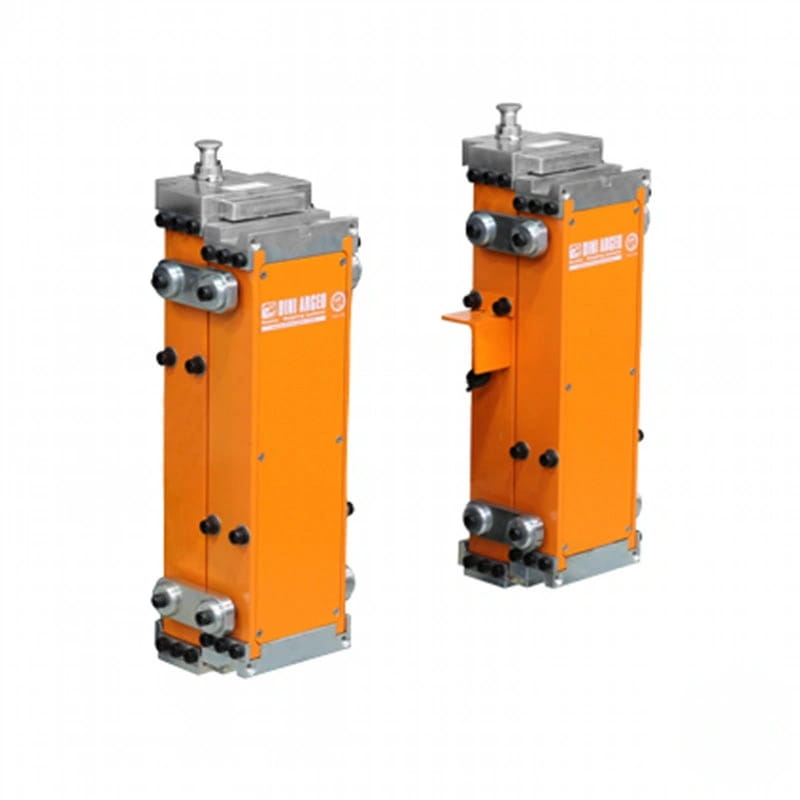

The Dini Argeo LTS Double Plate Forklift Weighing System is designed to streamline your internal logistics. Compliant with DIN15173 - FEM class III standards, this system offers accurate weighing during load and unload operations. The sturdy, easy-to-install design, consisting of two weighing plates and a junction box, integrates seamlessly with your forklift, making weighing effortless.

Product Information

Features:

  • Precision Weighing: Accurately measure loads with S-type load cells offering 2mV/V sensitivity and a maximum power supply of 15Vdc.
  • Robust Construction: Durable, extra-thick painted steel bearing structure protects load cells from accidental strikes, ensuring long-lasting performance.
  • Compact Design: The system's minimal footprint (585x265mm, 152mm depth) optimizes workspace and maintains operator visibility.
  • Versatile Weighing: Accommodates forks up to 1.3m in length with a maximum plate opening of approximately 500mm.

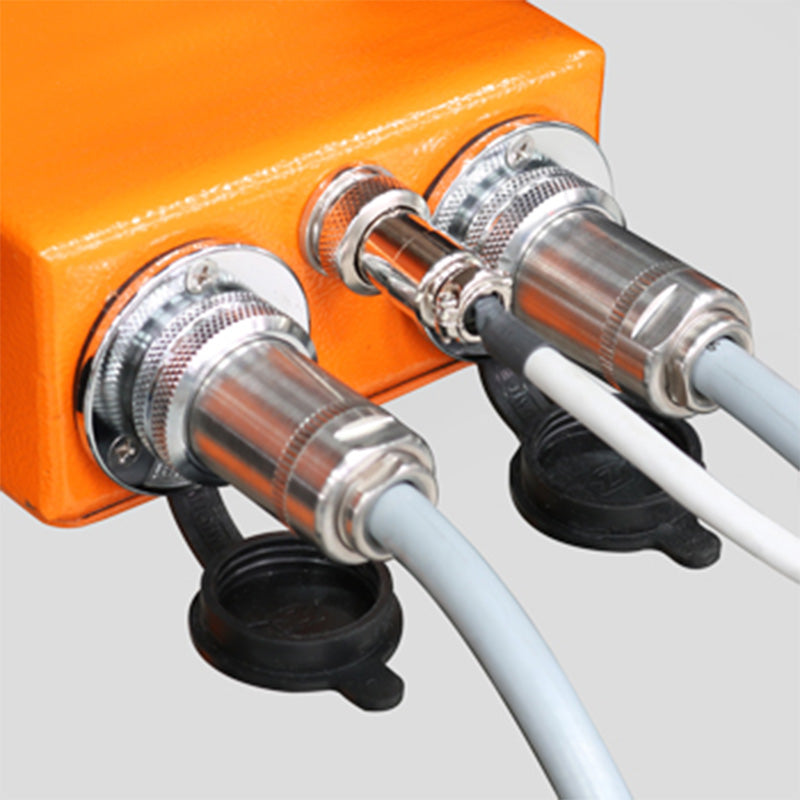

  • Reliable Operation: Hermetic junction box and standard cable with connectors ensure reliable and quick setup.
  • Enhanced Accuracy: Maintains precision (±0.1% of capacity) even with a maximum horizontal tilt of ±2°.
  • Overload Protection: Integrated system safeguards against overloads (up to 300%) and accidental impacts.
  • Flexible Connectivity: Compatible with a wide range of indicators and wireless solutions to suit various applications.
Specification

Construction: Weighing plates with extra thick painted steel bearing structure.

Load Cell Specifications:

  • Type: S-type
  • Sensitivity: 2 mV/V
  • Maximum Power Supply: 15Vdc

Plate Dimensions and Weight:

  • Single Plate Dimensions: 585x265mm
  • Single Plate Depth: 152mm
  • Total Weight of 2 Plates: 100kg (approx.)
  • Single Plate Packaging Dimensions: 270x280x640mm
  • Single Plate Packaging Weight: 10kg (approx.)

Operational Specifications:

  • Maximum Fork Length: 1.30m
  • Maximum Plate Opening: 500mm (approx.)
  • Precision: +/- 0.1% of capacity
  • Maximum Horizontal Tilt: +/- 2°
  • Maximum Overload: 300%
Downloads

Please click here for the LTS Double Plate Forklift Weighing System datasheet
