Easy Level - Levelling Kits for WWSE and WWSD Mobile Weighing Stations

By Dini Argeo

The WWSE and WWSD levelling kits offer portable and accurate solutions for both mobile and fixed axle weighing stations. Designed to optimally distribute the load across axles during weighing, these modules enhance the precision of weight readings.

Product Information

Advantages of Easy Level Kit

  • Made entirely of aluminium, to resist against corrosion and weathering.
  • Easy to carry, thanks to the carrying handle and built-in hinges that allow you to close the modules easily, reducing the overall dimensions to a minimum.
  • Non-slip surface for maximum grip on all types of surfaces.
  • Optional iron ramp to facilitate the ascent/descent of the vehicle.
  • For static and dynamic axle weighing applications.

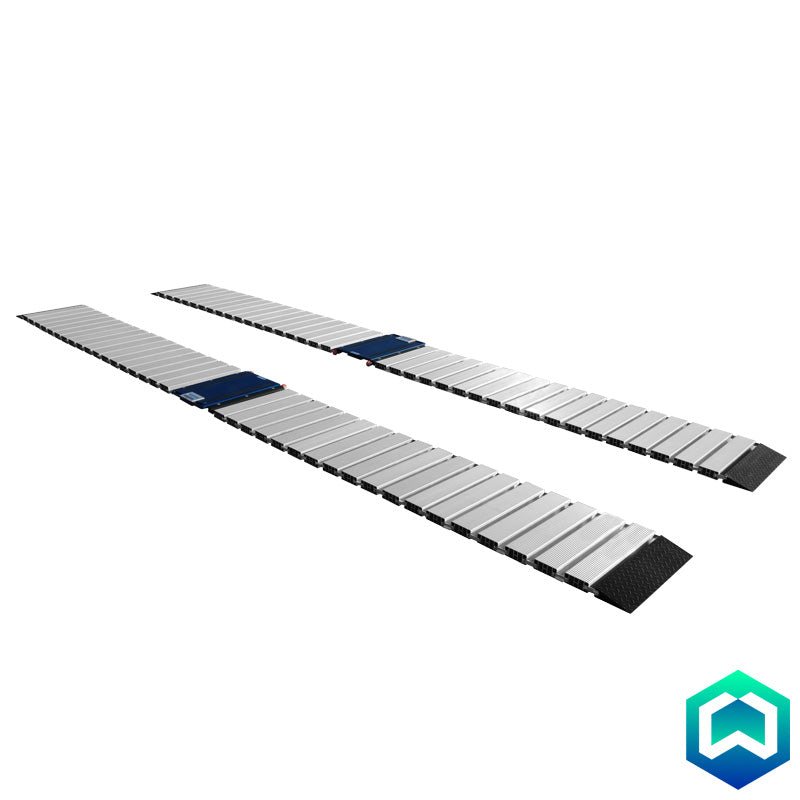

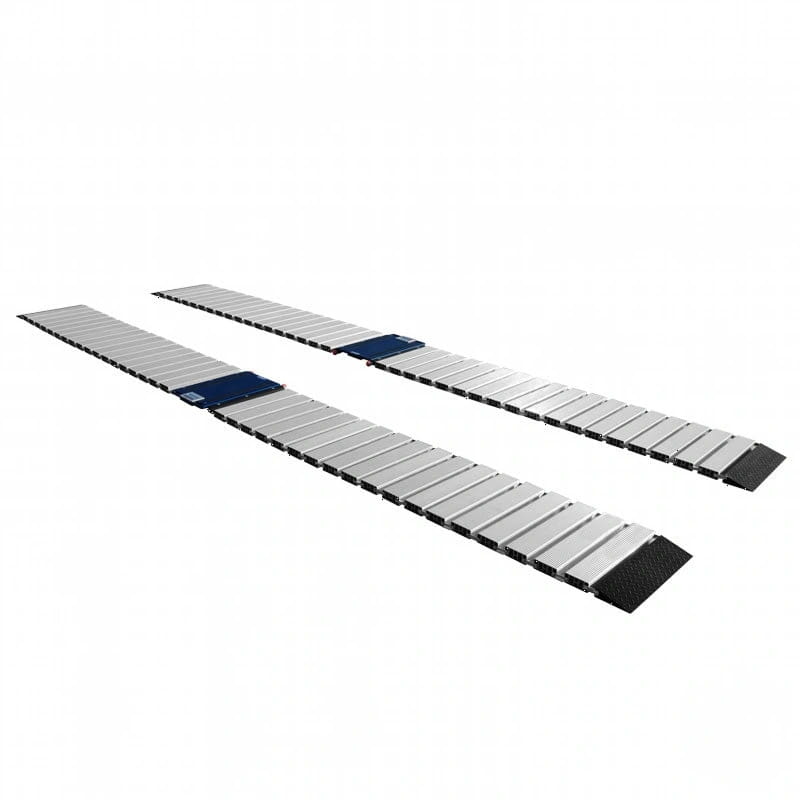

Easy Level Kit

Easy level kit comprised of:

-LMEK12 - Set of 12 levelling modules and 4 ramps for the Dini Argeo WWSE series of vehicle weigh pads.
-LMDK18 - Set of 18 levelling modules and 4 ramps for the Dini Argeo WWSD series of vehicle weigh pads.


Specification
  • Maximum load capacity of the single module: up to 20t (per axle up to max. 40t).
  • Single module dimensions:
    For WWSE: 990 x 59 x 700 mm (LxHxW)
    For WWSD: 650 x 59 x 900 mm (LxHxW)
  • Optional iron ramp to facilitate the ascent/descent of the vehicle.
  • Ramp dimensions:
    For WWSE: 201 X 54 X 700 mm (LxHxW)
    For WWSD: 201 X 54 X 900 mm (LxHxW)
Downloads

Please click here for the Easy Level modules datasheet.
Model
£4,430.00 £4,872.00
View details
