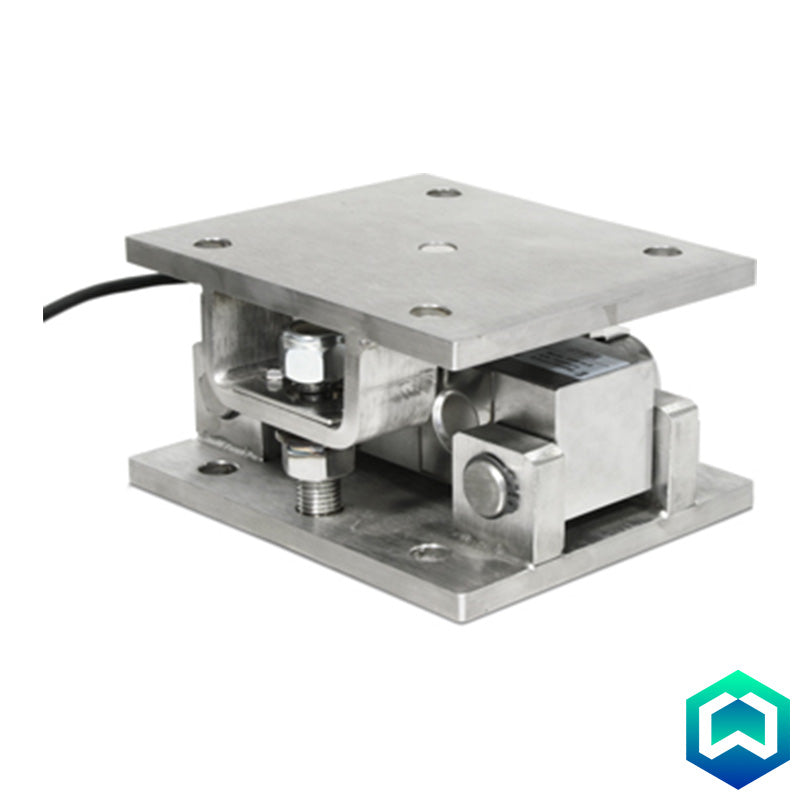

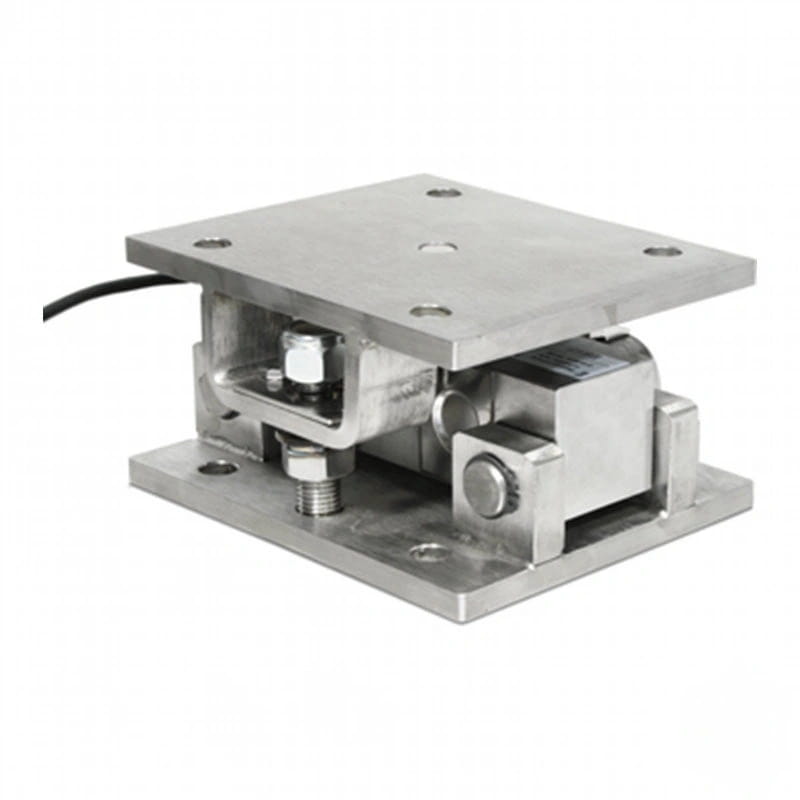

Dini Argeo KDSBN Mounting Kit For DSBI Double Ended Shear Beam Load Cells

The Dini Argeo KDSBN series mounting kit, constructed from AISI 304 stainless steel, is specifically designed for installing DSBI series double shear beam load cells with capacities up to 30,000 kg. This robust kit is ideal for weighing large hoppers, tanks, and silos, ensuring reliable and accurate measurements in demanding industrial environments.


£332.00
Product Information

Features:

  • Manufactured in AISI 304 Stainless Steel: Provides excellent resistance to corrosion and ensures long-lasting performance in heavy-duty applications.
  • Great Resistance to Lateral Forces: The design of the kit effectively withstands lateral forces, maintaining weighing accuracy even with potential side loads.
  • Bolts for Maintaining the Raised Position: Features integrated bolts that allow the weighing structure to be held in a raised position, simplifying the installation and/or substitution of the load cell.
  • Self-Centering Connection Segment: The connection segment between the lower and upper plates is self-centering, ensuring correct load transmission and optimal weighing accuracy.
  • Centering Plate/Electrostatic Bypass: Includes a centering plate that also functions as an electrostatic bypass, enhancing safety and measurement stability.
  • Anti-Overturn System: Integrated anti-overturn mechanism enhances the safety and stability of the high-capacity weighing system.
  • Locking/Bypass System: Facilitates safe and easy transport and maintenance of the weighing structure and load cell. The load cell can be locked or bypassed for simplified removal and handling.
  • ATEX Version Available: Can be supplied in an ATEX certified version suitable for use in hazardous areas classified as zones 1&21 and 2&22.
Specification

Material: AISI 304 stainless steel

Load Cell Compatibility: DSBI Double Shear Beam Load Cell up to 30,000kg

Downloads

Please click here for the Dini Argeo KDSBN Mounting Kit datasheet
