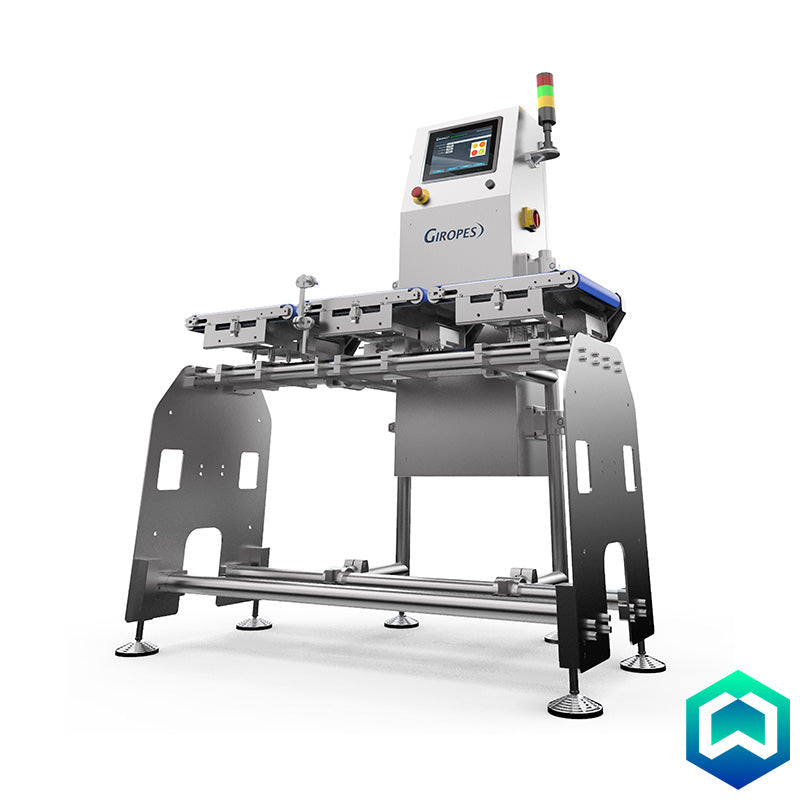

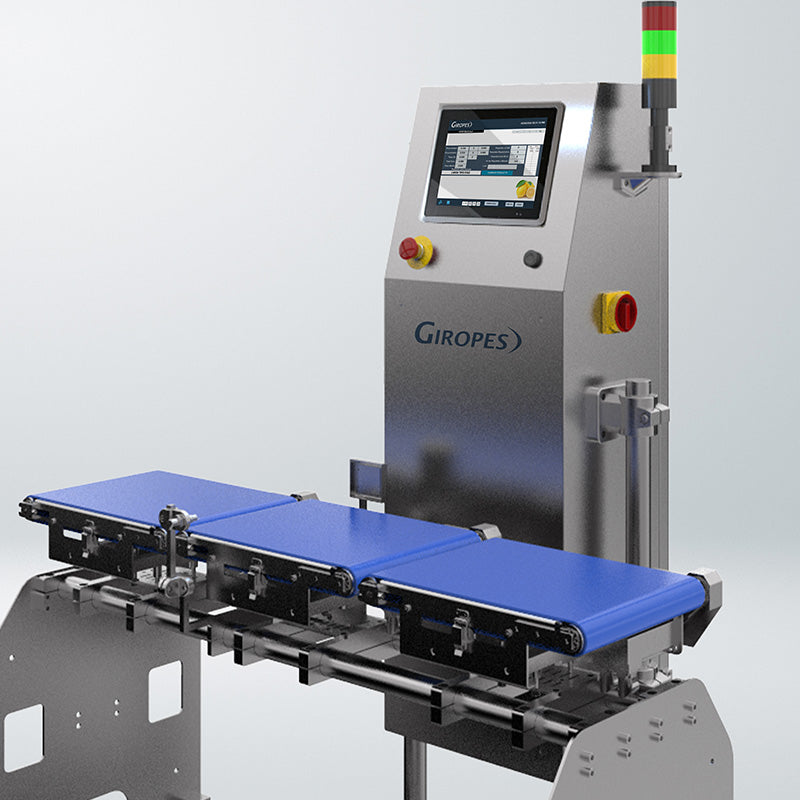

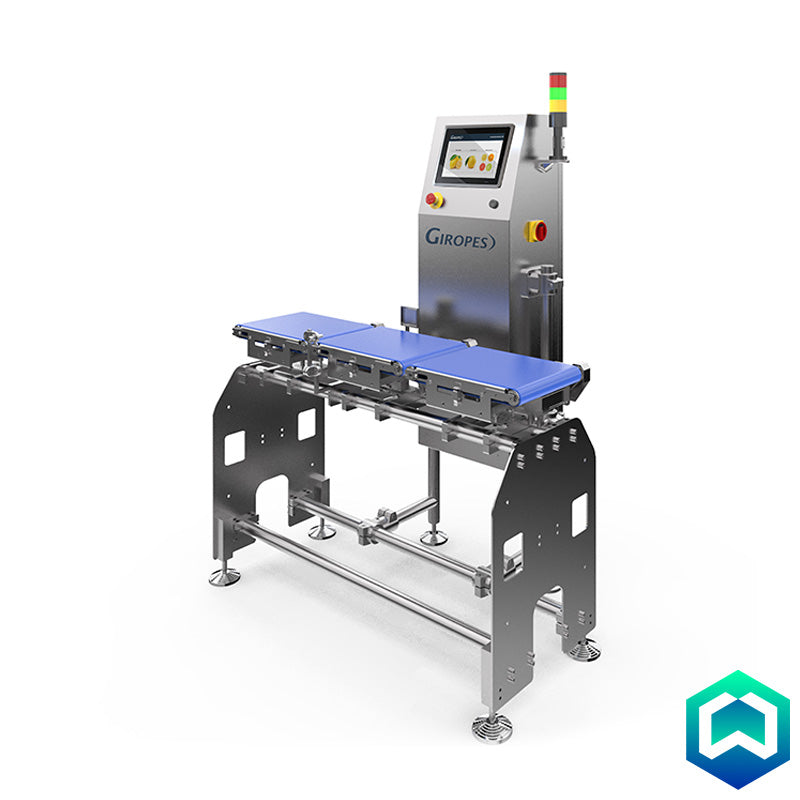

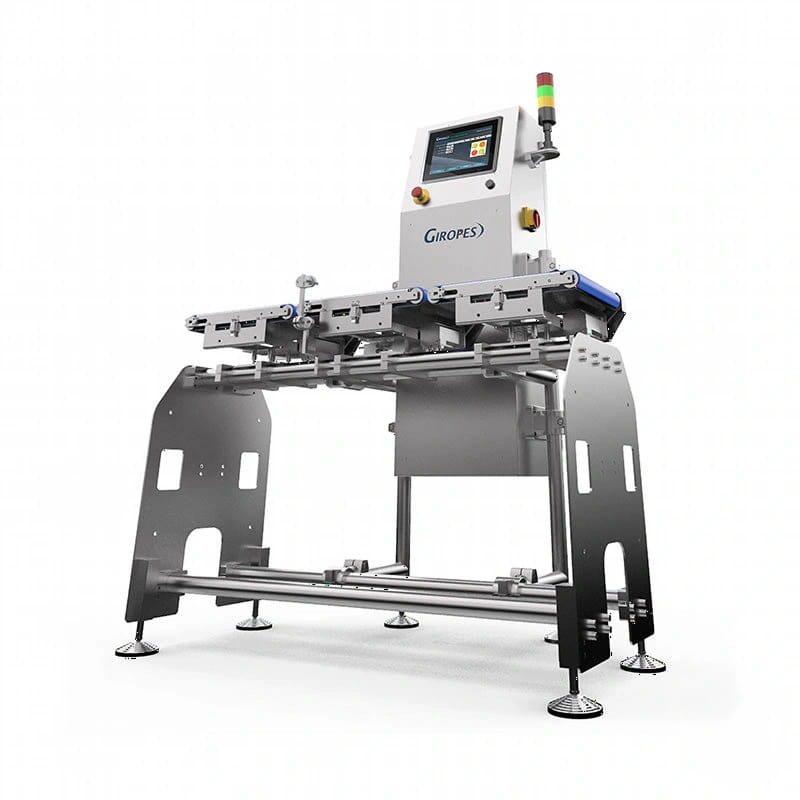

Giropes GCW-100DN Dynamic Checkweigher

Name: Giropes GCW-100DN Dynamic Checkweigher
Brand: Giropes
Availability: InStock

The GCW-100DN Dynamic Checkweigher is a state-of-the-art solution designed to revolutionise production line efficiency and quality control. This high-performance system enables rapid, in-motion weighing, achieving speeds up to 70 ppm, without disrupting the production flow. Utilising advanced servo motor technology, the GCW-100DN delivers exceptional precision and consistency, crucial for meeting stringent regulatory and quality standards. Its ability to detect and automatically reject out-of-specification products ensures that only compliant items proceed, minimising waste and enhancing overall product quality.

Request information

Product Details

Full description

Specifications

Data and mesurements

Media Centre

Images and graphics

Product Details

Intuitive Software and Real-Time Data Management

Beyond its core weighing capabilities, the GCW-100DN features an intuitive software interface and real-time monitoring. The 10.4'' capacitive touch LCD screen offers a user-friendly experience, while seamless data transfer to ERP systems, Excel, or CSV integrates with existing workflows. Remote web monitoring 4.0 provides accessible reporting and remote support, minimising downtime. The software's customisation options, including product configuration, motor speed adjustments, and user management, allow for tailored system operation.

Robust Design and Flexible Integration

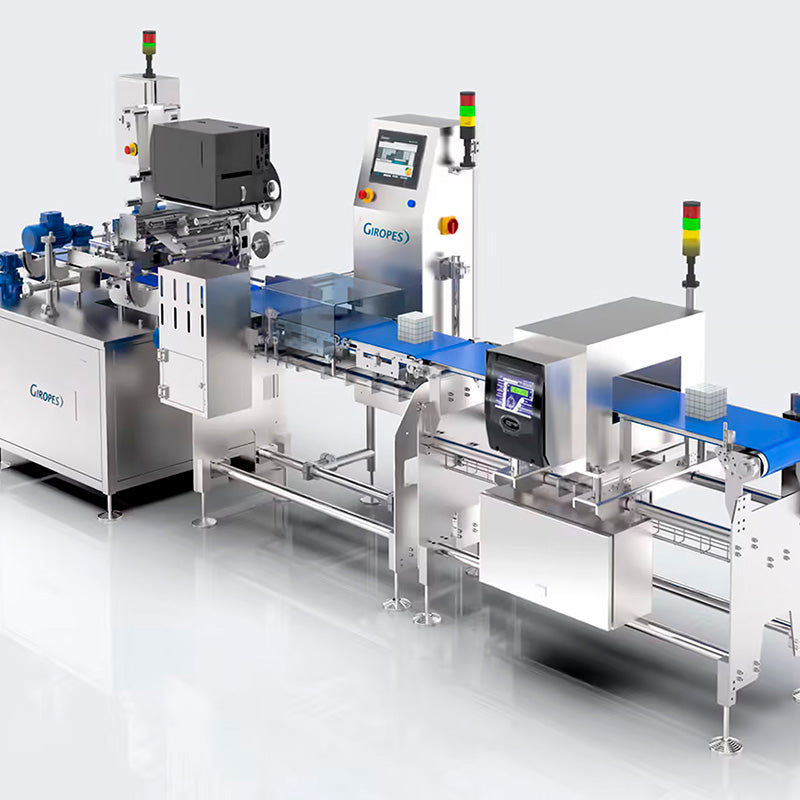

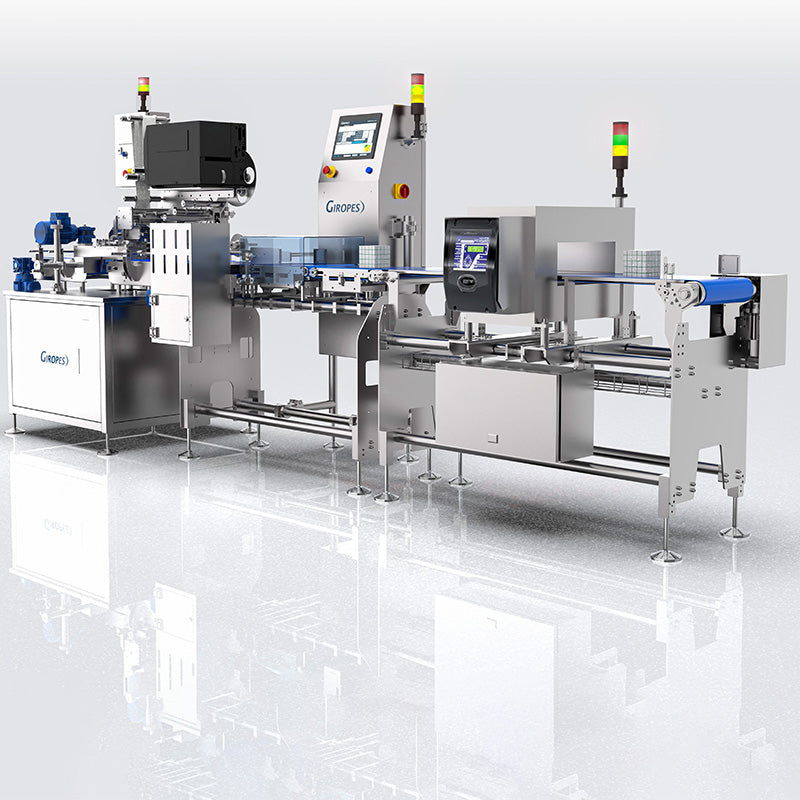

Designed for durability and hygienic operation, the GCW-100DN boasts a robust AISI 304L stainless steel and anodised aluminium construction, achieving an IP65 protection rating for reliable performance in challenging environments. Its modular design and diverse optional features, such as metal detectors, labeling systems, and various rejection mechanisms, facilitate flexible integration into various production lines. With comprehensive support and maintenance, including preventive programs and a dedicated team for project analysis and installation, the GCW-100DN is a reliable solution for optimising weighing processes and achieving a significant ROI.

Certifications

OIML

Specifications

Feeding:

Electric: 230V 50Hz.
Air: max. 150 l/min (at 6-8 bar) (when incorporating rejection
system).

Nominal Power: 800W

Frame material: AISI 304L stainless steel and anodised/painted aluminium.

Dimensions and weight:

Trolley L300 x A200: 60.50 kg
Trolley L400 x A280: 63.73 kg
Trolley L400 x A400: 68.85 kg
Trolley L600 x A400: 78.67 kg

Communications to PC:

Ethernet
RS232
4 USB (3.0)

PC software: Direct connection to the computer from any device with access to the same network as the GCW-100DN through the Google Chrome browser. Data export to Excel or CSV

Protection rating: IP65 (Standard)

Electrical cabinet: Vertical electrical cabinet with integrated touchscreen display.

Screen: 10.4" capacitive touch LCD. Resolution 1024x768 px. IP65 sealing.

Guiders: AISI 304L stainless steel, anodised aluminum and APM.

Conveyor belt: Standard with FDA regulatory approval.

Standard.
High speed: super adherent.
Sliders: for ejection zones.

Optional reject system:

Air blowing "Air-jet"*.
Pneumatic piston to 90°*

Number of rejectors and function:

1 rejector: weight out of range.
2 rejectors: weight above and weight below range.
Unregistered product rejector.
Metal product rejector (connection to metal detector required).
* All rejection systems (pneumatic piston, air blowing, etc.) depend on the type of product/packaging, required speed, collection system, etc.

Labeling system: Optional (consult us).
