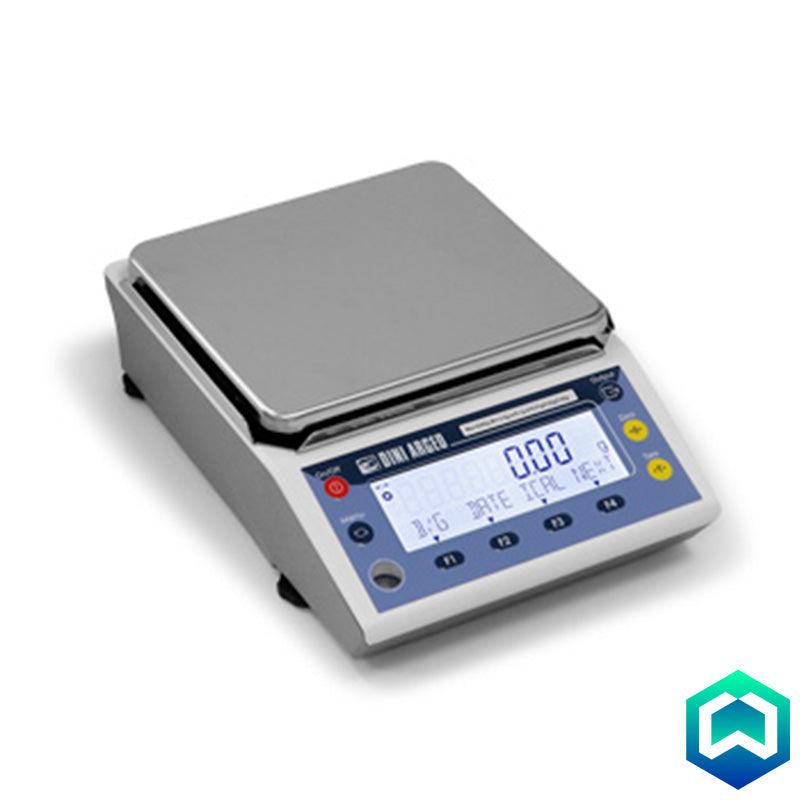

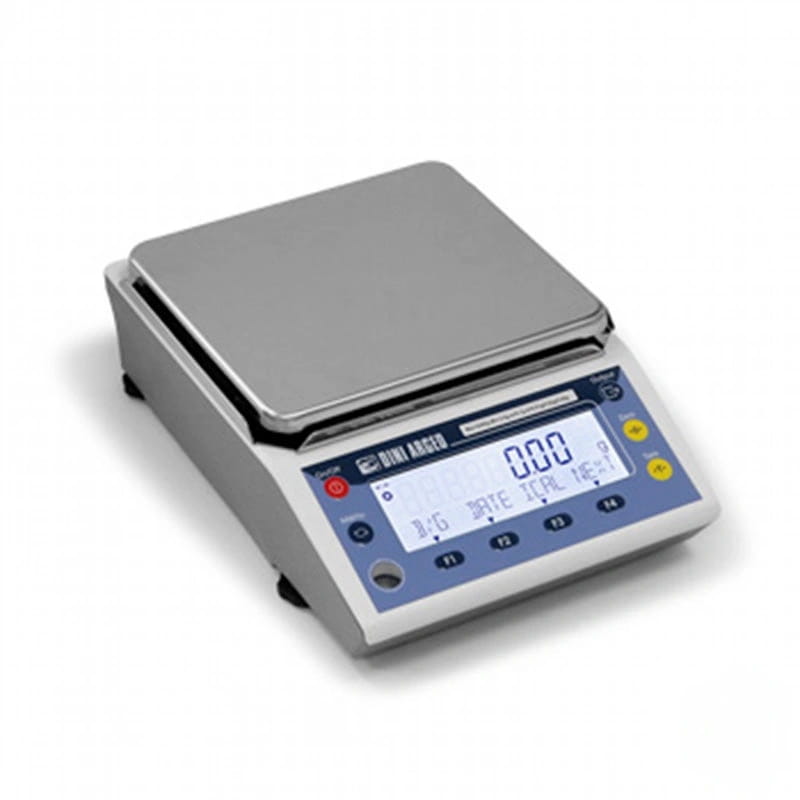

GAL Series Technical Precision and Portable "Top-Loading" Balance

£1,229.00 £1,364.00

Model

AVAILABLE VERSIONS

Code Plate Max (mm) Max (g)

GAL6200 180x160mm 6200g

GAL15000 180x160mm 15000g

TECHNICAL FEATURES

  • Backlit LCD display with 8 digits 16.5mm high;
  • Waterproof membrane keypad, with 9 keys;
  • Construction: main structure in die cast aluminium, ABS case;
  • Quick weight sensor with tuning fork system;
  • 1.6 second weight stabilisation;
  • Stainless steel plate, size:
    - GAL620 models Ø 118mm;
    - GAL6200 and GAL15000 models 180x160mm;

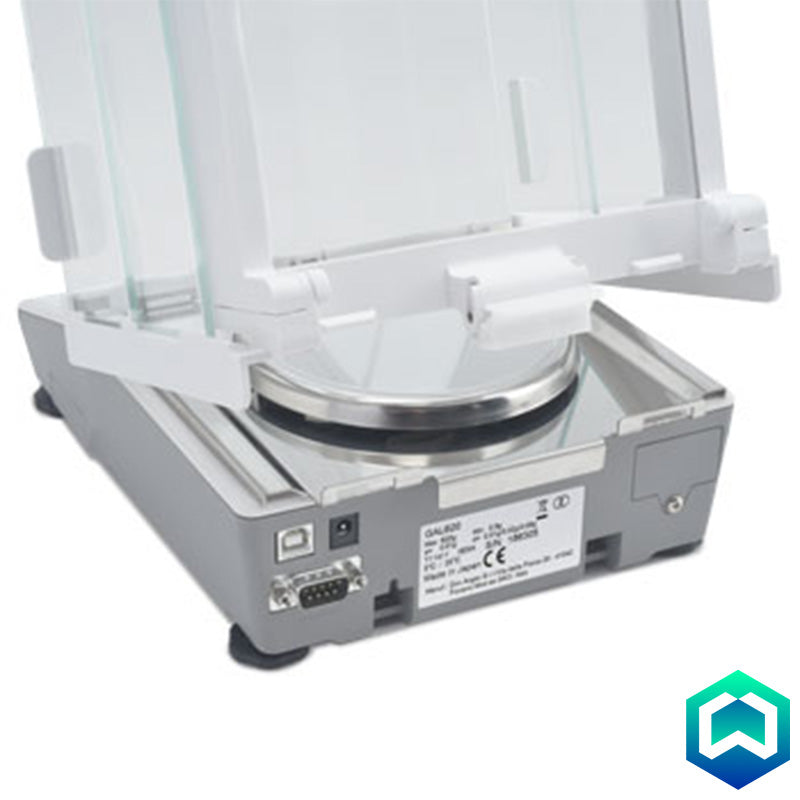

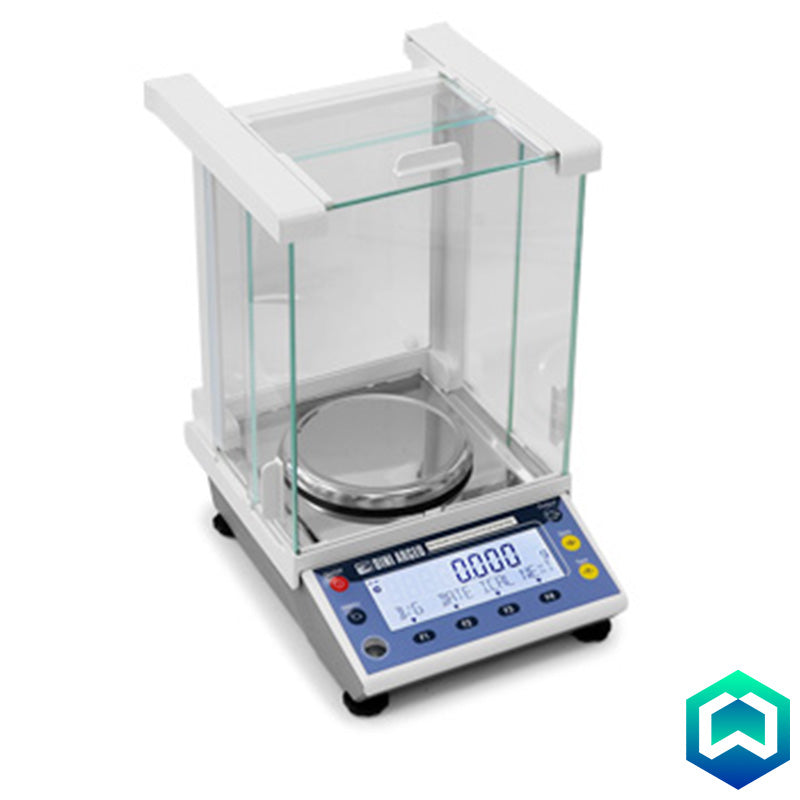

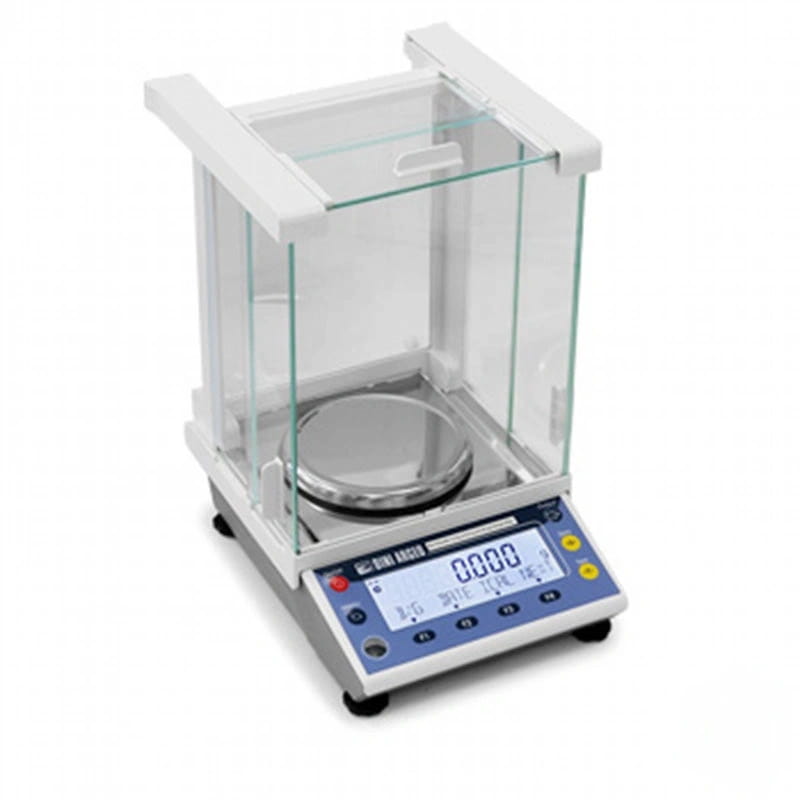

  • Protection window (GAL620), level bubble and adjustable levelling feet;

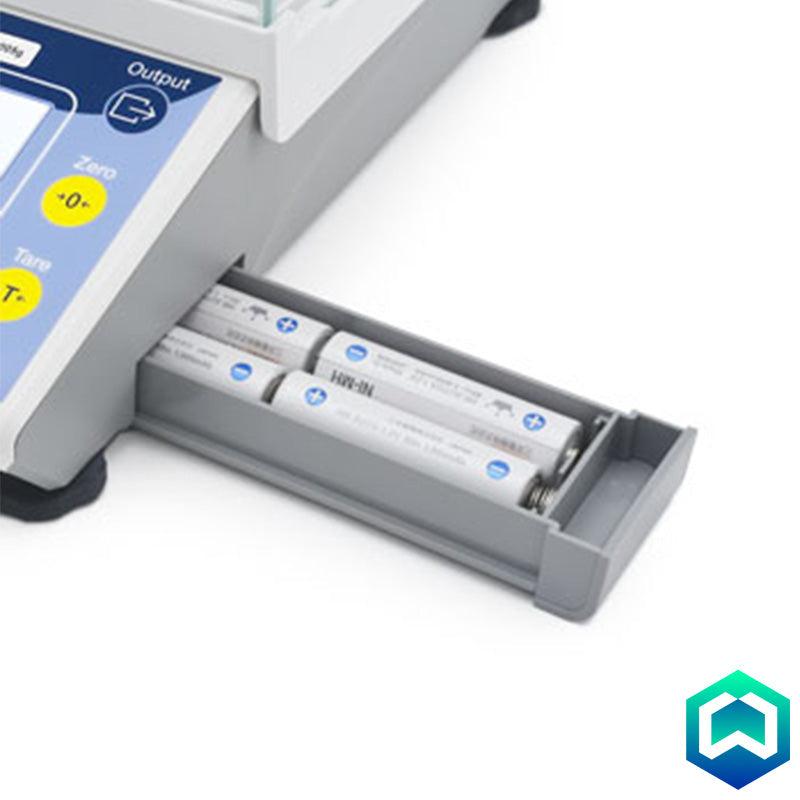

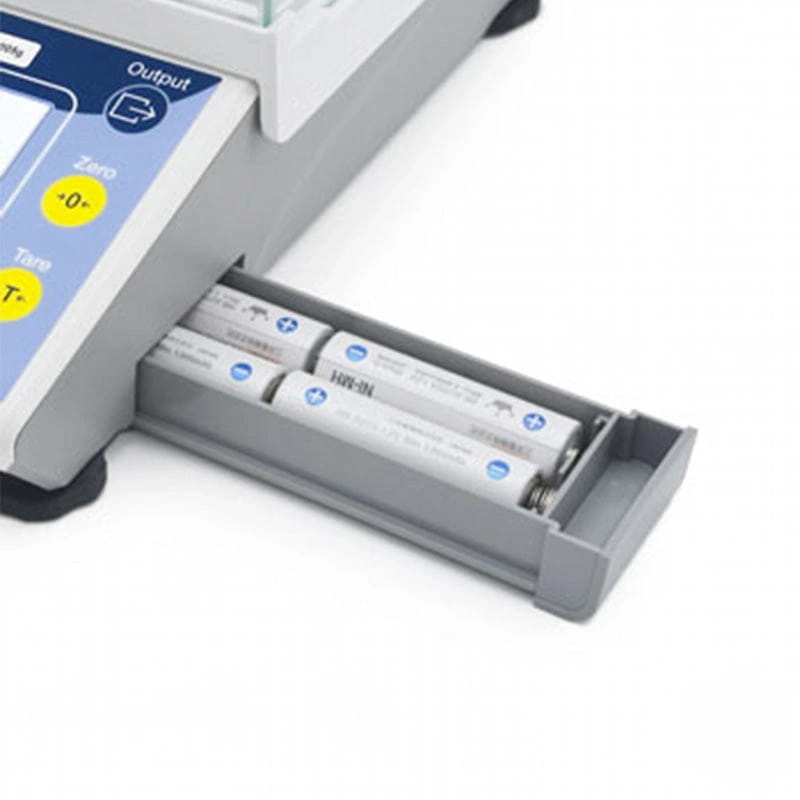

  • Power supply: 230 Vac feeder included, 4 AA batteries (not included) and USB (disabled self-calibration);

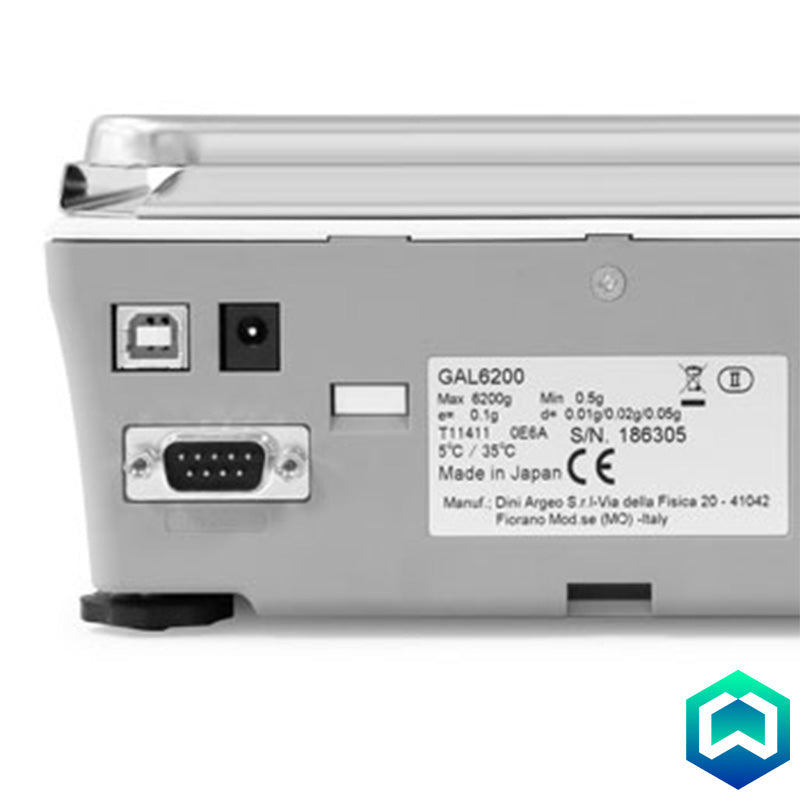

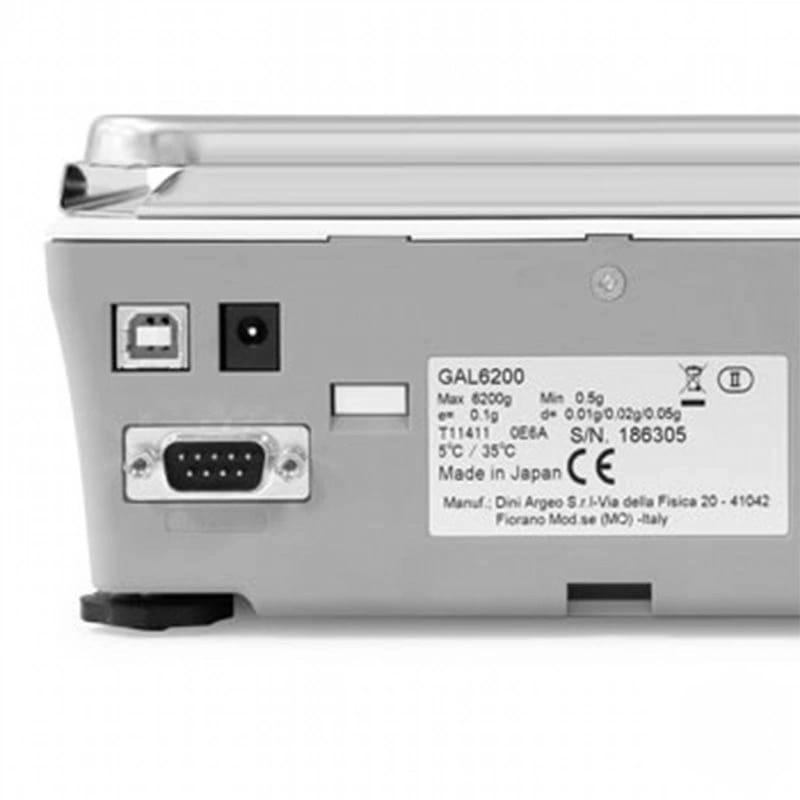

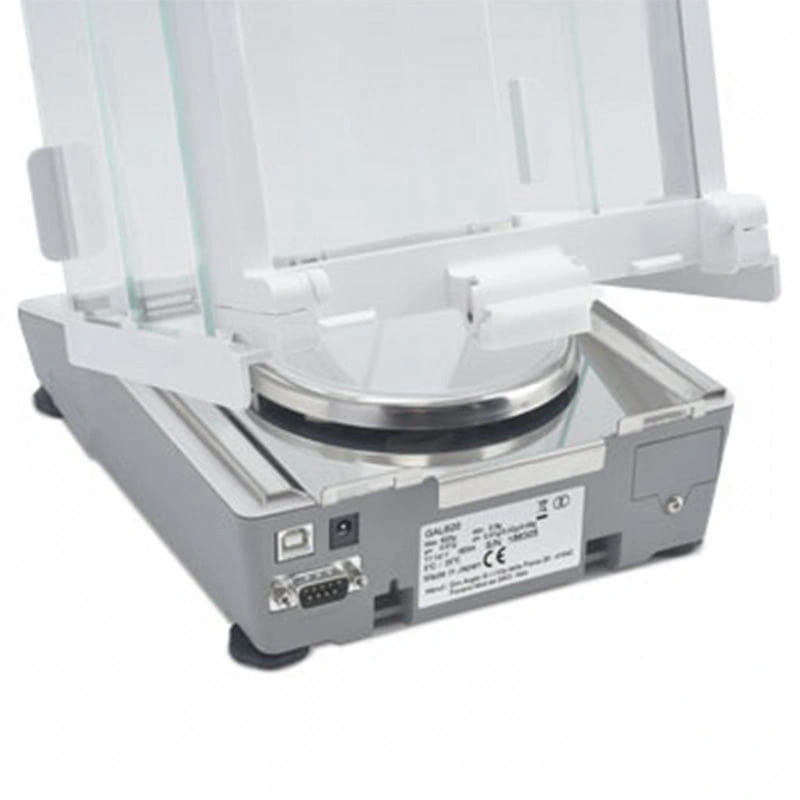

  • RS232 port for connection to PC, 3590 series touch screen indicator or printer;
  • USB port for connection to a pc that can be used as a virtual serial port RS232;
  • Automatic calibration with built-in weights after switching the device on or by pressing the keys;
  • Upon request:
    - calibration service and certificate;
    -CE-M approval;
    -weighing underhook to calculate the density;

AVAILABLE FUNCTIONS

  • Resetting;
  • Zero tracking;
  • 6 selectable weighing filters;
  • Semi-automatic tare;
  • Conversion of approved units of measure: g (grams), ct (carats);
  • For internal use: oz (ounces), lb (pounds), ozt (troy ounces), gn (grains), dwt (pennyweight), mom (momme), msg (mesghal), tlh (Hong Kong Tael), tls (Singapore and Malay tael), tlt
  • (Taiwan tael), tola (tola), bat (bath), mg (milligrams);
  • Tolerance control with screen message concerning weight, pieces or customised units of measure and relative (LOW-OK-HIGH) or absolute (MIN-MAX) thresholds;
  • Totalization in loading and in unloading on the net or total weight;
  • Up to five recordable tares;
  • 3 customisable virtual keys to choose the operating mode;
  • 6 customisable virtual keys for the possible functions;
  • Automatic update of the reference for the counting;
  • Scale Identification number with a 10 digits ID;
  • Operational messages for zero and tare execution;
  • Bar graph displaying according to the capacity;
  • Energy saving rules on the screen backlight;
  • Automatically bootable once the power supplier is connected;
  • 6 configurable communication serial protocols, with string sending either when the weight is stable, on demand, by pressing a key or continuously;
  • Multi-user management with password protection with programmable settings, different for each user:
  • 1 Admin - 2 User - 1 Guest;
  • Date and time can only be changed by authorized personnel;
  • Selecting the printing language (EN-DE-FR-ES).

WEIGHING MODES

  • Counting;
  • Percentage for formulation and recipe dosing;
  • Customised coefficient to calculate grammage and liquid volume;
  • Density calculation;
  • Weight formulation and recalling;
  • Simple statistical control;
  • Animal weighing.

Please click here for the GAL Series Technical Precision and Portable "Top-Loading" Balance Datasheet...
