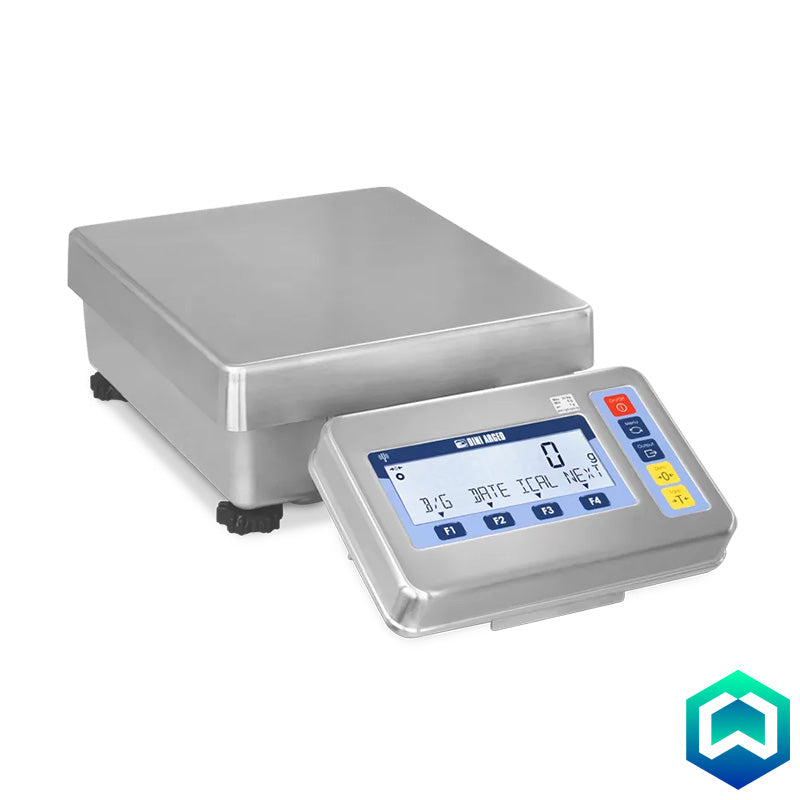

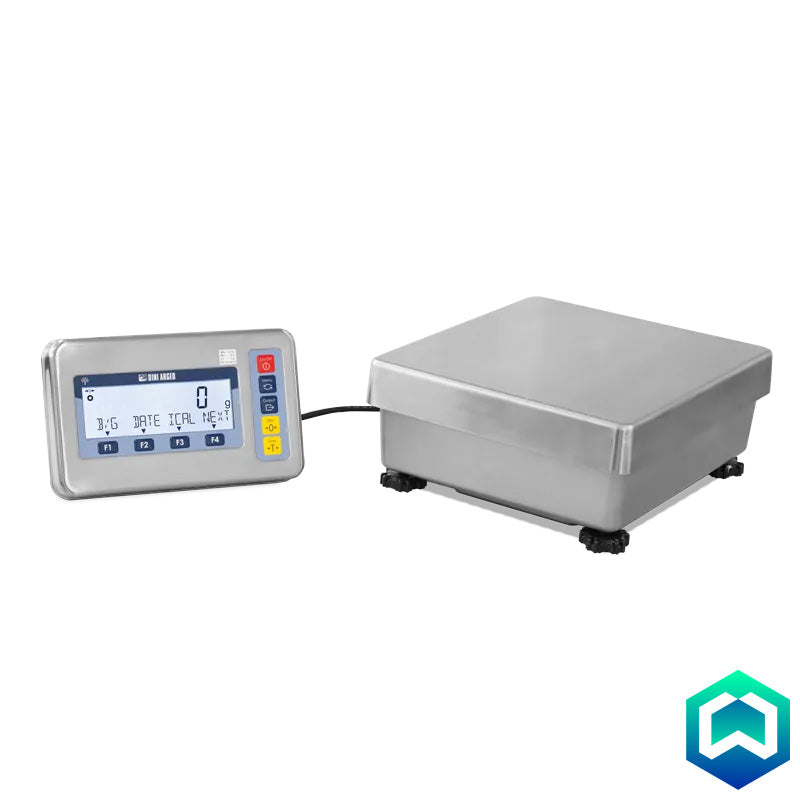

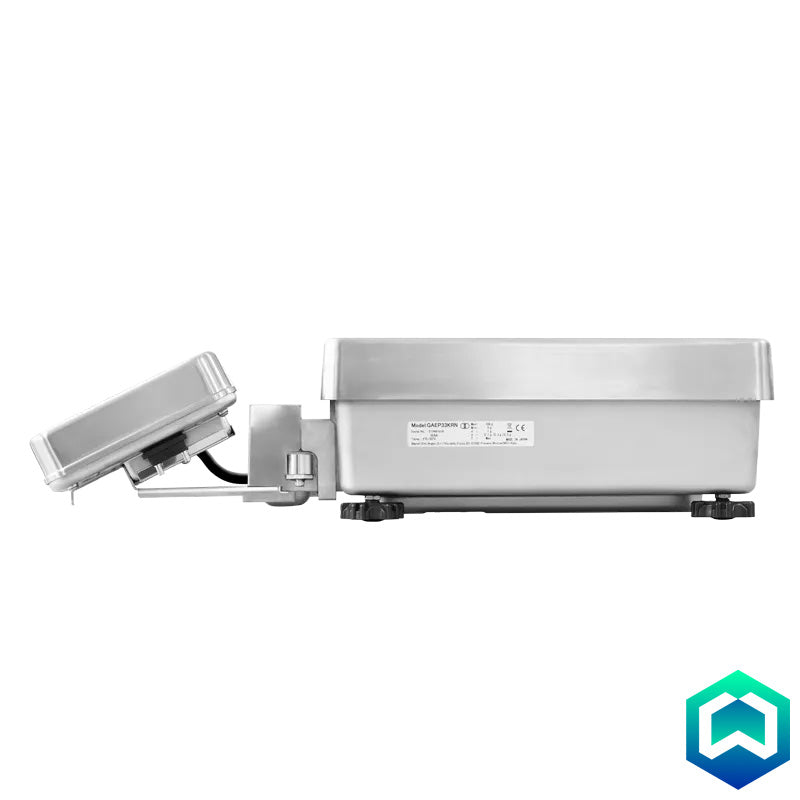

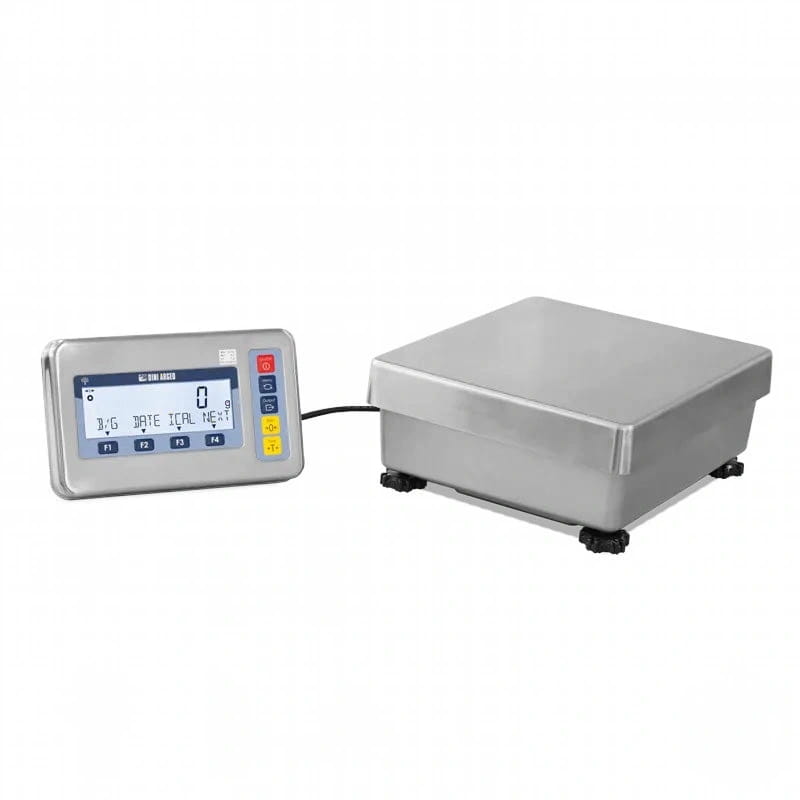

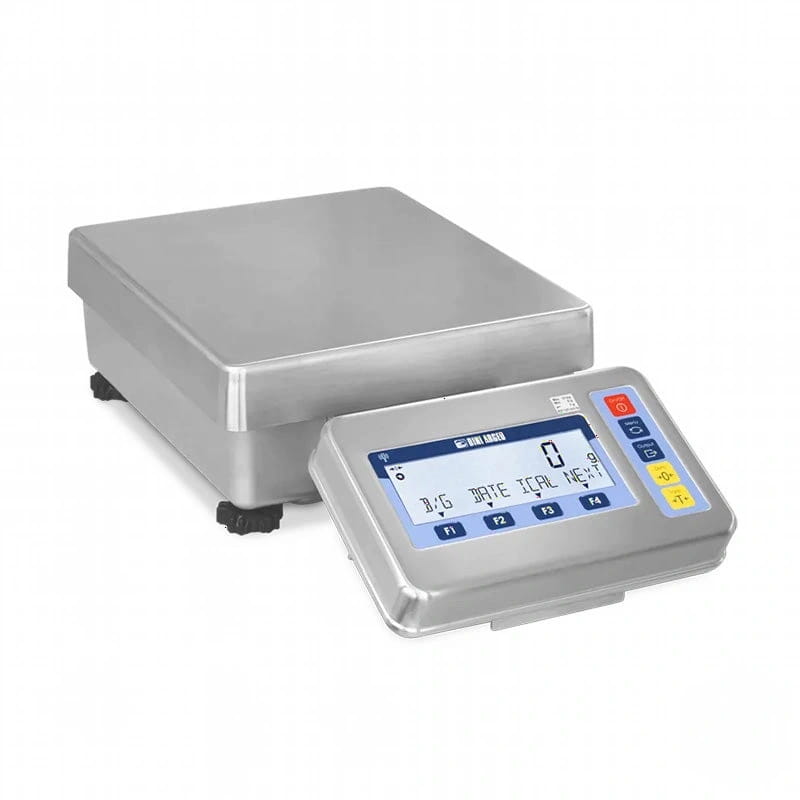

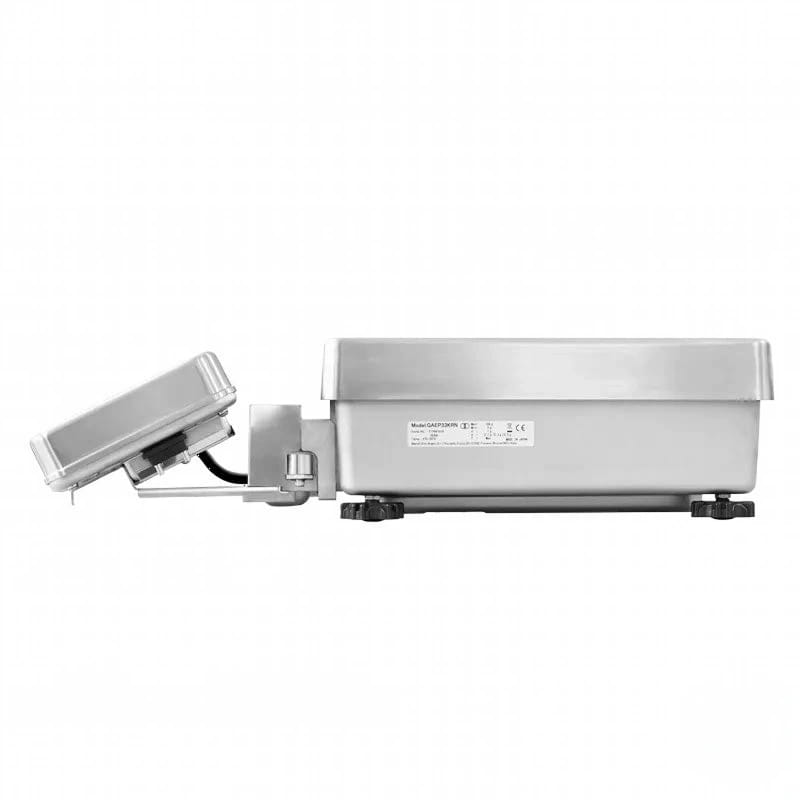

GAEPK Stainless Steel Precision Scales

Technical Features

• Backlit LCD display:
  - 8 digits 16.5mm for weight display;
  - 20 digits 8.5mm for user messages and identification of the "soft keys";
  - bar graph proportional to the weight;
• Waterproof membrane keypad, with 9 keys.
• Waterproof construction completely in IP65 stainless steel.
• Quick weight sensor with tuning fork system, which combines speed with absolute measurement accuracy.
• Stainless steel plate, size: 400x350mm.
• Level, and adjustable feet.
• RS232/c port for connection to PC, 3590 TOUCH SCREEN series indicator or printer.
• Cable 1m long, for connection between platform and indicator.
• Power supply: standard fitted with 230 Vac, 12Vdc power supply unit with EU, UK, US, AU plug.
• Operating temperature +5°C...+35°C, non-condensing relative humidity 80%.
• Packing 480x570x930 mm size.
• Automatic internal self-calibration system at power-on (for GAEPKxxRN models);
• Upon request:
  - ACCREDIA calibration with issuing of relative certificate.

Functions

• Multi-user management with password protection with programmable settings, different for each user:
  1 Admin - 2 User - 1 Guest;
• Date and time can only be changed by authorized personnel;
• Zeroing;
• Semi-automatic tare;
• Up to five recordable tares;
• Operational messages for zero and tare execution (see user manual for additional information);
• Scale Identification number with a 10 digits ID;
• Customisable virtual keys for quick recall of functions;
• 6 configurable communication serial protocols, with string sending either when the weight is stable, on demand, by pressing a key or continuously;
• Zero tracking;
• Auto power off.

Weighing Modes

• Piece-counting with automatic updating of the reference on the pieces count;
• Percentage for formulation and recipe dosing;
• Customised coefficient for weight conversion;
• Weight formulation and recalling;
• Totalization in loading on the net or total weight;
• Conversion of approved units of measure: g (grams), kg (kilograms), ct (carats);
  For internal use: oz (ounces), lb (pounds), ozt (troy ounces), gn (grains), dwt (pennyweight), mom (momme), tlh (Hong Kong Tael), tls (Singapore and Malay tael), tlt (Taiwan tael), tola (tola);
• Tolerance control with screen message concerning weight, pieces or customised units of measure and relative thresholds (LOW-OK-HIGH).

User Manual

• User Manual available in English, French and German.

Please click here for the GAEPK stainless steel precision scales datasheet ....
