Ohaus Explorer™ EXP Analytical Balance‎‏‏‏‏‏‎

Explorer™ Analytical Balance (EXP) – Engineered for Accuracy, Designed for Demanding Applications

The Explorer analytical balance delivers 0.1mg readability with intelligent automation and comprehensive compliance features for pharmaceutical, chemical, and quality control laboratories. With capacities from 120g to 320g and a premium AISI 316 stainless steel weighing pan, the EXP analytical series combines precision measurement with the workflow efficiency required in regulated environments.

Intelligent Automation for Effortless Operation

Seamless setup begins with motorised leveling that eliminates manual adjustment and ensures measurement accuracy from the first weighing. Enhanced automatic doors with anti-pinch safety protection respond to two touchless sensors, enabling hands-free operation to prevent sample contamination and improve laboratory safety. The built-in ionizer neutralises static charges that can compromise analytical weighing accuracy, whilst the anti-static glass draftshield, sample spotlight, and customisable status lights create optimal working conditions.

Premium User Interface

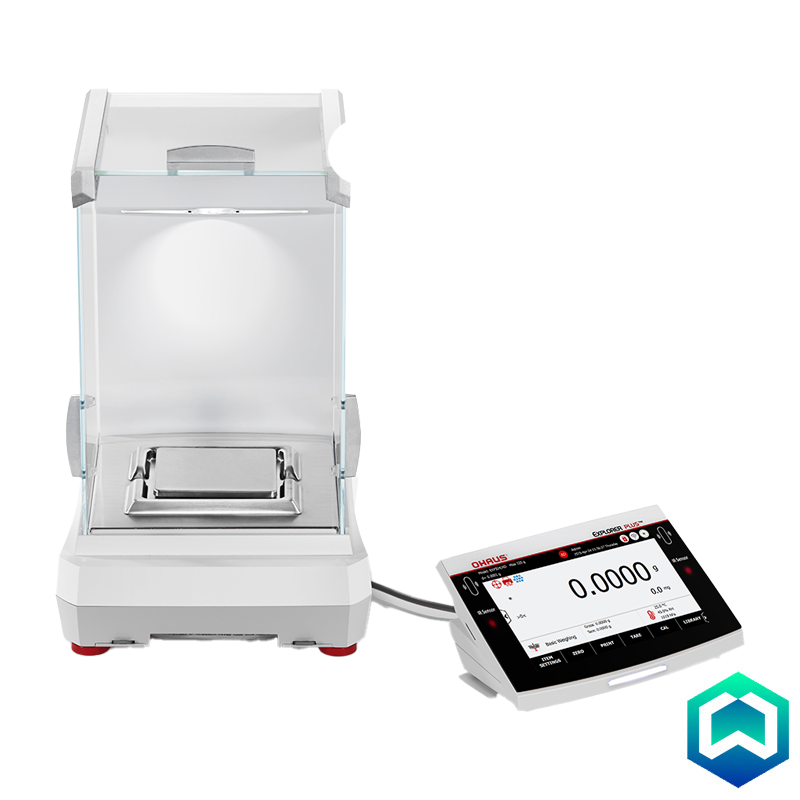

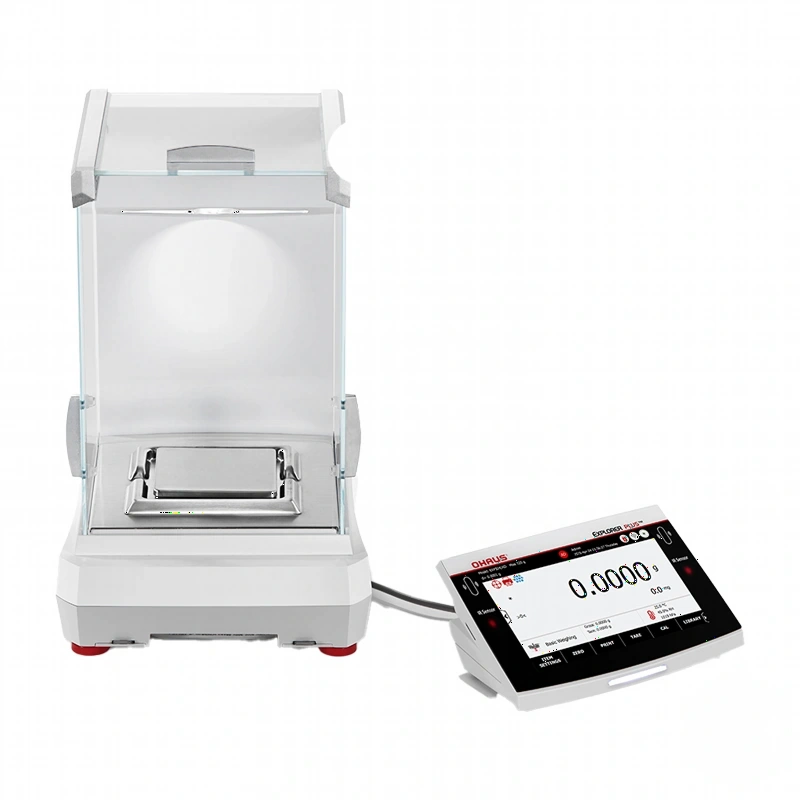

A 7-inch TFT colour touchscreen (16.7M colours) with glass overlay and detachable terminal provides intuitive control of all weighing functions. Chemical-resistant construction protects the display in demanding laboratory environments, whilst the glass overlay ensures long-term durability and easy cleaning.

Comprehensive Application Suite

The Explorer supports 15 weighing modes to match your analytical workflow: basic weighing, parts counting, check counting, percent weighing, check weighing, dynamic weighing, totalization, formulation, differential weighing, density determination, peak hold, pipette adjustment, statistical quality control (SQC), fill weight variation, and flow rate control. Application sample libraries accommodate up to 3,000 entries for rapid method recall and standardised procedures.

Regulatory Compliance and Data Integrity

Meet pharmaceutical and quality system requirements with a 4-level user management system, password protection, and internal system log capacity of 100,000 entries. Time synchronization via NTP (Network Time Protocol) confirms data traceability to satisfy 21 CFR Part 11, EU GMP Annex 11, and ISO 17025 documentation standards. EC Type Approved models available for legal-for-trade applications requiring verified measurement accuracy.

Advanced Connectivity

Straightforward integration to Laboratory Information Management Systems (LIMS) and electronic laboratory notebooks via multiple communication ports: 2× USB Host (Type A), USB Device (Type B), USB Device (Type C), Ethernet (RJ45), and RS232. Support for HID (Human Interface Device) connection enables driverless data transfer to computers without software installation, eliminating IT complexity. Optional Wi-Fi and Bluetooth dongles provide wireless connectivity for flexible laboratory layouts.

Robust Construction

Modular design with metal base and housing ensures long-term stability, serviceability, and protection from laboratory chemicals. The AISI 316 stainless steel weighing pan (90mm × 90mm) provides superior chemical resistance and easy cleaning compared to standard materials. Power supply: 100–240 VAC, 50–60 Hz (12 VDC 1.5A output) for worldwide compatibility.

Model Range

Available in six configurations with capacities from 120g to 320g, all offering 0.1mg readability. EC Type Approved models (M-series) include 1mg verification scale interval (e) for legal metrology applications. All models feature automatic doors and built-in ionizers for static control. Calibration weights (OIML E2 class) supplied with each balance.

Model Options:

• EXP124/AD: 120g capacity, 0.1mg readability, auto-doors, ionizer
• EXP224/AD: 220g capacity, 0.1mg readability, auto-doors, ionizer
• EXP324/AD: 320g capacity, 0.1mg readability, auto-doors, ionizer
• EXP124M/AD: 120g capacity, 0.1mg readability, EC Type Approved (e=1mg)
• EXP224M/AD: 220g capacity, 0.1mg readability, EC Type Approved (e=1mg)
• EXP324M/AD: 320g capacity, 0.1mg readability, EC Type Approved (e=1mg)

Consult technical documentation for complete specifications, installation requirements, minimum sample weight (USP), and accessory compatibility.
