EXBOX: Box with Exd protection for weighing and data transmission in 2GD ATEX zones

EXBOX — Exd Protection Box for Weighing & Data Transmission in ATEX 2GD Zones

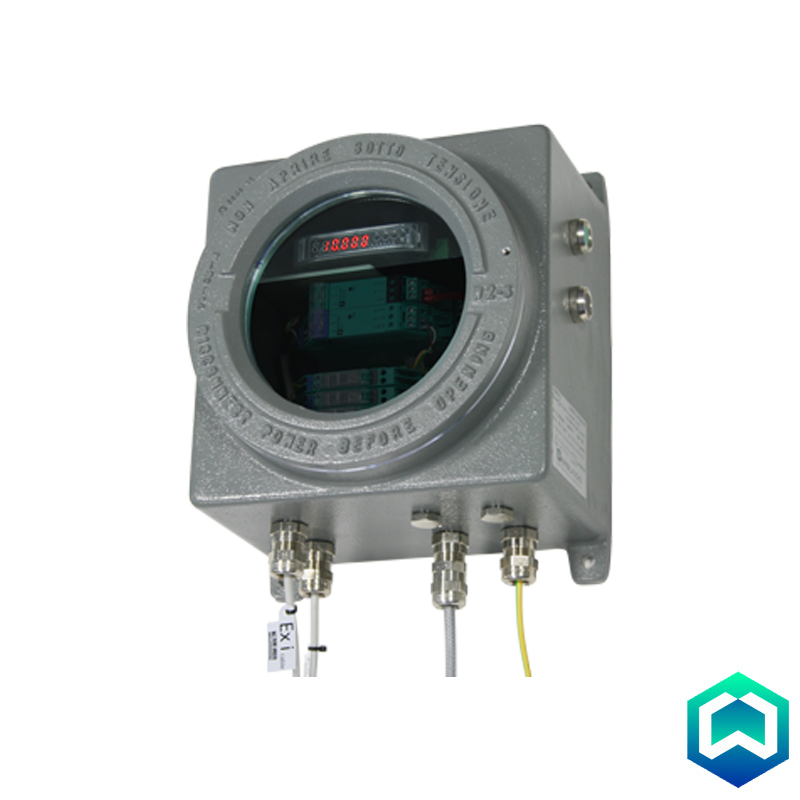

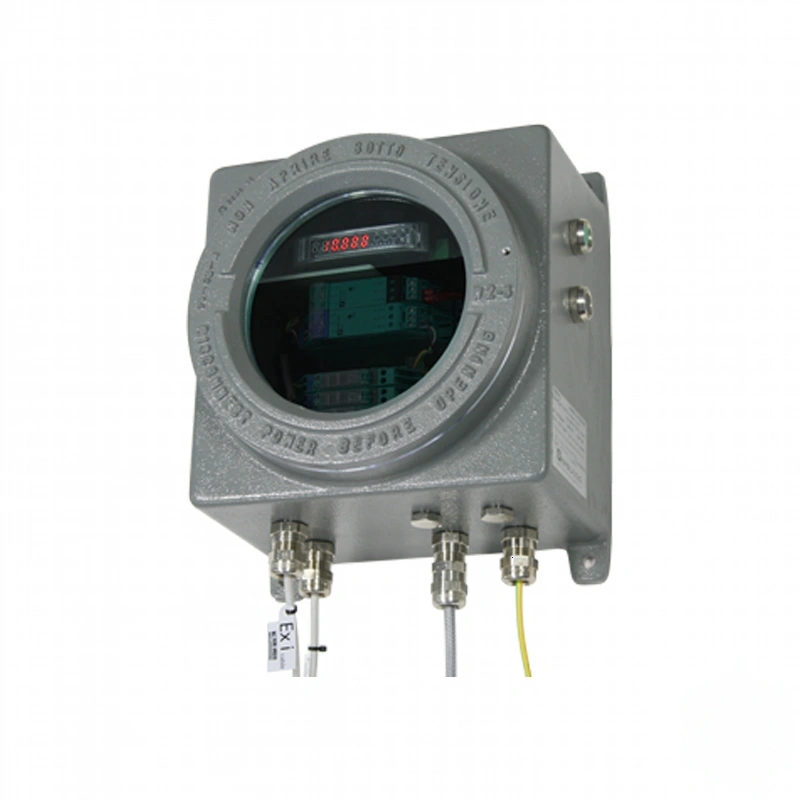

The EXBOX is a complete, field-ready weighing and data transmission solution for ATEX Zone 2 gas and Zone 22 dust hazardous environments. Housed in a robust aluminium alloy Exd enclosure, it integrates a DGT1SAN weight indicator/transmitter, three Zener barriers for load cell connection, and an intrinsically safe 4–20 mA analogue output — all in a single, fully certified unit. Two front-panel buttons handle the main weighing operations, while two programmable electronic outputs manage setpoints and level control.

Key Features

• Complete ATEX 2GD solution: indicator, Zener barriers, and 4–20 mA analogue output in one enclosure.
• Aluminium alloy Exd construction with tempered glass frontal porthole for weight reading and electronics inspection.
• Epoxy-painted finish for corrosion resistance in demanding industrial environments.
• 6 cable gland positions; standard fit includes 4 ATEX-certified cable glands (power supply, earth, load cell, analogue output).
• 2 front-panel buttons with configurable functions for primary weighing operations.
• 2 programmable electronic outputs for setpoint and level management.
• Full ATEX protection: II 2(1) GD Ex d [ia Ga] IIC T6 Gb / Ex tb [ia Da] IIIC T85 °C Db IP66.

Enclosure Technical Features

• Material: Aluminium alloy with epoxy paint finish
• Frontal porthole: Tempered glass, transparent
• Cable glands: 6 positions; 4 × ATEX-certified glands fitted as standard
• Degree of protection: IP65
• Weight: approx. 15 kg

DGT1SAN Indicator — Main Technical Features

• Weight indicator/transmitter with 4–20 mA analogue output, for reading, diagnostics, and transmission of load cell weight.
• Display: Red LED, 6 × 8 mm digits + 6 LEDs for active function indication
• Keyboard: 5-key mechanical
• Resolution: Up to 10,000e or multi-range 2 × 3,000e @ 0.3 µV/d (CE-M approved, legal for trade)
• Displayable divisions: Up to 100,000; internal resolution up to 3,000,000 points
• A/D conversion: 1-channel, 24-bit sigma-delta, up to 3,200 conv./sec. (auto-select)
• Inputs: 2 × configurable inputs for front-panel buttons
• Outputs: 2 × programmable electronic outputs for setpoints and level management

Analogue Output — Technical Features

Intrinsically safe Ex i barrier for 4–20 mA analogue output.

ATEX marking: II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC (−20 °C ≤ Ta ≤ +60 °C)

• Um: 250 V  |  Uo: 25.2 V  |  Io: 93 mA  |  Po: 585 mW
• Co: 0.107 µF  |  Lo: 4.30 mH  |  L/R: 62 µH/Ω

Zener Barriers — Technical Features

Three Zener barriers for load cell connection; supports up to 4 × 350 Ω load cells.

ATEX marking (per barrier): II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC

Signal & Sense Barrier — Um = 250 V:

• Fuse: 50 mA  |  Uo: 17.4 V  |  Io: 25 mA  |  Po: 0.11 W
• Co: 0.346 µF  |  Lo: 56.88 mH  |  Rmin: 705.6 Ω

Supply Barrier — Um = 250 V:

• Fuse: 100 mA  |  Uo: 24 V  |  Io: 164 mA  |  Po: 0.98 W
• Co: 0.125 µF  |  Lo: 1.32 mH  |  Rmin: 147 Ω
