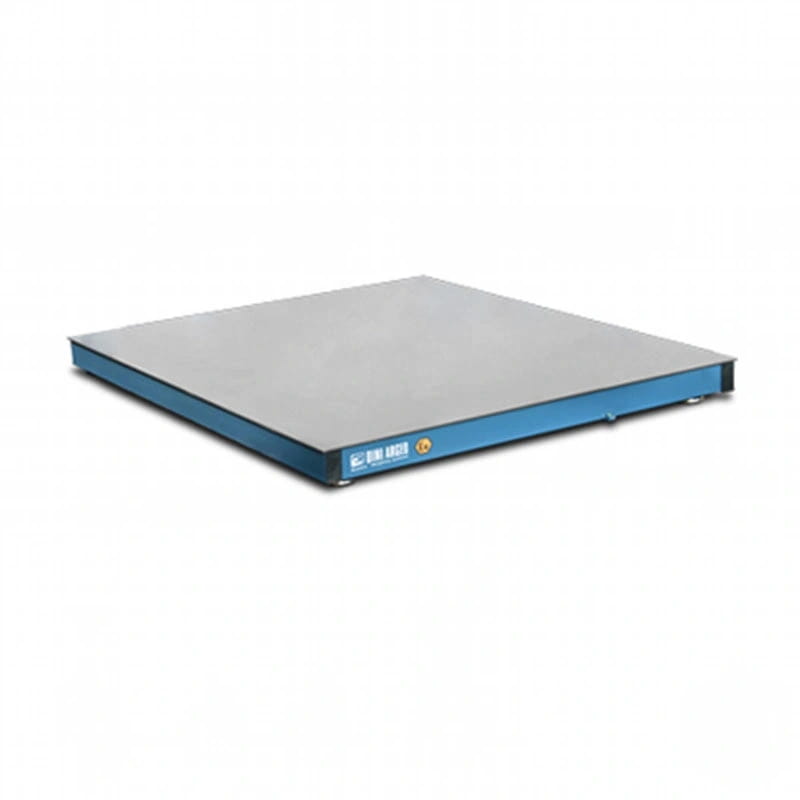

ET Series Intrinsically Safe ATEX Platform Scale Base

£2,259.00

ATEX ET Series platform scale base with removable, stainless steel top plate, supplied with four CCATEX certification for a four load cell platform.

Main Features

  • Fitted with 4 STAINLESS STEEL shear-beam approved load cells each with 1100 Ohm input resistance and made according to OIML R60 standards with protection against dust and under water immersion according to IP68 standards.
  • Steel tubular bearing structure, oven-fire painted in RAL 5007 blue; removable loading surface made in extra thick chequered galvanised steel; inspection trapdoor housing the junction box.
  • Adjustable, stainless steel shock-proof jointed feet and level. Up to 15 Vdc power supply.
  • Junction box and wiring cables with sheathing according to IP67 standards, and shielded 5m long 6-pin cable for connection to the indicator complete with connectors.

Options Only Available at Time of Order

  • Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval.
  • Stainless steel surface.
  • High resolution models for internal factory use.
  • Available on Request: reinforced version for weighing of concentrated loads (coils, forklifts ecc.)

Options for ATEX Version

  • CCATEX: ATEX certificate for each load cell.
  • JB4QA: ATEX certified junction box.
  • DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.

Accessories

  • Indicator support column.
  • Frames for flush floor installation.
  • Access ramps.
  • Special sizes and capacities upon estimate.

Please click here for the ET Series platform scale base datasheet .....

Please click here to view our range of intrinsically safe weight indicators .....
