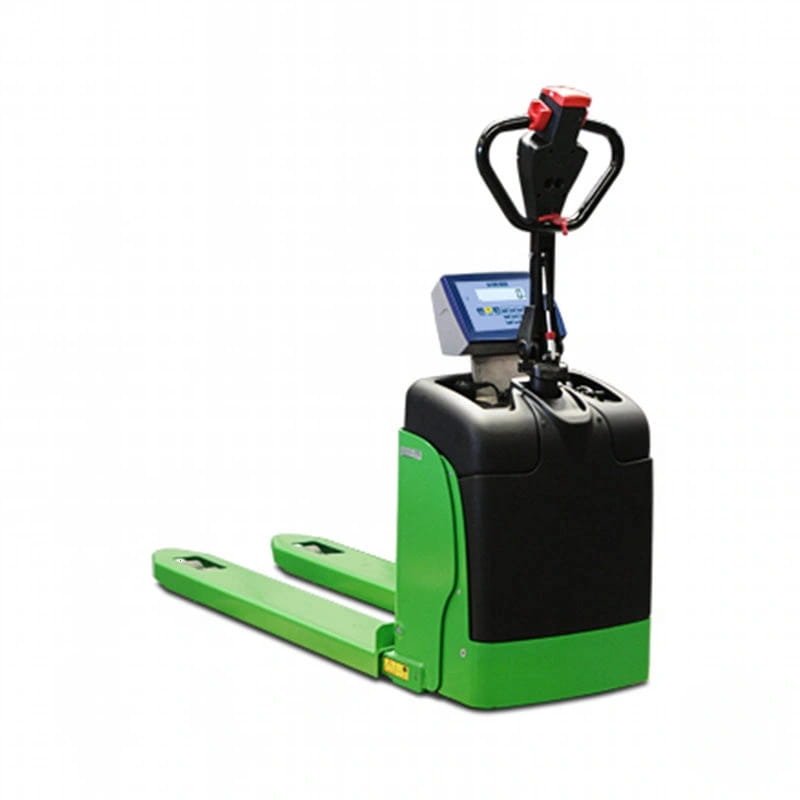

ELWL Logistic Series Electric Pallet Truck Weighing Scale

£0.00

Model

Main Features (weighing)

  • Maximum lifting capacity: 1200 kg.
  • 4 shear-beam IP67 load cells and connections.
  • Weight indicator with a 17-key, waterproof, numerical-functional keyboard; backlit 25mm LCD display with 6 high-contrast digits and with icons for showing the active functions.
  • Easy to clean waterproof ABS IP65 case resistant to harsh and corrosive environments.
  • Digital calibration and set-up configurable from keypad.
  • Power supply through built-in rechargeable battery. Battery level indication.
  • Programmable energy saving functions.
  • Configurable RS232 / C bidirectional port for connection to the printer.
  • Configurable RS232 / C bidirectional port for PC, modem radio or portable terminal.

Main Functions

  • The user can select the operating modes directly using the dedicated key*:
    - High resolution display x 10
    - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
    - Net/Gross
    - Lb to Kg converter
    - Free conversion factor (for meter and litre counters etc.)
    - Weight totalizer
    - Formulizer
    - +/- controller with quick target and threshold input
    - Percentage weighing
    - Percentage batching with programmable target
    - Piece counter
    - Hold
    - Alibi memory (optional)
  • Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.

Electrical and Mechanical Features

  • Thick steel and oven-fire painted structure.
  • Wheels with polyurethane coating.
  • Distance from the centre of gravity: 600 mm.
  • Fork height: 85 mm to max. 200 mm.
  • Adjustable lowering speed.
  • Maximum horizontal inclination: 10% at full load, 25% without load.
  • Electromagnetic and parking brakes.
  • Electric pallet truck supplied directly by rechargeable battery incorporated into the structure.
  • 24 VDC 55 Ah battery and charger.
  • Operating life of 40 work cycles, at full load, with movements of about 30 m.
  • Electric power supply 0.3 kw traction and in lifting 0,4 Kw.

Options (only available at time of order)

  • Thermal printer option box
  • Radio modem option box
  • WI-FI interface
  • Alibi memory with time-date
  • Date / Time
