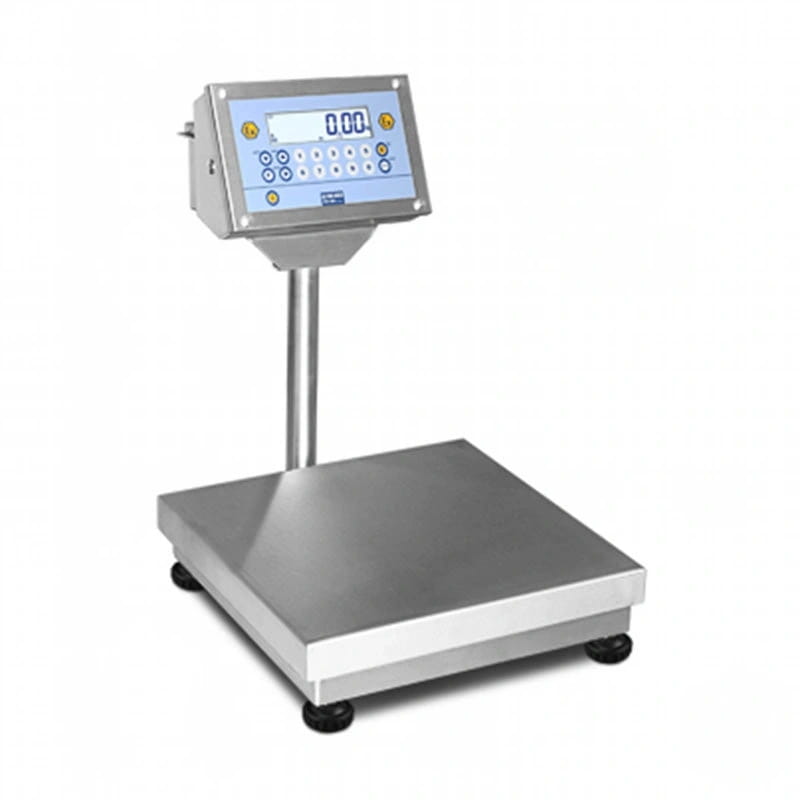

Dini Argeo "Easy Pesa 3GD" Bench Scale for ATEX Zones 2 and 22

The Dini Argeo Easy Pesa 3GD fully stainless steel bench scales are designed for use in ATEX hazardous areas. Powered by a long-lasting rechargeable battery, they offer flexible installation directly where needed, eliminating the need for power supply sockets or ATEX-proof cabling in the hazardous zone. Each scale is supplied with an ATEX declaration of conformity and is certified Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115°C Dc X.

Product Information

Platform Features:

  • OIML R60 Approved: This single-point load cell is approved according to OIML R60 standards, ensuring accurate and reliable weighing.
  • Stainless Steel Construction with IP67 Protection: Constructed from durable stainless steel and featuring IP67 protection against dust and water ingress, this load cell is built for harsh environments.
  • ATEX Certified for Hazardous Areas: Suitable for use in potentially explosive atmospheres, this load cell boasts comprehensive ATEX certifications:
    • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga (for gas environments)
    • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65 (for dust environments)

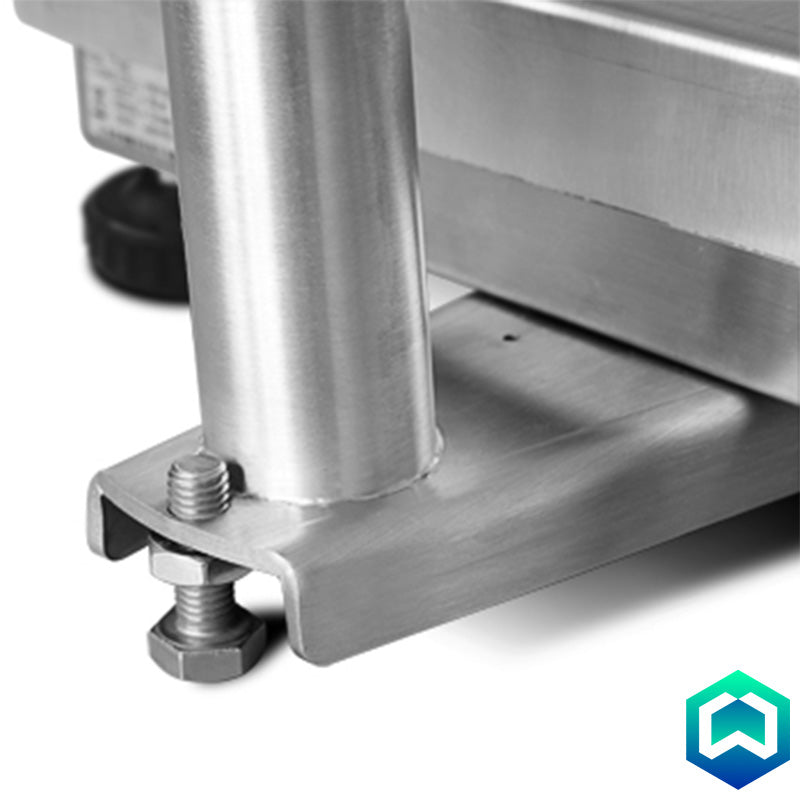

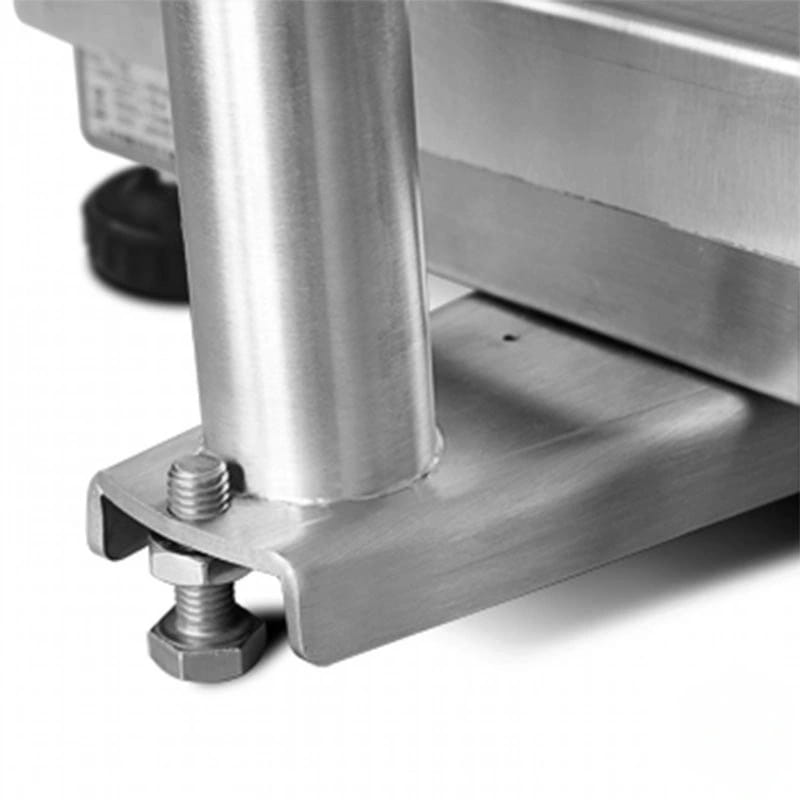

  • Adjustable Leveling Feet: Equipped with adjustable leveling feet and plastic overshoes for stable installation on uneven surfaces.
  • Support Column Options: Designed for use with support columns available in two heights:
    • 500 mm for "Q" models
    • 700 mm for "X" models

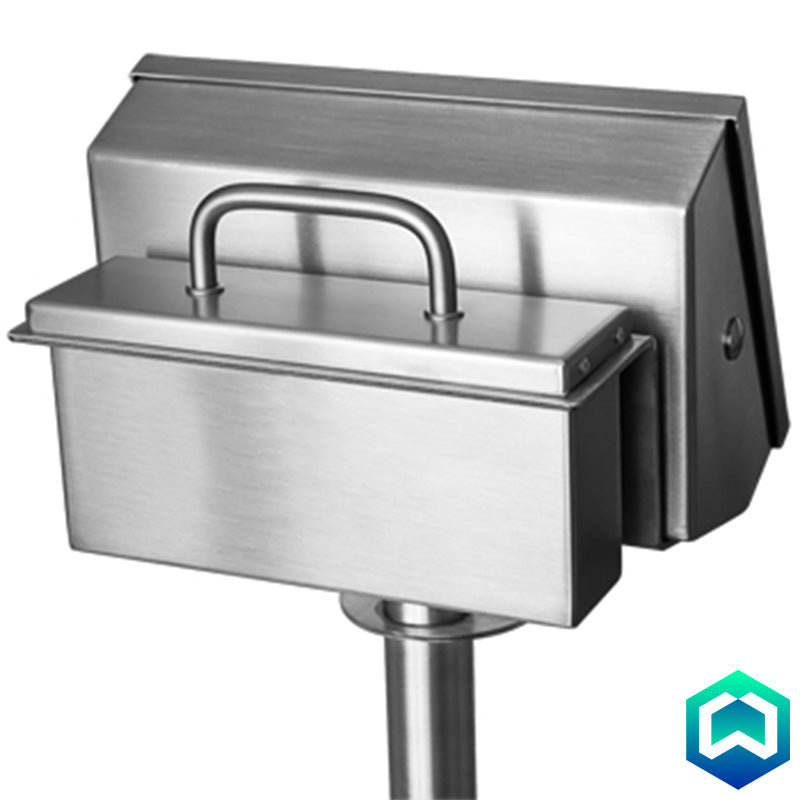

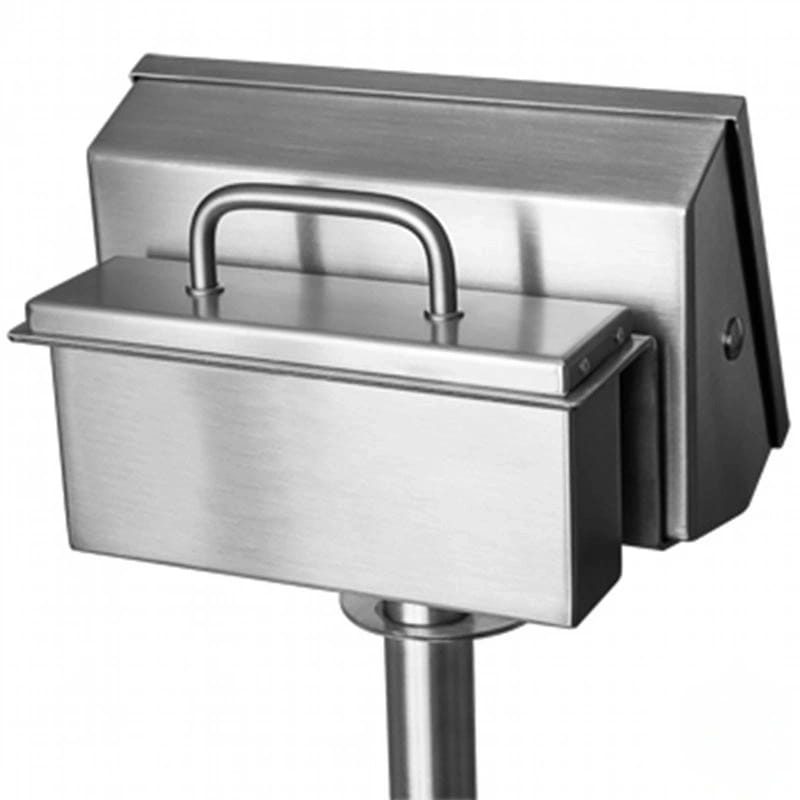

Weight Indicator Features:

  • ATEX Certified for Zone 2/22 Hazardous Areas: This indicator is certified for use in potentially explosive gas and dust atmospheres classified as Zone 2/22:
    • ATEX II 3G Ex nR IIC T6 Gc X for gases (Zone 2)
    • ATEX II 3D Ex tc IIIC T130°C Dc IP68 X for dust (Zone 22)
  • EC-Type-Examination Certified: Compliant with the ATEX directive, this indicator holds an EC-Type-Examination certificate according to Annex III.
  • CE-M Approved for Legal for Trade: Suitable for legal for trade applications, this indicator is CE-M approvable (OIML R-76 / EN 45501).

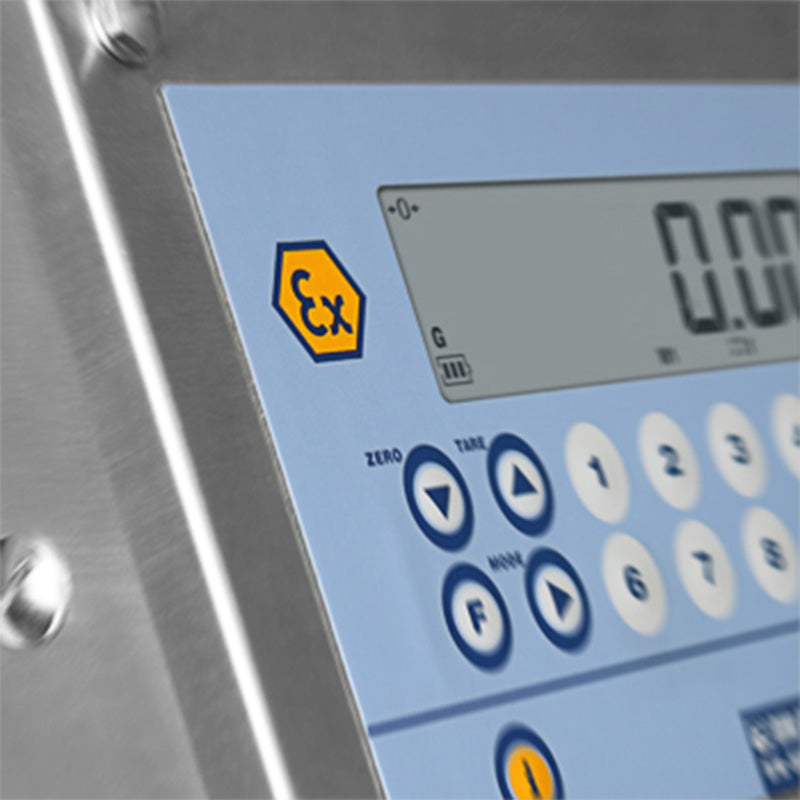

  • Waterproof Keyboard: Features a durable, waterproof 17-key numerical and functional keyboard, ensuring reliable operation in demanding environments.
  • High Resolution and Accuracy: Offers up to 10,000 divisions or multirange 3 x 3,000 divisions at 0.3 µV/d in the CE-M approved version. Provides up to 1,000,000 displayable divisions with an internal resolution of up to 3,000,000 points.
  • Fast and Precise A/D Conversion: Utilizes a 24-bit sigma-delta A/D converter with a high conversion rate of up to 200 conversions per second (autoselect).
  • Extended Battery Operation with Continuous Use Option: Powered by an external battery pack providing up to 100 hours of continuous operation. An additional battery pack can be purchased to enable 24/7 continuous use. A charger is included.
  • IP68 Protection: The indicator boasts an IP68 rating, providing complete protection against dust and prolonged immersion in water.

Scale Features:

  • Functions: Zeroing, Automatic tare, Presettable tare, Selectable function command, On/off switching.
  • Selectable Functioning Mode:
    • High Resolution Weighing x 10
    • Net/Gross or lb/kg conversion
    • Weight totalization
    • Formula weighing
    • +/- Checkweighing
    • Counting (Max. resolution of 1.500.000 divisions)

Certifications:

  • The price includes the ATEX declaration of conformity (DCATEX3GD) and the load cell certificate of conformity (CCATEX)
Specification

Display:  LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures.

Construction: Structure, enclosure and loading plate made in AISI304 stainless steel.

Platform Dimensions:

  • 400x400mm
  • 600x600mm

Power Requirement: Power supply through external battery pack with 100h operating time. It's possible to buy another battery pack for continuous use (24/7).

Downloads

Please click here for the Easy Pesa 3GD ATEX Bench Scales Datasheet

Model

£2,376.90
