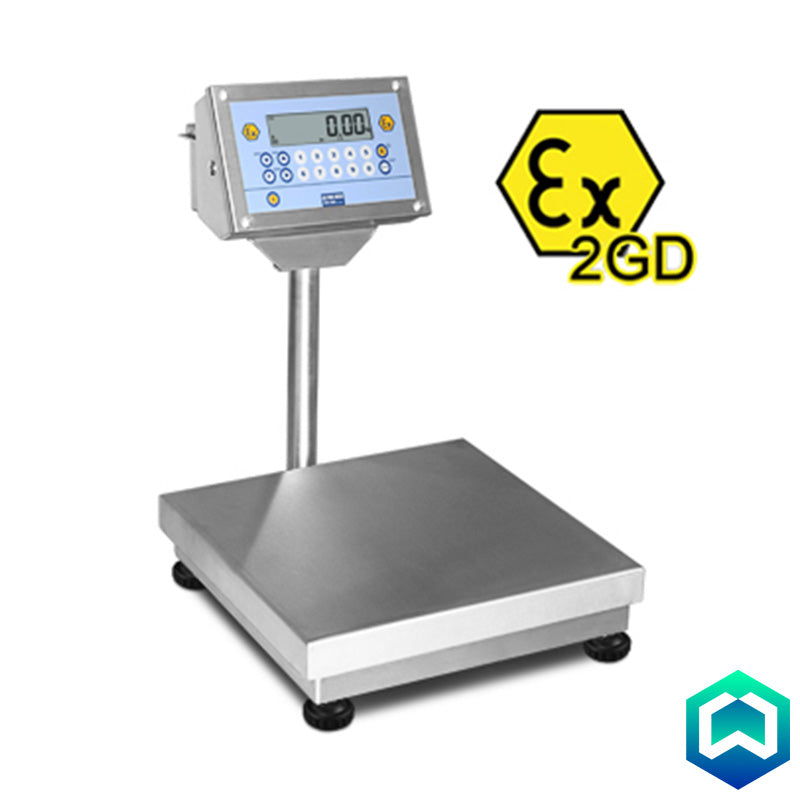

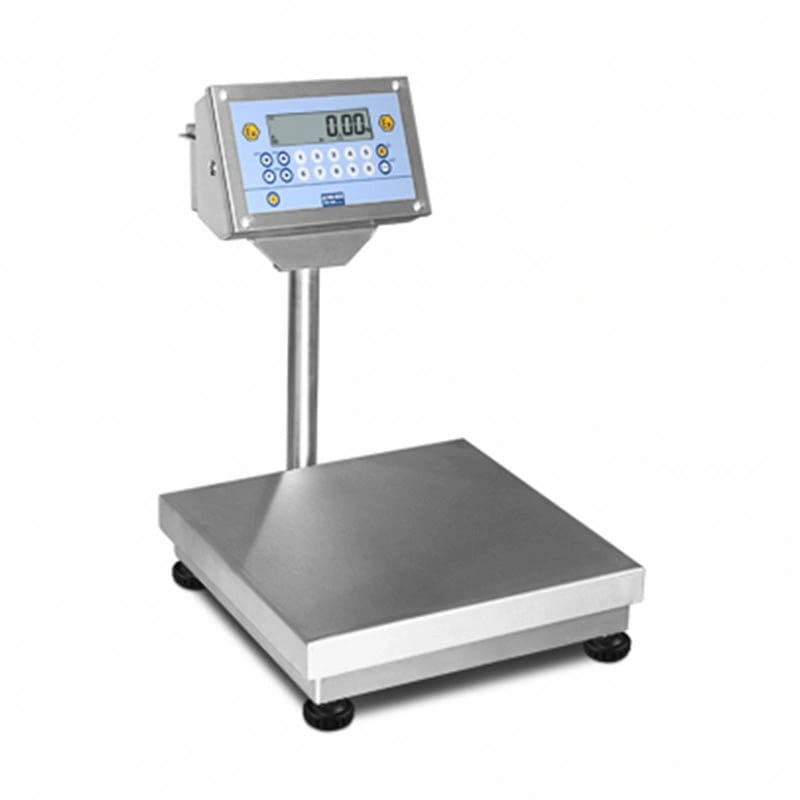

Dini Argeo "Easy Pesa 2GD" Bench Scale for ATEX 1, 21, 2, 22 Zones

The Dini Argeo "Easy Pesa 2GD" ATEX-certified stainless steel bench scale is built for hazardous environments, featuring IP67/IP68 protection for its OIML R60 load cell and indicator. With robust AISI 304 construction and ATEX certifications (II 1G Ex ia IIC T6/TX Ga and II 1D Ex ta IIIC TX°C Da IP65).

Model

£2,736.00
Product Information

Platform Features:

  • Certified Load Cell: Equipped with an OIML R60 approved, single-point stainless steel load cell, ensuring accurate and reliable weighing. The load cell is protected against dust and water splashes according to IP67 standards.
  • ATEX Certified for Hazardous Environments: Suitable for use in potentially explosive atmospheres, this scale boasts comprehensive ATEX certifications:
    • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
    • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65
  • Durable Stainless Steel Construction: The structure, enclosure, and loading plate are all made of AISI 304 stainless steel, providing excellent corrosion resistance and durability in harsh conditions.

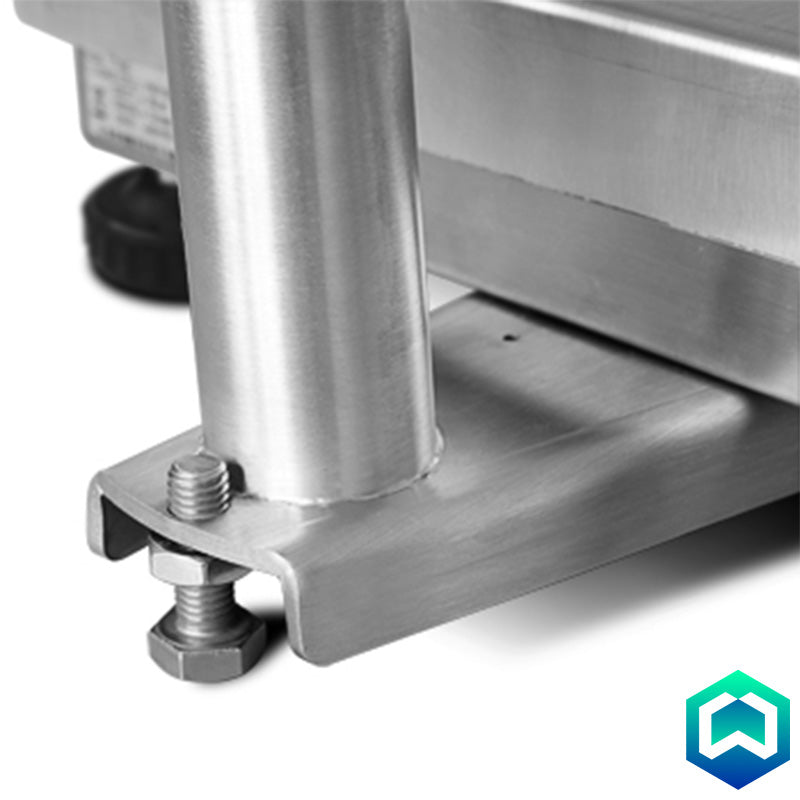

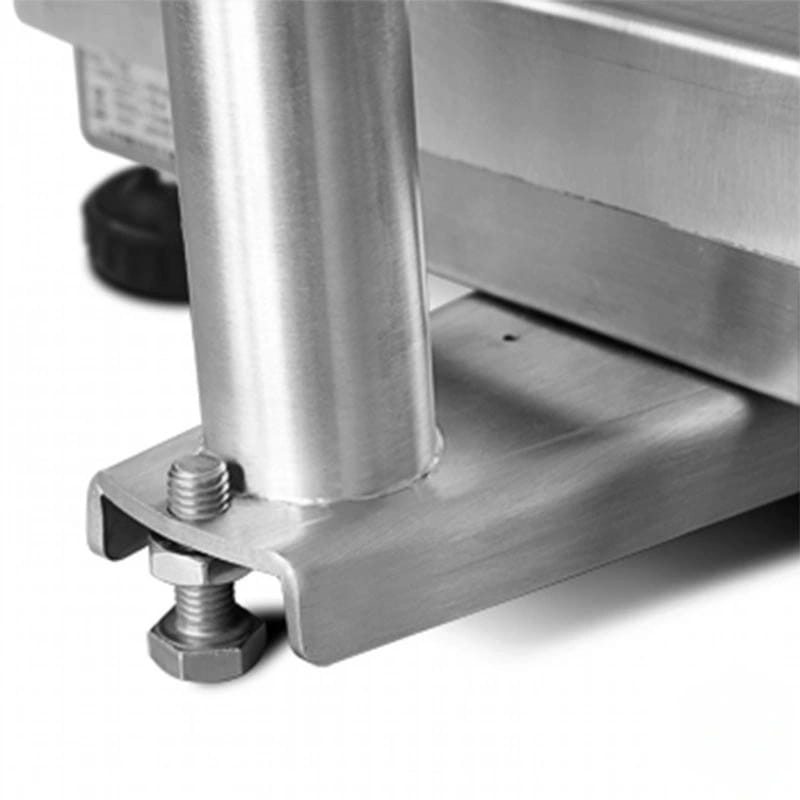

  • Stable and Adjustable: Adjustable leveling feet with plastic overshoes ensure stability on uneven surfaces.
  • Support Column: The scale is supplied with a support column in two height options:
    • 500 mm for "Q" models
    • 700 mm for "X" models

Weight Indicator Features:

  • EC-Type-Examination Certified: Compliant with the ATEX directive, this indicator holds an EC-Type-Examination certificate according to Annex III.
  • CE-M Approved for Legal for Trade: Suitable for legal for trade applications, this indicator is CE-M approvable (OIML R-76 / EN 45501).

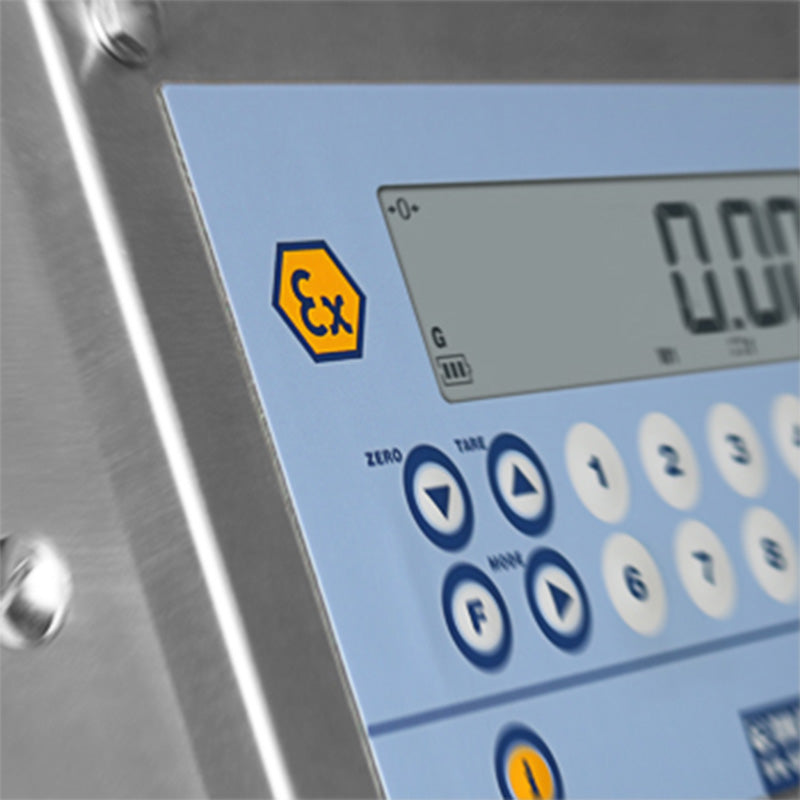

  • Waterproof Keyboard: Features a durable, waterproof 17-key numerical and functional keyboard, ensuring reliable operation in wet or demanding environments.
  • High Resolution and Accuracy: Offers up to 10,000 divisions or multirange 3 x 3,000 divisions at 0.3 µV/d in the CE-M approved version. Provides up to 1,000,000 displayable divisions with an internal resolution of up to 3,000,000 points.
  • Fast and Precise A/D Conversion: Utilizes a 24-bit sigma-delta A/D converter with a conversion rate of up to 100 conversions per second (autoselect).
  • IP68 Protection: The indicator boasts an IP68 rating, providing complete protection against dust and prolonged immersion in water.

Scale Features:

  • Functions: Zeroing, Automatic tare, Presettable tare, Selectable function command, On/off switching.
  • Selectable Functioning Mode:
    • High Resolution Weighing x 10
    • Net/Gross or lb/kg conversion
    • Weight totalization
    • Formula weighing
    • +/- Checkweighing
    • Counting (Max. resolution of 1.500.000 divisions)

Certifications:

  • The price includes the ATEX declaration of conformity (DCATEX2GD) and the load cell certificate of conformity (CCATEX).
Specification

Display:  LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions.

Construction: Structure, enclosure and loading plate made in AISI304 stainless steel.

Platform Dimensions:

  • 400x400mm
  • 600x600mm

Power Requirement: Power supply through external battery pack with 160h operating time. An extra battery pack for continuous use (24/7) is available as option

Downloads

Please click here for the Easy Pesa 2GD ATEX Bench Scales Datasheet
