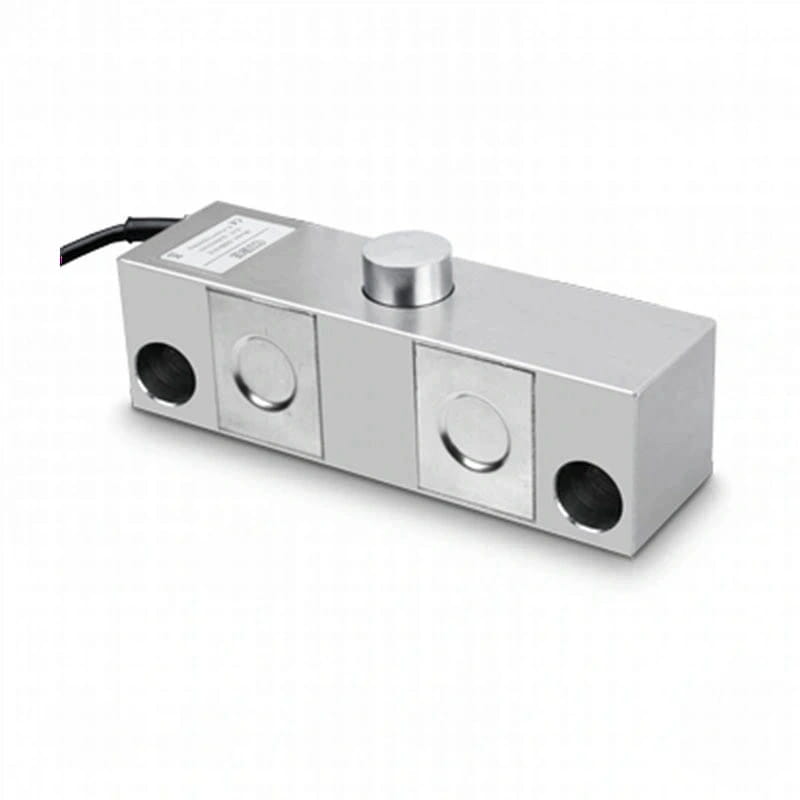

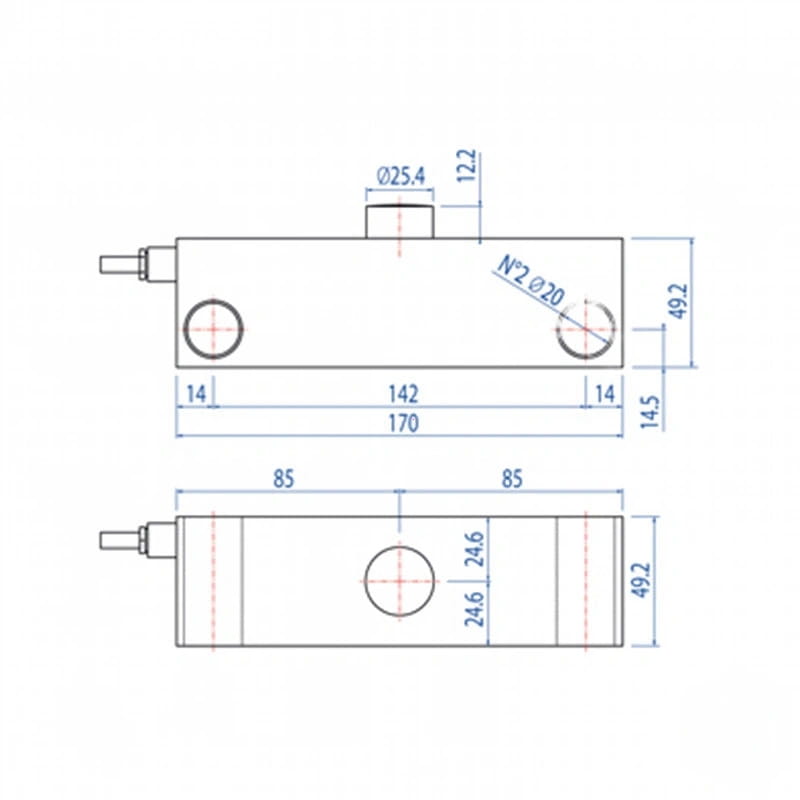

DSBI Double Ended Shear Beam Load Cell

TECHNICAL FEATURES

• C4 PRECISION CLASS
• 17-4 PH STAINLESS STEEL CONSTRUCTION
• IP68 PROTECTION
• MAX. CAPACITIES FROM 10000 TO 30000 kg
• SHIELDED CONNECTION CABLE
• TEST CERTIFICATE AVAILABLE UPON REQUEST

MAIN FEATURES

• Minimum load cell verification interval: Vmin = EMax / 10.000
• Combined error 0,03% of Full Scale Output (F.S.)
• Full Scale Output: 2mV/V +/- 0,1%
• Temperature effect on zero: 0,00116% /°C
• Temperature effect on full scale output: 0,00097% /°C
• Compensated Temperature Range: -10°C/+40°C
• Operating Temperature Range: -30°C/+85°C
• Creep error after 30 minutes: <0,02% F.S.
• Maximum tolerated excitation voltage: 15 VDC
• Input Resistance: 700 ± 7 Ohm
• Output Resistance: 700 ± 7 Ohm
• Zero Balance: +/- 1% F.S.
• Insulation Resistance: >5000 MOhm
• Safe Overload: 150% F.S.
• Ultimate Overload: 300% F.S.
• 6-wire shielded cable, 15m long

ATEX VERSION

• The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
  ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
  ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
  The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
• IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Please click here for data sheet.....
