Dini Argeo WWSF Vehicle & Axle Weighing System

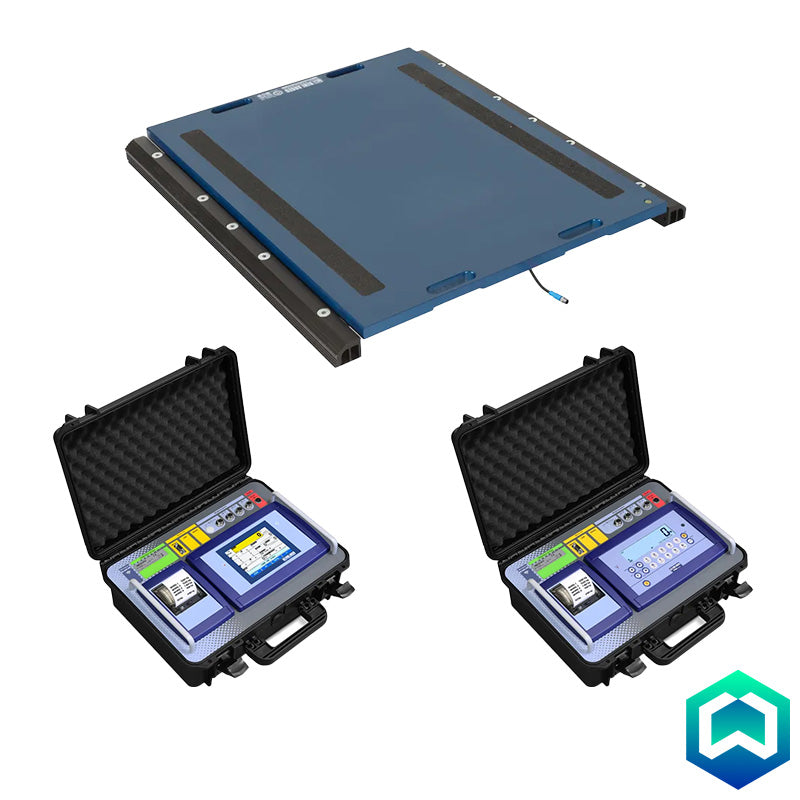

The WWSF is the heavy-duty flagship of the Dini Argeo WWS portable vehicle weighing range, engineered for accurate on-site weight measurement of the largest road vehicles — including lorries, tractor-trailers, and heavy goods vehicles up to 25 tonnes per axle. With a 750 x 515 mm loading surface and robust aluminium construction at approximately 67 kg per pad, the WWSF delivers the platform area and structural integrity demanded by high-capacity weighing operations. Configure the system with 2 to 4 weigh pads and select either the Standard or Dynamic touchscreen weight indicator.

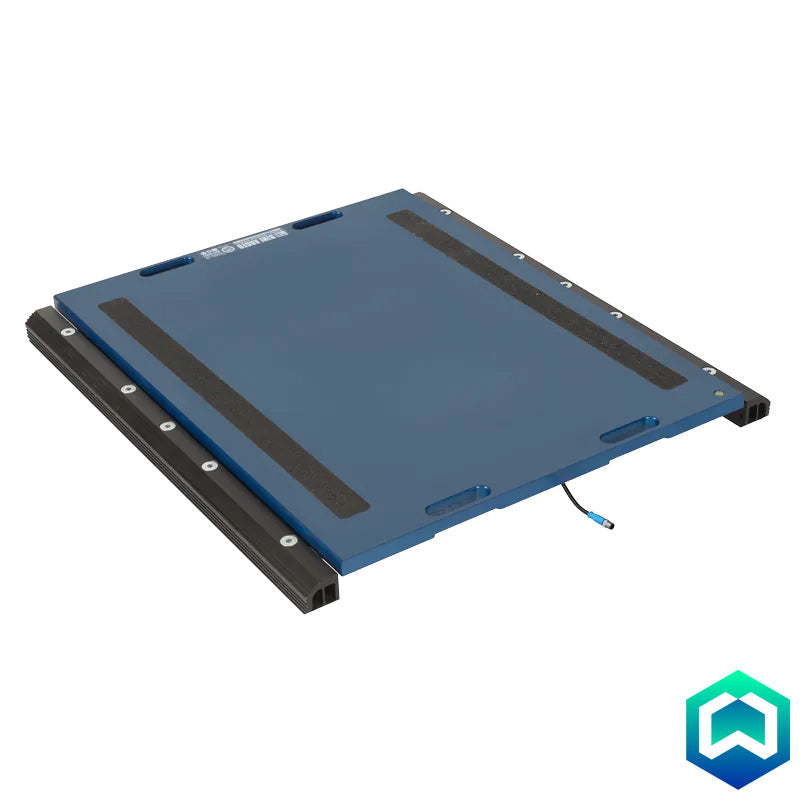

Weigh Pad Features

• Large 750 x 515 mm loading surface — engineered for lorries, tractor-trailers, and HGVs up to 25T
• Heavy-duty aluminium construction — approx. 67 kg per pad
• Non-slip rubber surface for safe, stable vehicle positioning
• IP68-rated waterproof load cells and junction box
• Integrated wheels and handles for transport between sites
• Available in Legal for Trade (OIML) and high-resolution versions

Standard Weight Indicator (DFWKR)

• Robust & portable: Waterproof keypad, metal enclosure, rechargeable battery, and carry case
• High precision: Up to 10,000e accuracy with 3,000,000 internal resolution
• Versatile connectivity: Supports up to 8 load cells across multiple platforms and axles
• Comprehensive weighing: Individual wheel, axle, and total vehicle weight with barycenter (centre of gravity) calculation
• Built-in thermal printer: On-demand weight records at the point of measurement

Dynamic Touchscreen Indicator (3590ETKR)

• Intuitive touchscreen: Customisable screens and multilingual support
• Advanced data management: Built-in alibi memory, internal storage, and SD card slot
• Multiple connectivity options: Serial ports for printers, PCs, and peripheral devices; optional I/O
• Battery powered: Fully portable for remote and on-site applications
• Built-in thermal printer: Detailed weight records with every measurement

Standard vs Dynamic — At a Glance

Certifications

• EC Type Approval (EN45501)
• OIML R76
• OIML R51 – MID (Dynamic indicator)
• OIML R134 (AF09) — dynamic vehicle weighing (Dynamic indicator)

Legal for Trade Notes

• Platforms are approved for legal for trade use in single-platform systems (not for vehicle weighing), wheel weighing systems (pads equal to number of wheels), and axle weighing systems using one or more multiples of WWS platforms
• Axle weighing systems with 2 WWS platforms and a 3590E "AF09" indicator are OIML R134 certified for dynamic vehicle weighing
• Legal for trade divisions require the ECEM option per platform
• Example for a 4-pad system: Single CE-M Platform Max = 1,500 kg, e = 0.5 kg | CE-M SUM Max = 6,000 kg, e = 2 kg

Need help specifying the right configuration? Contact our team for expert guidance.
